Pyrometer PCE-889B

Order no.: PCE-889B
GTIN (EAN): 4250348715036
£ 143.00
£ 171.60
price ex. (VAT / delivery)
:
4250348715036
PCE-889B
Delivery time: 1-2 working days
Handheld
30:1
-50 ... 1000 °C / -58 ... 1832 °F
No
No

Description

Pyrometer for non-contact temperature measurement / Adjustable emissivity /
Optical resolution 30:1 / Measuring range of -50 ... 1000°C / -58 ... 1832°F
Double laser aiming / Maximum value display

The pyrometer is suitable for private and industrial use because of its price-performance ratio. A pyrometer is a contactless measuring device. The bright laser dots from pyrometersare clearly visible and provide easier temperature measurement from a distance. The spot size ratio allows the user to make even the most remote measurements. The emissivity of the pyrometer is adjustable.

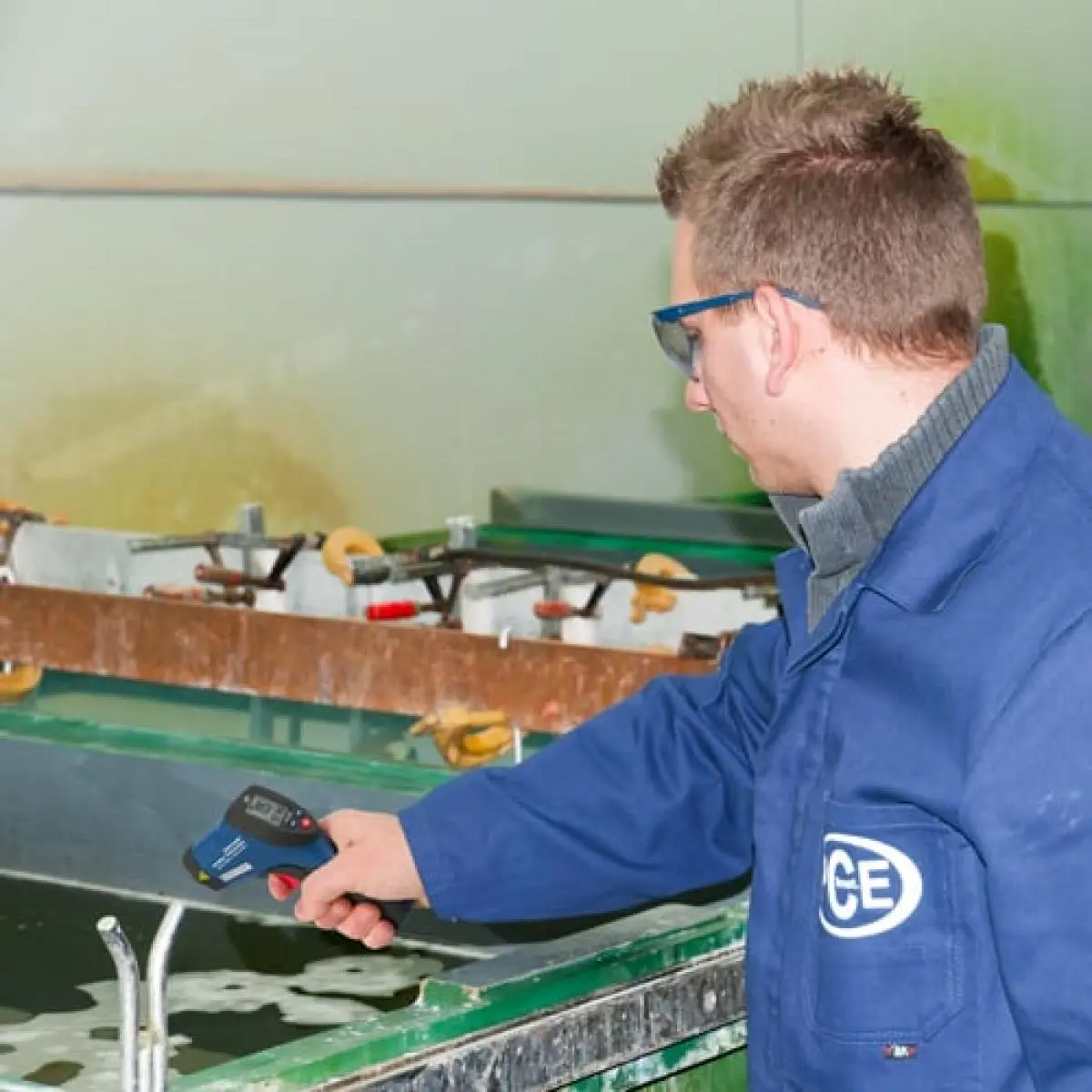

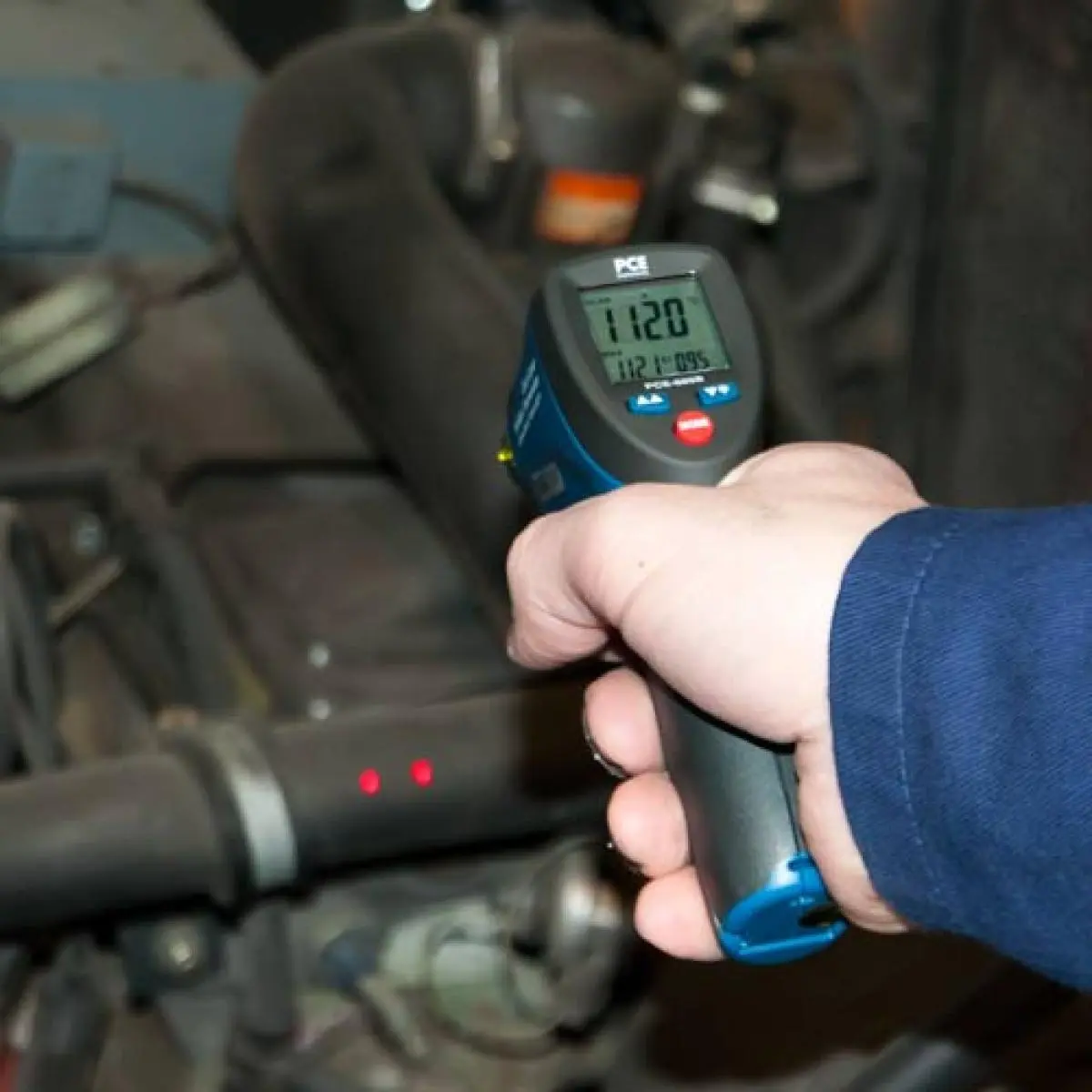

The temperature range that is measurable is between -50 and 1000°C / -58 and 1832°F. Thus, a large area is covered and this is also the reason why thepyrometer is so versatile. The operational area of the pyrometer is quite large. This equipment can be used in many processes of industry, handicrafts, trade and hobbies. Thus, the pyrometer can be used for maintenance of manufacturing facilities. It also helps to ensure the cold chain, and is used for the temperature checking of work pieces.


Highlights

- Optical resolution 30:1
- Measuring range of -50 ... 1000°C / -58 ... 1832°F
- Maximum value display
- Adjustable emissivity
- Double laser aiming
- Backlit display

Specification

Measuring ranges-50 ... 1000°C / -58 ... 1832°F
Resolution0.1°C / 0.18°F
Accuracy± 1%
Response time<150 ms
Ratio of measuring distance to spot size 30:1
Adjustable emissivity, depending on the material  0.1 ... 1.0
Spectral range8 ... 14 µm
Visible laser beams for sightingDouble laser (class 2)
Dimensions146 x 104 x 43 mm / 5.7 x 4.1 x 1.7 in
Weight163 g / < 1 lb
Temperature units°C / °F
Display functionsHOLD function, automatic shutdown,
maximum value display
BacklightYes
Indicator if temperature is exceededYes
Duration measurement functionYes
Alarm outputYes
Power supply9V block battery

Delivery Scope

1 x Pyrometer PCE-889B
1 x Battery
1 x Instruction manual
