Pyrometer PCE-JR 911

Order no.: PCE-JR 911
GTIN (EAN): 4250348701657
£ 420.00
£ 504.00
price ex. (VAT / delivery)
:
4250348701657
PCE-JR 911
Delivery time: 1-2 working days
Handheld
8:1
-40 ... 500 °C / -40 ... 932 °F
Yes (integrated)
Yes (RS-232)

Accessory

ISO Calibration Certificate for Infrared Thermometer
ISO Calibration Certificate for Infrared Thermometer
£ 108.00
Adaptor RS-232 to USB
Adaptor RS-232 to USB
£ 29.00
PCE-MS 25 Measuring Point Sticker
PCE-MS 25 Measuring Point Sticker
£ 13.00
Mini Tripod for Various Measuring Devices
Mini Tripod for Various Measuring Devices
£ 14.00
Tripod STAT
Tripod STAT
£ 56.00
Power Supply Unit 300mA
Power Supply Unit 300mA
£ 22.00
Printer paper for PCE-JR 911
Printer paper for PCE-JR 911
£ 21.00

Description

Thermometer with Thermometer, internal memory,
software, data cable and integrated printer.

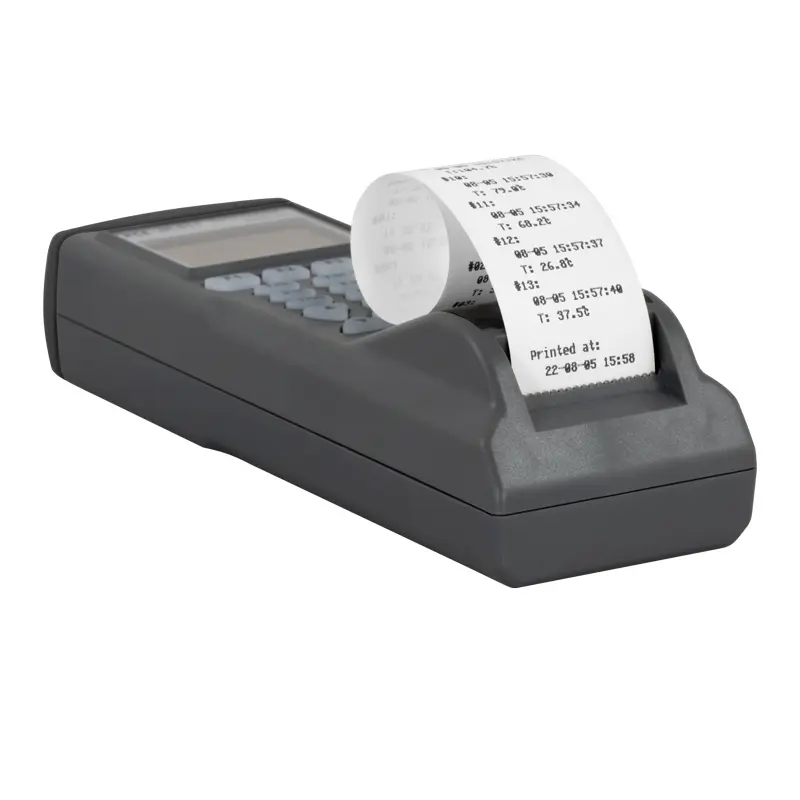

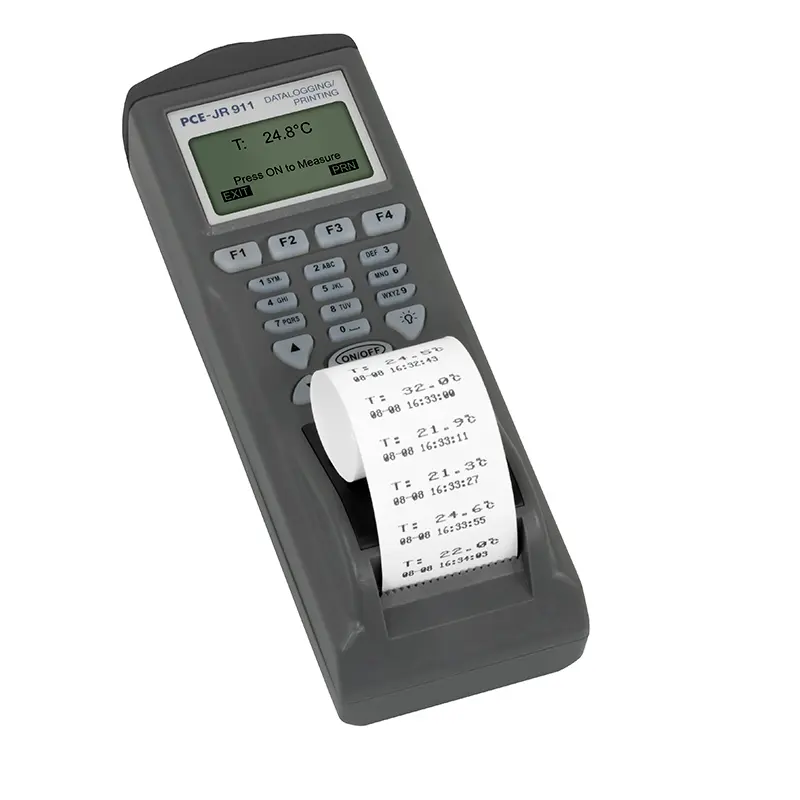

The PCE-JR-911 Thermometer with Thermometer is a versatile tool in that it can measure the temperature of objects without contact and readings can be stored in memory and transferred to a computer by way of its RS-232 interface and software. This Thermometer comes complete with a Thermometer, allowing the user to program specific time intervals for taking measurements, such as over an entire week. Once a series of measurements have been taken, this data can be transferred to a computer for analysis. Incorporated in the thermometer is a small thermal printer so the user can print readings instantly. Another characteristic is the possibility to designate 99 measurement positions to allow for them to be clearly classified.

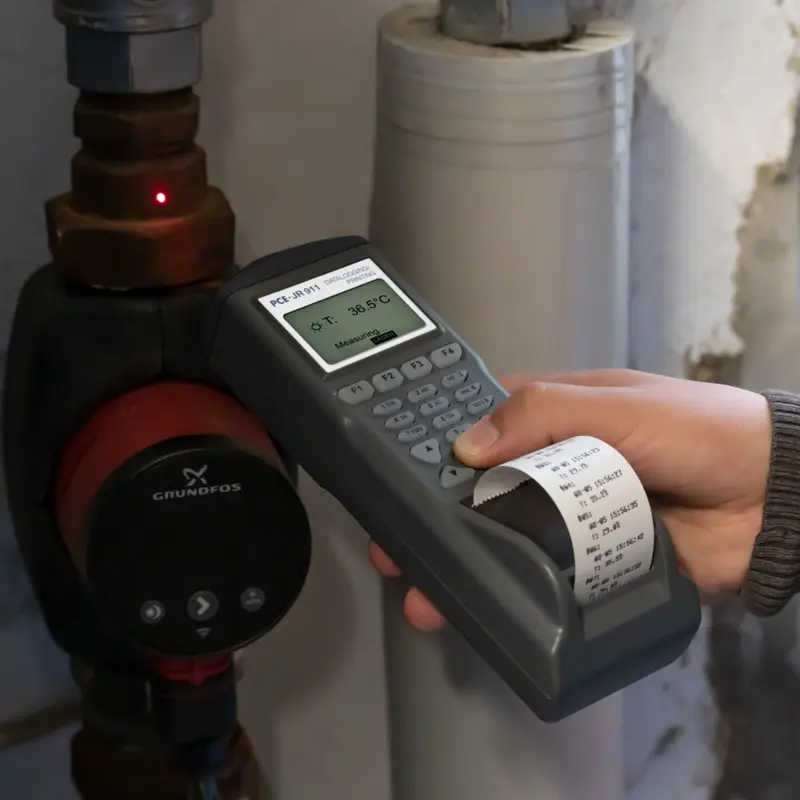

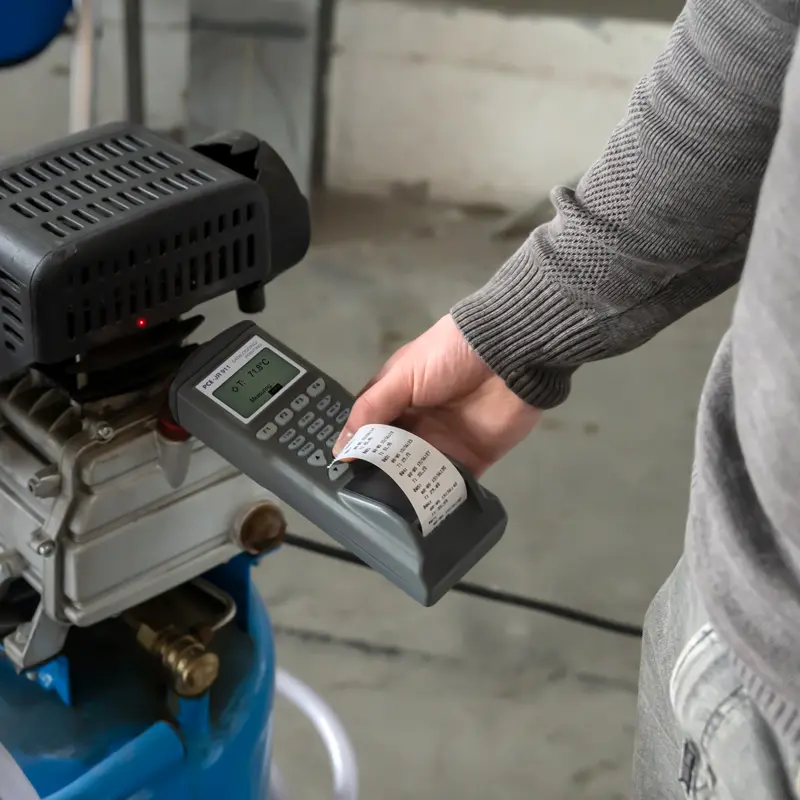

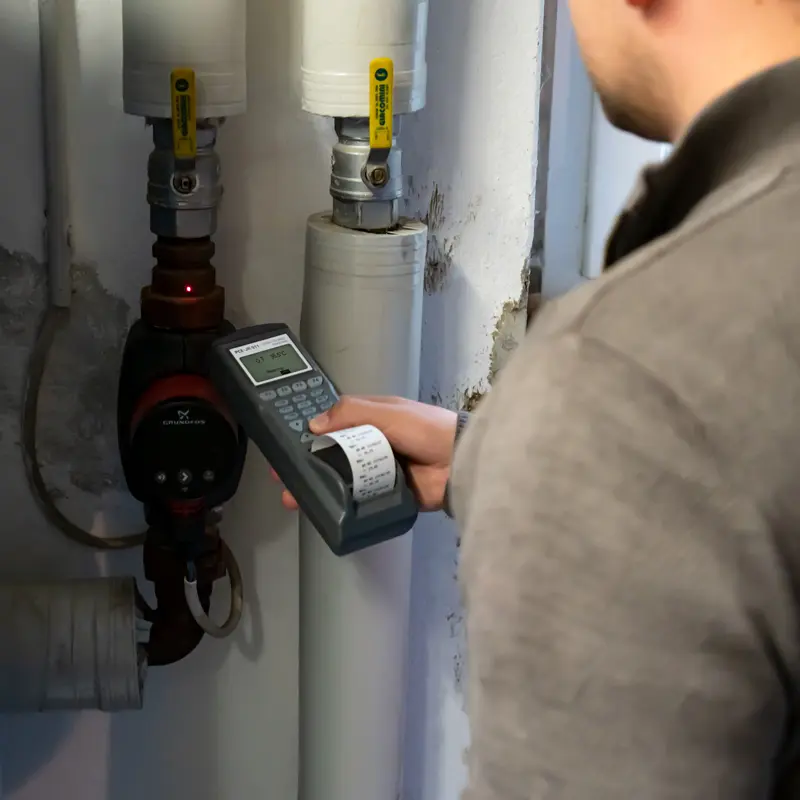

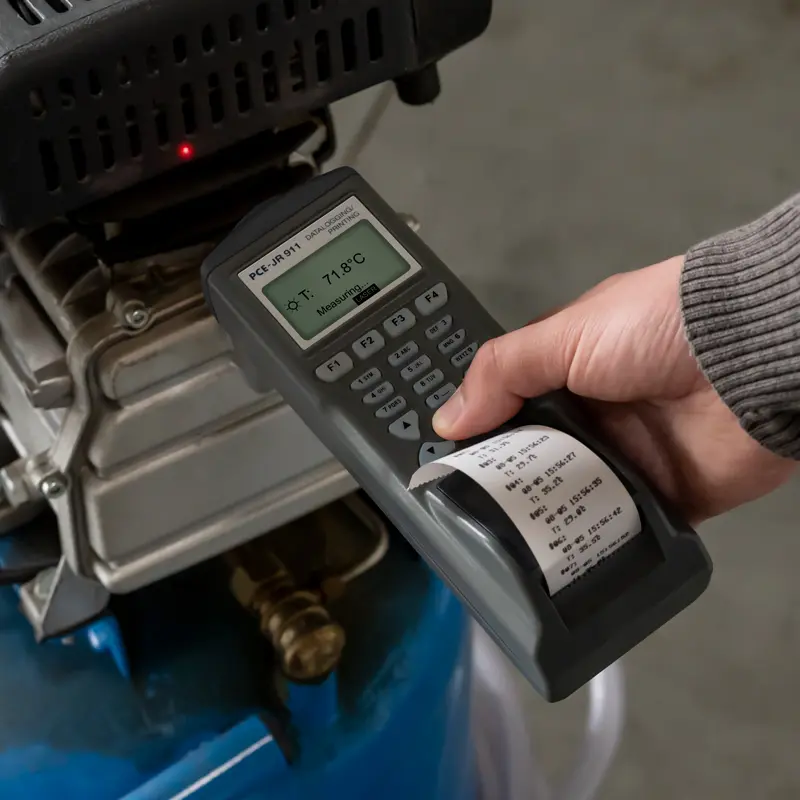

The Thermometer's emissivity can be adjusted between 0.3 and 1.0, depending on the surface material. The visible pointer allows for the object being measured to be targeted with accuracy. Due to its multiple capabilities, this Thermometer is used in many different sectors including the industrial and food sectors as well as research and development.

The Thermometer is shipped with a factory calibration. An ISO calibration can be ordered separately. Its many components provide the Thermometer with a multitude of uses. Optional components include a tripod, an RS-232 to USB adapter and replacement rolls of paper for the printer.




Highlights

- Easy to use
- Adjustable date and time
- Printer, memory and Thermometer integrated
- RS-232 interface
- Thermometer for up to 1200 readings
- Possibility to designate 99 measurement positions
- Software with RS-232 cable

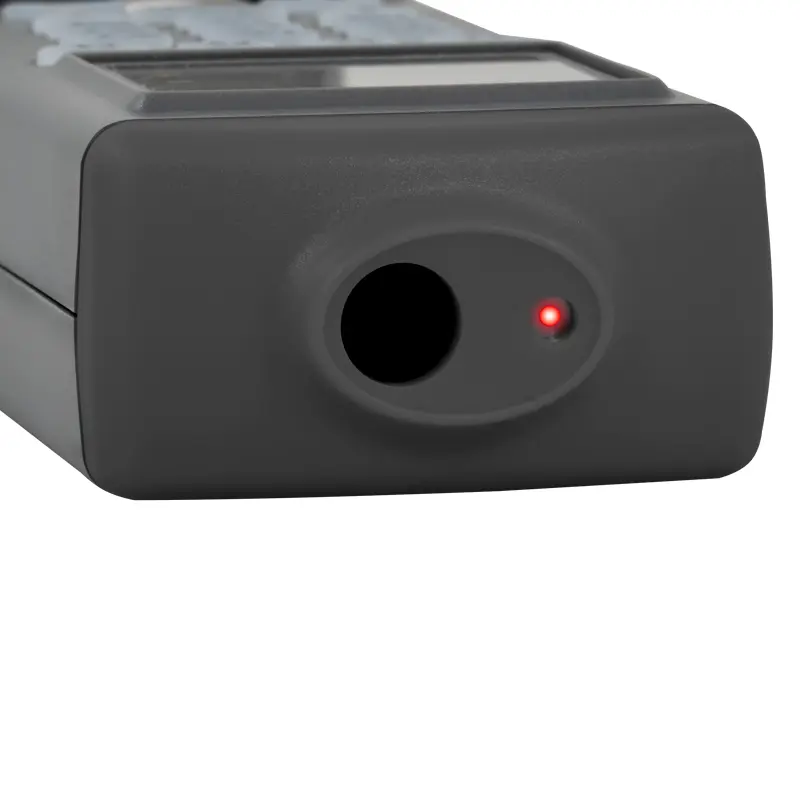

- Infrared point for accuracy
- Adjustable emissivity
- Can be mounted on a tripod
- Backlit display
- Auto shut-off function
- Modes of operation:
- Measurement and printing of data
- Measurement and printing of data in tables
- Measurement time intervals over a long duration, readings transferred to a computer

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Temperature range-40 to 500°C / -40 ... 932°F
Resolution0.1°C / 0.18°F
Accuracy±2% of reading or ±2°C / 3.6°F
(the highest value is valid)
Emissivity0.3 ... 1.0 (adjustable)

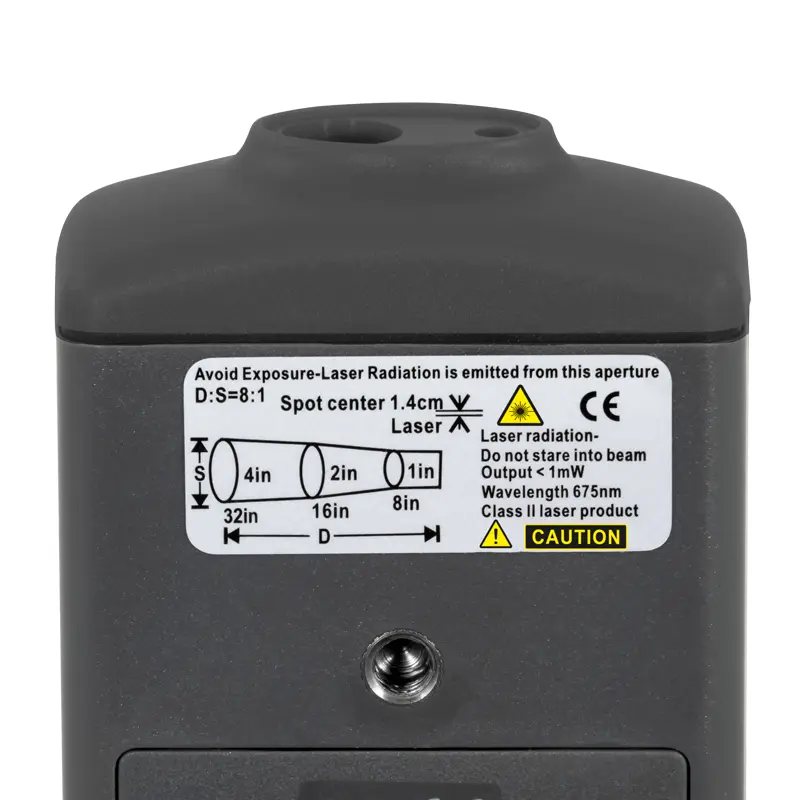

Optical resolution8:1
Response time0.2 seconds
Memory1200 readings

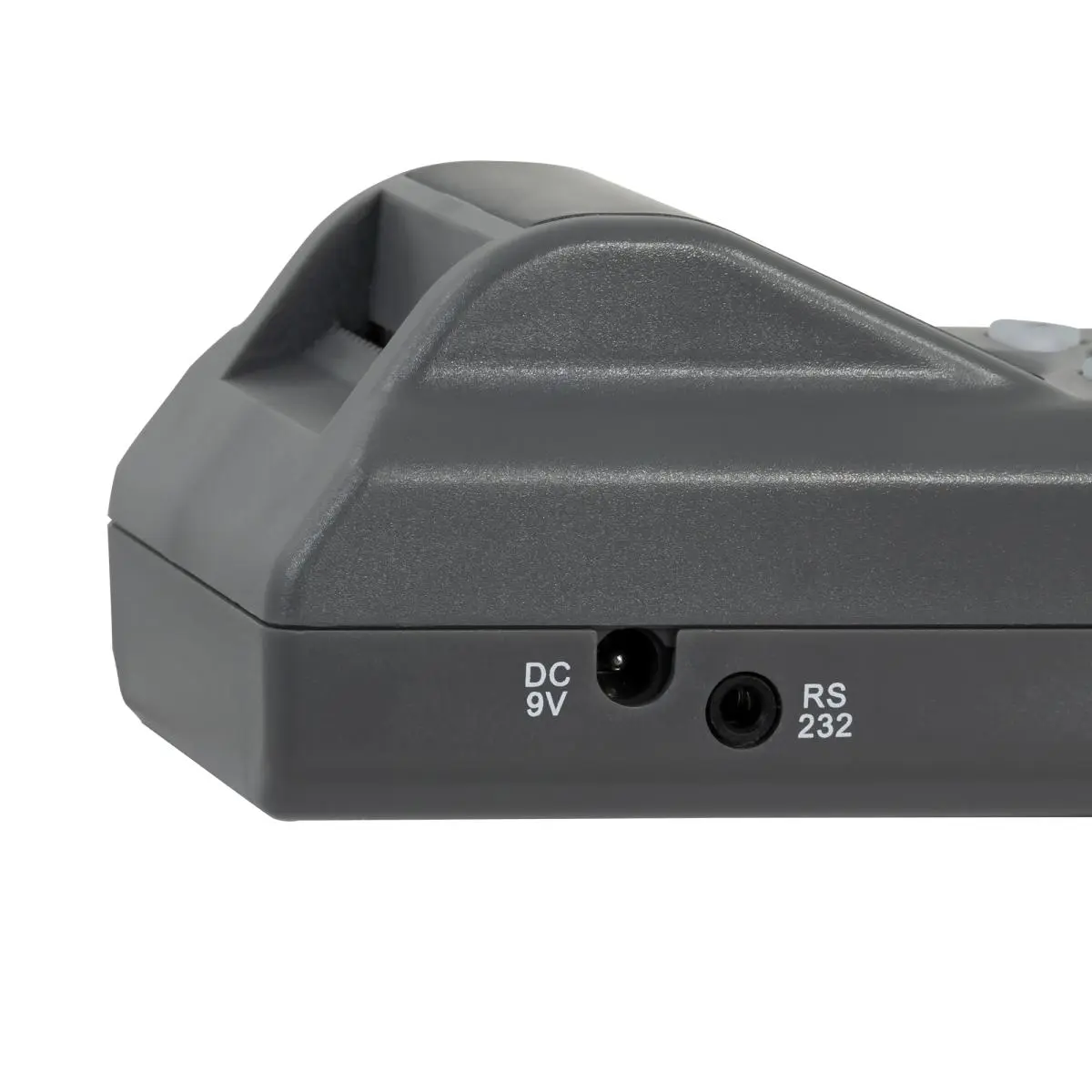

InterfaceRS-232 (optional RS-232 to USB adaptor available)
Measurement interval(adjustable)
PrinterIntegrated thermal printer,
38 mm / 1.5 in wide
for 28 x 30 mm / 1.1 x 1.2 in paper

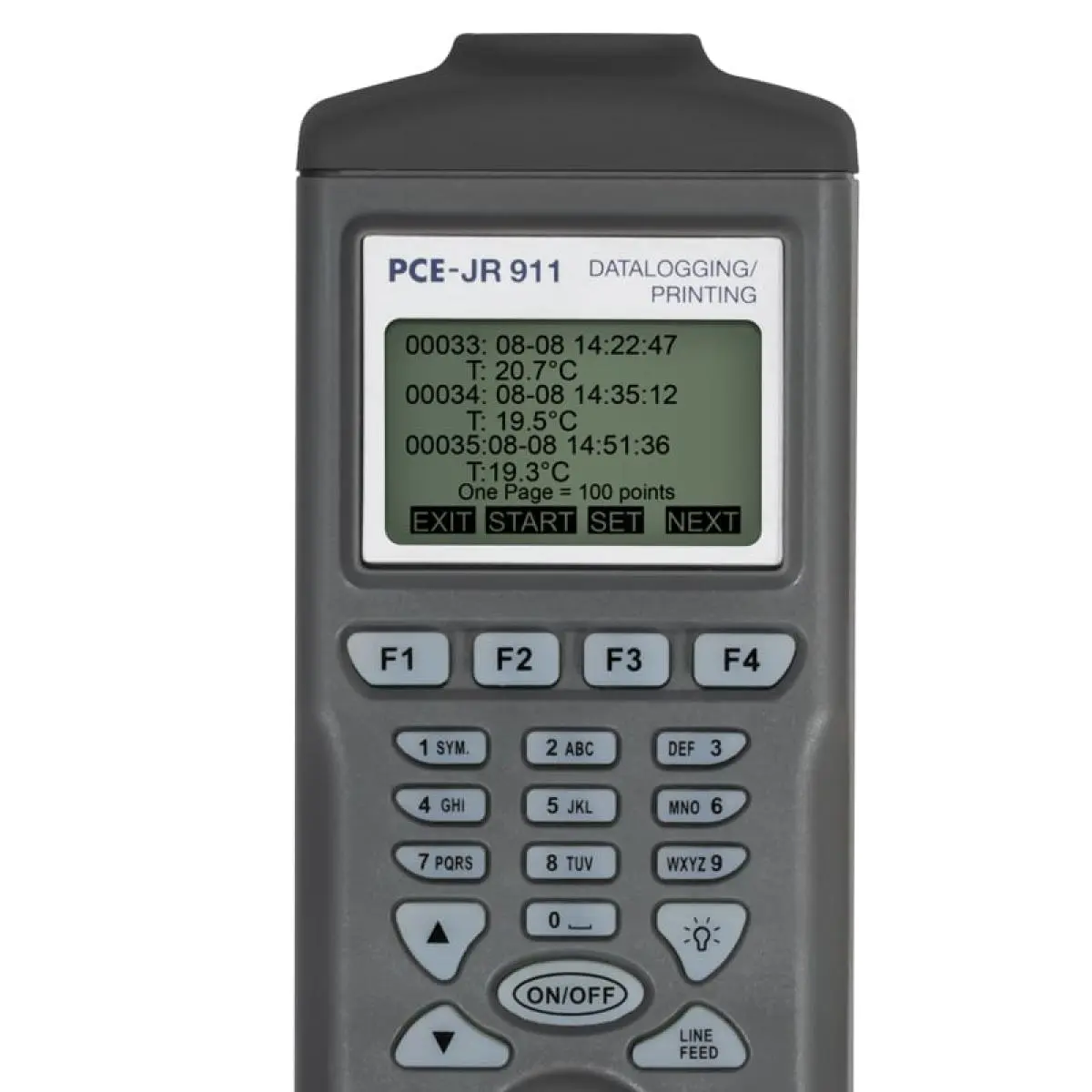

DisplayLCD
Power4 AA batteries
or optional mains adaptor
Dimensions208 x 70 x 53 mm / 8.2 x 2.8 x 2 in
Weight260 g / < 1 lb

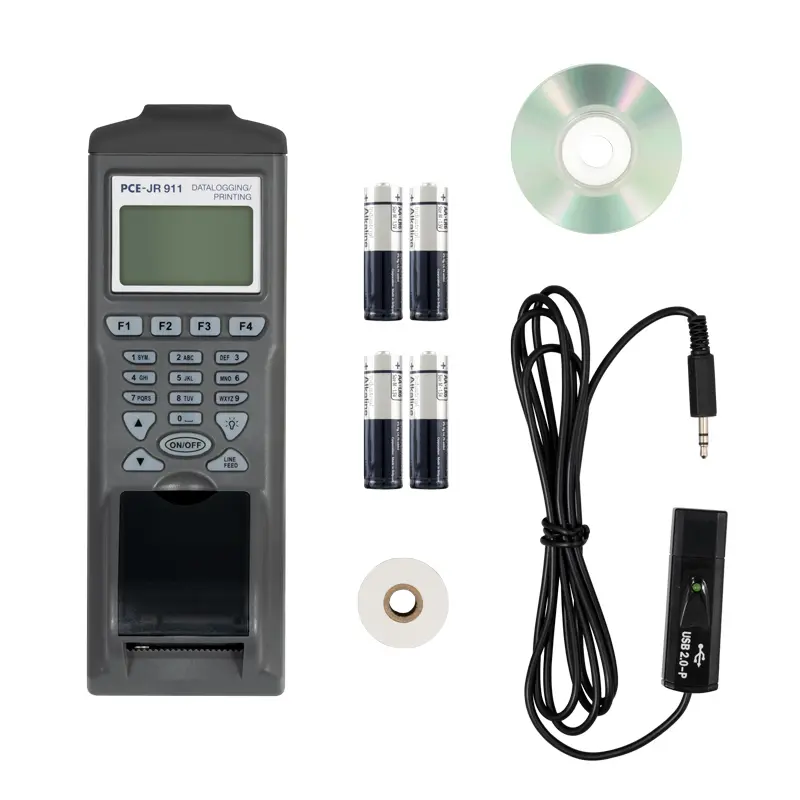

Delivery Scope

1 x PCE-JR 911 Pyrometer
1 x Carrying case
4 x Batteries
1 x Roll of paper
1 x Software for Windows
1 x RS-232 cable
1 x User's manual
