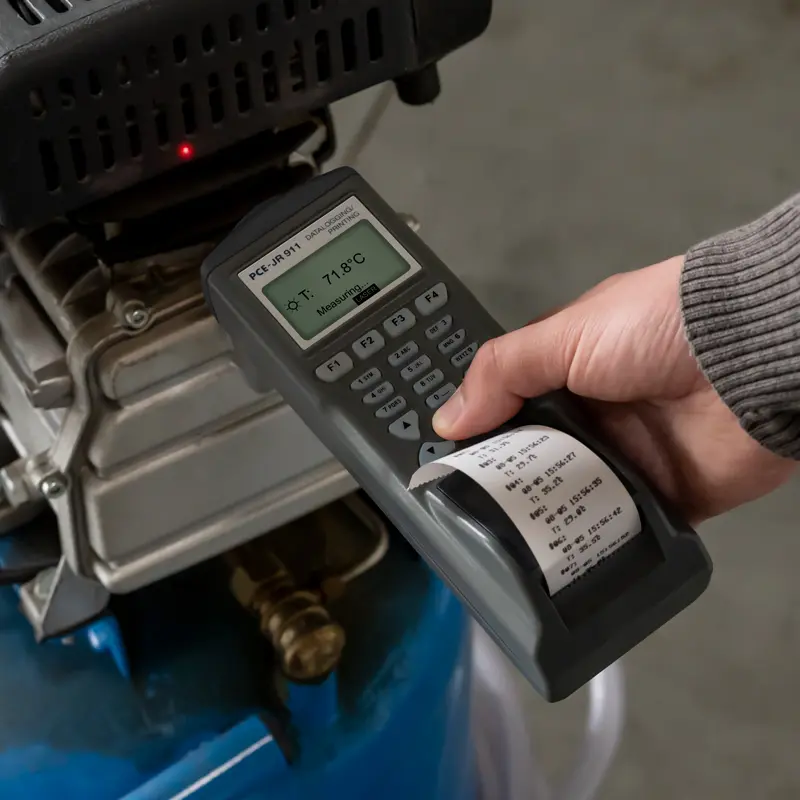

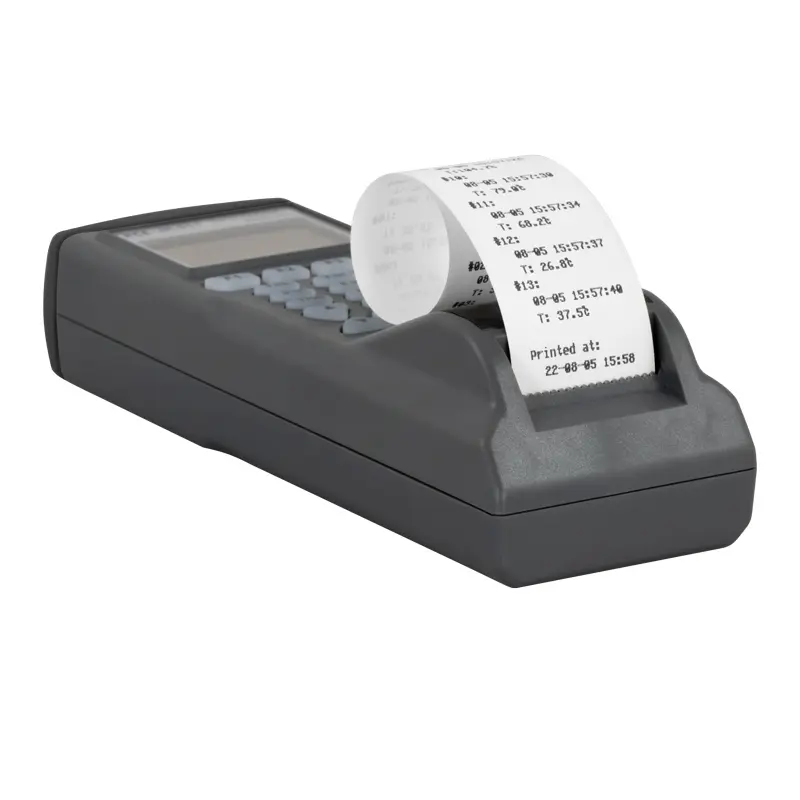

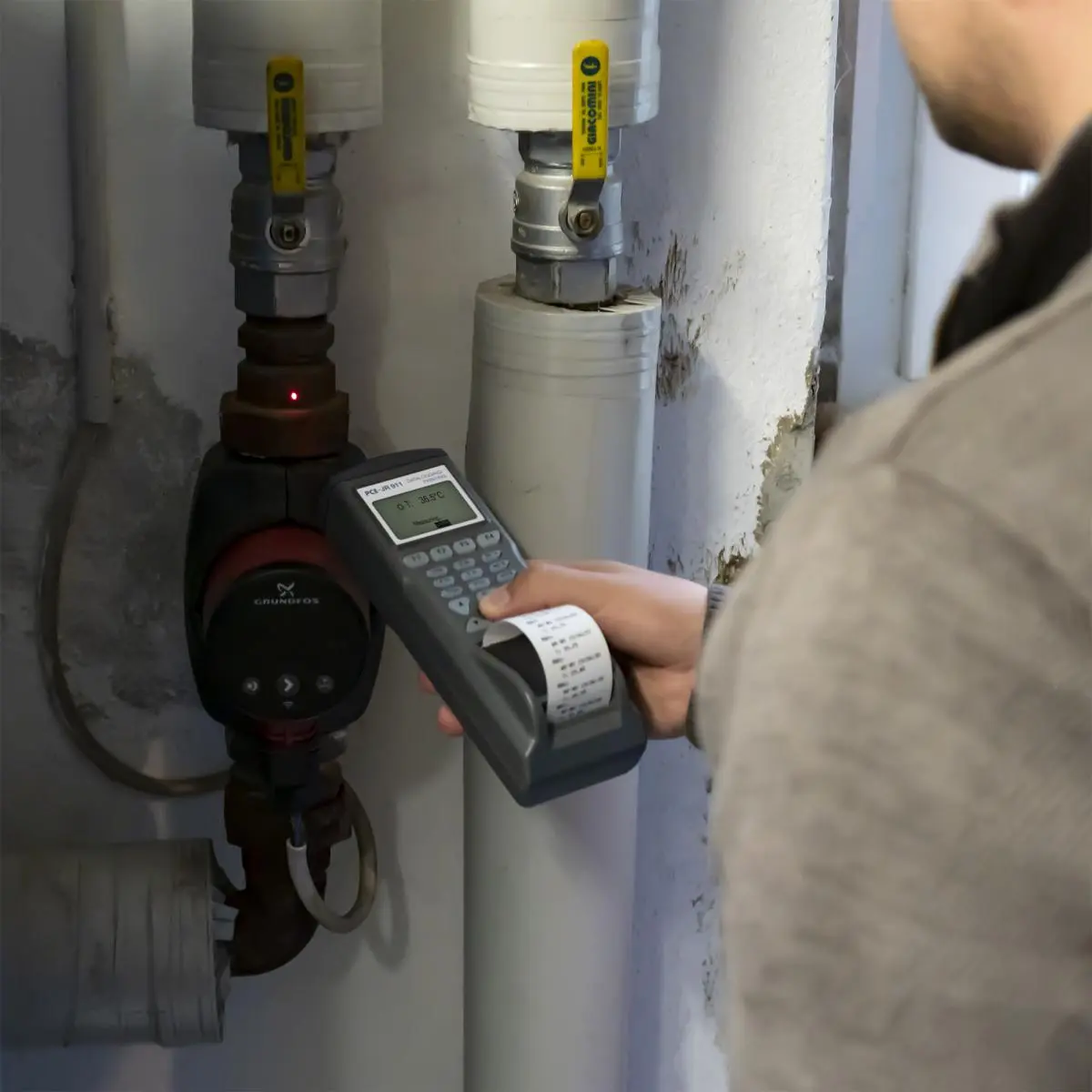

The Pyrometer with data-logger is a versatile tool in that it can measure the temperature of objects without contact and readings can be stored in memory and transferred to a computer by way of its RS-232 interface and software. This infrared thermometer comes complete with a data-logger, allowing the user to program specific time intervals for taking measurements, such as over an entire week. Once a series of measurements have been taken, this data can be transferred to a computer for analysis. Incorporated in the thermometer is a small thermal printer so the user can print readings instantly. Another characteristic is the possibility to designate 99 measurement positions to allow for them to be clearly classified.

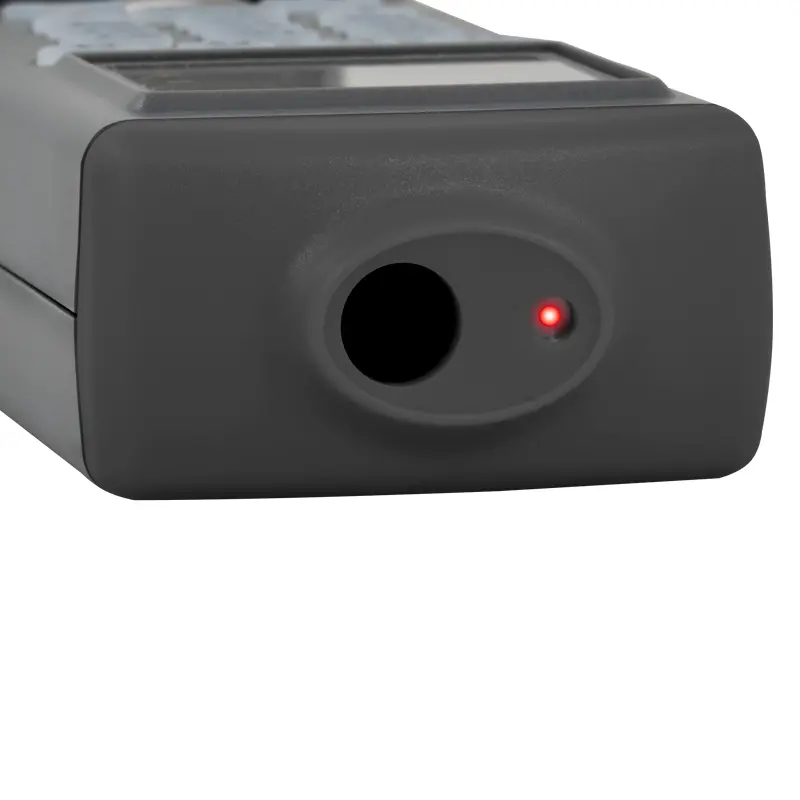

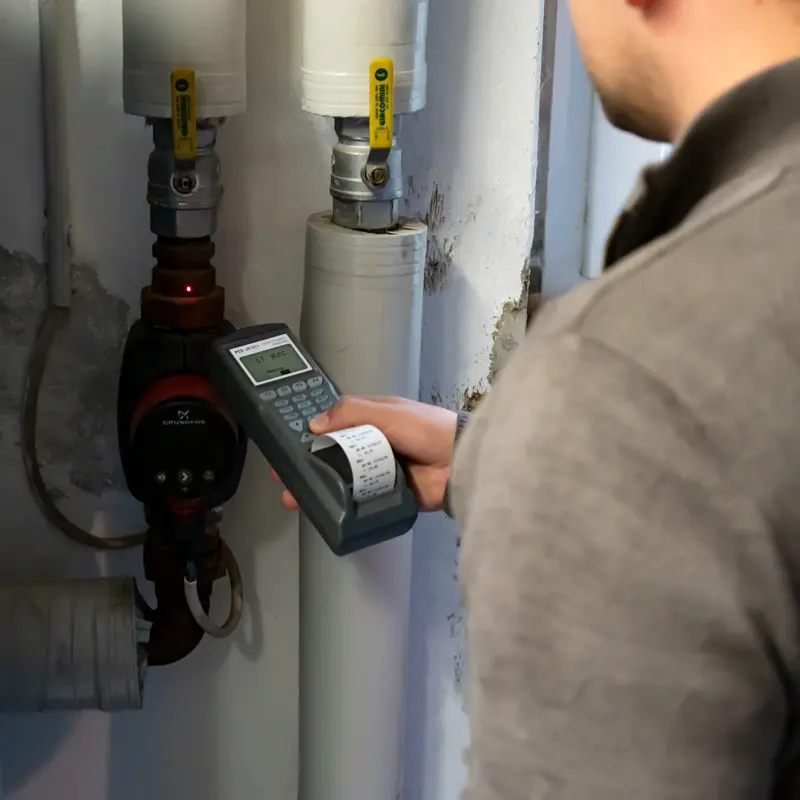

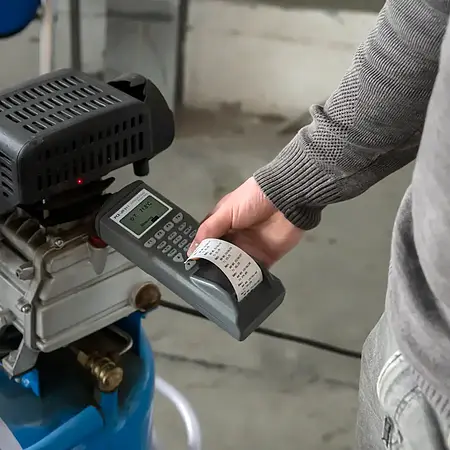

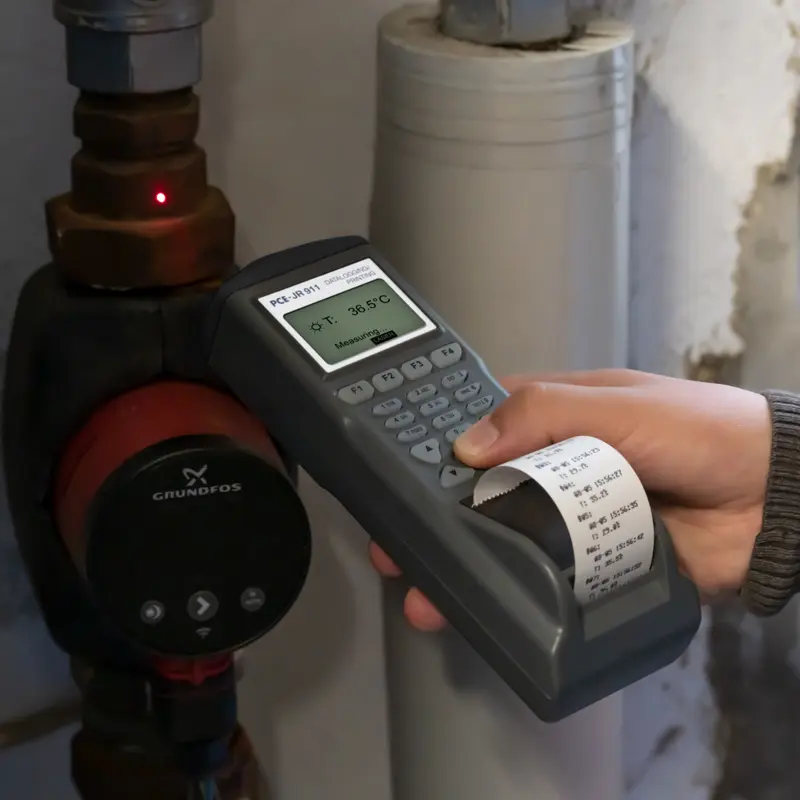

The Pyrometer's emissivity can be adjusted between 0.3 and 1.0, depending on the surface material. The visible pointer allows for the object being measured to be targetted with accuracy. Due to its multiple capabilities, this infrared thermometer is used in many different sectors including the industrial and food sectors as well as research and development.
The many components provide the Pyrometer with a multitude of uses. Optional components include a tripod, an RS-232 to USB adaptor and replacement rolls of paper for the printer.
Temperature range | -40 to 500°C / -40 ... 932°F |
Resolution | 0.1°C / 0.18°F |
Accuracy | ±2% of reading or ±2°C / 3.6°F (the highest value is valid) |
Emissivity | 0.3 ... 1.0 (adjustable) |

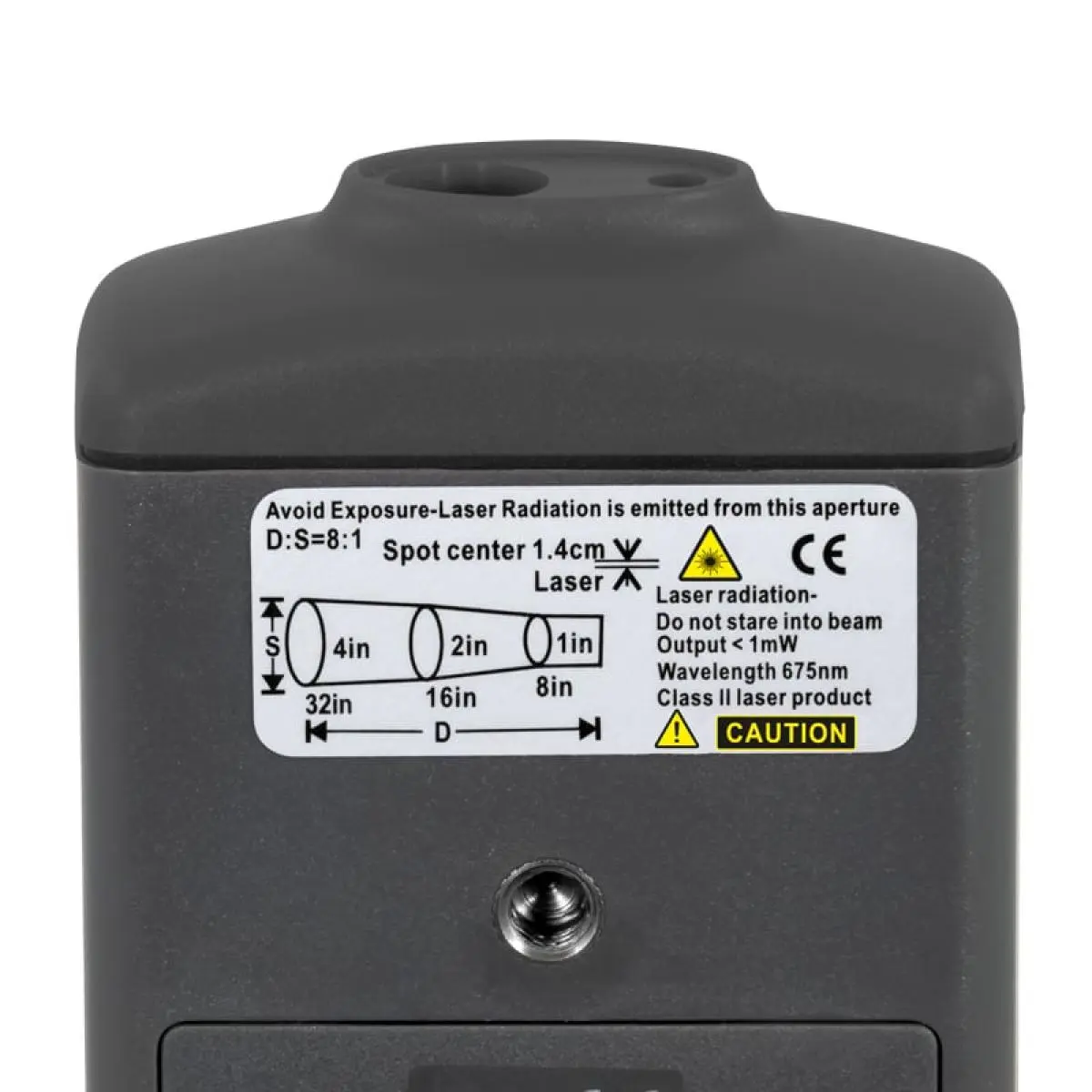

Optical resolution | 8:1 |
Response time | 0.2 seconds |
Memory | 1200 readings |

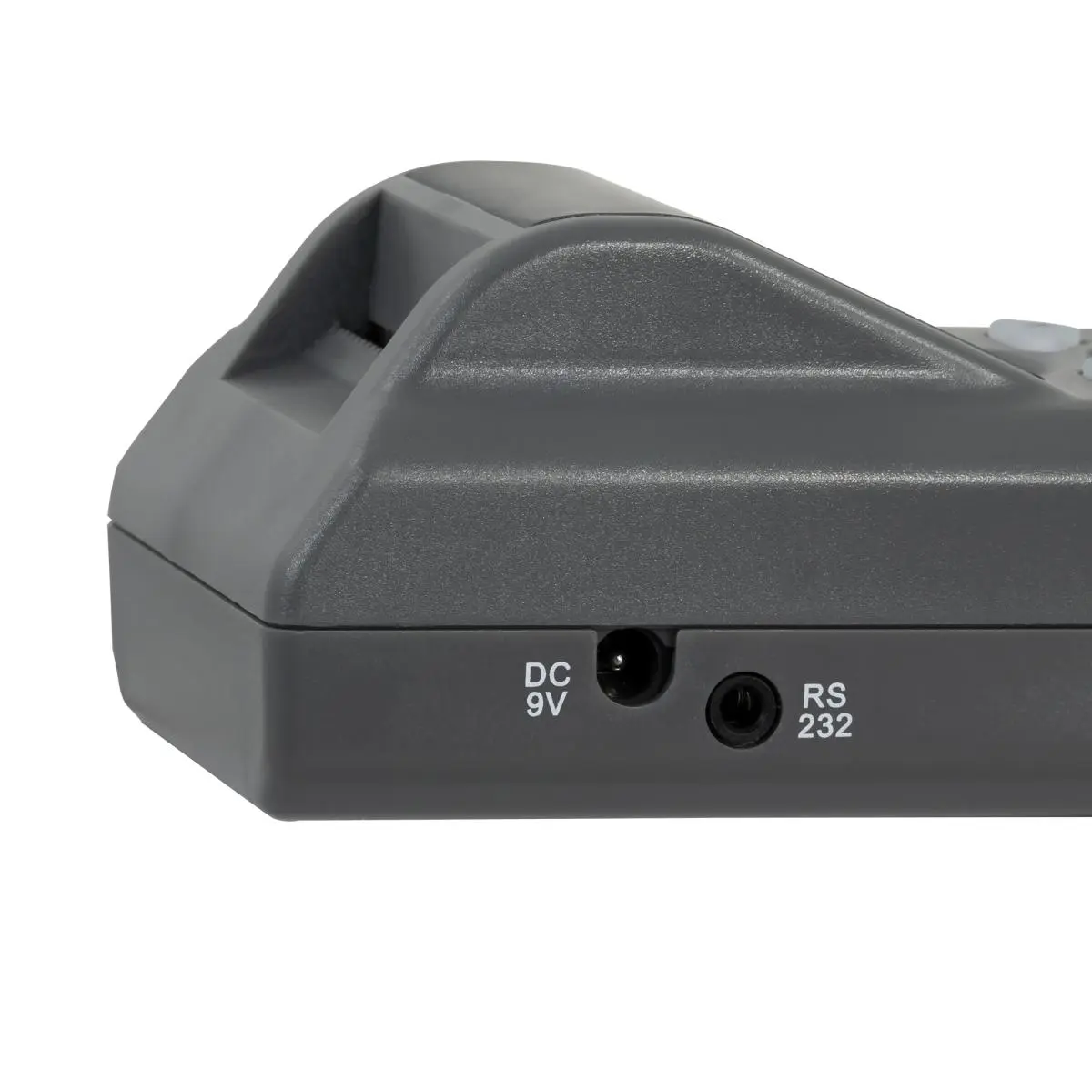

Interface | RS-232 (optional RS-232 to USB adaptor available) |
Measurement interval | (adjustable) |
Printer | Integrated thermal printer, 38 mm / 1.5 in wide for 28 x 30 mm / 1.1 x 1.2 in paper |

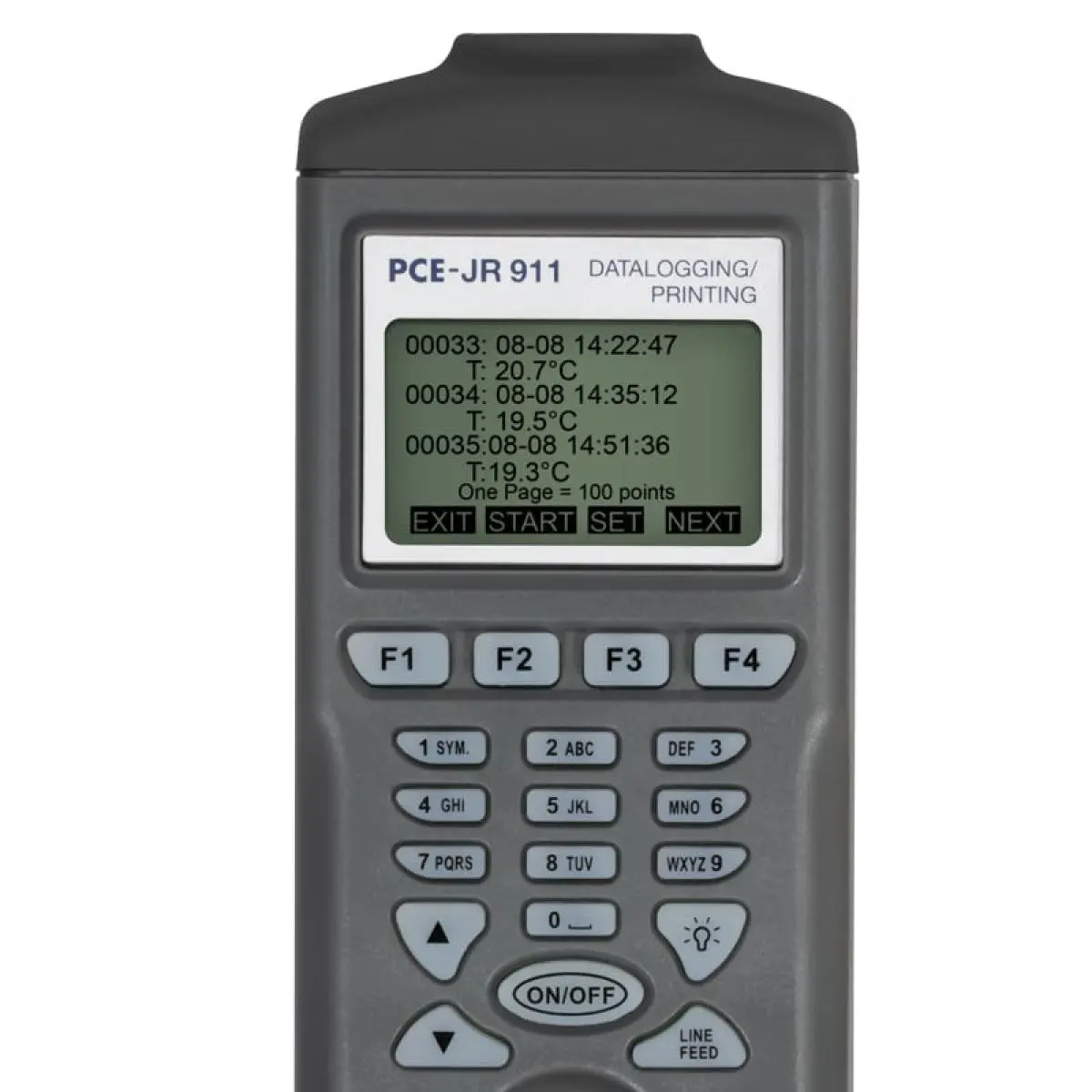

Display | LCD |
Power | 4 AA batteries or optional mains adaptor |
Dimensions | 208 x 70 x 53 mm / 8.2 x 2.8 x 2 in |
Weight | 260 g / < 1 lb |
1 x Pyrometer PCE-JR 911-ICA
1 x Carrying case
4 x Batteries
1 x Roll of paper
1 x Software for Windows
1 x RS-232 cable
1 x User's manual

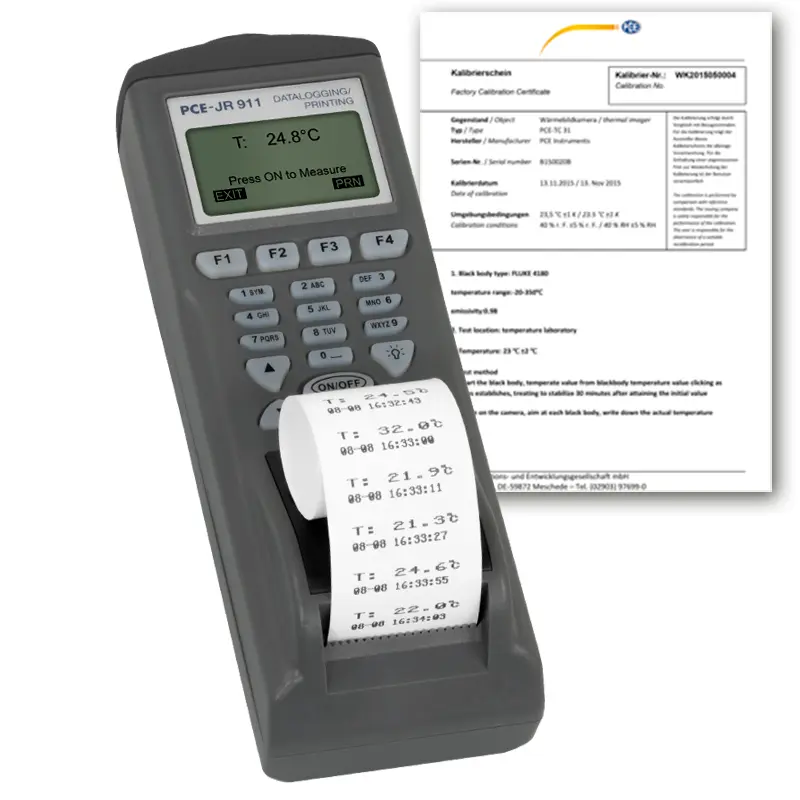

1 x ISO calibration certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
