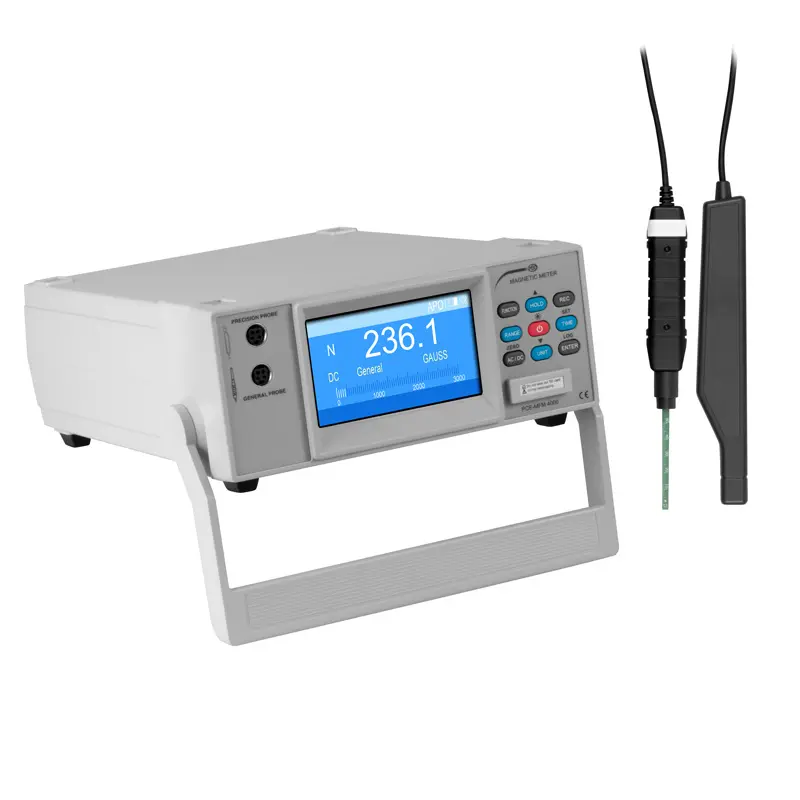

Gauss meter for AC and DC magnetic fields /
Precision and standard sensor / LCD display / SD data logger / Serial interface / Tabletop device

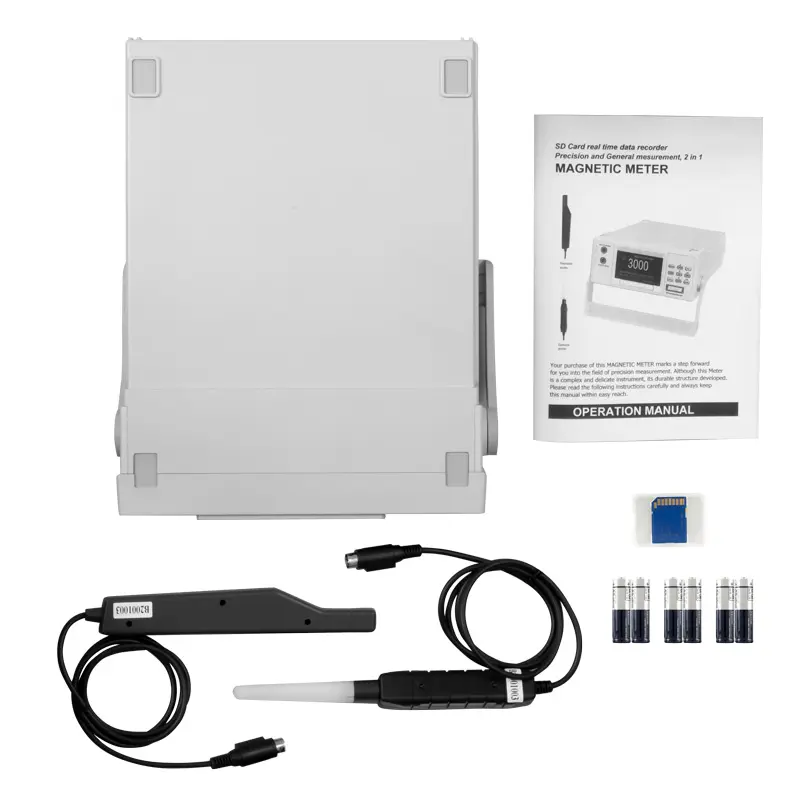

The radiation detector is used in the laboratory and quality assurance to measure the strength of magnetic fields. The radiation detector is delivered with two different sensors. There is a magnetic field sensor for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli Gauss and micro-Tesla range. The radiation detector sensors have automatic temperature compensation. The radiation detector can be used for measurements of DC and AC magnetic fields. The radiation detector shows the polarity of the DC magnetic field on the display next to the measured value. This precise radiation detector can be connected to a PC via serial interface for measurement value analysis.



The radiation detector also has a data logging function. The radiation detector is able to save the measured values on an SD memory card at a preset interval during the measurement. In addition to interval storage, up to 99 individual measured values can be stored in the memory at the push of a button. The measurement data are stored by the radiation detector on the SD card in Excel format. This has the advantage that no additional software has to be used for the radiation detector.

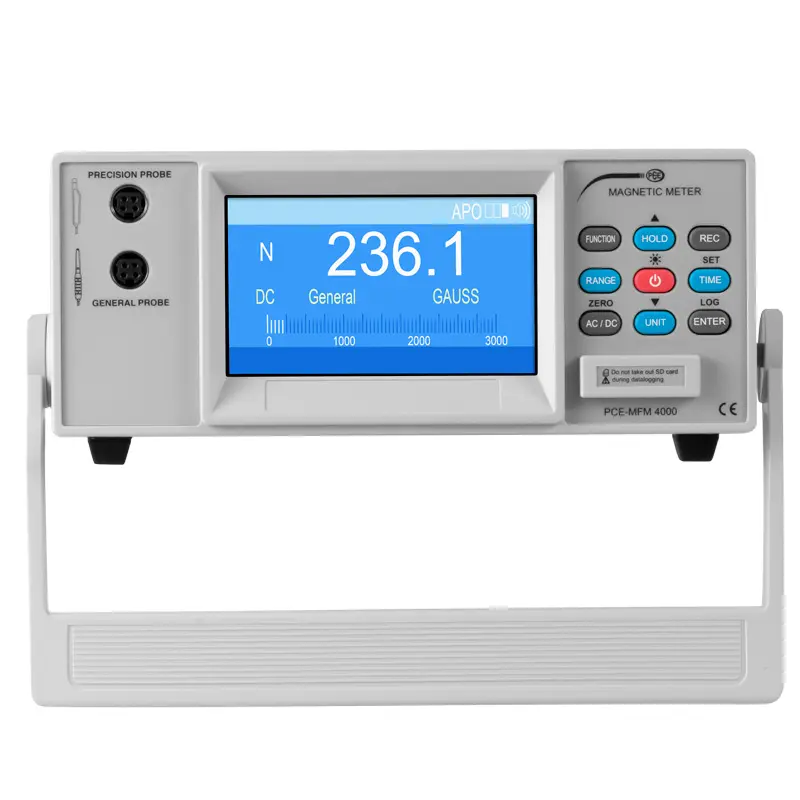

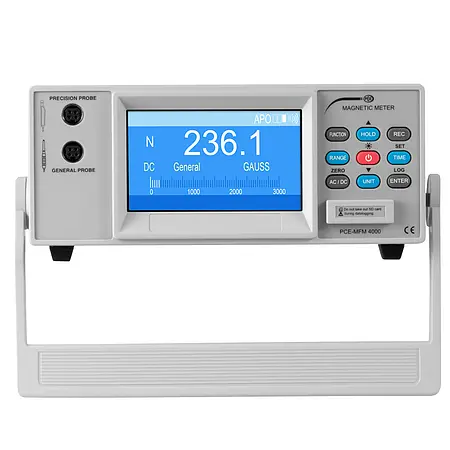

The radiation detector is supplied as a table device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and. The bright display of the radiation detector is easy to read at all times and shows all the necessary information about the magnetic field strength. The radiation detector also has an automatic switch-off. The radiation detector is supplied with 6 x 1.5V AA batteries or with a 9V plug-in power supply.
