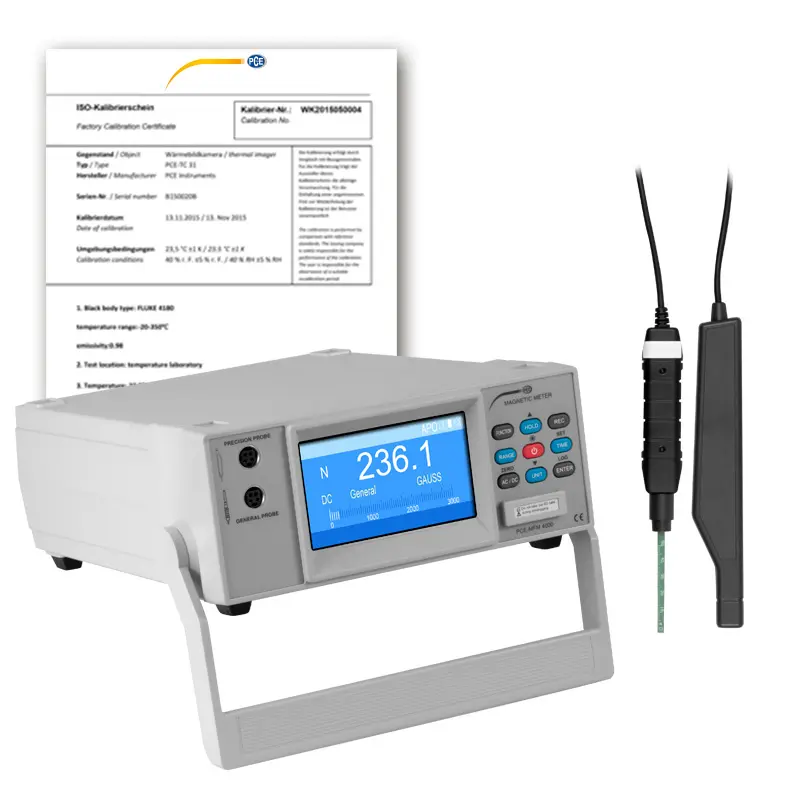

Radiation Detector PCE-MFM 4000-ICA Incl. ISO Calibration Certificate

Order no.: PCE-MFM 4000-ICA

GTIN (EAN): 4250348726346

Accessory

Power Supply 9 V / 1 A (European)

£ 22.00

Power Supply 9 V / 0.8 A (US / North American)

£ 14.00

USB Data Cable Incl. Software SOFT-LUT-USB

£ 76.00

ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM

£ 198.00

Description

Electromagnetic Radiation Detector for AC and DC magnetic fields /

Precision and standard sensor / LCD display / SD data logger /

Serial interface / Tabletop device

The Electromagnetic Radiation Detector is used in the laboratory and quality assurance to measure the strength of magnetic fields. The Electromagnetic Radiation Detector is delivered with two different sensors. There is a magnetic field sensor for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli Gauss and micro-Tesla range. The Electromagnetic Radiation Detector sensors have automatic temperature compensation. The Electromagnetic Radiation Detector can be used for measurements of DC and AC magnetic fields. The Electromagnetic Radiation Detector shows the polarity of the DC magnetic field on the display next to the measured value. This precise Electromagnetic Radiation Detector can be connected to a PC via serial interface for measurement value analysis.

The Electromagnetic Radiation Detector also has a data logging function. The Electromagnetic Radiation Detector is able to save the measured values on an SD memory card at a preset interval during the measurement. In addition to interval storage, up to 99 individual measured values can be stored in the memory at the push of a button. The measurement data are stored by the Electromagnetic Radiation Detector on the SD card in Excel format. This has the advantage that no additional software has to be used for the Electromagnetic Radiation Detector.

The Electromagnetic Radiation Detector is supplied as a table device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and. The bright display of the Electromagnetic Radiation Detector is easy to read at all times and shows all the necessary information about the magnetic field strength. The Electromagnetic Radiation Detector also has an automatic switch-off. The Electromagnetic Radiation Detector is supplied with 6 x 1.5V AA batteries or with a 9V plug-in power supply.

Highlights

- Tabletop device with 2 sensors

General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss)

Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss)

- For static and changing magnetic fields

- Highly accurate Transverse Hall sensor

- Different units selectable (mG / µT)

- Data storage on SD memory card

- Automatic shutdown

- Serial interface

- Max.- min.- hold function

- Incl. ISO calibration certificate

Specification

Measuring function DC magnetic field precision sensor
Measuring range	± 30µT
	± 300 µT
	± 300 mG
	± 3000 mG

Resolution	0.01 µT
	0,1μT
	0.1 mG
	1 mG

Accuracy	± (2% of MB + 2 mG)
	@ ± 100µT / 1000 G

Measuring function DC magnetic field standard sensor
measuring range	± 300 mT
	± 3000 mT
	± 3000 G.
	± 30000 G.

Resolution	0.01 mT
	0.1 mT
	0.1 g
	1 G

Accuracy	± (5% of VAT + 10 Dgt)

Measuring function AC magnetic field standard sensor 50/60 Hz
Measuring range	30μT
	300 µT
	300 mG
	3000 mG

Resolution	0.01 µT
	0,1μT
	0.1 mG
	1 mG

Accuracy	± (2% of MB + 2 mG)
	@ 0 ... 100µT / 1000 G

Measuring function AC magnetic field precision sensor 50/60 Hz
Measuring range	30μT
	300 µT
	300 mG
	3000 mG

Resolution	0.01 µT
	0,1μT
	0.1 mG
	1 mG

Accuracy	± (2% of MB + 2 mG)
	@ 0 ... 100µT / 1000 G

Measuring function AC magnetic field standard sensor 50/60 Hz
Measuring range	150 mT
	1500 mT
	1500 g
	15000 G.

Resolution	0.01 mT
	0.1 mT
	0.1 g
	1 G

Accuracy	± (5% of VAT + 10 Dgt)

General technical data
Measuring rate	1 second
Measuring direction	Uniaxially
Display	LCD display
Features	Data hold / max. Min. Memory
Storage	Data logger single value memory
Data logger storage rate	1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 s
Interface	Serial
Environmental conditions	0 ... 50°C / 32 ... 122°F, max. 85% RH
Power supply	6 x 1.5V AA batteries
	Optional 9V power supply
Current consumption	Approx. 138-mA
Dimension
Device	292 x 236 x 98 mm / 11.5 x 9.3 x 3.9 in
Precision sensor	195 x 25 x 19 mm / 7.7 x 1 x 0.7 in
Standard sensor	177 x 29 x 17 mm / 7 x 1.1 x 0.7 in

Weight	275 g / < 1 lb

Delivery Scope

1 x Electromagnetic Radiation Detector PCE-MFM 4000

1 x Standard Sensor Range: 0-3000 milli-Tesla (0-30,000 Gauss)

1 x Precision Sensor Range: 0-300 micro-Tesla (0-3000 milli-Gauss)

1 x SD memory card

6 x 1.5V AA batteries

1 x Instruction manual

1 x ISO calibration certificate
