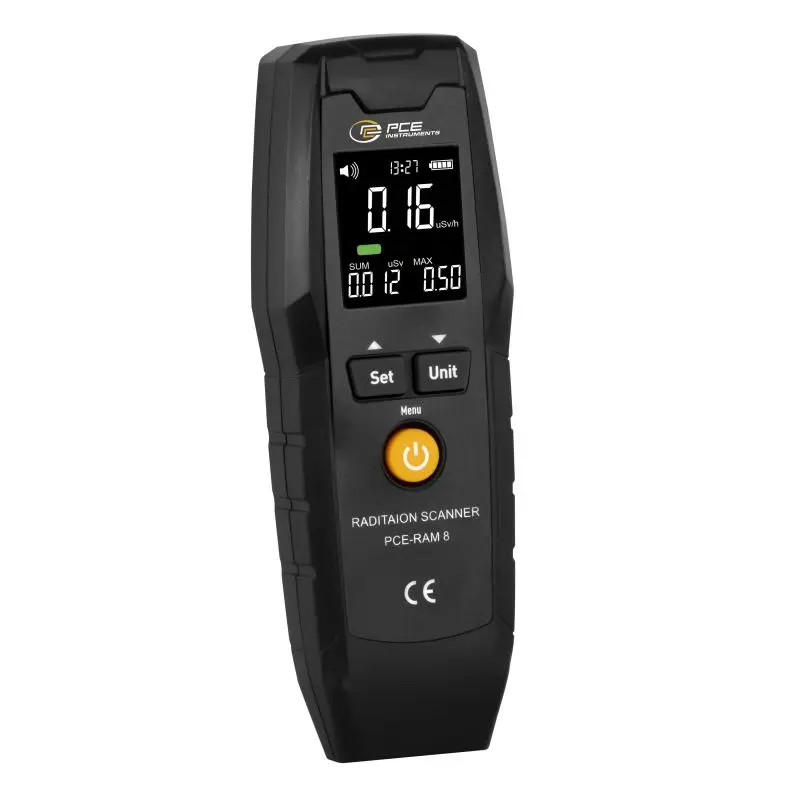

The radiation detector is a high-precision instrument developed for the detection of gamma, beta and X-rays. With its sensitive detection technology, it enables reliable measurement and monitoring of the radiation environment. Dose measurement is a central aspect of the radiation meter.
The radiation detector enables precise determination of the radiation dose and allows cumulative radiation measurement over a defined period of time. These functions are crucial for the assessment of radiation exposure and compliance with safety-related standards. The results of the radiation measurements are shown on the easy-to-read display in microsieverts per hour (µSv/h) and microroentgen per hour (µR/h).

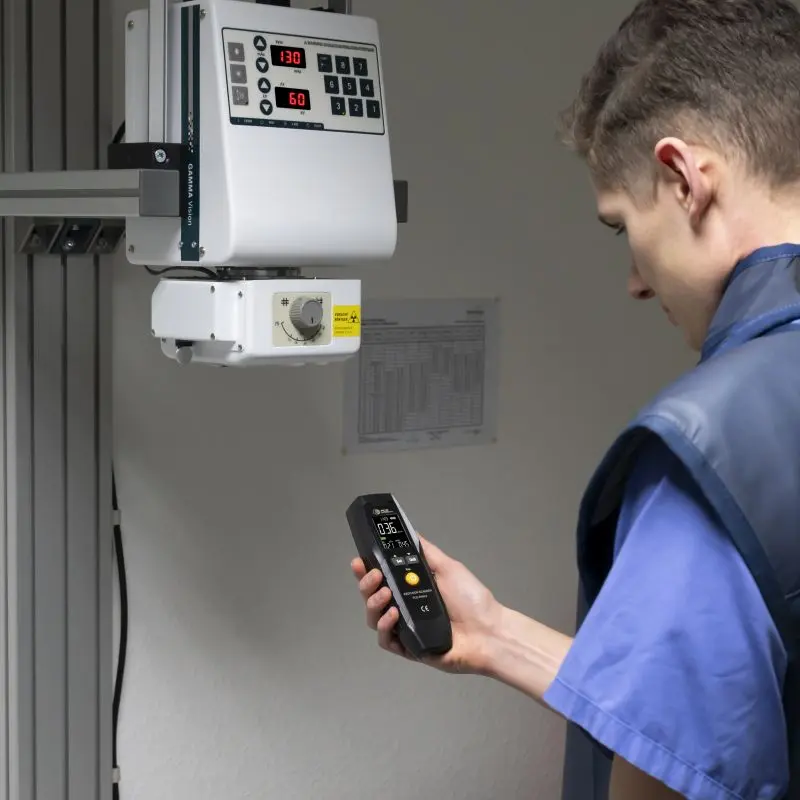

The radiation detector is equipped with an adjustable acoustic alarm that alerts you if predefined radiation values are exceeded. The long battery life ensures reliable measurement over long periods of time without interruption. The field of application ranges from radiology to disaster control. Radiation measuring devices from PCE Instruments are also used in industry.
Radiation | |
Measuring range | 0.01 µSv/h ... 9999 µSv/h |
Resolution | 0.01 µSv/h |
Accuracy | <±10 % (137Cs 1 mSv/h) |
General technical data | |
Measurement functions | Gamma rays, beta rays, X-rays |
Energy range | 48 ... 1500 keV |
Display type | LCD |
Display size | 1.73 inch |
Sensor | Geiger-Müller counter tube |
Operating time | 8 h |
Alarm | Acoustic |
Menu language | English, German |
Protection class (device) | IP30 |

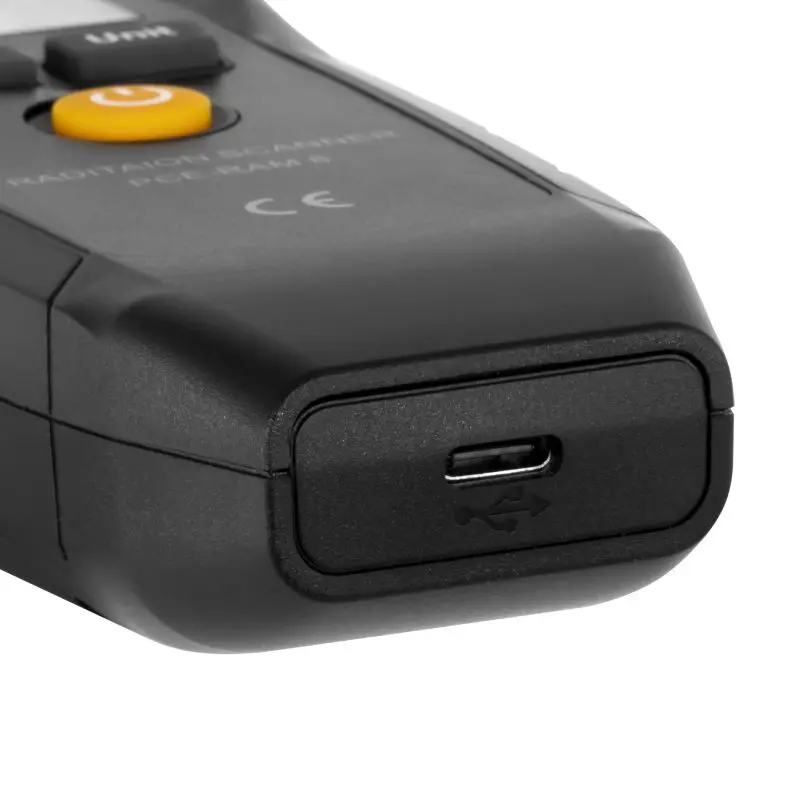

Power supply | 5V DC |
Weight | 140 g |
Dimensions (L x W x H) | 160 x 55 x 33 mm |
Operating conditions | 0 ... 40 °C , 85 % r.H |
Storage conditions | -10 ... 60 °C , 85 % r.H |
