Radiation Detector PCE-RDM 15

Order no.: PCE-RDM 15
GTIN (EAN): 4250348737182
£ 103.00
£ 123.60
price ex. (VAT / delivery)
:
4250348737182
PCE-RDM 15
Delivery time: 1-2 working days

Description

Radiation Detector / Measurement of beta, gamma and X-rays / Adjustable limit values / Progression diagram / Minimum, maximum and average values / Internal memory with PC transfer via software

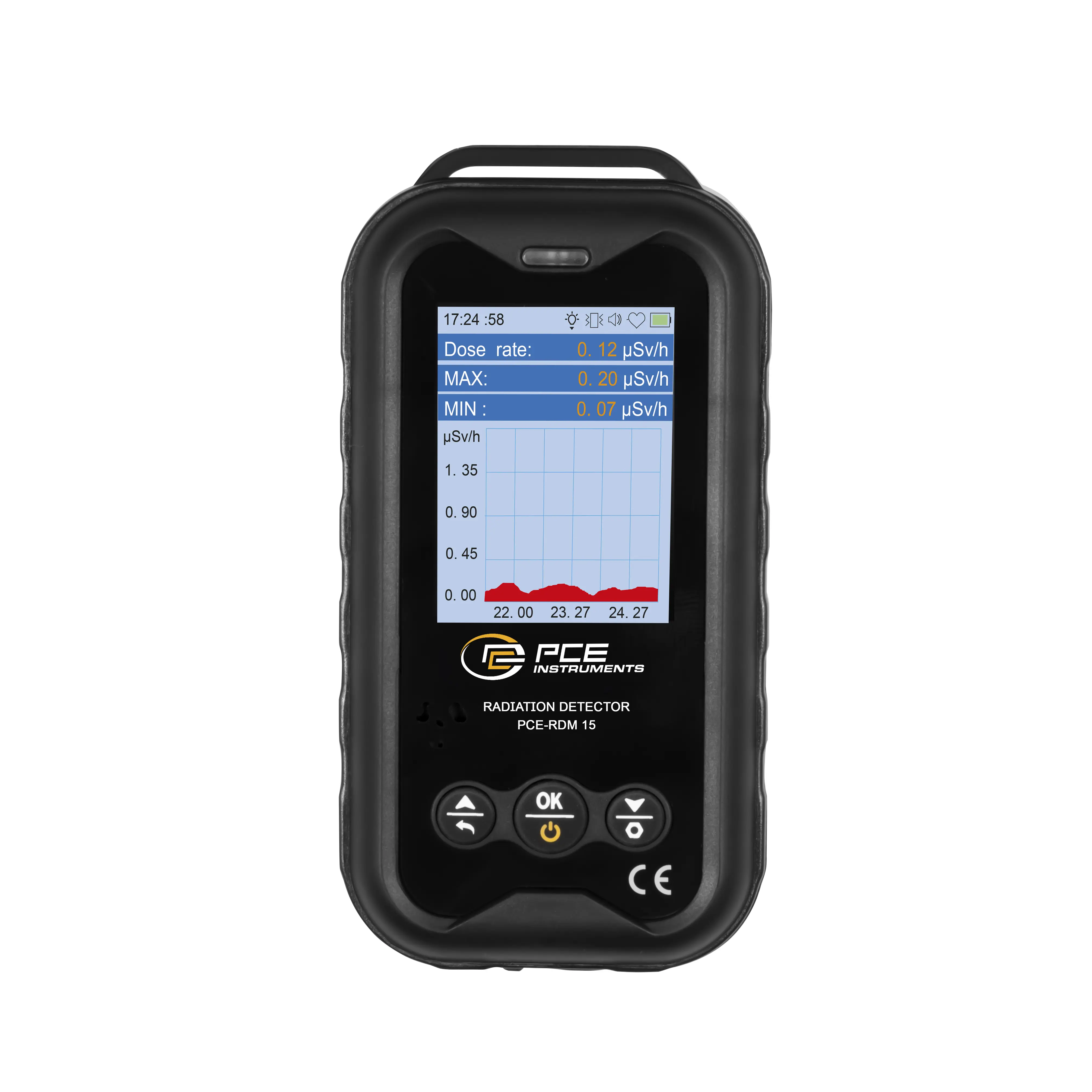

The Radiation Detector is a portable device mainly used for monitoring X, γ and β radiation. The Radiation Detector is equipped with a glass Geiger-Müller counter tube (GM tube), which is known for its high measurement accuracy and sensitivity, and has a 2.4-inch TFT LCD display.

The Radiation Detector offers audible, visual and vibration alarms with customizable dose rate and total dose limits. It enables simultaneous real-time measurement of the dose rate and recording of the cumulative dose over a set period of time. In addition, the device displays the minimum, maximum and average values of the measurements.

The supplied software enables live measurement and data transfer from the internal memory. Thanks to its compact design, energy efficiency and versatility, the Radiation Detector is ideal for both professional and private use.


Highlights

- Real-time value, average value, total dose
- Sensitivity: 1 cps/μSv/h (related to Co-60)
- Adjustable alarm limit for total dose
- Adjustable time dose
- Long-term measurements
- Radiation events in CPS and CPM
- Data memory and software

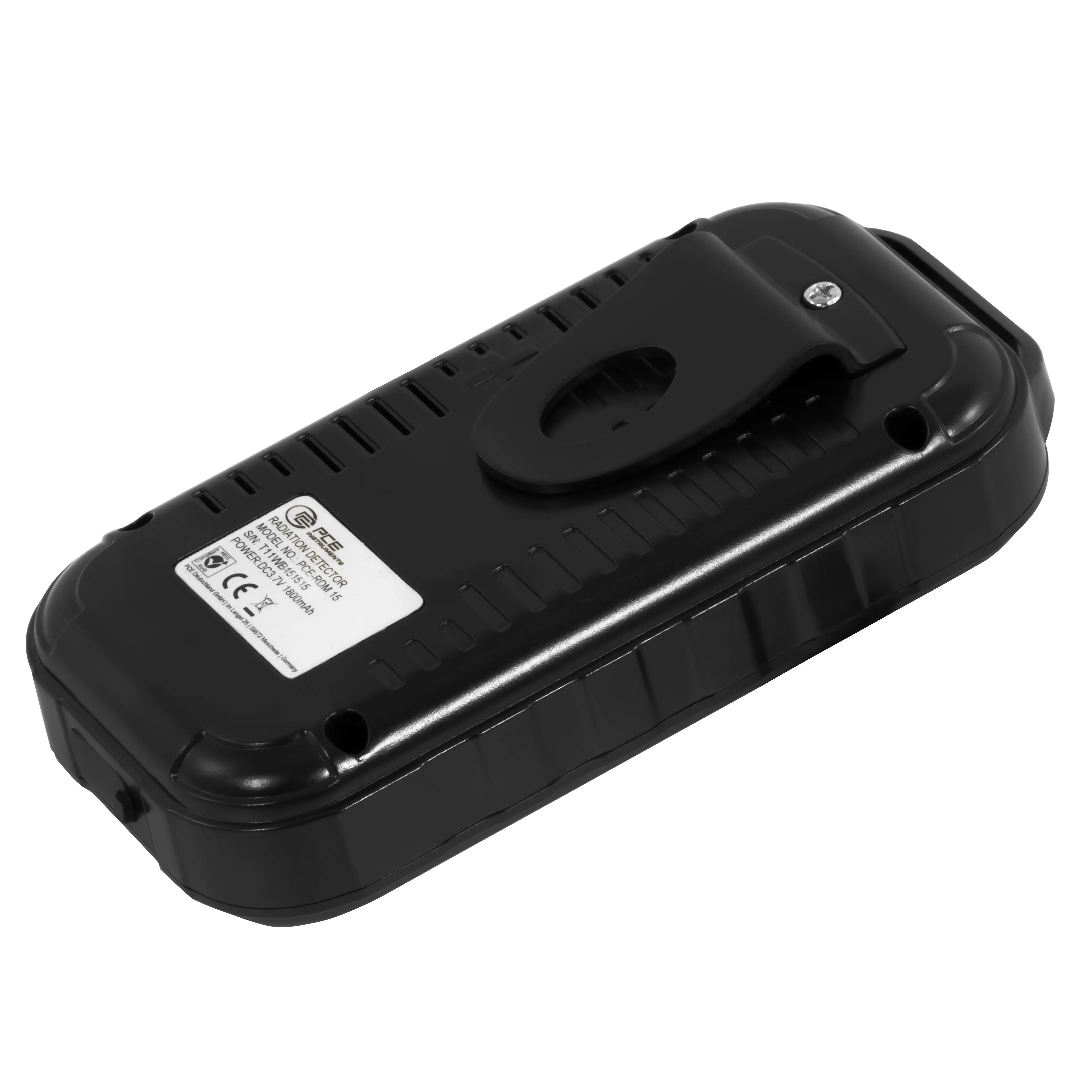

- Mounting clip

Specification

Radiation
Measurement type  Real-time value
Measurement range up to  0,01 µSv/h ... 50 mSv/h
Resolution  0,01 µSv/h
Accuracy  <10 % at 1 mSv/h

Radiation
Measurement type  Total dose
Measurement range up to  0 µSv ... 1000 Sv
Resolution  0,01 µSv
Accuracy  <10 % at 1 mSv/h

General technical data
Measuring functions  MIN, MAX, Average value
Types of radiation  Beta radiation, Gamma rays, X-rays
Energy range  48 ... 1500 keV
Display type  LCD
Display size  2,4 Inch
Storage medium  Internal memory
Storage capacity  10000 Values

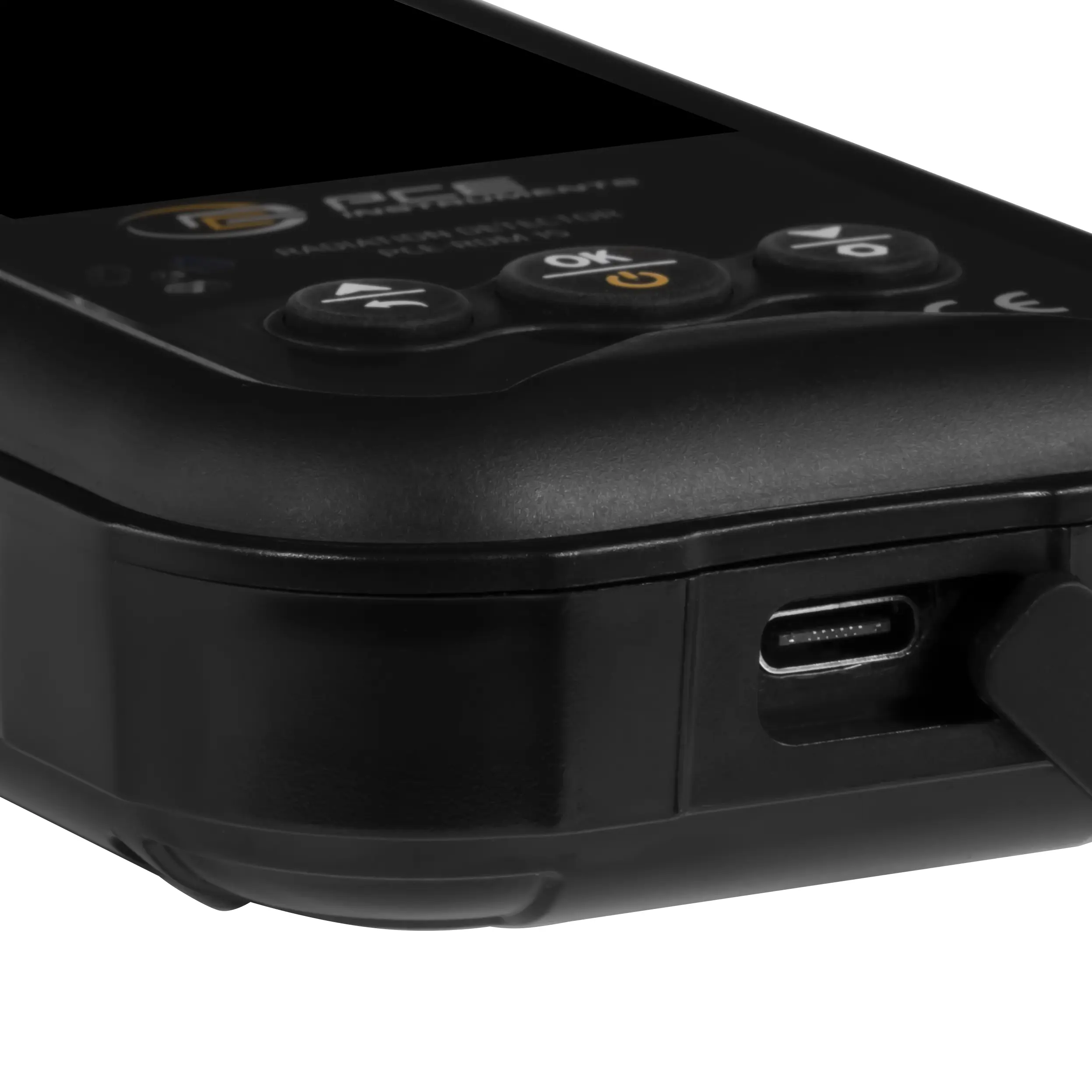

Interface  USB-C
Sensor  Geiger-Mueller counter tube
Operating time  30 Day(s)
Alarm  optical, Acoustic, Vibration
Alarm modes  Setting range for the dose rate: 0 ... 9.99 µSv/h
Setting range for total dose: 0 ... 9999 µSv
Sensitivity  1 cps/μSv/h (related to Co-60)
Menu language  English, Chinese, English (GB)
Protection class (device)  IP52
Power supply  5V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium polymer battery
Capacity  1800 mAh
Operating conditions  -10 ... 45 °C , 0 ... 95 % RH
Storage conditions  -10 ... 45 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  127 x 65 x 32 mm
Weight  160 g

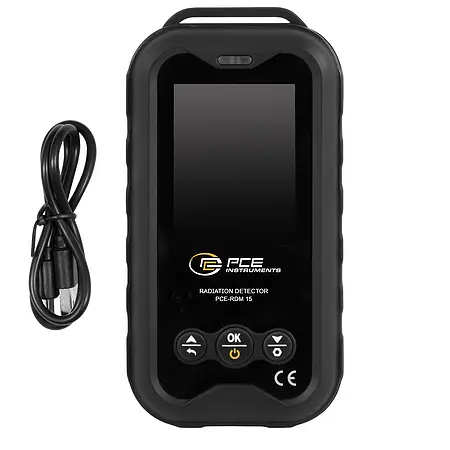

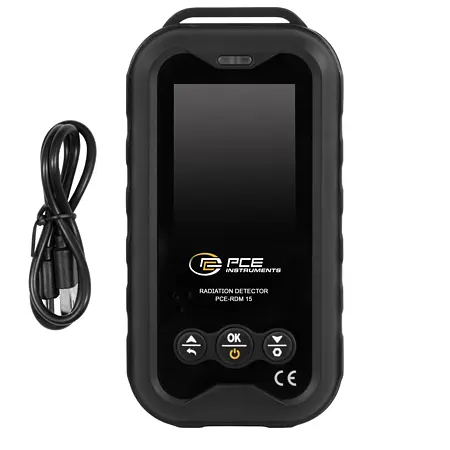

Delivery Scope

1 x PCE-RDM 15 Radiation Detector
1 x USB-C cable
1 x Operating manual
