£ 731.00
Price excl. VAT &. delivery
2 year Warranty
- For installation of an iPR by means of weld-in flanges
- Metric
- Outer diameter according to DIN 11850, Series II, DIN 11866, Series A
- Different variants selectable!

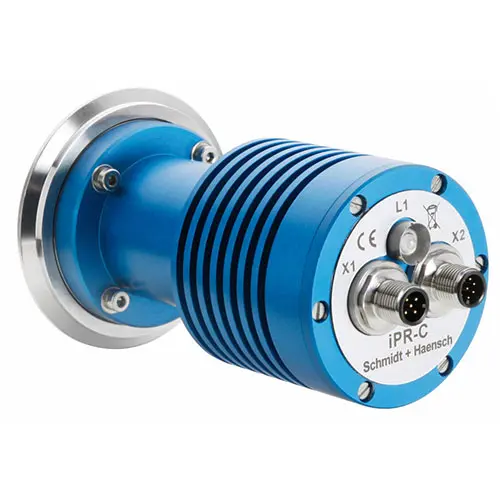

In-line process refractometer iPR-C2 Al available in two versions (aluminum and stainless steel) with different process temperatures
Technical Specification | |
Measuring range | 1.3320 - 1.4209 nD 0 - 50 Brix |
Resolution | 0.0001 nD 0.05 Brix |
Accuracy | ± 0.0002 nD ±0.15 Brix (at 20 °C / 68 °F) |
Temperature | |
Ambient temperature | 0 to 45 °C / 32 to 113 °F |
Process temperature (max.) | Aluminium: +60 °C / 140 °F |
Process temperature (min.) | -10 °C / 14 °F |
Process pressure (max.) | 1 MPa (145 psi, 10 bar) |
Additional Information | |
Prism | YAG |
Process contact material | YAG, stainless steel optional: PTFE |
Protection class | IP 69 K tested by TÜV Rheinland |
Light source / wavelength | 589 nm LED |
Interfaces, switches | 4-20 mA, (Brix 0 - 50 with ATC) one switching output 1 ampere a serial communication over RS232, RS422 or USB |
