Snake Camera PCE-PIC 20

Order no.: PCE-PIC 20
GTIN (EAN): 4250348719317

£ 1,771.00
£ 2,125.20
price ex. (VAT / delivery)
:
4250348719317
PCE-PIC 20
Delivery time: 1-2 working days
No
23 mm
20 m
No
Yes
Yes

Description

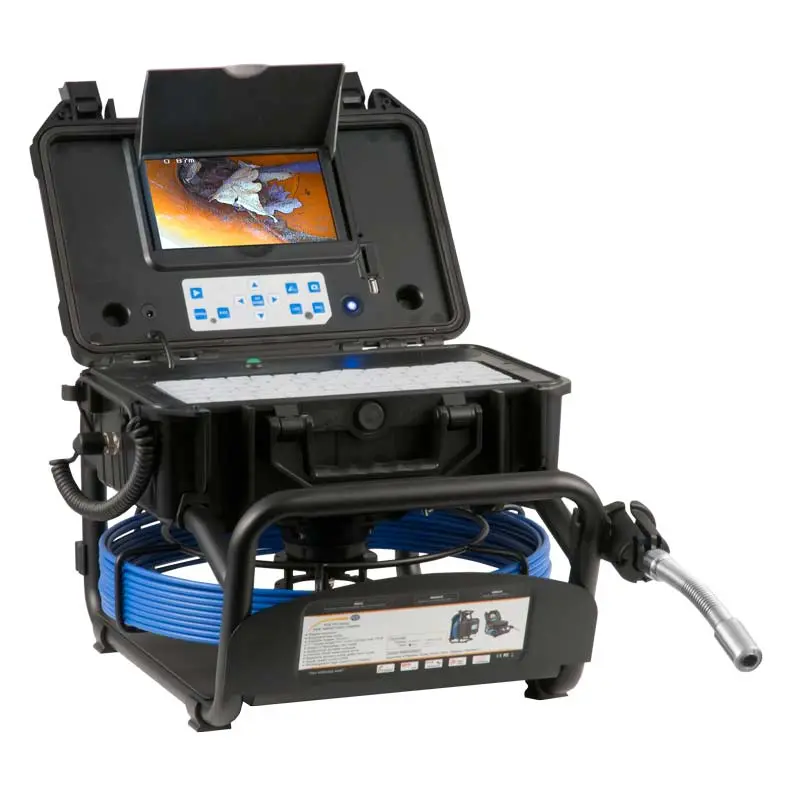

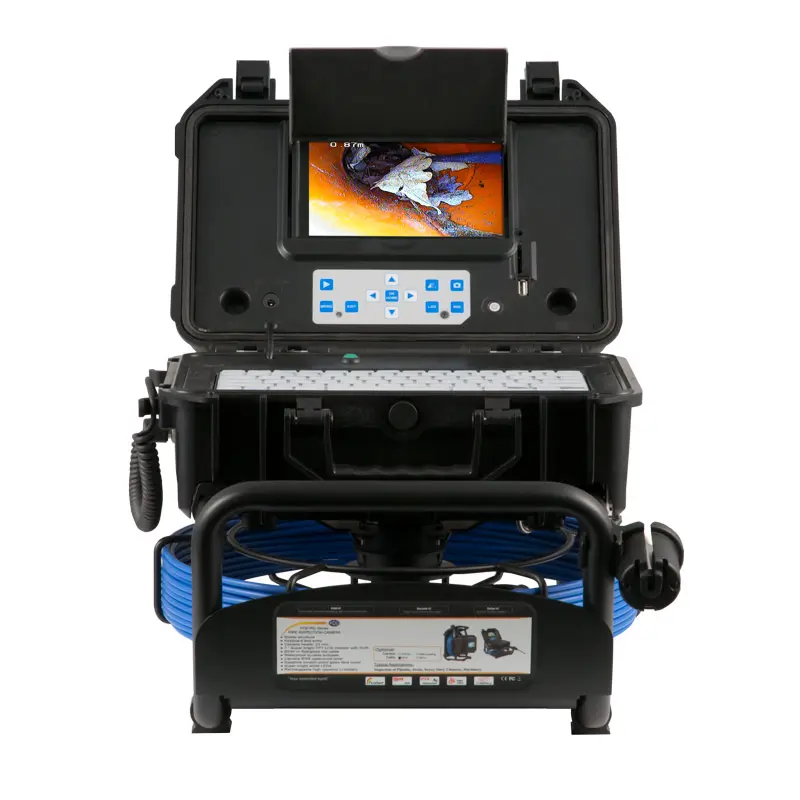

Snake Camera PCE-PIC 20
Inspection camera with 20 m (66 ft) push cable / Waterproof up to 20 m (66 ft) / Meter count / Keyboard input for comments possible / SD memory

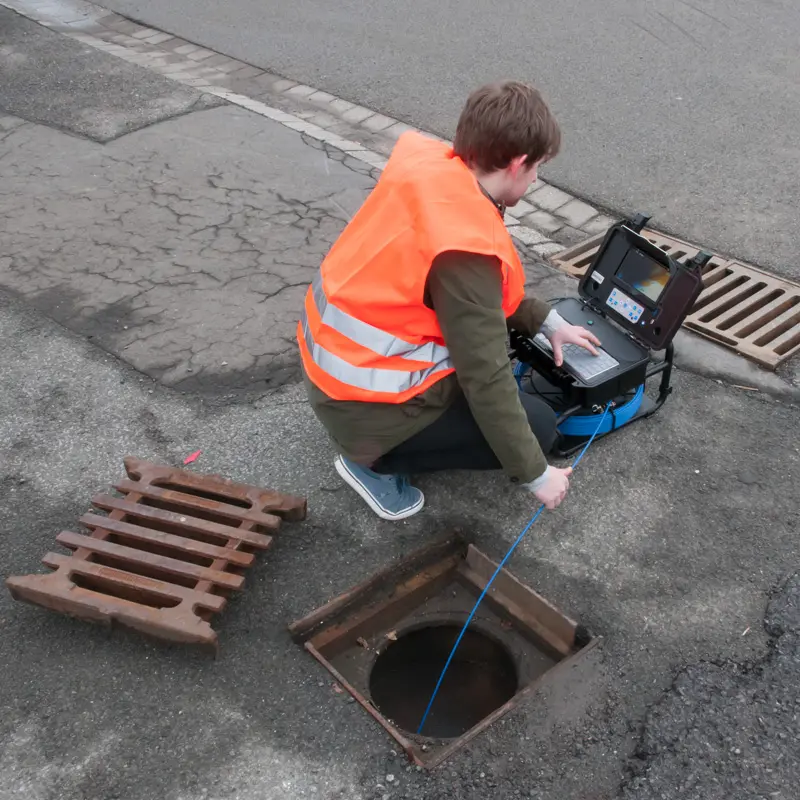

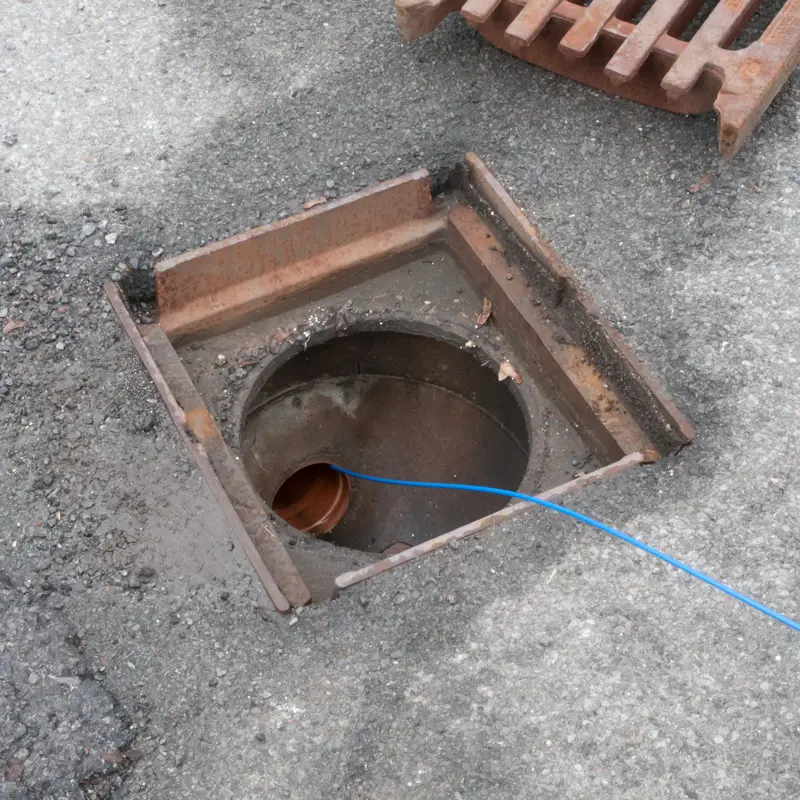

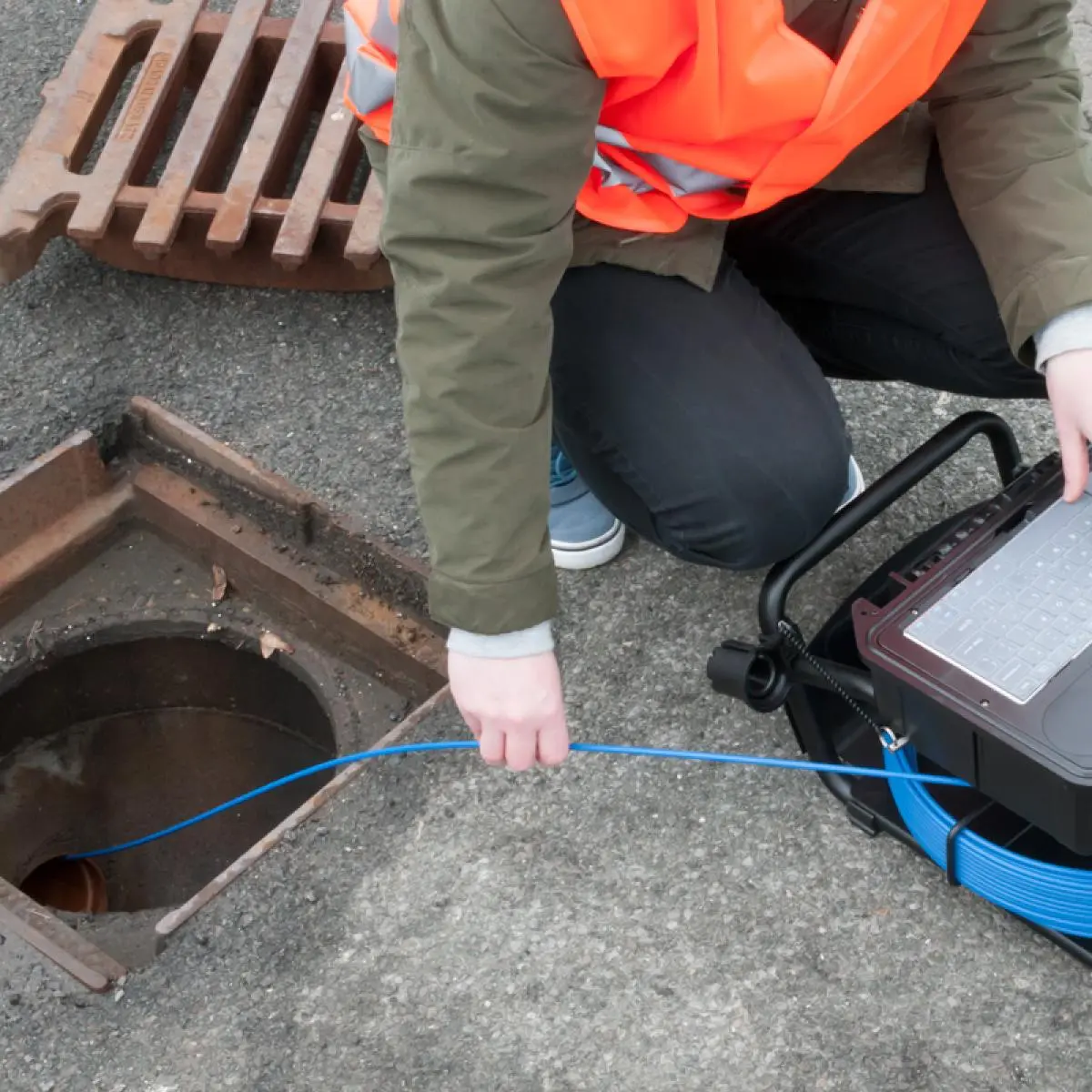

The snake camera is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The snake camera has a 23 mm / 0.9 in camera head, which is attached to a fiberglass push cable. The snake camera is optimally suited for pipes and ducts DN 40 ... 150 mm / 1.6 ... 5.9 in. The camera of the snake camera is waterproof up to 20 m / 66 ft. To facilitate the search for damaged areas on canals and pipes, the snake camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the snake camera. For better documentation, comments can be added to the pictures and videos via the keyboard.

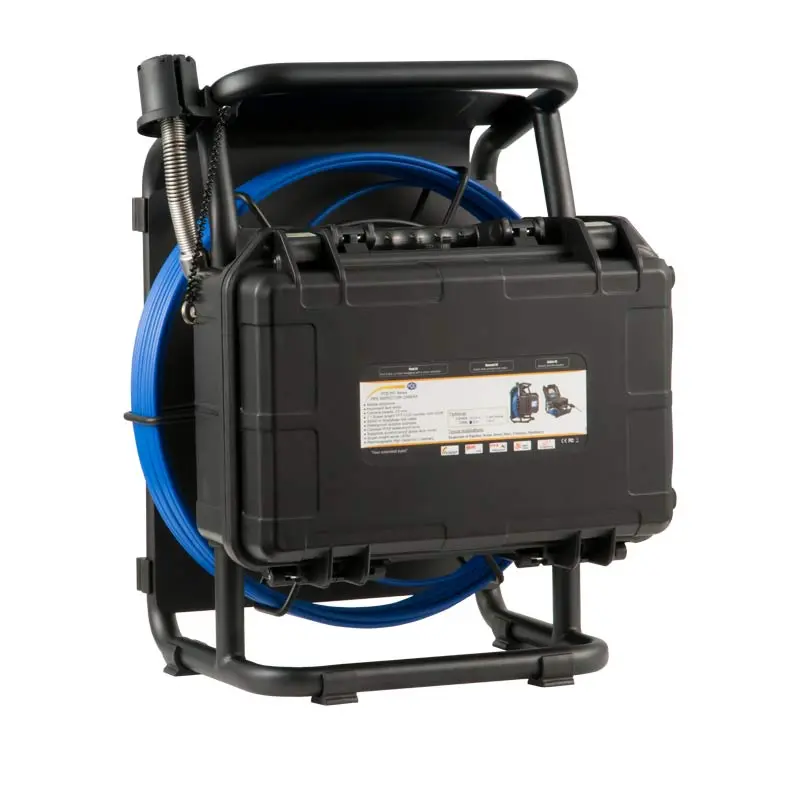

The snake camera is delivered in a waterproof case. The case of the snake camera is mounted directly on the cable scooter. Thus, the snake camera takes up little space during transport. The snake camera is equipped with a rechargeable battery, which enables a mobile working. About a power supply or the car charger, the battery of the snake camera is charged.

Highlights

- 20 m / 66 ft push cable
- Electronic meter counting

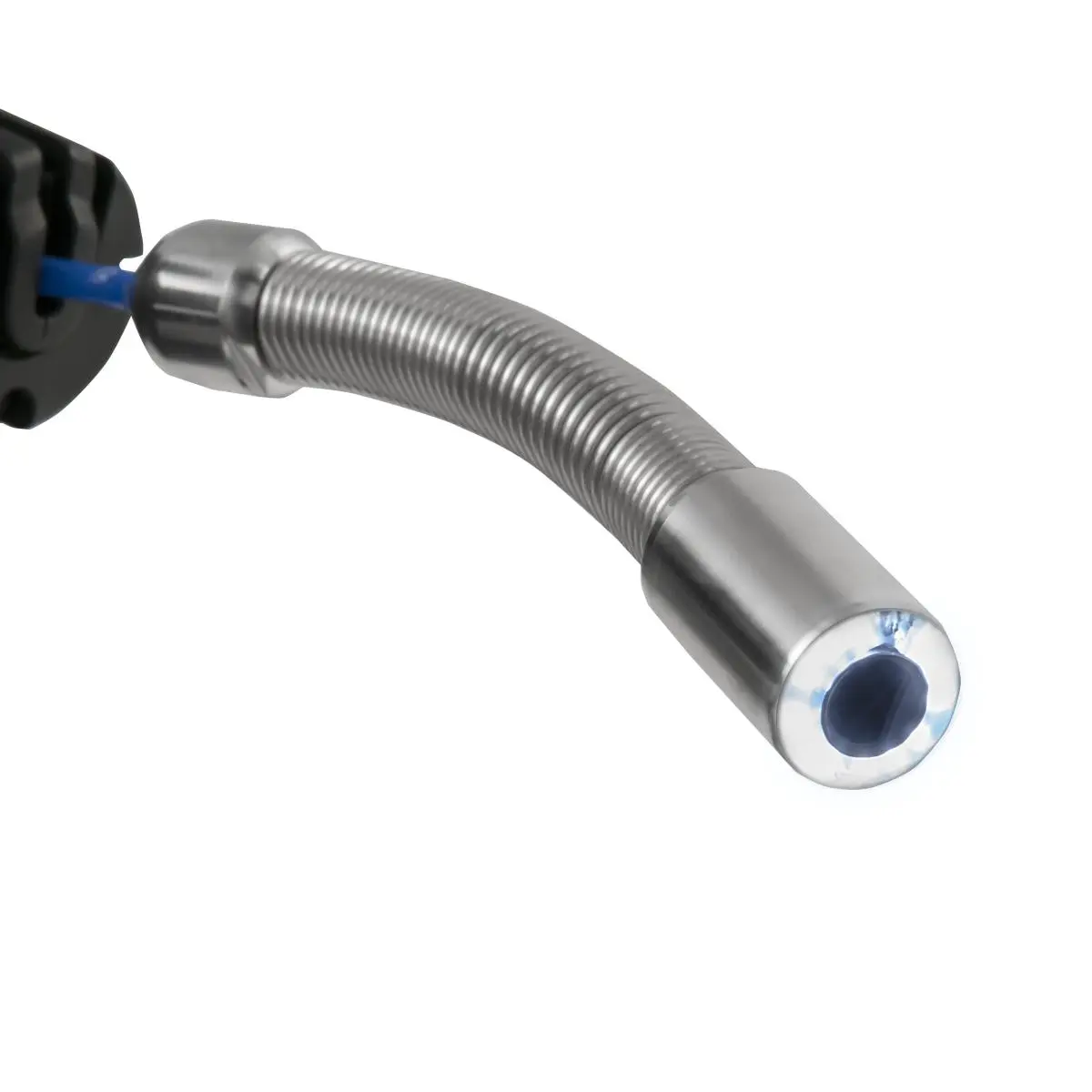

- 23 mm / 0.9 in camera head

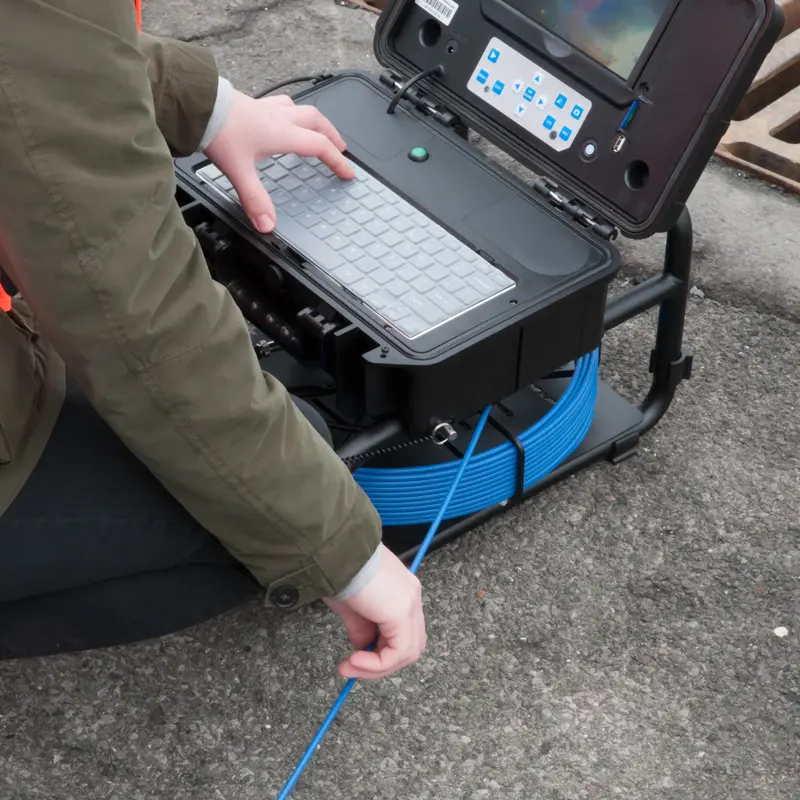

- Keyboard for comment input
- Braked endoscope line
- 12x LED lighting
- Battery and mains operation, A/C power adapter
- Waterproof up to 20 m / 66 ft
- IP66 Carrying Case
- 90° radius of curvature at min. Ø 45 mm / 1.8 in

Specification


Cable diameter / head diameter23 mm / 0.9 in
Cable lengthPCE-PIC 20: 20 m / 66 ft


Sight depth20 ... 100 cm
Perspective 120°
Lighting12 x LED (dimmable)
White balanceAutomatically
Image sensor1/3" Sony CCD
 720 x 576 pixels
Display7" LC display
InterfaceUSB 2.0
Memory optionVideo, photo and sound
Image memory SD card up to 32 GB
Video output format PAL 720 x 576 pixels
  NTSC 720 x 488 pixels
Menu navigation Multilingual:
  German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian
Length measurement 0 ... 20 m / 0 ... 66 ft
Data entry By keyboard possible
Operating conditions -10 ... 50°C / 14 ... 122°F, 30 ... 90% rh
Storage conditions -20 ... 60°C / -4 ... 140°F, 30 ... 90% rh
Power supply Power supply 110V ... 240V AC / 12V / 1.2 A DC
  Li-Ion battery 7.4 / 5400-mAh
Protection class Display: IP66
  Camera head: waterproof up to 20 m / 66 ft
Dimensions Complete: 55 x 43.5 x 34.5 cm
  Camera head: 23 x 45 mm / 0.9 x  1.8 in (total length: 150 mm / 5.9 in)
Weight About 13 kg / 28.7 lbs

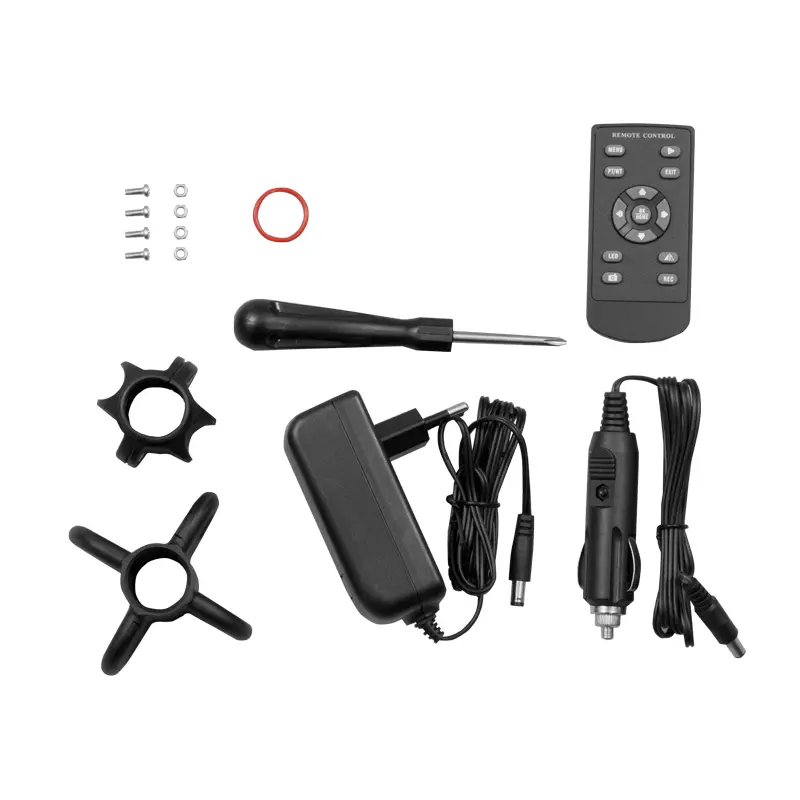

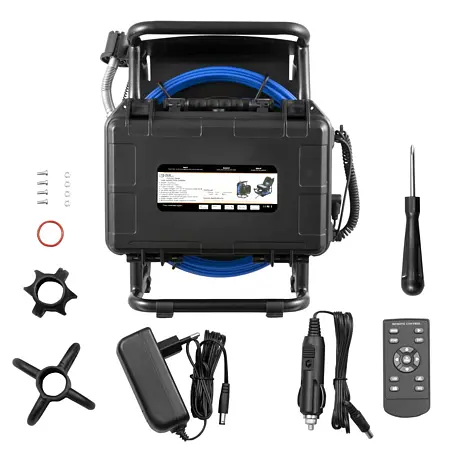

Delivery Scope

1 x Snake Camera PCE-PIC 20
1 x Standard camera head
1 x Main unit with case
1 x Cable reel and push cable
1 x Power supply
1 x Car charger adapter
1 x Keyboard
1 x Remote control
1 x 46 mm / 1.8 in guide
1 x 80 mm / 3.1 in guide
1 x User manual

Please note: The video endoscopes are not suitable for medical purposes!
