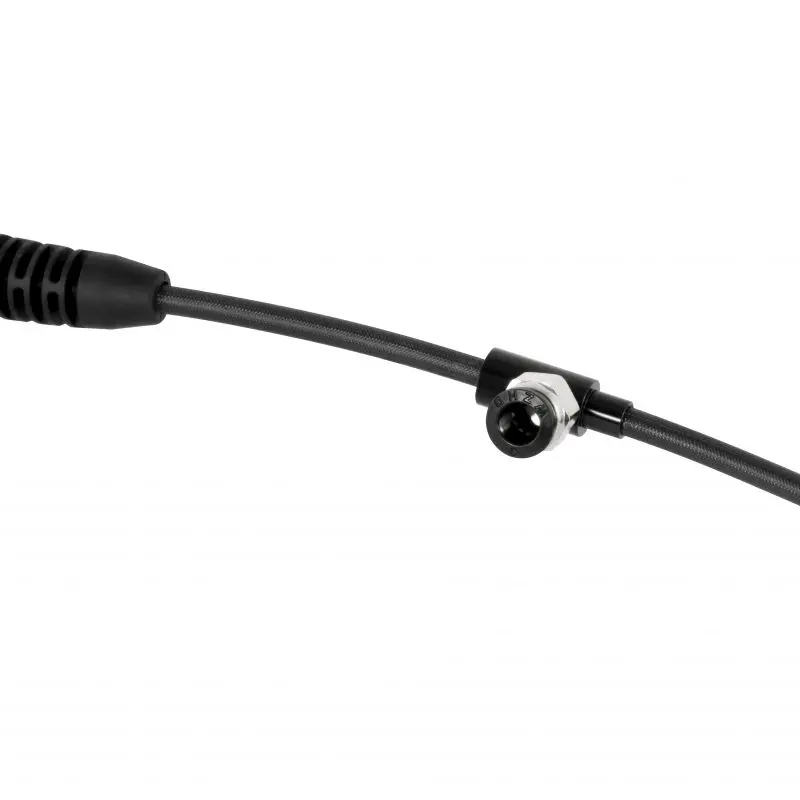

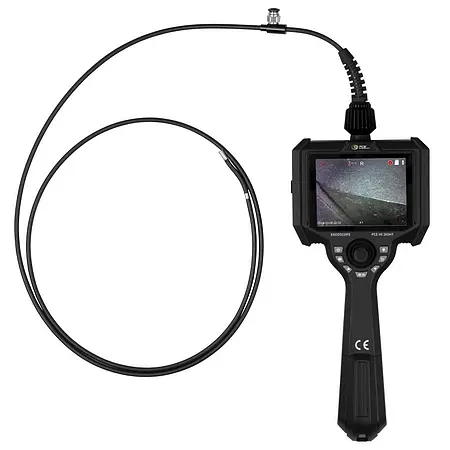

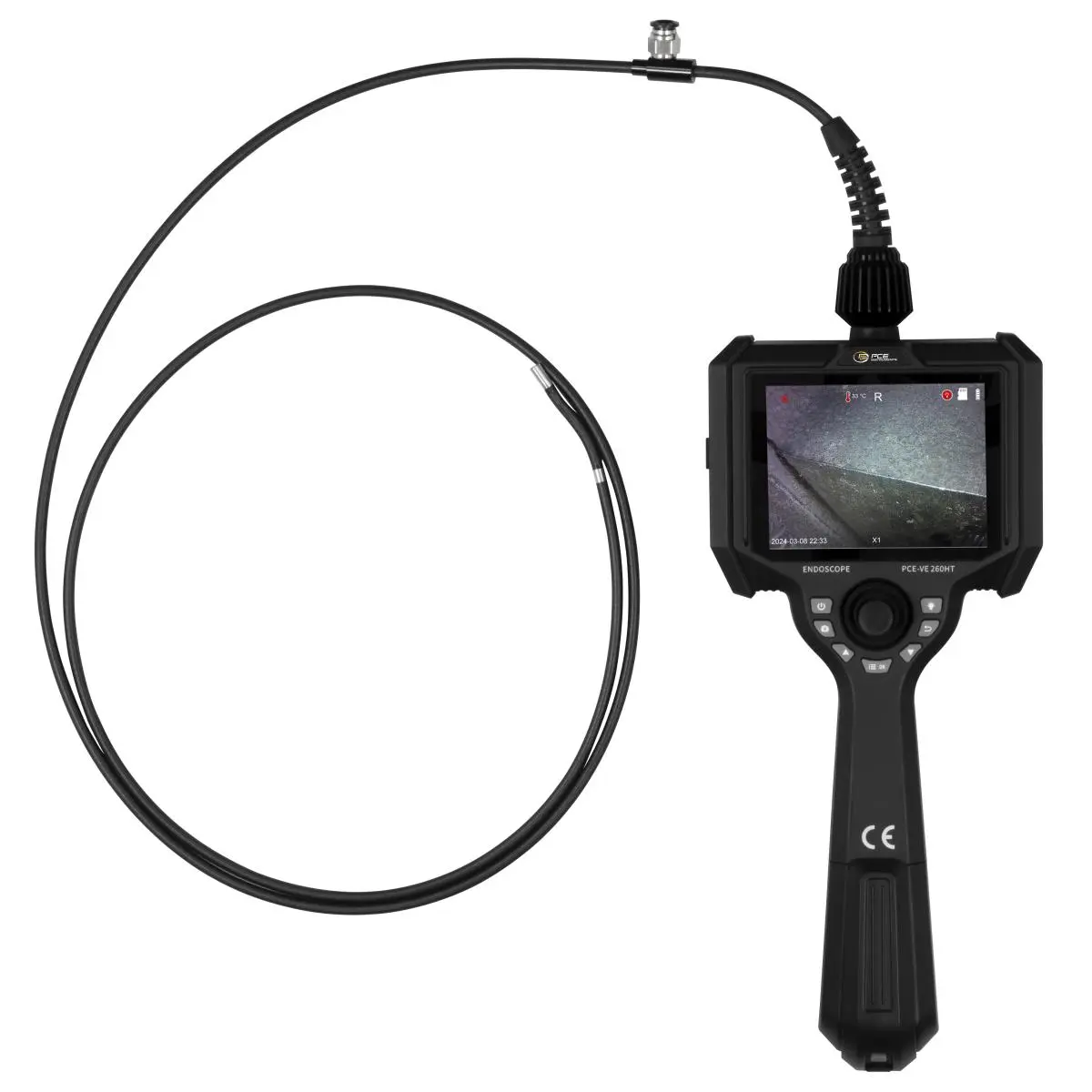

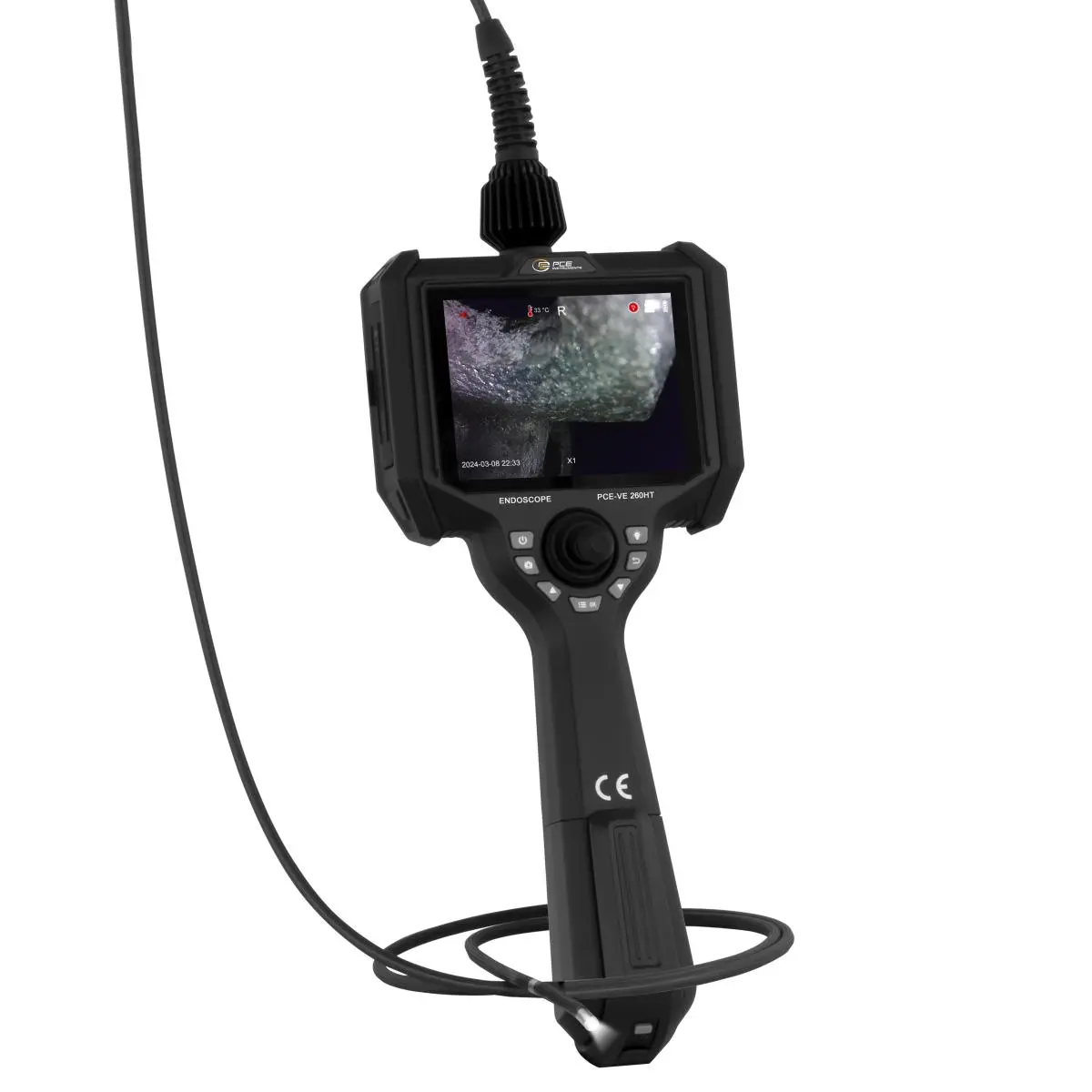

The snake camera offers an advanced solution for visual inspection in extreme environments with temperatures of up to 300 °C. With a specially developed high-temperature camera cable, it enables reliable image and video recording even under extreme conditions. The integrated connection on the camera cable for air cooling ensures effective cooling during use.

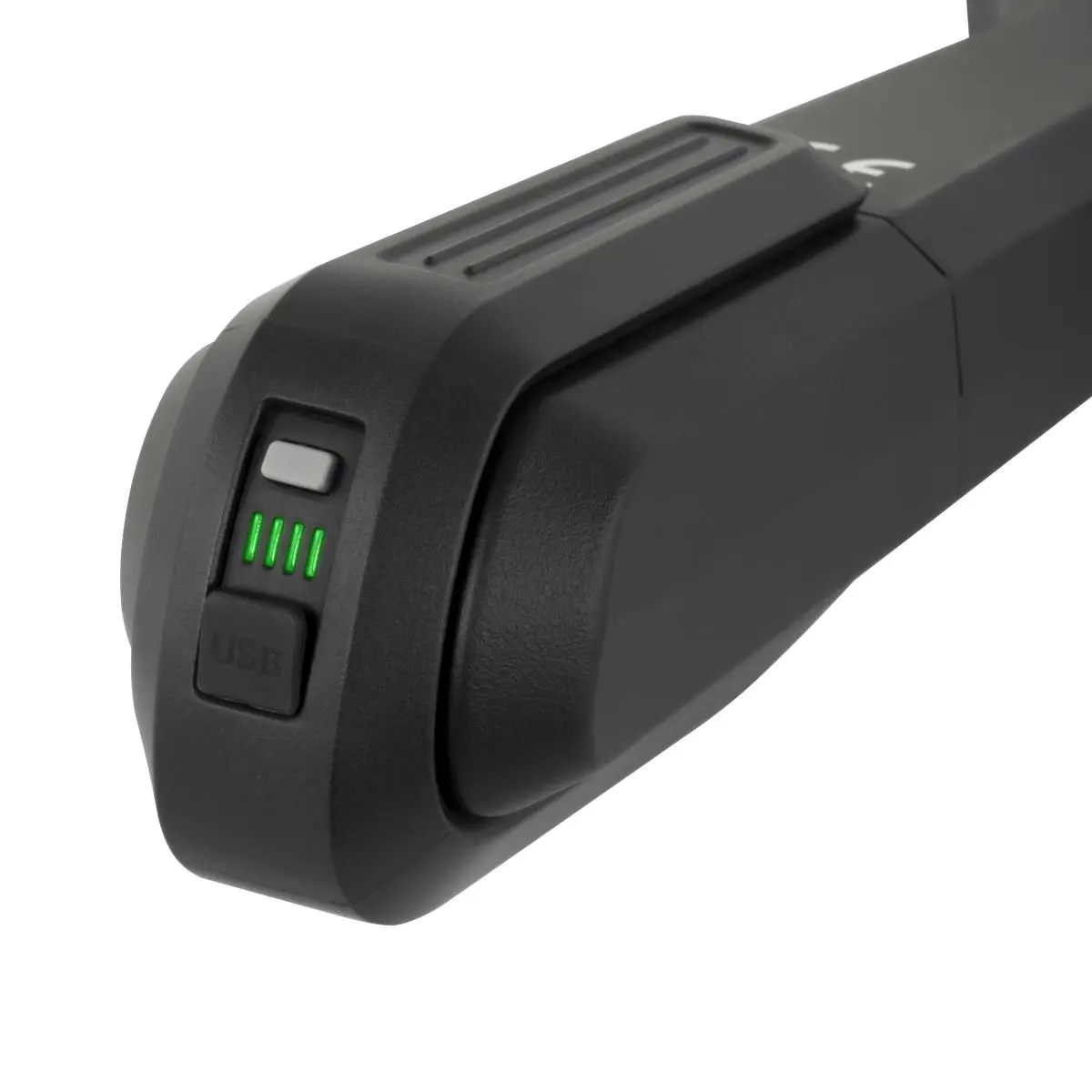

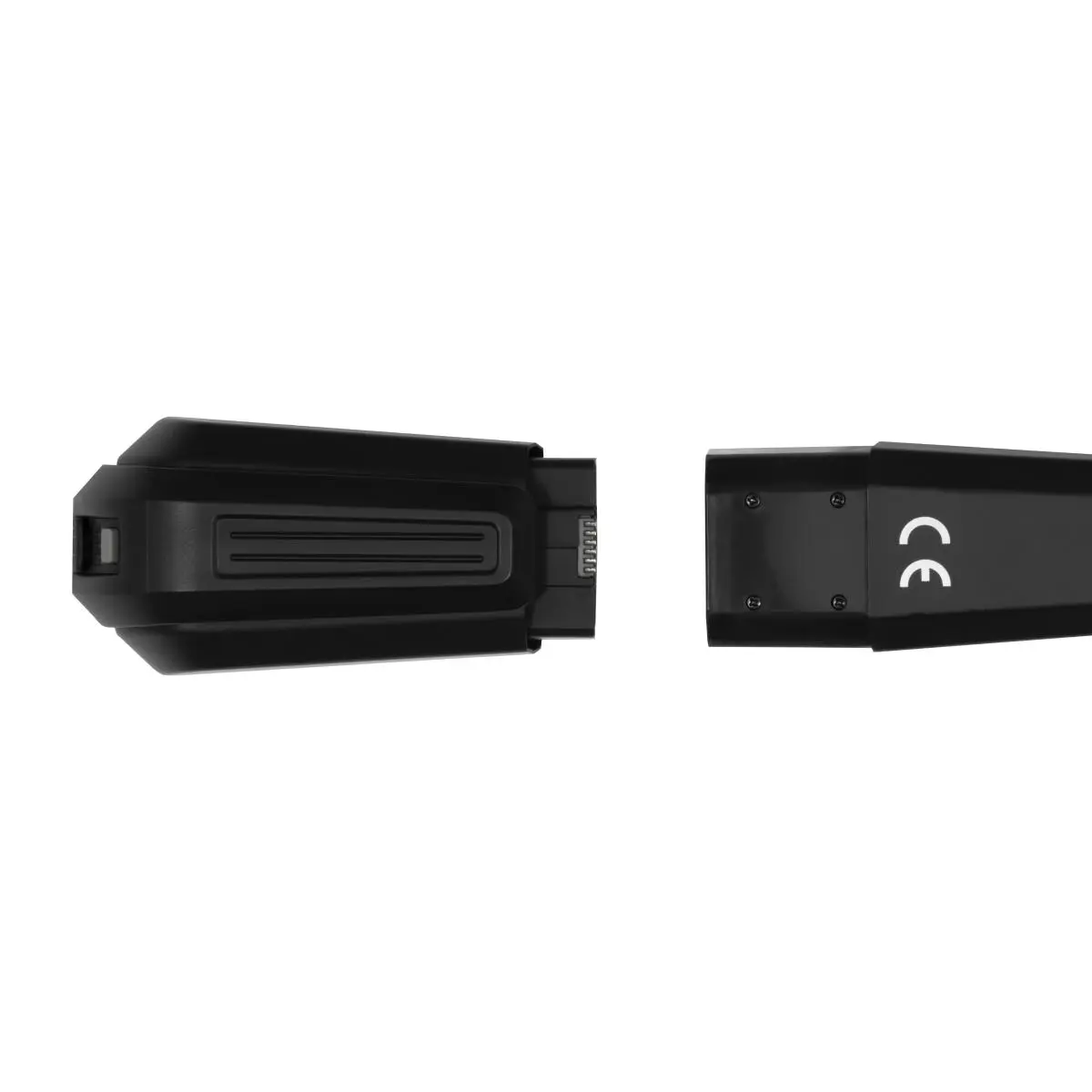

The detachable Li-ion battery enables flexible and mobile use of the snake camera without having to rely on an external power source. The 4-way camera head enables comprehensive monitoring and inspection from different angles. For optimum illumination in dark environments, the snake camera is equipped with LED lighting via fibre optics, which ensures uniform and intensive illumination. HDMI image transmission enables high-resolution live transmission of the inspection image to external monitors or recording devices.
For recording and storing inspection data, the snake camera has a 32 GB micro SD card memory, which offers sufficient space for extensive recordings. An audio recording can also be added to a video via the AUX input. The device allows user-defined notes and file names to be assigned in the menu. With these powerful features, the snake camera is the ideal solution for demanding inspection applications in hot and extreme environments.
General technical data | |

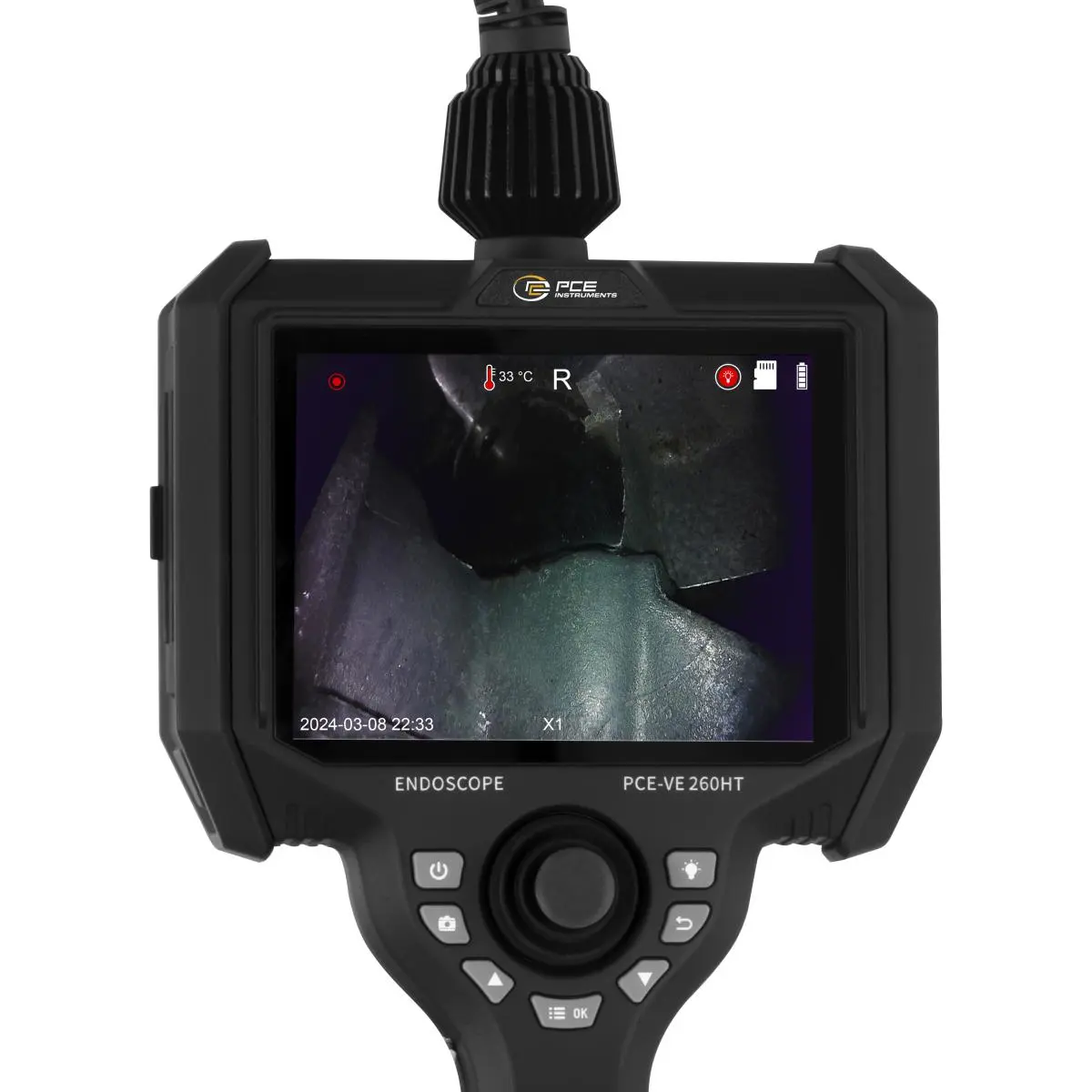

Display type | LCD |
Display size | 5 inch |
Storage medium | Micro SD card |
Storage capacity | 32 GB |
Storage capacity (additional information) | max. 128 GB possible |

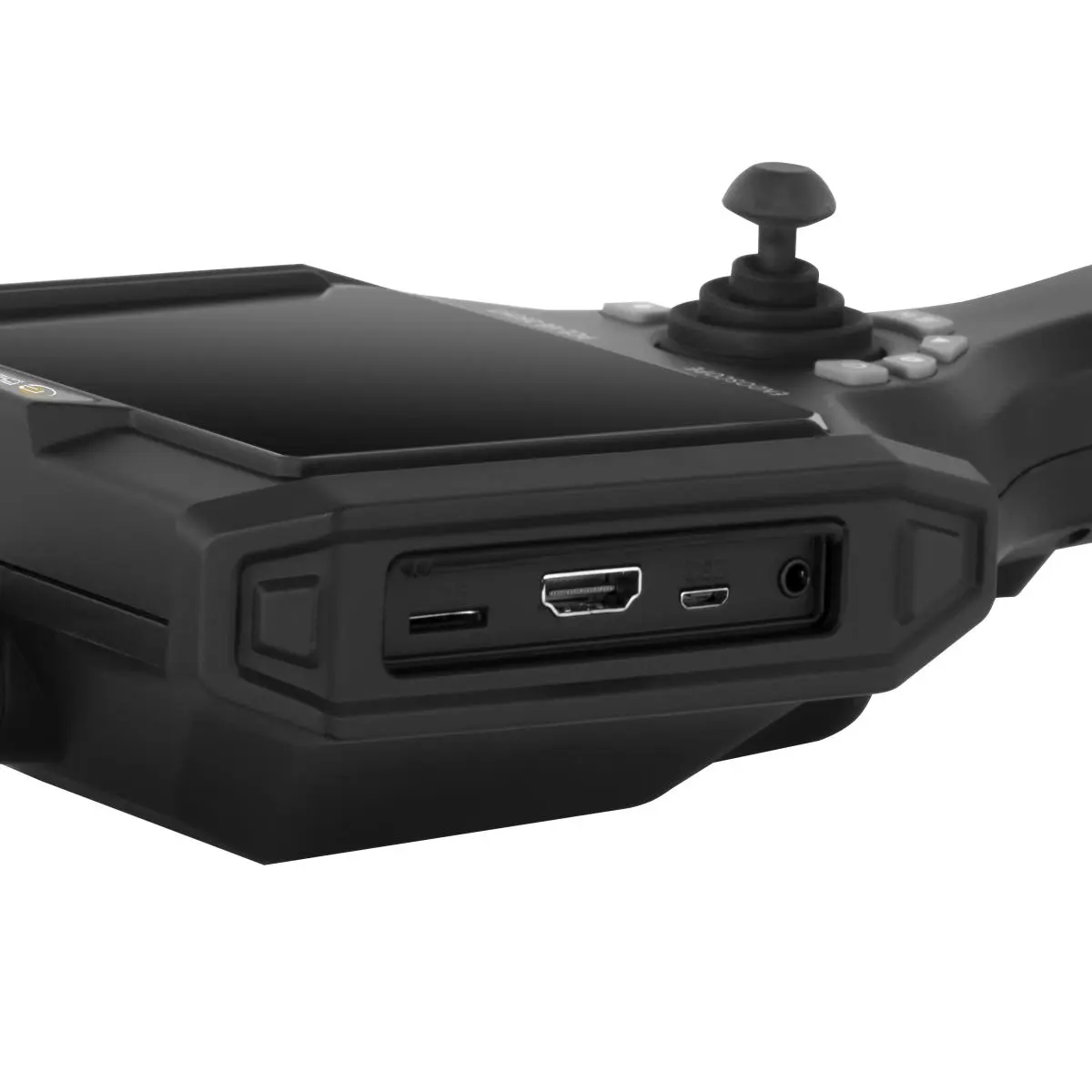

Interface | HDMI, Micro-USB, AUX |
Camera resolution | 1280 x 720 |
Camera orientation | frontal 0° |
Operating time | 4 h |
Length of camera probe | 2 m |

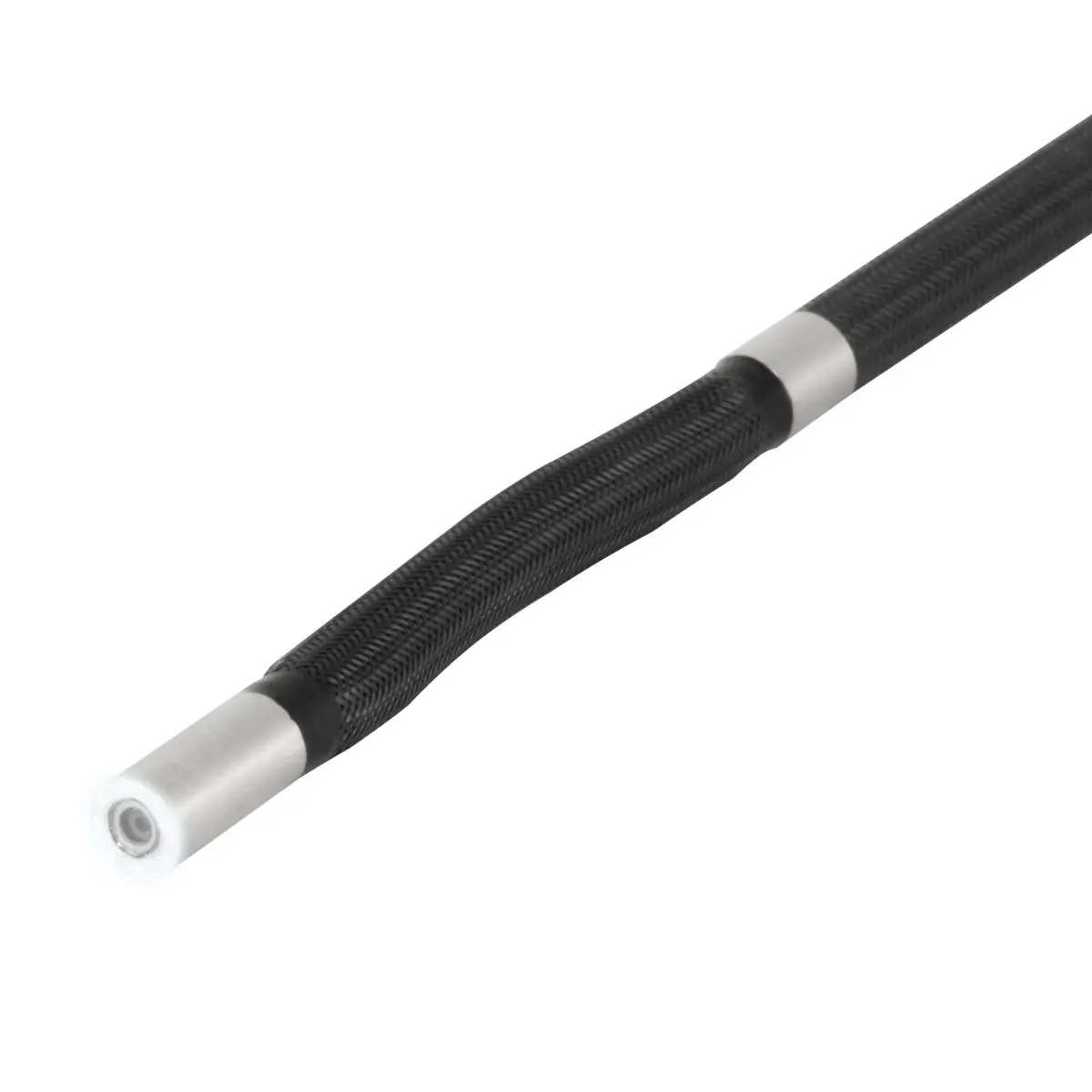

Material camera probe | Wolfram braided |
Movement of camera probe | 4-way |
Camera probe protection class | IP67 |
Diameter of camera head | 6 mm |
Field of view | 120 ° |
Field of view depth | 12 ... 200 mm |
Bending angle | 220 ° |
Luminous intensity | 40000 lx Fibre optic guide, rear LED |
Cable type | flexible |
Image / video format | JPEG, AVI, mp4 |

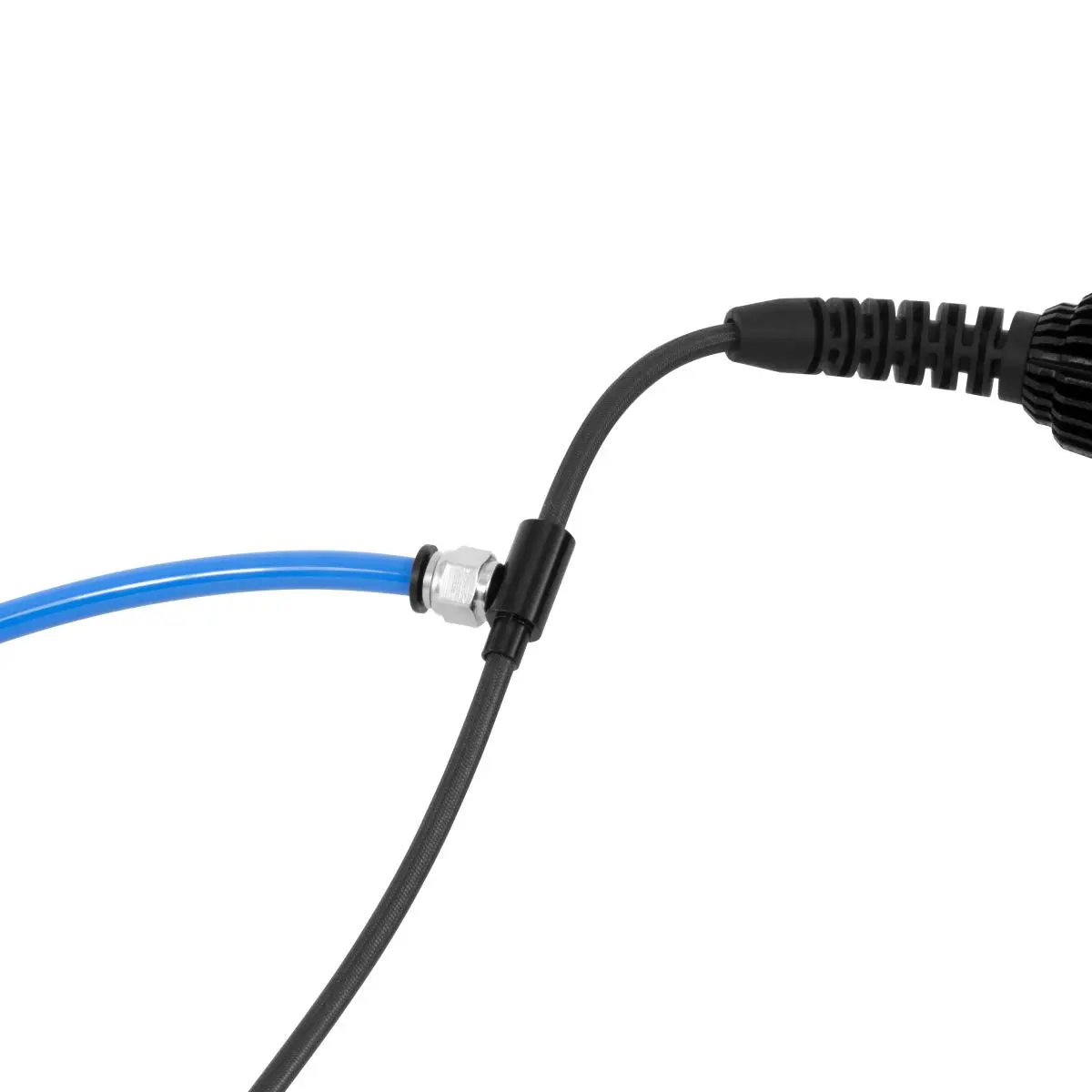

Pressure connection | Quick connection, max. permissible air pressure 4 bar |
Menu language | German, English, Chinese, French, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, Dutch, Korean |
Protection class (device) | IP54 |
Power supply | 5 V DC |
Plug type | Euro plug device |
Weight | 1018 g |
Dimensions (L x W x H) | 360 x 157 x 75 mm |
Operating conditions | -10 ... 50 °C , 0 ... 90 % r.H |
Storage conditions | -20 ... 60 °C , 0 ... 90 % r.H |
Accumulator/battery | 1x 3.7 V , lithium-ion battery |
Capacity | 3400 mAh |
