Snake Camera PCE-VE 390N

Order no.: PCE-VE 390N
GTIN (EAN): 4250348718761

£ 1,246.00
£ 1,495.20
price ex. (VAT / delivery)
:
4250348718761
PCE-VE 390N
Delivery time: 1-2 working days
No
28 mm
10 m
320 x 240 / 640 x 480 pixels
No
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)

Description

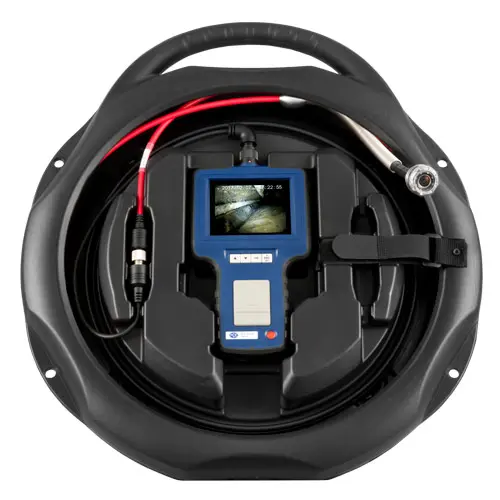

PCE-VE 390N Snake Camera
Includes semi-flexible / semi-rigid, 28 mm / 1.1 in diameter, 10 m / 32.8 ft long cable and SD card memory for saving pictures and videos

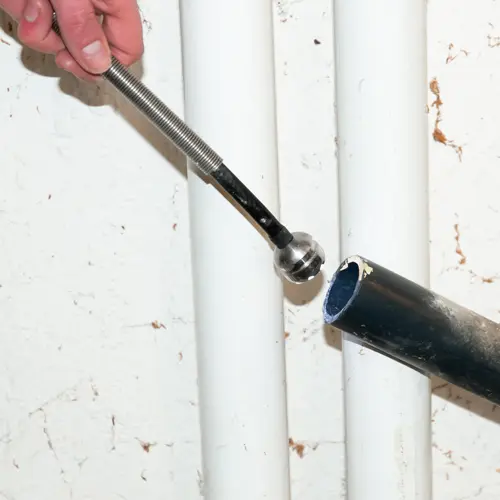

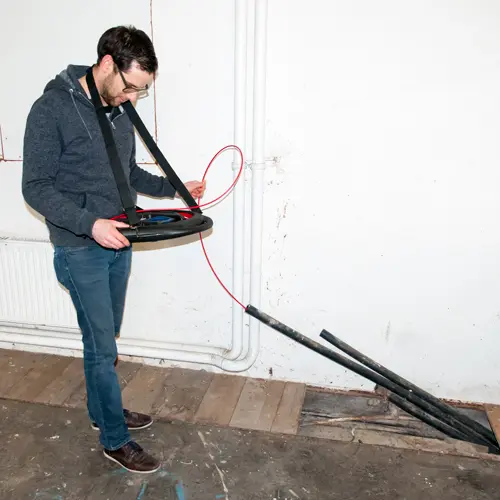

PCE-VE 390N is the ideal snake borescope for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the PCE-VE 390N well suited for use in tough environments like construction sites and industrial installations.

*** Not suitable for medical use ***

Highlights

- Camera cable length 10 m / 32 ft 9"
- Camera head diameter 28 mm / 1.1"

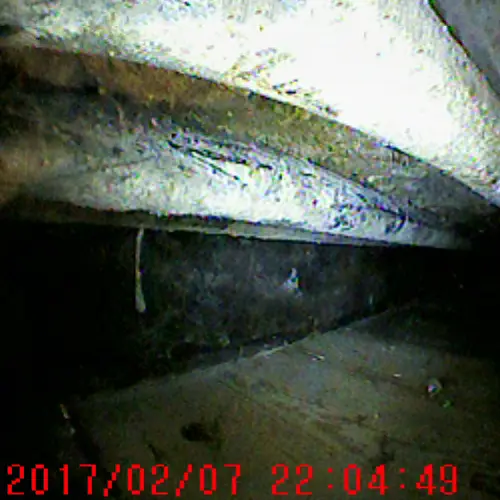

- Storage of images and videos
- 8 GB SD memory card incl.
- LED lighting

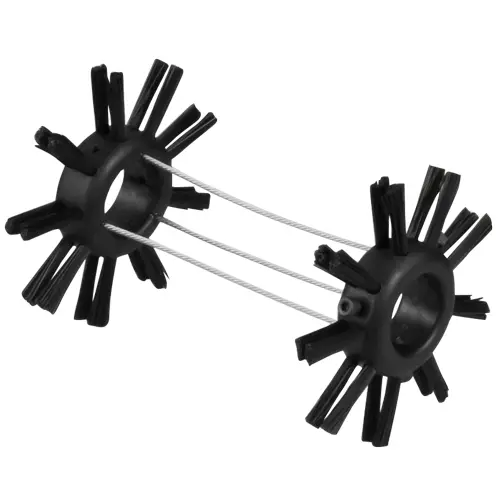

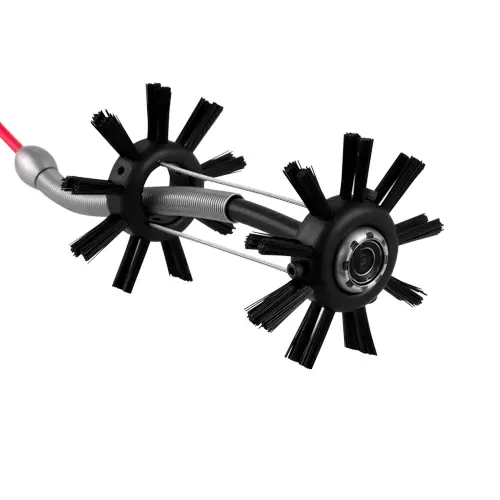

- With centering brush

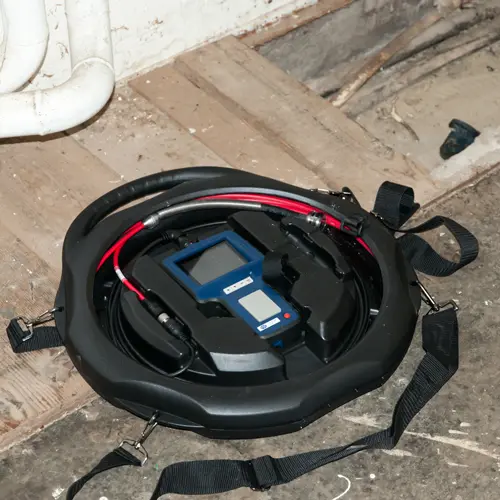

- Robust carrying case incl.
- Additional camera cables optional

Specification

Cable diameter

28 mm / 1.11 in

Cable length

10 m / 32.8 ft

Depth of field

10 mm … ∞ / 0.4 in to infinity

Field of view

150.8°

Bending radius 90 mm / 3.54 in.

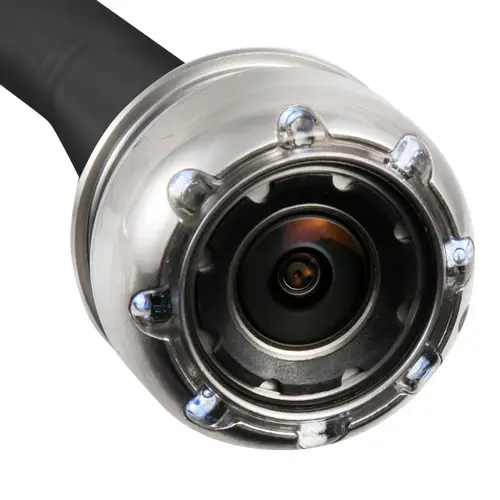

Illumination 8 LEDs
Image sensor CMOS / 640 x 480
Picture rate 30 / sec.
Display
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 60°C / 14 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 9.98 kg / 22 lbs
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft

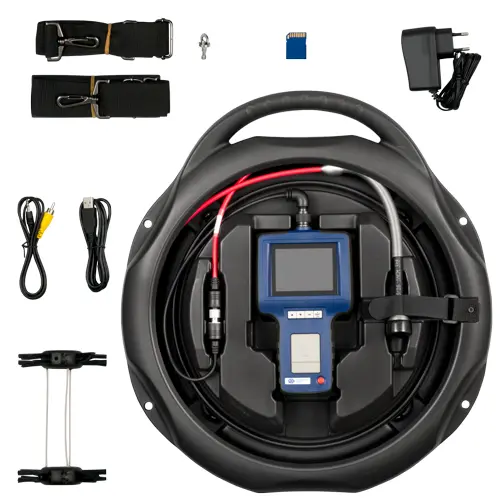

Delivery Scope

1 x Snake Camera PCE-VE 390N
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case

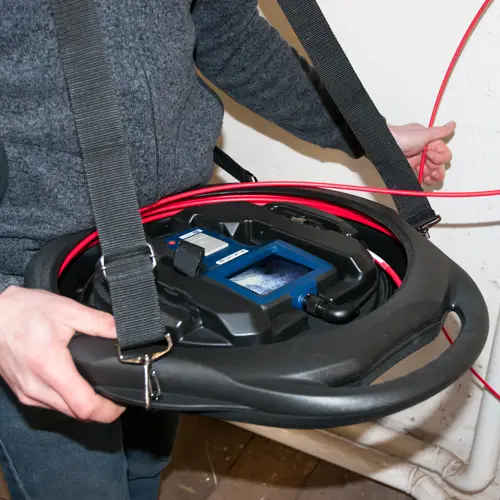

1 x Carrying straps
1 x Mains power adapter
1 x User manual

Please note: Not to be used for medical applications!
