Price excl. VAT &. delivery
2 year Warranty
- Printing method: thermal printer
- Interface: USB / RS232 / Bluetooth
- Resolution: 8 points / mm, 384 points / line
- Print width: 48 mm
- Print speed: 50 mm / s
- Character set: ASC II, GB18030 (Chinese)

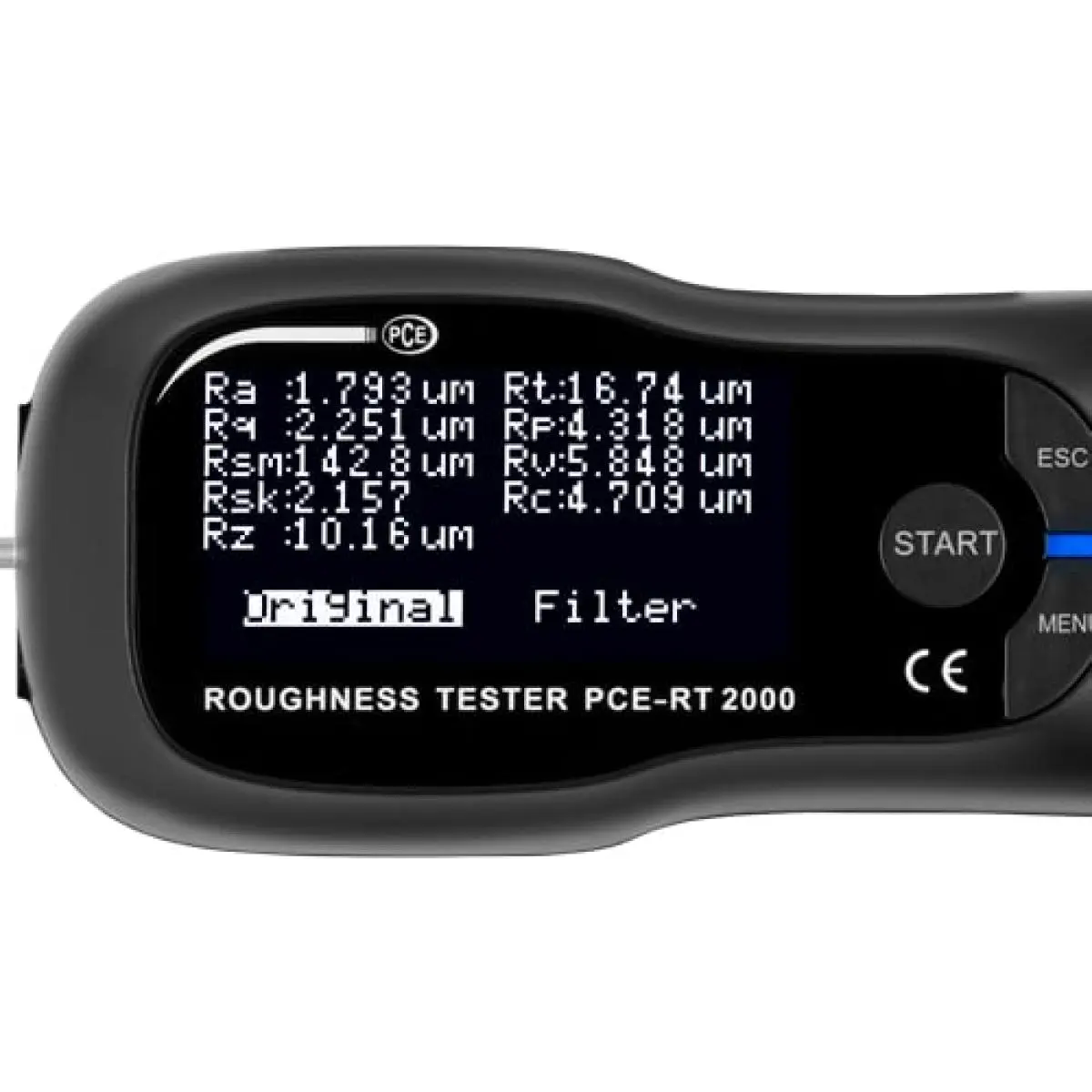

Measurement parameters | Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc |
Measuring ranges | Ra, Rq, Rc: 0.005 μm ... 16 μm Rz, Rt, Rp, Rv: 0.02 μm ... 200 μm Rsm: 5 μm ... 1000 μm Rsk: -1 ... 1 |

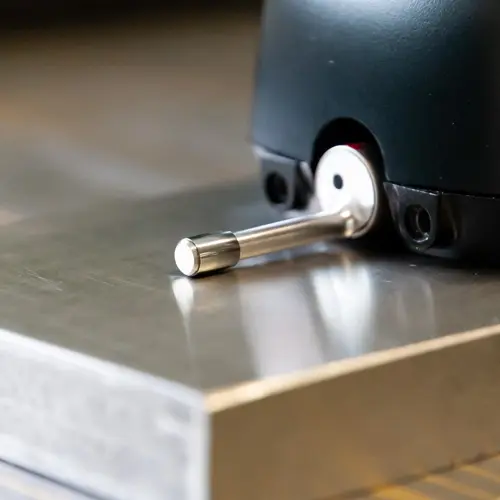

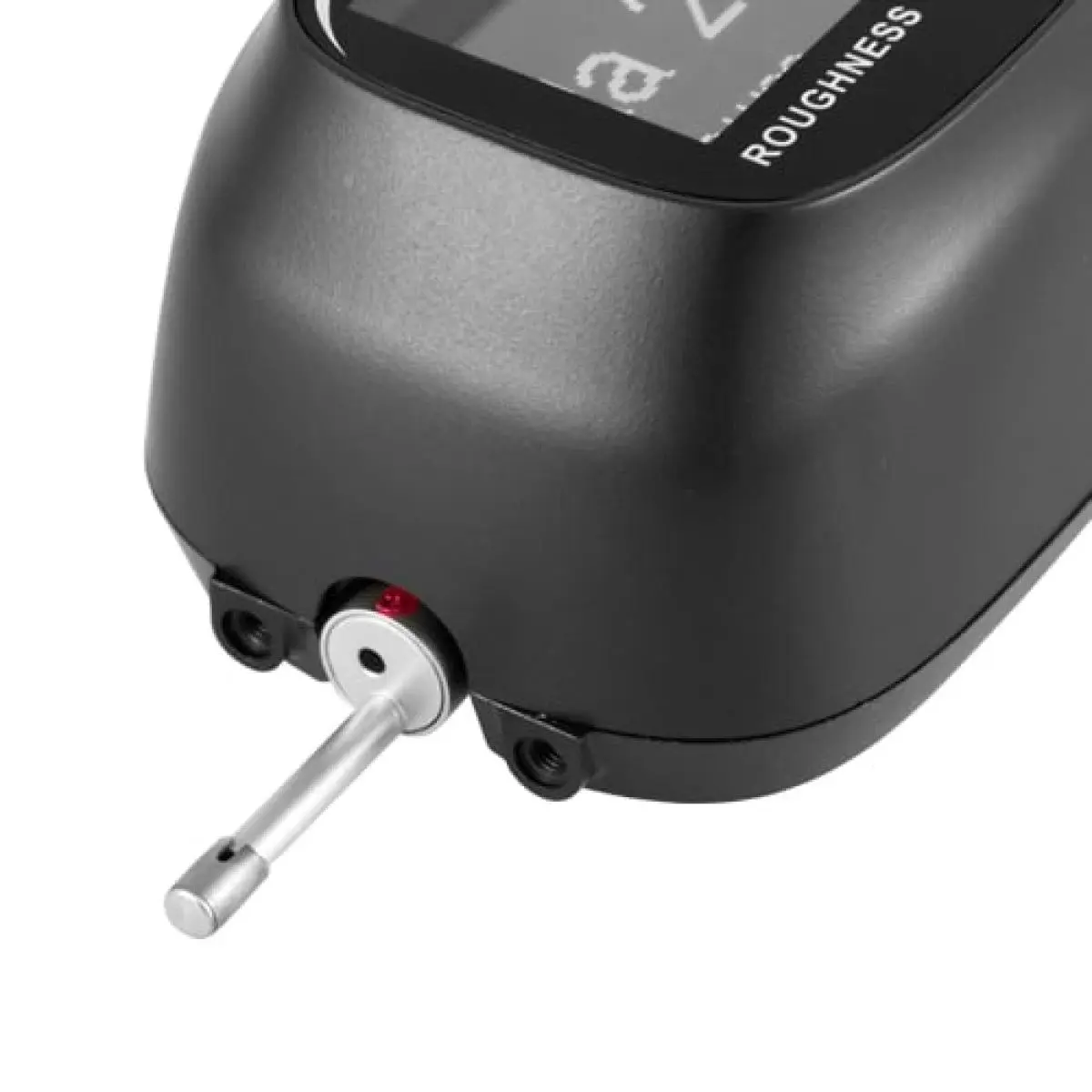

Radius stylus tip | 5 μm |
Material stylus tip | Diamond, 90° angled |
Max. recommended force for static measurement | 4 mN (0.4 gf) |
Measuring principle | Inductive |
Radius longitudinal guide bar | 45 mm / 1.8 in |
Standards | ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) |
Maximum driving distance | 15 mm / 0.6 in |
Cut-off wavelength (cut off) | 0.135 mm/s at cut-off wavelength: 0.25 mm 0.5 mm/s at cut-off wavelength: 0.8 mm 1 mm/s at cut-off wavelength: 2.5 mm Reversing speed: 1 mm/s |
Measurement accuracy | <± 10% |
Repeatability | <6% |
Display | OLED |
Units | μm / μinch (switchable) |

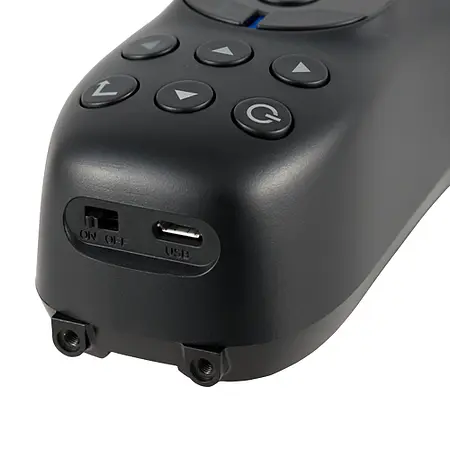

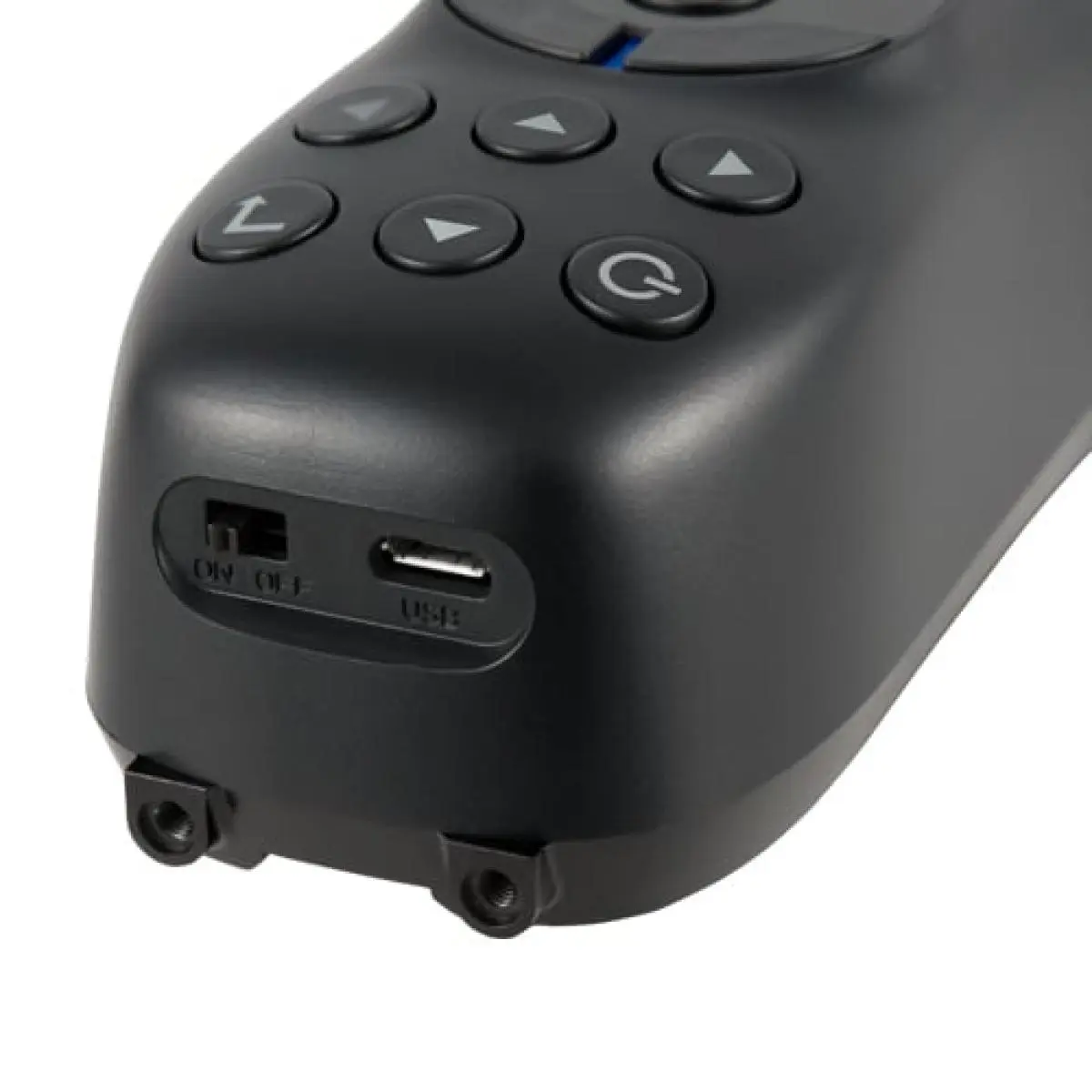

Interface | Micro USB, Bluetooth |
Power supply | Rechargeable Li-ion battery |

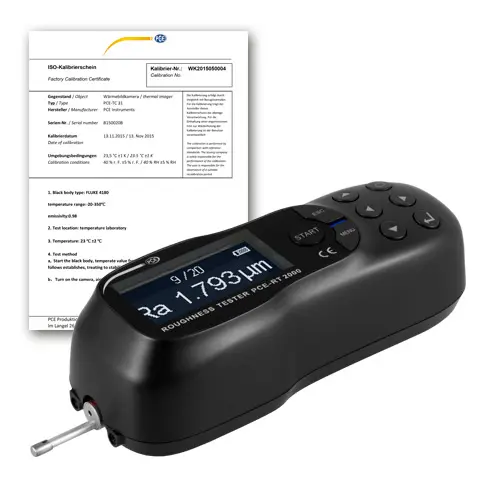

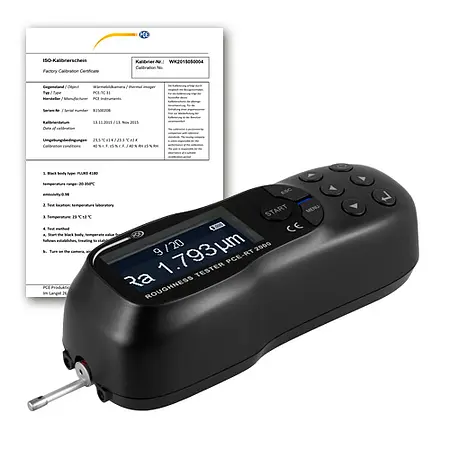

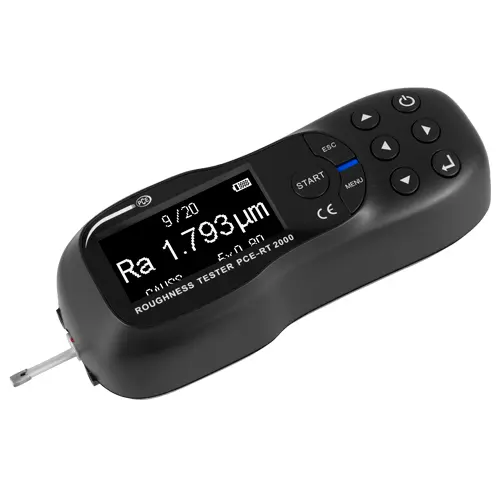

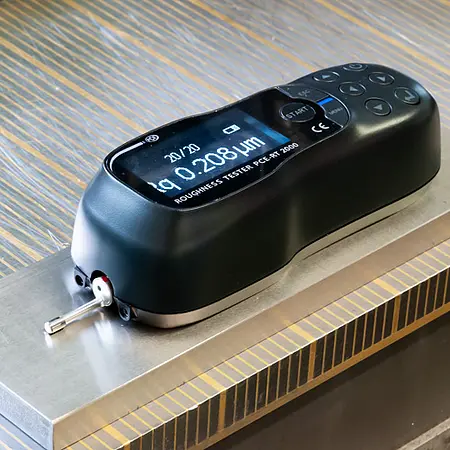

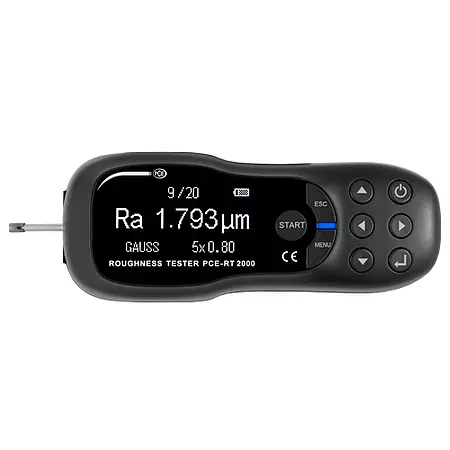

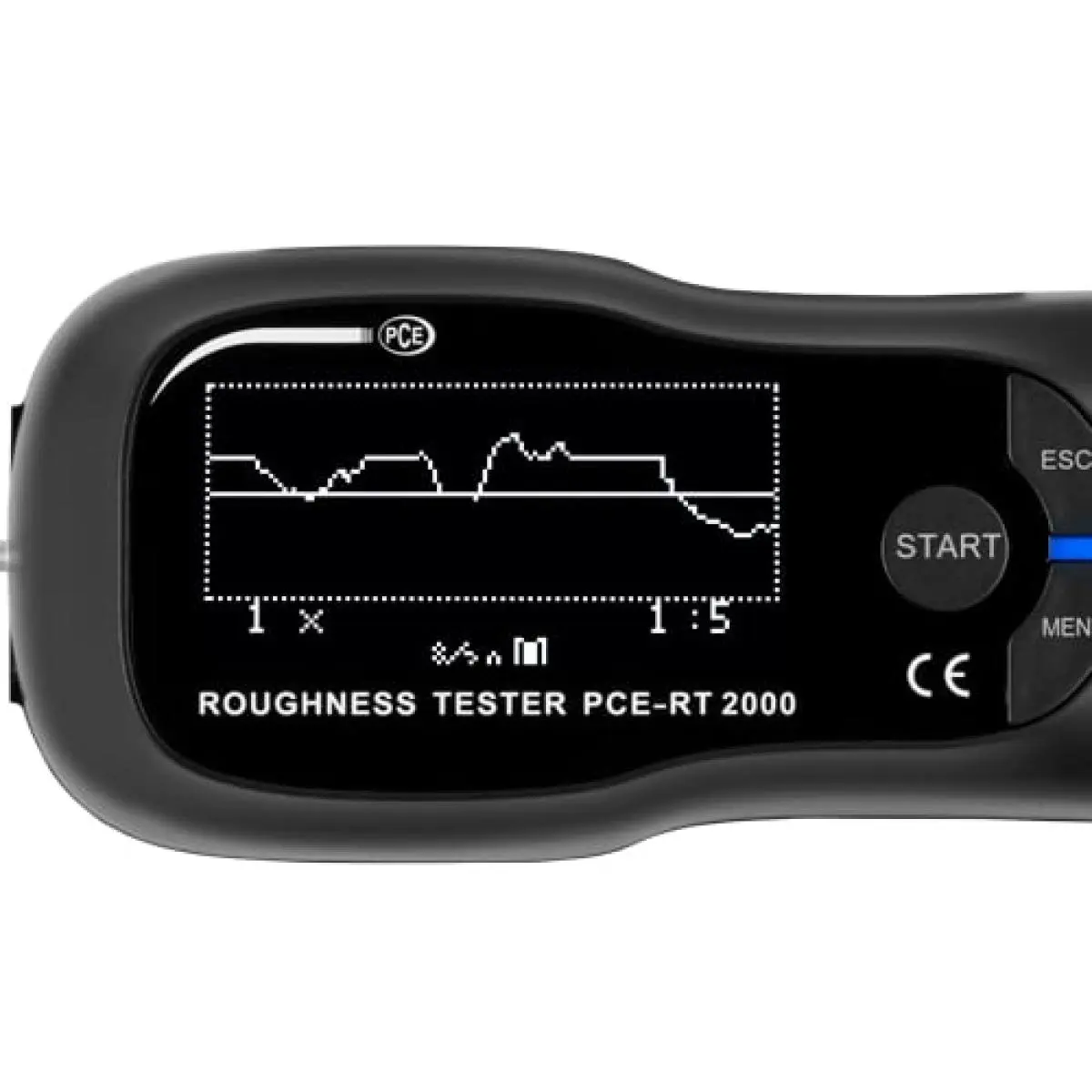

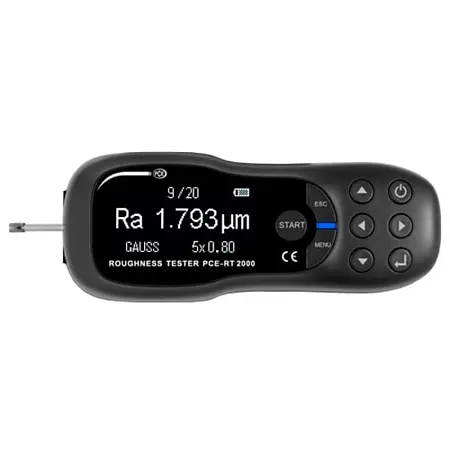

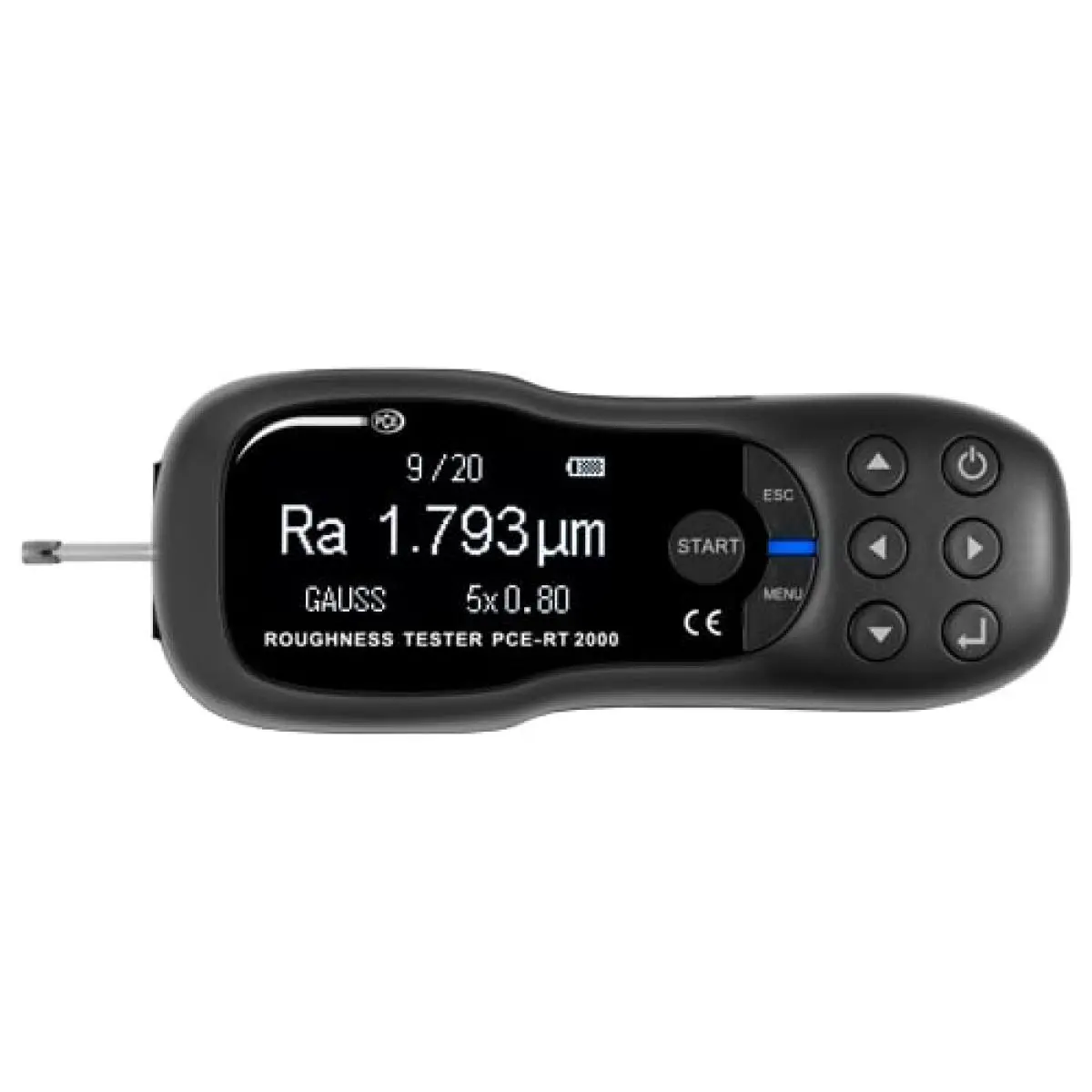

1 x Surface Tester PCE-RT 2000BT-ICA
1 x Microprobe
1 x Protective cap for buttons
1 x Clamping device
1 x Software
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter

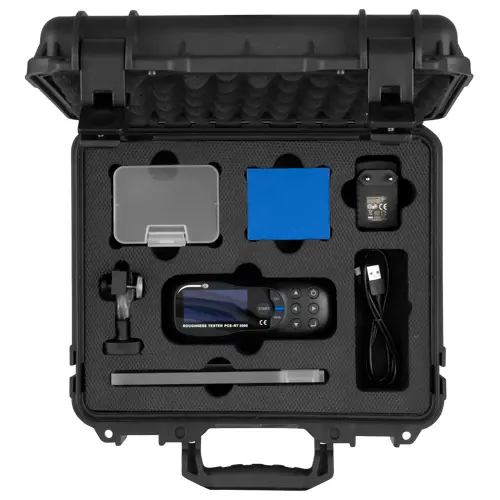

1 x Transport case
1 x User manual

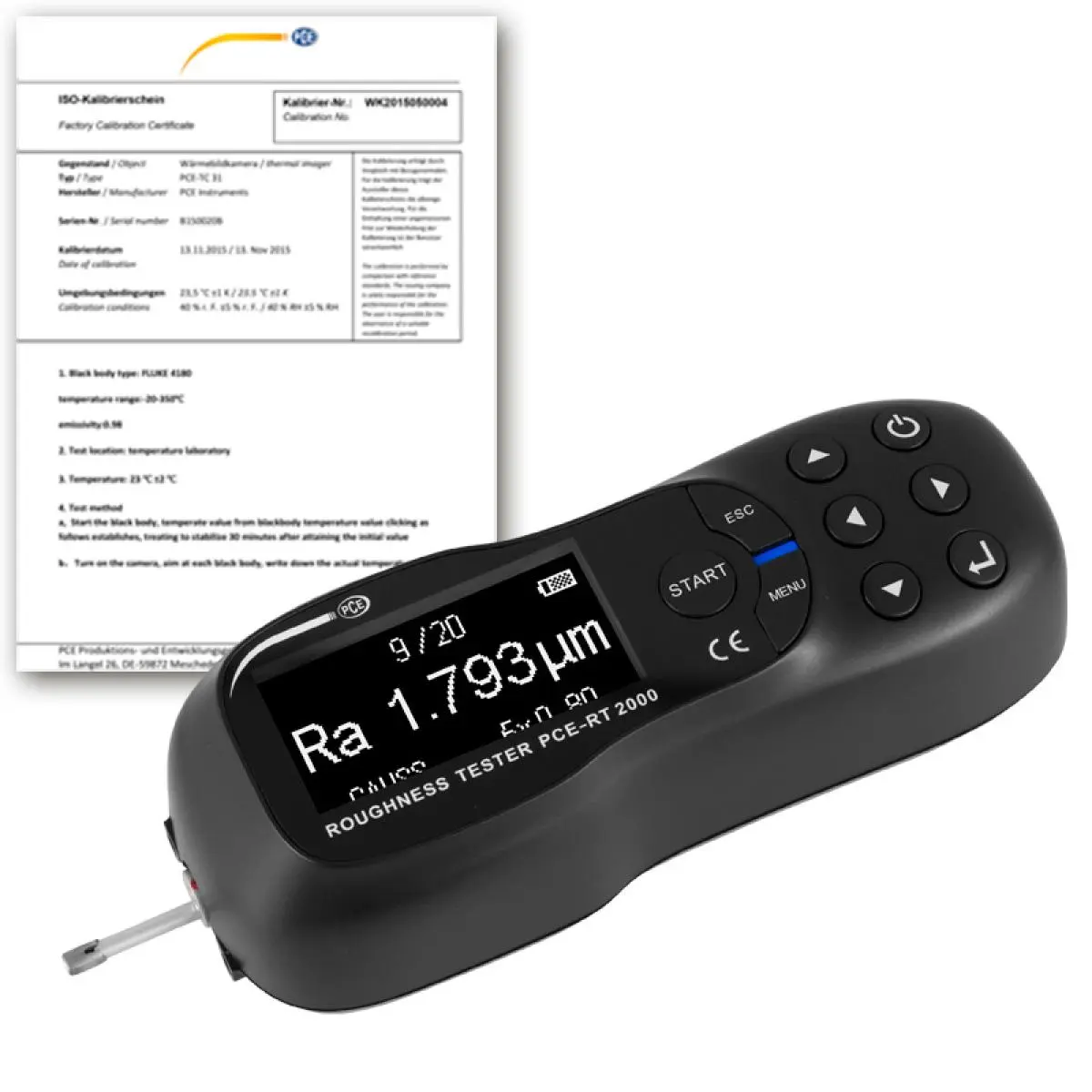

1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Replacement paper rolls for Bluetooth printersPackage content: 4 pieces
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Spare standard sensor for Roughness-Tester PCE-RT 1200 / PCE-RT 2000.
Price excl. VAT &. delivery
2 year Warranty
Probe for the PCE-RT 1200 and PCE-RT 2000 for measuring the roughness of grooves.
N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.
Price excl. VAT &. delivery
2 year Warranty
Curved surface sensor suitable for PCE-RT 1200 und PCE-RT 2000. The sensor is used to measure surfaces with radii.
N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.
