Temperature Data Logger PCE-HT 71N

Order no.: PCE-HT 71N
GTIN (EAN): 4250348707024
£ 80.00
£ 96.00
price ex. (VAT / delivery)
:
4250348707024
PCE-HT 71N
Delivery time: 1-2 working days
Non-contact
Handheld
-35 ... 80 °C / -31 ... 176 °F
Yes (integrated)
Yes (USB)

Description

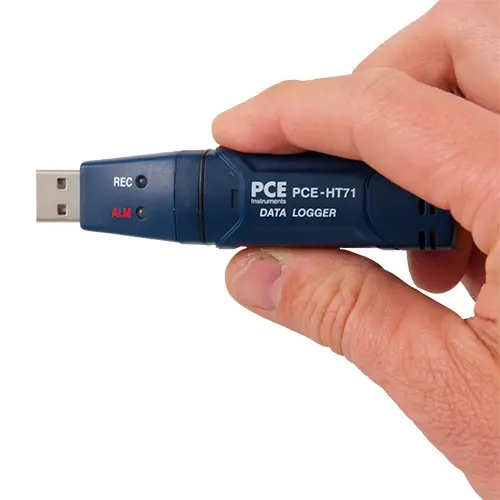

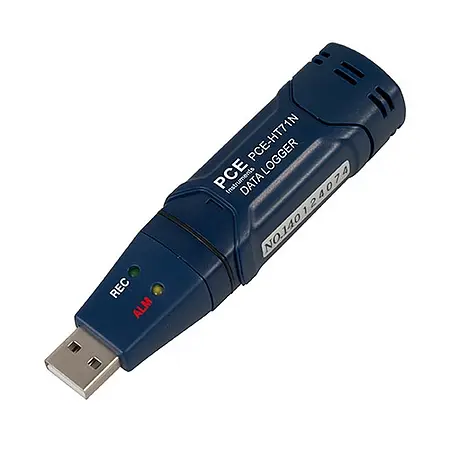

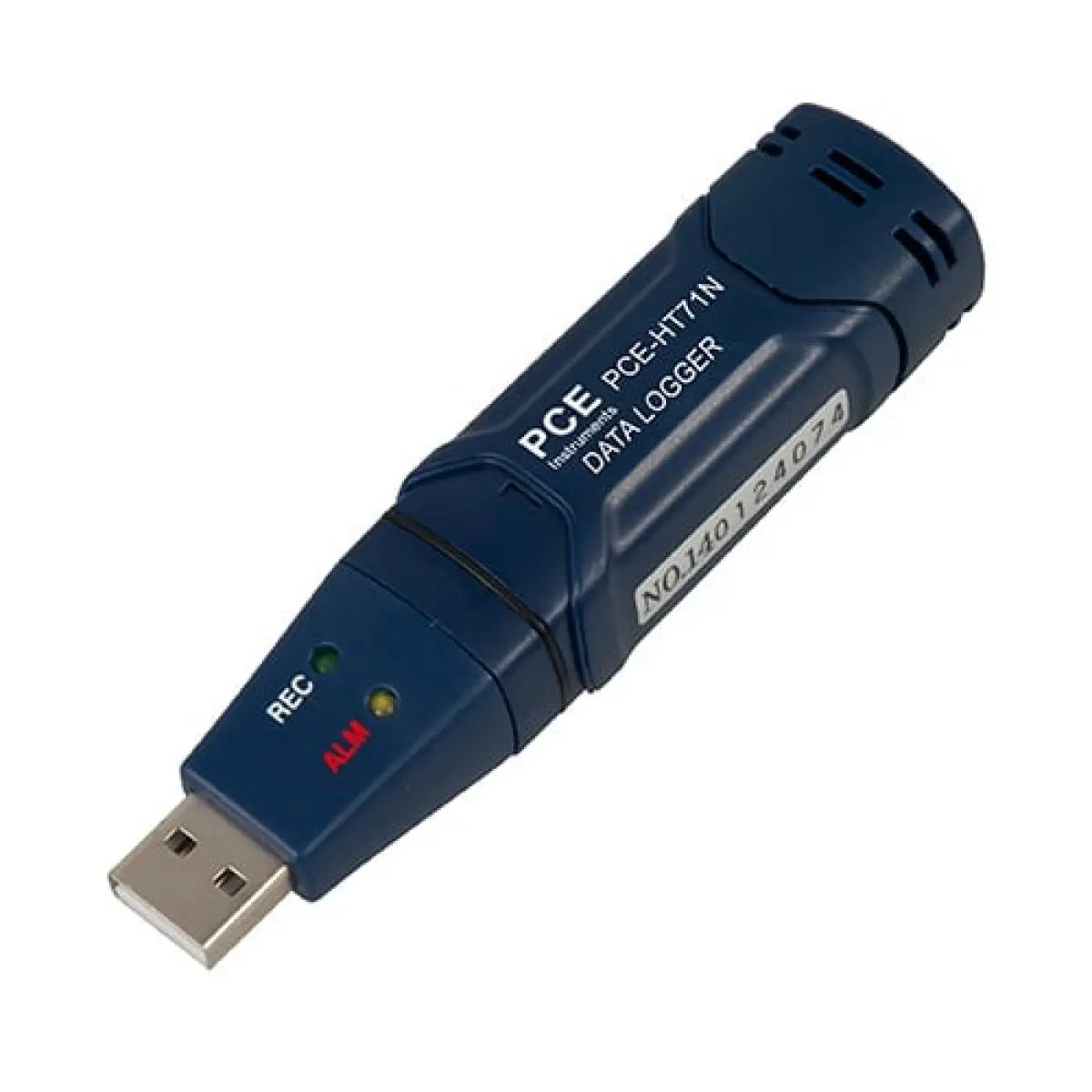

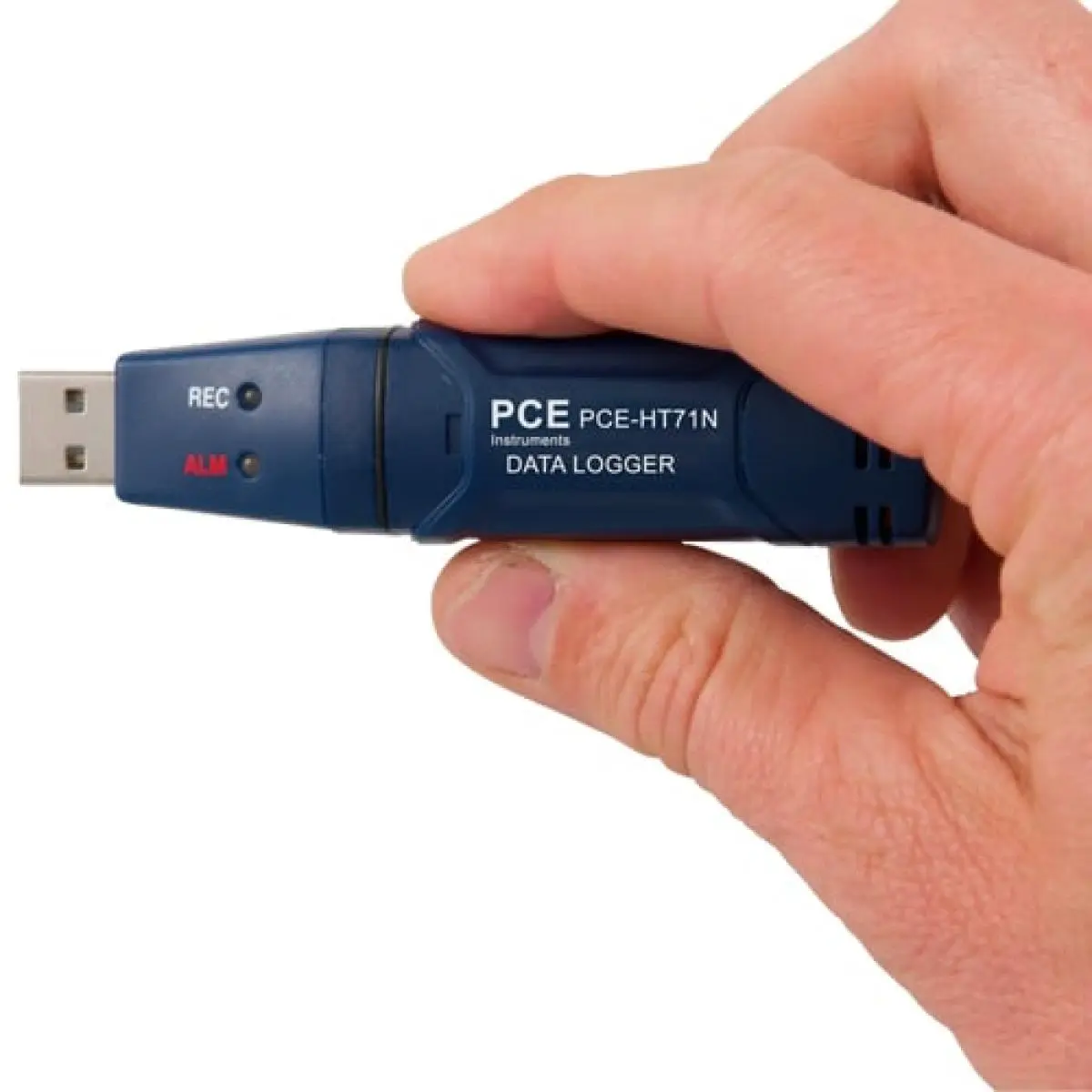

PCE-HT 71N Temperature Data Logger
Mini device for prolonged measurement of temperature and relative humidity / 32k memory/ USB port/ Software to calculate dew point/ Powered by a long-life lithium battery

The PCE-HT 71N Temperature Data Logger detects air temperature and humidity and stores readings in its internal memory. The Temperature Meter has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a data logger in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature controlled environments. The Temperature Meter works as a data logger to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The PCE-HT 71N Temperature Meter can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the PCE-HT 71N is that it is powered by a removable 3.6V, long-life lithium battery. The battery life is approximately one year.


Highlights

- Storage capacity: 32K
- USB port
- A software for calculating dew point and analysing data in a computer is included

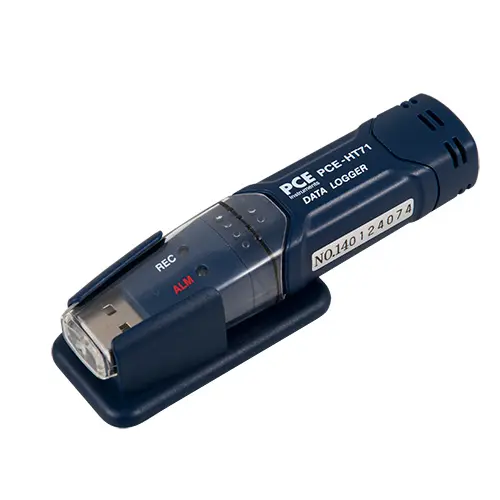

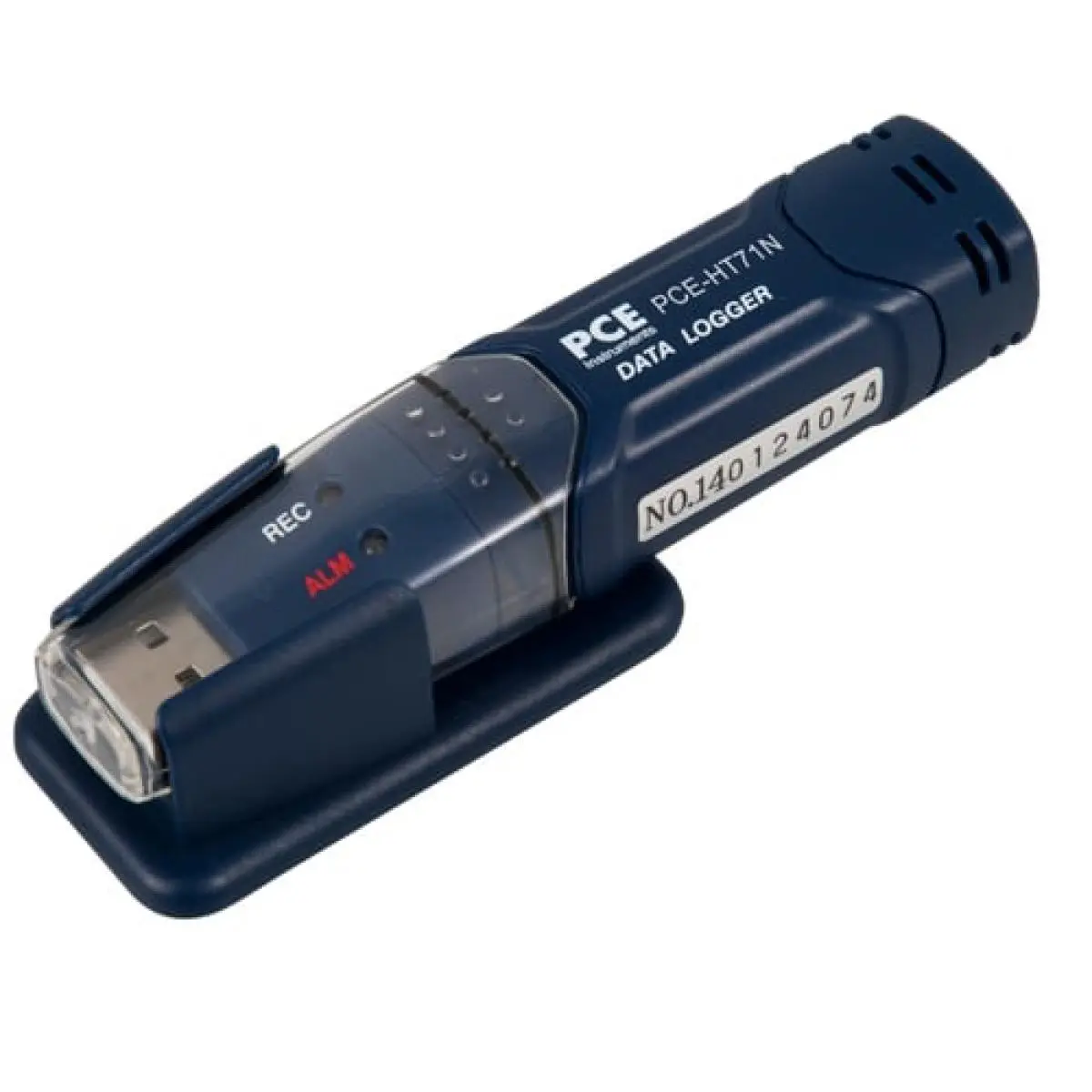

- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- Non-volatile EEPROM
- Staus indicated by 2 LEDs (including alarm)
- Programmable alarm limits across entire measurement range
- Replacement battery

Specification

Measurement range

-35 ... 70ºC / -31 ... 158ºF
0 ... 100% H.r.

Accuracy

± 3% H.r. (20 ... 80%) and ± 5% / ± 1°C (1.8°F)

Resolution

0.5% H.r. / 0.1°C (0.18°F)

Sensors

Internal (humidity and temperature)

Memory

Max. 32,000 measurement values (16,000 for each parameter)

Measurement quota / measurement intervals

Adjustable, 10 s, 20 s, 1 min, 10 min, 20 min, 30 min

Alarm limit

Adjustable

Status indicator

Through 2 LED’s (recording data / alarm)

Port

USB

Software

Included in the delivery

Dew point temperature

Calculated by the software once data has been transmitted (accuracy: ± 2°C (3.6°F))

Power

3.6V lithium battery
(life: approx. 1 year)

Positioning

- Can be wall mounted or placed anywhere on a flat surface, for instance on a table

Operating conditions

-35 ... 70°C / -31 ... 158ºF
0 ... 100% H.r.

Case

ABS plastic

Software

Windows 2000 / XP / Vista

Weight

25 g / < 1 lb


Software

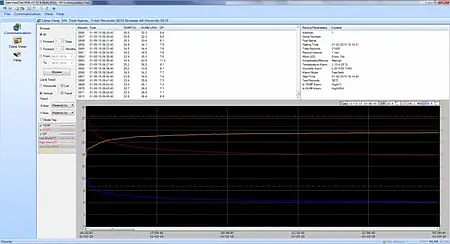

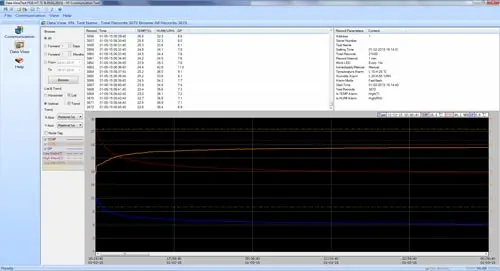

Professional software for programming the device and for analysing data on computers. The software has the following features:

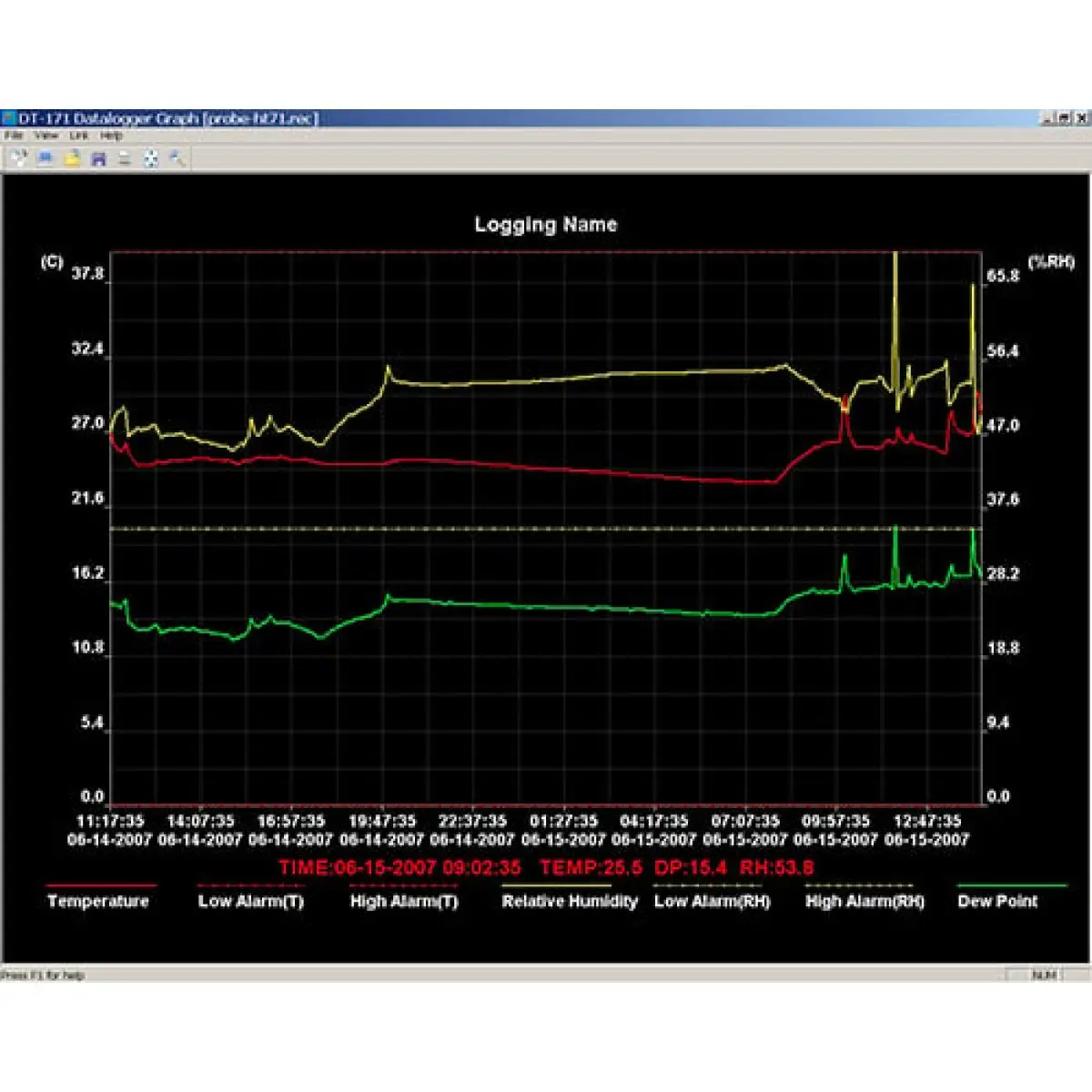

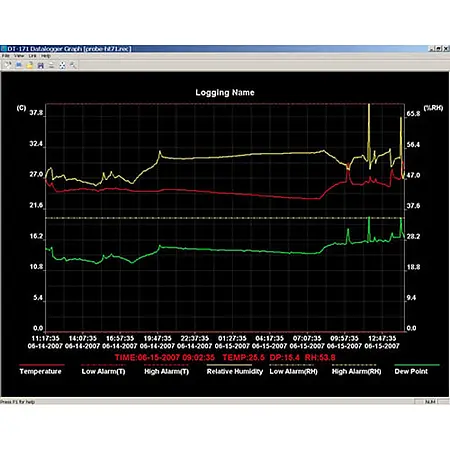

Data columns and graphical representation (x-t diagram with date and time), a series of data can be exported to other programs such as MS Excel.

The software also allows the user to adjust the device's parameters via a computer.


Menu of the PCE-HT71 air humidity meter.



Delivery Scope

1 x PCE-HT 71N Temperature Data Logger
1 x Wall mount
1 x Battery
1 x Software
1 x User’s manual
