Price excl. VAT &. delivery
2 year Warranty
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Diameter: 16 mm
- Threaded connection: M10
Wherever the human body reaches its limits in terms of force measurement, the motorized test stand comes into play. The user of the motorized test stand is obliged to prepare a risk analysis. If it emerges from this that the type of application and the samples pose a risk to the user, a safety device may be required, especially in the case of the test stand operated by an electric motor.

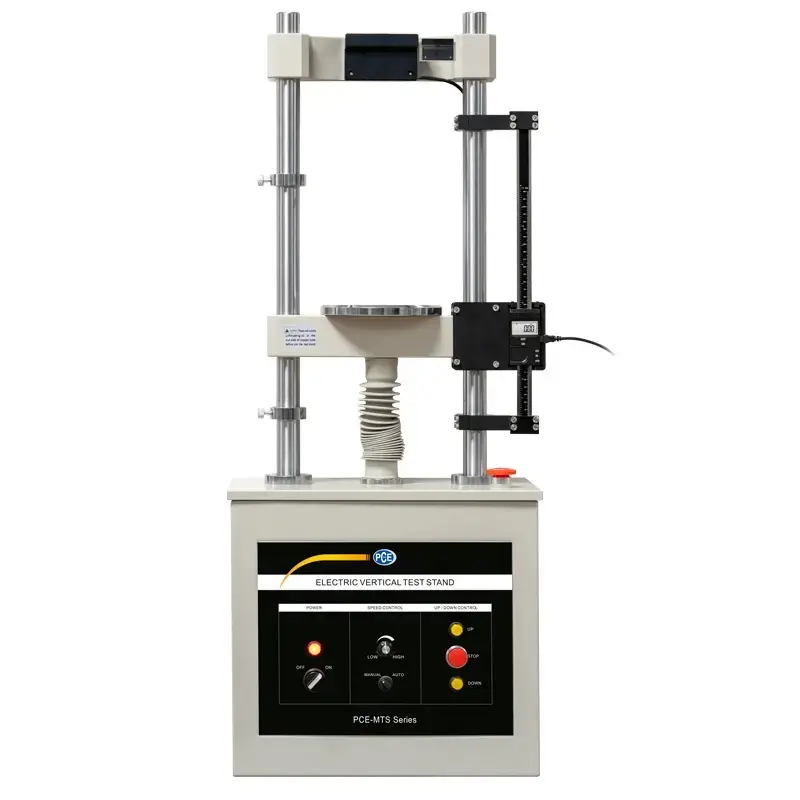

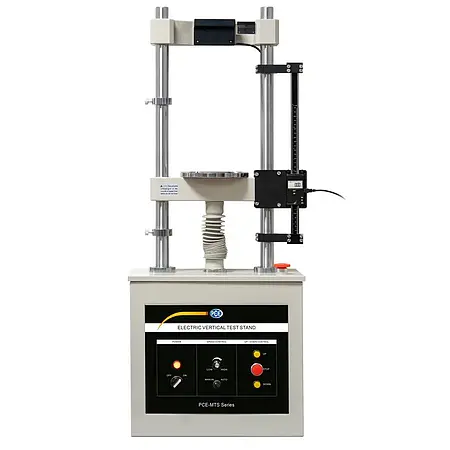

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***Motorized force test stand PCE-MTS500 | |
Force range | max. 5000 N (500 kg / 1100 lbs) |
Travel distance | max. 300 mm / 11.8" |
Feed rate | 30 ... 230 mm/min / 1.18 ... 9.05 in/min |
Test table | Ø 160 mm/ 6.3" |
Sample width | max. 200 mm / 7.9" |
Guide columns | Ø 32 mm / 1.3" |
Dimensions | 1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8" |
Weight | ca. 60 kg / 132 lbs |

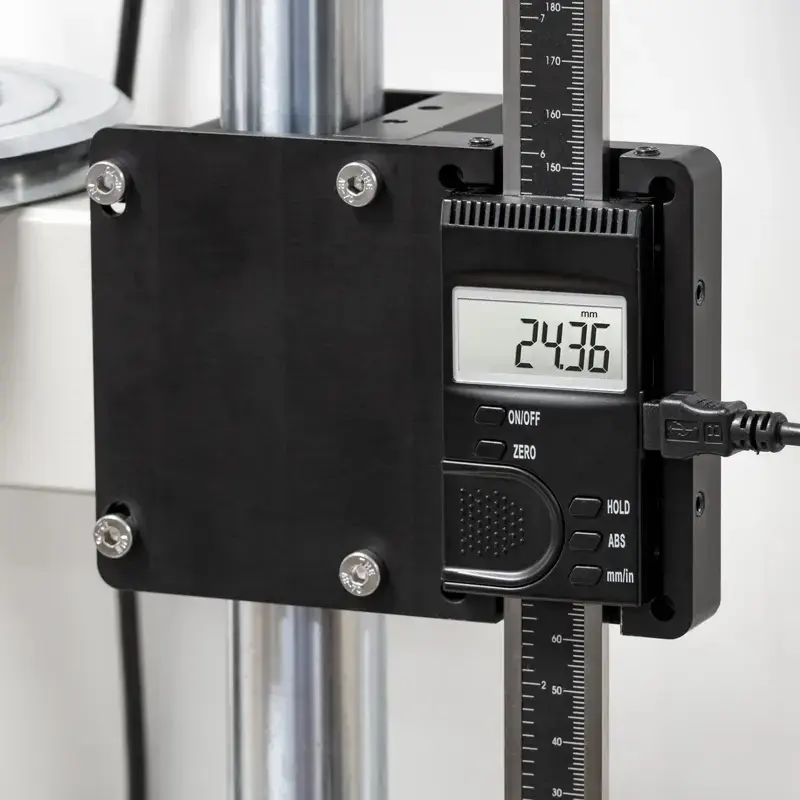

Length measuring device PCE-DFG FD 300 | |
Measuring range | -150 … 150 mm / -5.9 … 5.9" |
Resolution | 0.01 mm / 0.0004" |
Accuracy | ±0.03 mm / 0.001" |
Operating conditions | Temperature: 0 … +50 °C / 32 … 122 °F |
Storage conditions | Temperature: -20 … +65 °C / -4 … 149 °F |
Humidity: 10 … 95 % RH, non-condensing | |
Weight | 360 g / 12.7 oz |
Power supply | 3VCR 2032 |
Dimensions | 394 x 40 x 10 mm / 15.5 x 1.5 x 0.4" (HxWxD) |
Price excl. VAT &. delivery
2 year Warranty
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.
Price excl. VAT &. delivery
2 year Warranty
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Adapter clamps for tensile testing of wire and filaments.
Price excl. VAT &. delivery
2 year Warranty
Fork holder for tensile and pressure tests.
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
Price excl. VAT &. delivery
2 year Warranty
Tensioning device for tensile tests.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for peel test of block, glass and cardboard.
Price excl. VAT &. delivery
2 year Warranty
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
Price excl. VAT &. delivery
2 year Warranty
Set of thrust washers (square) for engine test stand PCE-MTS500.
Price excl. VAT &. delivery
2 year Warranty
Thrust washer set (round) for engine test bench PCE-MTS500.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter-stamp for pressure force test of spring and sponge etc.
Price excl. VAT &. delivery
2 year Warranty
Force-displacement adapter is a useful extension to the material test stand in conjunction with a force gauge. This extension allows force-displacement diagrams and curves to be created.
