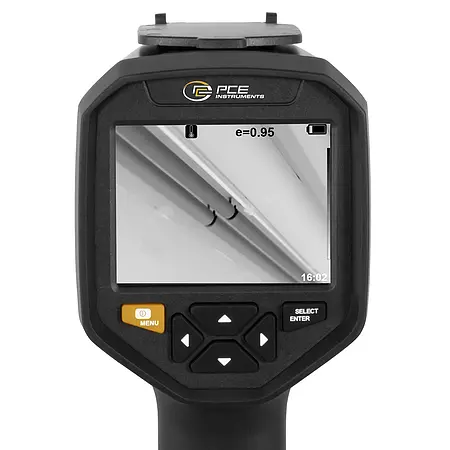

Our Thermal Imager offers reliable temperature measurement within a range from -20 °C to 550 °C (-4 °F to 1022 °F). The infrared images are displayed with a resolution of 384 x 288 pixels on the 3.5-inch colour display. The compact and user-friendly design of the Thermal Imager features an ergonomic handle and an intuitive key control system directly below the screen for easy operation.

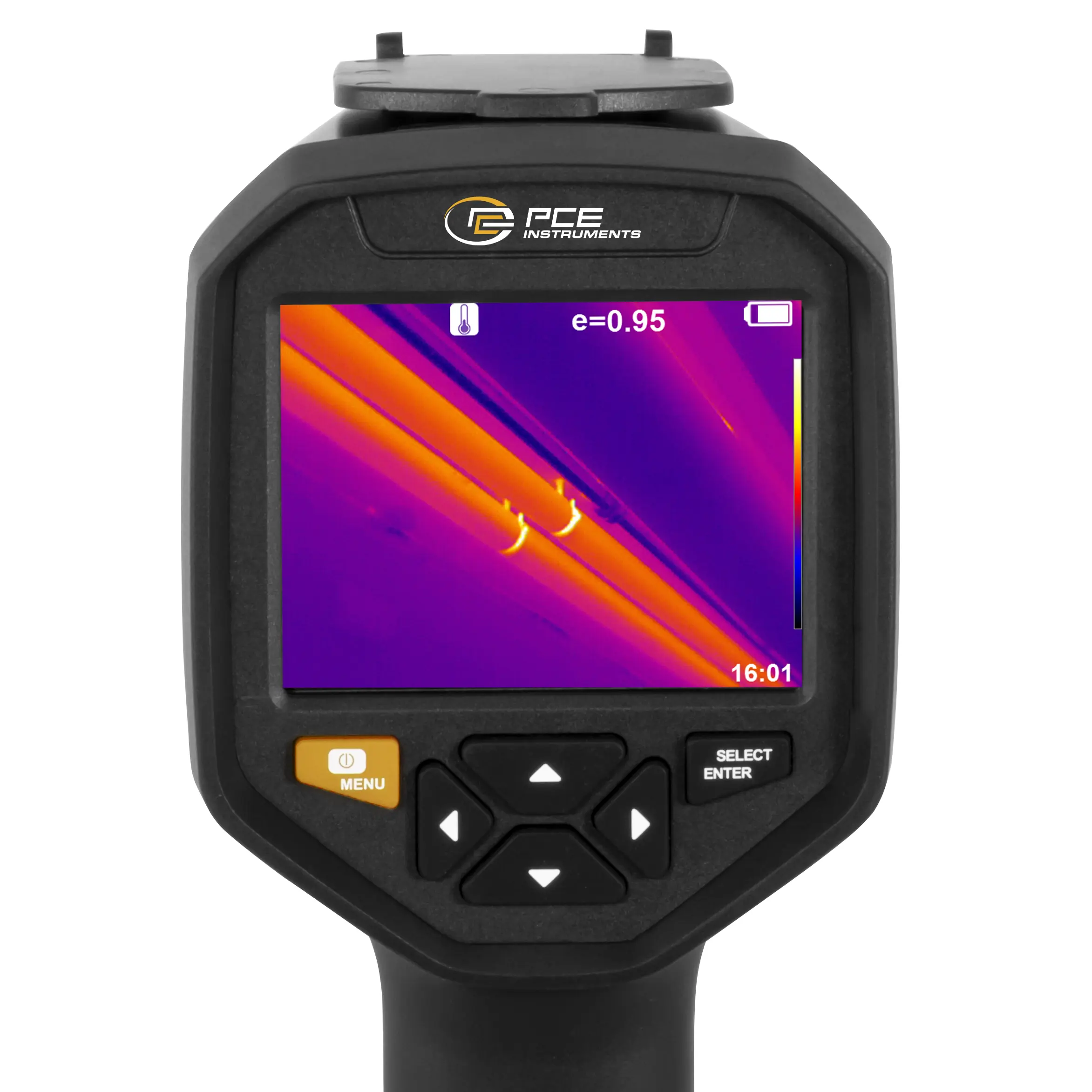

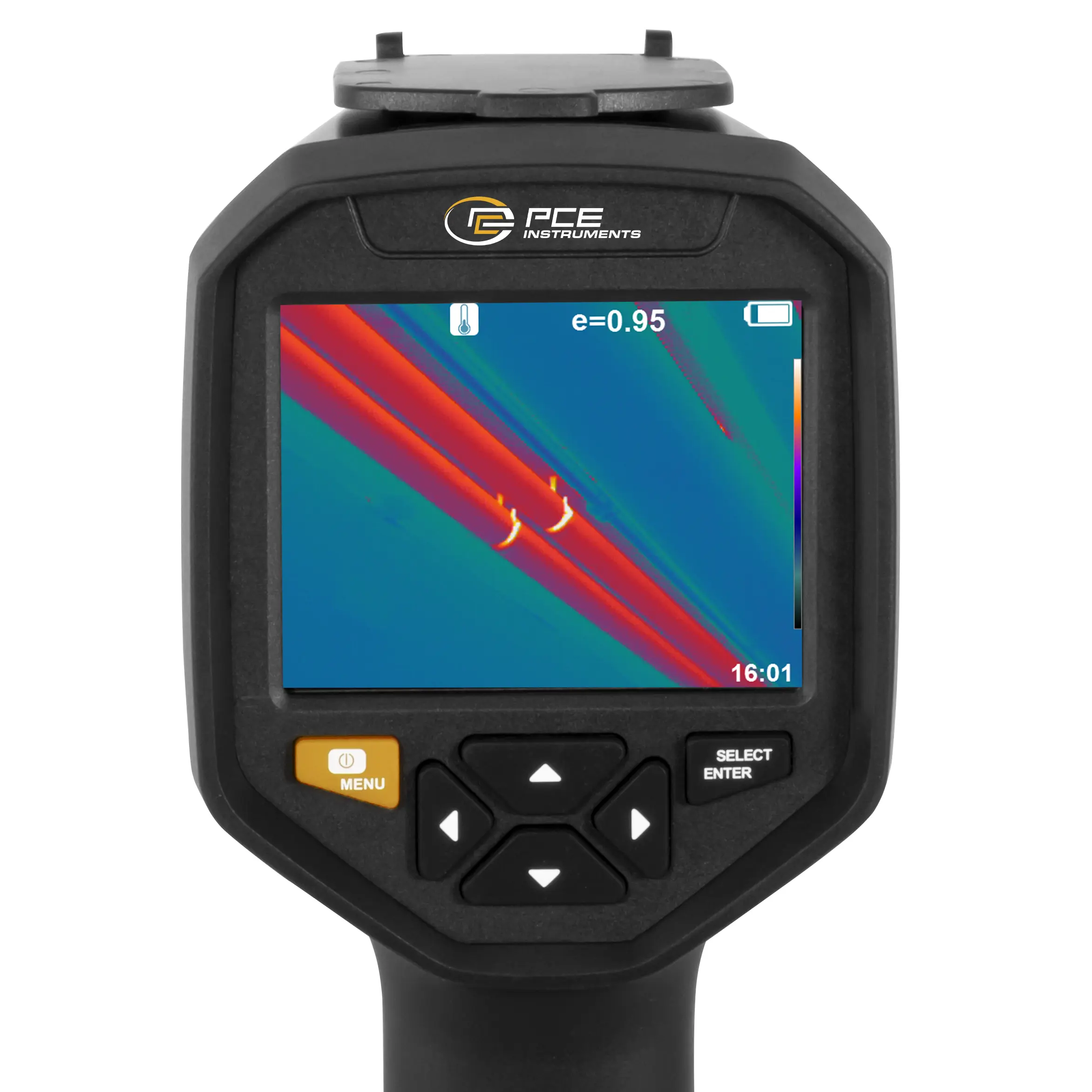

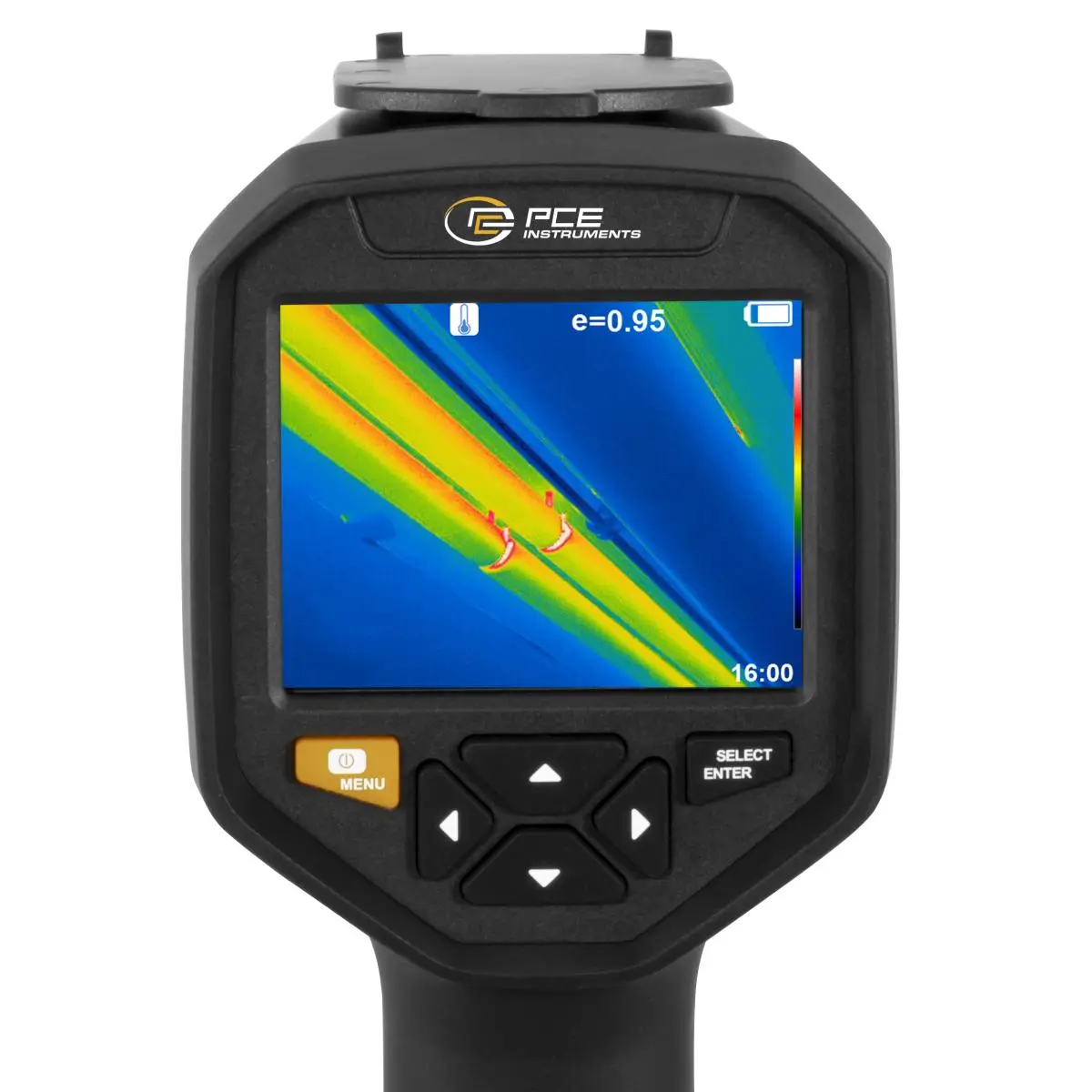

The camera offers multiple colour palettes, including rainbow and iron oxide red, as well as various viewing options to accurately capture thermal data. With a thermal sensitivity of 0.06 °C and an adjustable emissivity of 0.01 to 1.0, even subtle temperature differences can be detected. It saves more than 40000 images in the internal 6 GB memory in JPG format. With a frame rate of 25 Hz, a wavelength range of 8 ... 14 μm and selectable automatic power-off times, this Thermal Imager is a versatile tool for professional and private users.

The unique feature of this Thermal Imager is the possibility of a remote connection via a WiFi network, e.g. to a smartphone from which the Thermal Imager can be set remotely or the recorded thermal images can be saved directly to the end device. Once a smartphone is connected to the Thermal Imager via WiFi, the corresponding colour palette, emissivity or even the display of the maximum and minimum value can be set remotely. Thanks to the Thermal Imager, not only heat losses but also leaks in water and heating systems or non-functioning mechanical components of various systems (motors, bearings, belts, heat pumps, etc.) can be easily detected.
