Vibration Analyzer for monitoring the vibration speed / 4 ... 20 mA output
MIL-C-5015 connection / 3 ... 1500 Hz bandwidth

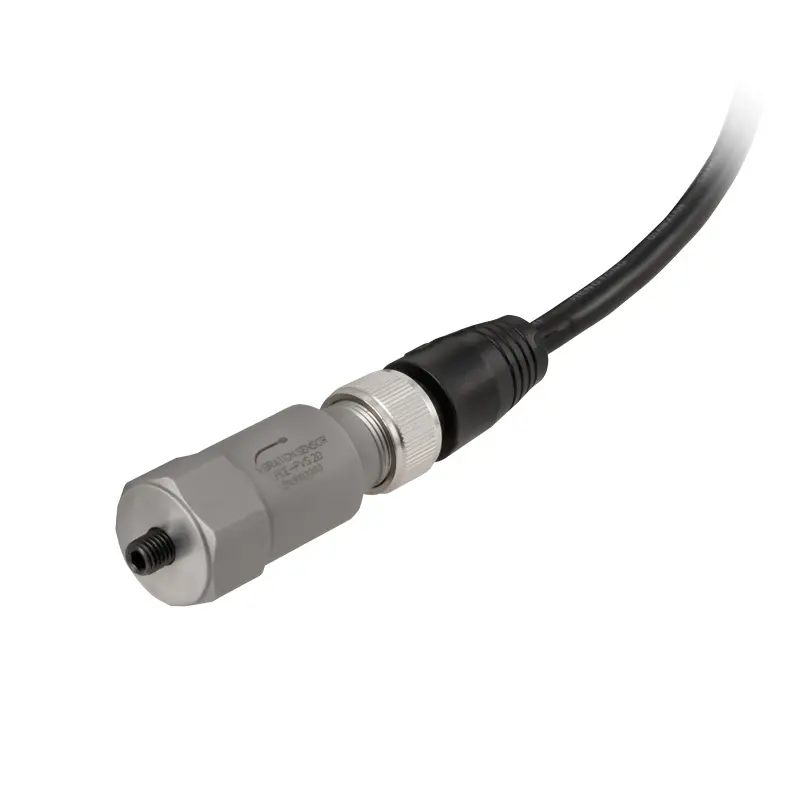

The Vibration Analyzer has been developed for the continuous monitoring of the vibration speed. The Vibration Analyzer is available in different versions. Depending on the type of Vibration Analyzer, a distinction is made between design and measuring range. The Vibration Analyzer measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz.
The measured vibration speed is output as a 4 ... 20 mA process current. The Vibration Analyzer is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the Vibration Analyzer vertically or horizontally. The Vibration Analyzer can be operated with a voltage of 12 ... 24 V DC.
