Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces
- Diameter: Ø35 mm / 1.3"
- Thread: ¼"-28 UNF male
- Pulling force: 40 kg / 88 lb
Measuring range | Acceleration |
0.0 - 399.9 m/s² / 0.0 - 15744 in/s² | |
Resolution | 0.1 m/s² / 3.94 in/s² |
Accuracy @ 160 Hz | ±2 % |
Frequency range | 1 kHz - 10 kHz |
10 Hz - 10 kHz | |
Measuring range | Velocity |
0.00 - 399.99 mm/s / 0.00 - 15.74 in/s | |
Resolution | 0.01 mm/s / 0.0039 in/s |
Accuracy @ 160 Hz | ±2 % |
Frequency range | 10 Hz - 1 kHz |
Measuring range | Displacement |
0.000 - 3.999 mm / 0.000 - 0.154 in | |
Resolution | 1 µm / 39.4 µin |
Accuracy @ 160 Hz | ±2 % |
Frequency range | 10 Hz - 200 Hz |
Measurement parameters | RMS, Peak, Peak-Peak |
Crest factor | |
Units | switchable metric / imperial |
Display | 2.8" LC display |
Menu languages | English, German, French |
Spanish, Italian, Dutch | |
Portuguese, Turkish, Polish | |
Russian, Chinese, Japanese | |
Power supply | 3 x 1.5 V AA batteries |
Operating and storage conditions | -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H. |
Dimensions | 165 x 85 x 32 mm / 6.4 x 3.3 x 1.2" |
Weight | 239 g / 8,4 oz |
Technical Data Vibration Sensor | |
Resonance frequency | 24 kHz |
Transverse sensitivity | ≤ 5% |
Destruction limit | 5000 g (peak) |
Operating and storage temperature | -55 ... +150 °C / -67 ... 302 °F |
Housing material | stainless steel |
Mounting thread | ¼ - 28“ |
Dimensions | Ø 17 x 46 mm / 0.67 x 1.8" |
Weight (without cable) | 52 g / 1.8 oz |
Protection Class: | IP52 |
Price excl. VAT &. delivery
2 year Warranty
Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces
Price excl. VAT &. delivery
2 year Warranty
Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces
Price excl. VAT &. delivery
2 year Warranty

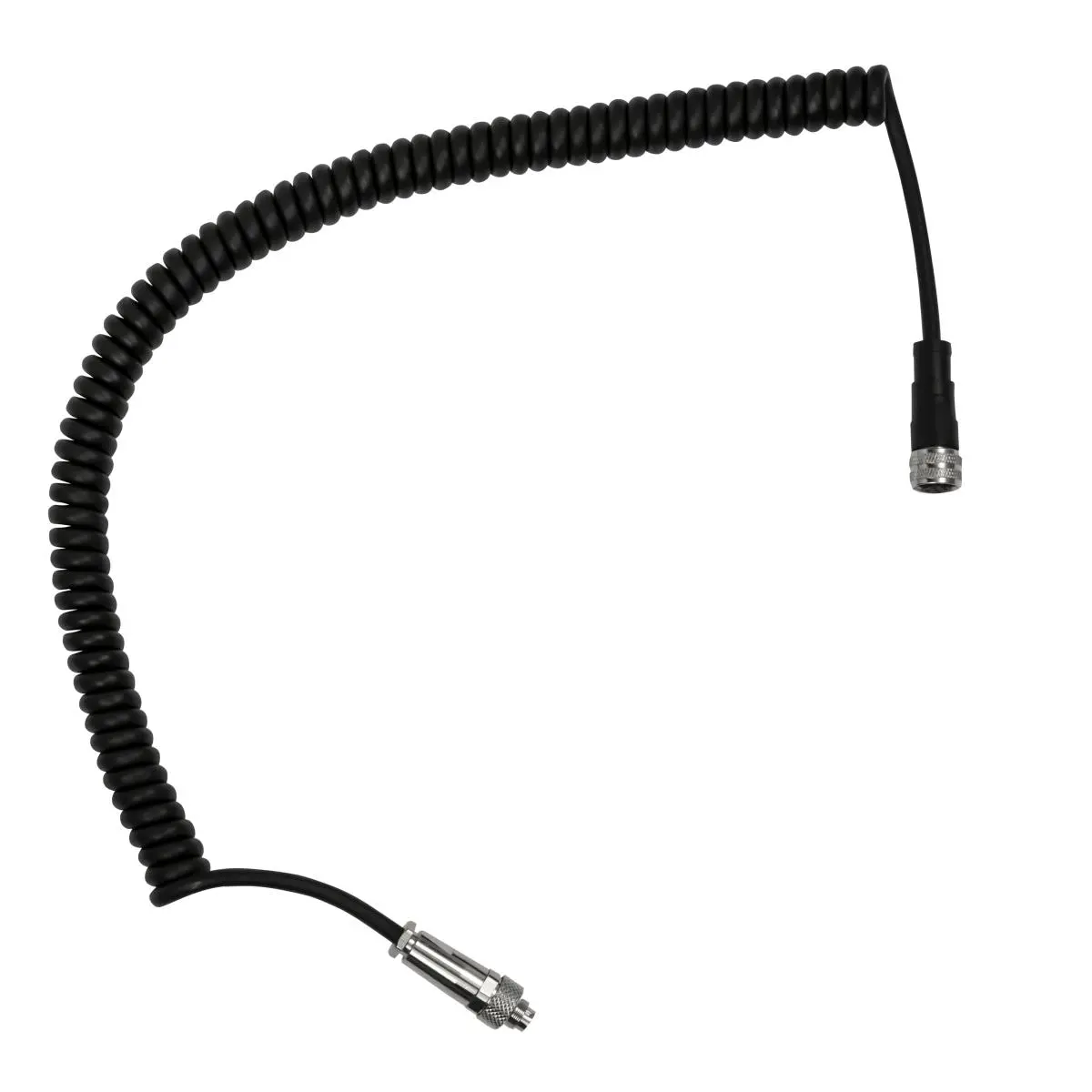

Spiral cable 1.5 m for PCE-VT 3xxx series
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces
Price excl. VAT &. delivery
2 year Warranty
1 x Needle sensor PCE-VT NP
Price excl. VAT &. delivery
2 year Warranty

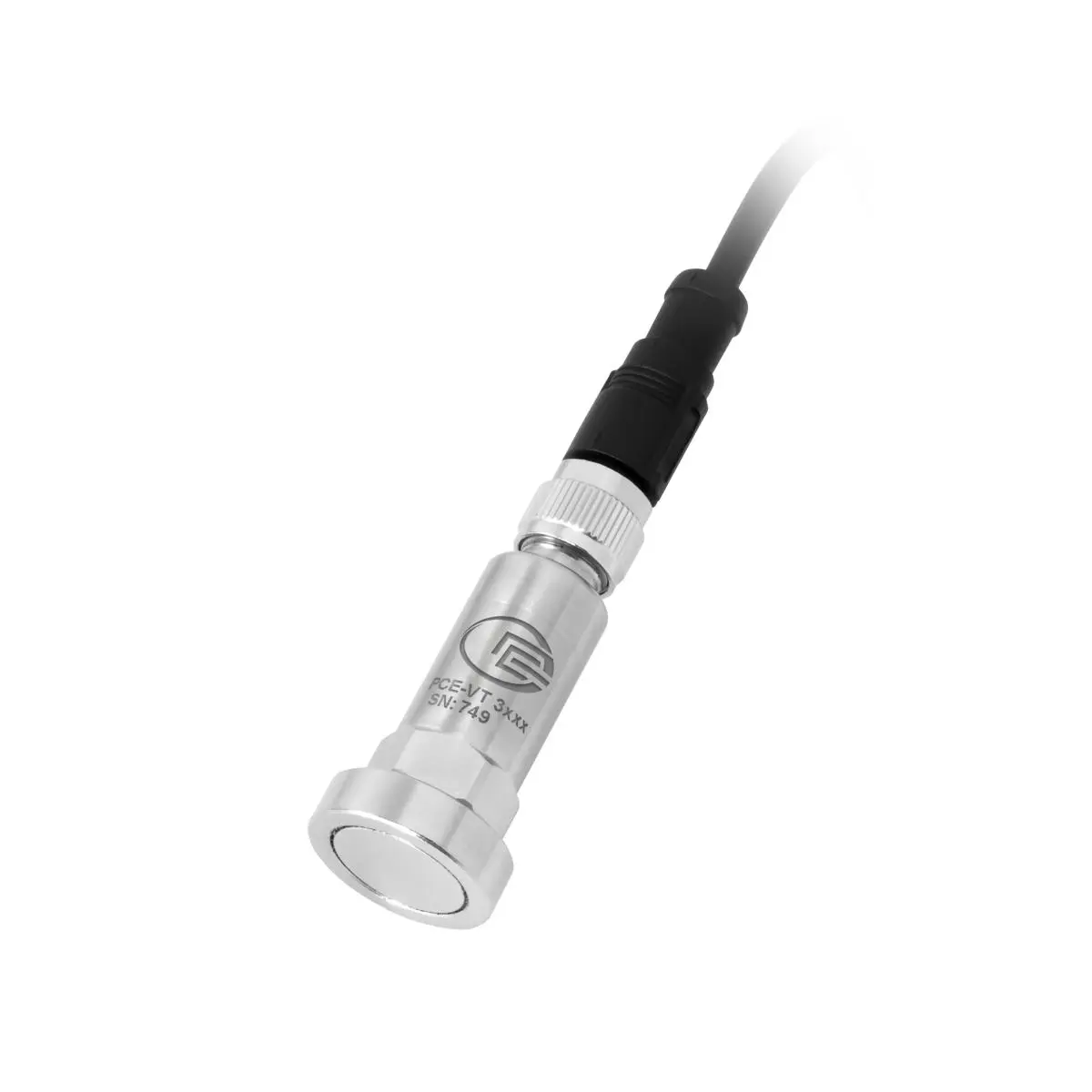

Replacement vibration sensor for PCE-VT 3xxx series
Price excl. VAT &. delivery
2 year Warranty
ISO calibration for vibration meters is often required to comply with DIN ISO 9000.1 Point: 159.2 Hz; 10 mm/s; 14.1 m/s²; 0.028 mmN.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
Offers protection when transporting and storing the vibration meter and accessories.
Price excl. VAT &. delivery
2 year Warranty
Special handle for needle sensors from the vibration measuring device of the PCE-VT 3xxx series
This ergonomic handle which is attached to the sensor and spiral cable can be used in conjunction with the measuring tip to measure in inaccessible locations.
Price excl. VAT &. delivery
2 year Warranty
PCE-VC20 is a vibration analyzer calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration analyzer calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).
Load-independent vibration magnitude with an RMS of:
Price excl. VAT &. delivery
2 year Warranty
PCE-VC21 is a vibration meter calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with adjustable quartz-stabilized vibration frequencies between 15.92 and 1280 Hz and adjustable vibration amplitudes between 1 m/s² and 20 m/s².
