Wall Thickness Meter / Wall Thickness Gauge

Choose from a variety of wall thickness meter, mil gage or paint meter products used for the non-destructive measurement of nonmagnetic coating, insulating layer and dry film thickness (DFT) on ferrous and / or non-ferrous metal substrates such as steel and aluminum. Explore PCE Instruments' selection of accurate, affordable wall thickness gauge, coating thickness gauge, surface testing and film gauge devices used for automotive paint inspection, material testing and manufacturing quality control applications.

A wall thickness meter is an essential quality assurance tool when anodizing, galvanizing and applying zinc coating to metallic surfaces. A wall thickness gauge also is used to measure body paint thickness and uniformity on pre-owned cars, revealing repainted spots, identifying hidden damages and exposing undisclosed accidents. This information is important when determining the actual value of a used car. In addition, certain types of thickness meters can measure wall thickness and determine the hardness of metals, plastics and glass.

If you have any questions, please contact us at or +44 ( 0 ) 161 464902 0.

Wall Thickness Meter PCE-TG 75A

£ 356.00

Price excl. VAT &. delivery
2 year Warranty

The wall thickness meter can measure material thicknesses of up to 225 mm. In order to measure the material thickness of a wide variety of homogeneous materials, it is possible to store the corresponding sonic velocity in the wall thickness meter.

Measuring range: 1.00 … 225.0 mm
Resolution: 0.01 mm at ≤99.99 mm
Accuracy: ±0.5 % of Mw. + 0.05 mm
Memory capacity: 500 measured values
Calibration reference on housing

Wall Thickness Meter PCE-TG 75A-ICA incl. ISO calibration certificate

£ 463.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range: 1.00 … 225.0 mm
Resolution: 0.01 mm at ≤99.99 mm
Accuracy: ±0.5 % of Mw. + 0.05 mm
Memory capacity: 500 measured values

Calibration reference on housing
incl. ISO calibration certificate

Wall Thickness Meter PCE-TG 150A

£ 472.00

Price excl. VAT &. delivery
2 year Warranty

The wall thickness meter can measure material thicknesses of up to 300 mm. In order to measure the material thickness of a wide variety of homogeneous materials, it is possible to store the corresponding sonic velocity in the wall thickness meter.

Measuring range: 1.00 … 300.0 mm
Resolution: 0.01 mm at ≤99.99 mm
Accuracy: ±0.5 % of Mw. + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing

Wall Thickness Meter PCE-TG 150A-ICA incl. ISO calibration certificate

£ 688.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range: 1.00 … 300.0 mm
Resolution: 0.01 mm at ≤99.99 mm
Accuracy: ±0.5 % of Mw. + 0.05 mm
Memory capacity: 1500 measured values

Calibration reference on housing
incl. ISO calibration certificate

Wall Thickness Meter PCE-TG 150A HT

£ 852.00

Price excl. VAT &. delivery
2 year Warranty

The material thickness gauge can measure material thicknesses of up to 300 mm. In order to measure the material thickness of a wide variety of homogeneous materials, it is possible to store the corresponding sonic velocity in the material thickness gauge.

Measuring range (with sensor): 1.20 … 300.0 mm
Resolution: 0.01 mm at ≤99.99 mm
Accuracy: ±0.5 % of the weight. + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing
High temperature probe: -10 … 350 °C

Wall Thickness Meter PCE-TG 150A HT-ICA incl. ISO-calibration certificate

£ 958.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range (with sensor): 1.20 … 300.0 mm
Resolution: 0.01 mm at ≤99.99 mm
Accuracy: ±0.5 % of the weight. + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing
High temperature probe: -10 … 350 °C
- incl. ISO-calibration certificate

Wall Thickness Meter PCE-TG 150 HT

£ 846.00

Price excl. VAT &. delivery
2 year Warranty

The wall thickness meter can measure material thicknesses up to 300 mm. So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sound velocity in the wall thickness meter.

Measuring range: 1.20 … 300.0 mm / 0.04 … 11.81"
Accuracy: ±0.5% of measured value + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing
High temperature probe: -10 … 350 °C / 14 … 662 °F

Wall Thickness Gauge PCE-TG 150 HT-ICA incl. ISO Calibration Certificate

£ 953.00

Price excl. VAT &. delivery
2 year Warranty

The wall thickness gauge can measure material thicknesses up to 300 mm. So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sound velocity in the wall thickness gauge.

Measuring range: 1.20 … 300.0 mm / 0.04 … 11.81"
Accuracy: ±0.5% of measured value + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing
High temperature probe: -10 … 350 °C / 14 … 662 °F
incl. ISO Calibration Certificate

Wall Thickness Meter PCE-TG 150 F2.5

£ 531.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range: 1.20 … 300.0 mm / 0.04 … 11.81"
Accuracy: ±0.5% of measured value + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing
Probe temperature range: -10 … 60 °C / 14 … 140 °F

Wall Thickness Gauge PCE-TG 150 F2.5-ICA incl. ISO Calibration Certificate

£ 637.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range: 1.20 … 300.0 mm / 0.04 … 11.81"
Accuracy: ±0.5% of measured value + 0.05 mm
Memory capacity: 1500 measured values
Calibration reference on housing
Probe temperature range: -10 … 60 °C / 14 … 140 °F
ICA incl. ISO Calibration Certificate

Wall Thickness Meter PCE-UFD 50

£ 2,390.00

Price excl. VAT &. delivery
2 year Warranty

The wall thickness meter is used for non-destructive material testing. With adjustable frequencies between 0.5 … 20 MHz and sound velocities between 1000 … 15000 m/s, measurements can be carried out in steel in the range between 0 … 10000 mm. DAC and AVG evaluation methods, display and probe delay, attenuation and amplification functions, export and report generation functions as well as numerous other setting options make non-destructive material testing with the wall thickness meter considerably easier.

Test range: 0 … 10000 mm
Pulse shift: -20 … +3400 µs
Single or dual probe measurement
AVG and DAC evaluation methods
Speed of sound 1000 … 15000 m/s
USB interface and software
Memory for up to 100 data records

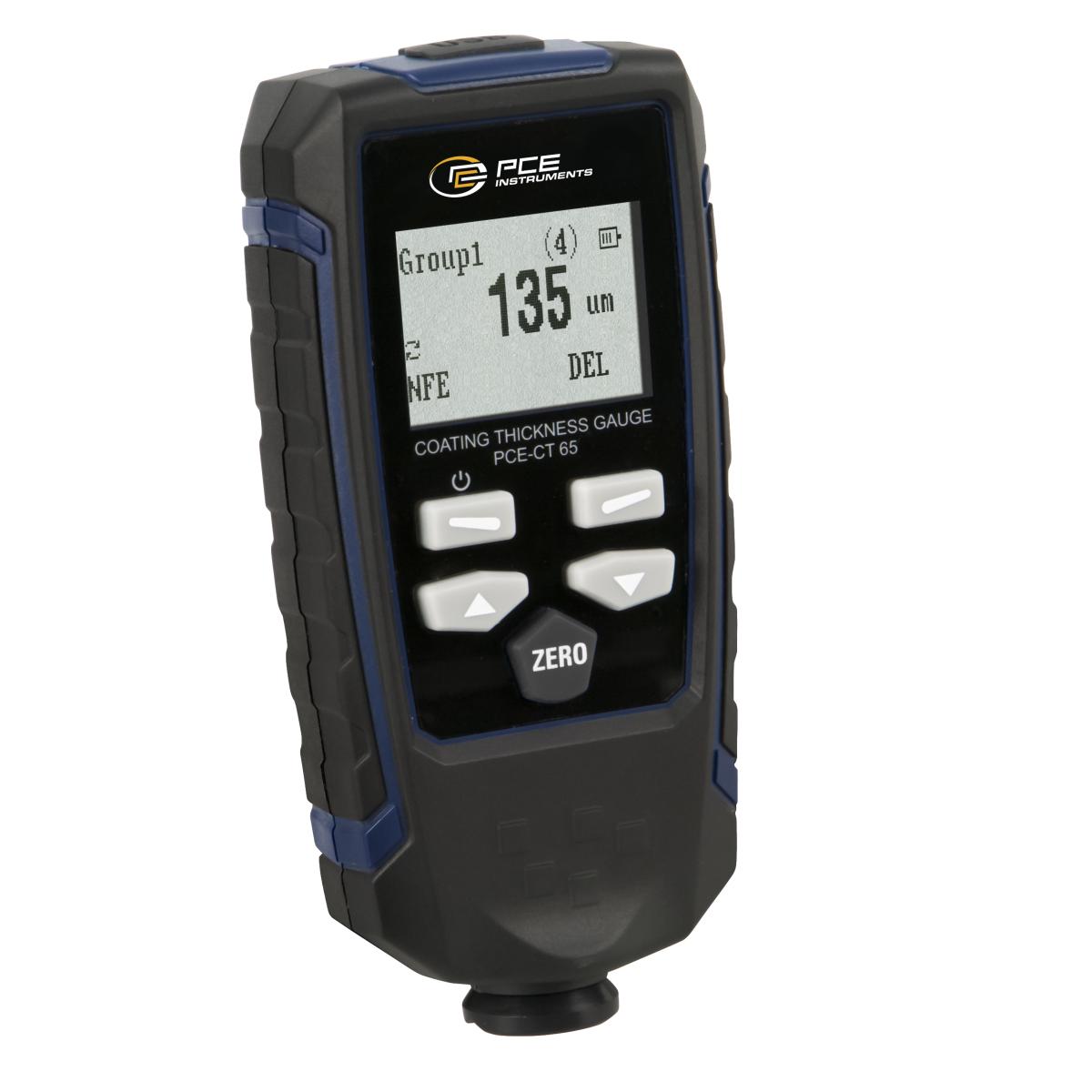

Wall Thickness Meter PCE-CT 65

£ 200.00

Price excl. VAT &. delivery
2 year Warranty

This wall thickness meter uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This wall thickness meter is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.

Measuring range of 0 … 1350 µm / 0 … 53 mils
Accuracy of ±2.5 % ±2 µm for 0 … 1000 µm / ±3.5 % for 1000 µm … 1350 µm / ±2 % ±0.08 mils for 0 … 39.3 mils / ±3.5 % for 39.3 mils … 53.1 mils
Saves up to 1500 measurements to memory

Wall Thickness Gauge PCE-CT 65-ICA incl. ISO Calibration Certificate

£ 344.00

Price excl. VAT &. delivery
2 year Warranty

This wall thickness gauge uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This wall thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.

Measuring range of 0 … 1350 µm / 0 … 53 mils
Accuracy of ±2.5 % ±2 µm for 0 … 1000 µm / ±3.5 % for 1000 µm … 1350 µm / ±2 % ±0.08 mils for 0 … 39.3 mils / ±3.5 % for 39.3 mils … 53.1 mils
Saves up to 1500 measurements to memory
Incl. ISO Calibration Certificate

Wall Thickness Meter PCE-CT 5000H

£ 352.00

Price excl. VAT &. delivery
2 year Warranty

This wall thickness meter is used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The wall thickness meter or gauge automatically detects the type of metal to be measured.

Type F measuring range: 0 … 5000 µm / 0 … 5 mm / 0 … 196 mils
Type N measuring range: 0 … 3000 µm / 0 … 3 mm / 0 … 118 mils
Displays measuring units in μm, mm or mils
Saves up to 2000 measurements to internal memory
Practical V-groove on the measuring head

Wall Thickness Meter PCE-FD 20

£ 4,093.00

Price excl. VAT &. delivery
2 year Warranty

PCE-FD 20 is a portable Wall Thickness Meter or ultrasonic thickness gauge with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based Wall Thickness Meter uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.

Operating frequency range: 1 … 10 MHz
Measured time interval range: 6 … 1000 microseconds (µs)
Sound velocity: 1000 … 9999 m/s

Wall Thickness Meter PCE-TG 300-P5EE

£ 1,141.00

Price excl. VAT &. delivery
2 year Warranty

The PCE-TG 300-P5EE is a wall thickness meter for measuring wall thickness. In general, the wall thicknesses of all homogeneous materials can be measured with the wall thickness meter. Wall thicknesses under a coating can also be measured with the wall thickness meter.

Measuring range: P-E: 2 … 600 mm / 0.07 … 23.62", E-E: 2.5 … 100 mm / 0.09 …3.93"
Diameter: 10mm / 0.39"
Minimum diameter of pipes: 20 x 3 mm / 0.787 … 0.118"
Frequency: 5MHz
Bluetooth

Wall Thickness Meter PCE-TG 300-P5EE-ICA incl. ISO calibration certificate

£ 1,243.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range: P-E: 2 … 600 mm / 0.07 … 23.62", E-E: 2.5 … 100 mm / 0.09 …3.93"
Diameter: 10mm / 0.39"
Minimum diameter of pipes: 20 x 3 mm / 0.787 … 0.118"
Frequency: 5MHz
Bluetooth
incl. ISO calibration certificate

Wall Thickness Meter PCE-TG 300-NO5/90

£ 895.00

Price excl. VAT &. delivery
2 year Warranty

The PCE-TG 300-NO5/90 is a wall thickness meter for measuring wall thickness. In general, the wall thicknesses of all homogeneous materials can be measured with the wall thickness meter. Wall thicknesses under a coating can also be measured with the wall thickness meter.

Measuring range: 1 … 600 mm / 0.039 … 23.62" (steel)
Diameter: 10mm / 0.39"
Sensor at 90° angle
Minimum diameter of pipes: 20 x 3 mm / 0.787 … 0.118"
Frequency: 5 MHz
Bluetooth

Purchase Advice on a Wall Thickness Gauge

In many areas of industry, wall thicknesses or wall strength are checked during product inspections. Often, a wall thickness gauge is used to take measurements on blanks in goods receipt and on products in the course of production. It is also important to know the wall thicknesses of existing structural elements during repairs or extensions on machines or structures. In the case of wear parts, the wall thickness gauge can be used to determine the thickness that is still available.

Selection criteria for a wall thickness gauge

Before deciding on a particular wall thickness gauge or method of thickness measurement, it is important to clarify which measurement conditions are specified by the application. Many measurement methods work quickly and non-destructively, but require either access to both wall surfaces, complex technology, or are limited to specific materials.

The following questions will help narrow down the search for a suitable instrument:

Which materials are to be measured?

- Should the total thickness or also the thickness of partial layers be determined?

- Are both or only one of the wall-surfaces accessible?

- Should the measurement be carried out stationary or at changing locations?

- Should the measurement be performed during the ongoing process and should the latter be influenced?

Measuring principles in the wall thickness gauges

Measurement on the cross section with templates, calipers, measuring clamps, measuring pliers, micrometers

Measuring templates can simply be held against the material cross-section with the appropriate perforation, indentation or marking and then read off. However, conventional templates, calipers, measuring clips or micrometers can only be used as wall thickness gauges if both wall boundary surfaces are accessible to them. In the case of glass thickness templates for flat glass, one accessible surface is sufficient. The glass thickness can then be determined on the basis of the control line mirrored at both glass edges. These devices can be used regardless of the type of material and ambient conditions. Profiled cross sections and remaining wall thicknesses at grooves or blind holes can also be determined using special measuring clips and measuring forceps.

Microscopic thickness measurement

Microscopes can be used as wall thickness gauges for very small wall thicknesses. Microscopic measurement is also suitable as a comparison method for all other methods. The wall cross-section is viewed and measured with a reflected light microscope. If individual layers are to be distinguished, a finely ground surface is required. The method of optical measurement on the cross-sectional surface is regulated in DIN EN ISO 1463. It is suitable for thicknesses from three micrometers. For thinner layers, bevel grinds or the calotte grind can be used. The enlarged measuring surfaces can be better recorded and then converted into wall or layer thicknesses according to their grinding angle.

Ultrasound-based measurement

A wall thickness gauge with ultrasonic sensors determines the wall thickness over the time period with which the sound passes through the material. In many instrument models, the ultrasonic transmitter and the ultrasonic receiver are located in the same component. This sensor is placed on the component to be measured. The contact to the component surface can be improved by coupling gel. The sound transmitted by the wall thickness gauge passes through the material of the component and is partially reflected at the opposite interface.

The time for outward and return travel is determined by the reflections hitting the receiver. From this time and the specific sound velocity of the material, the distance traveled can be calculated in the instrument. For the correct determination of the wall thickness with the ultrasonic method, the sound velocity of the material must be known and it must be possible to set it in the wall thickness gauge. With some instrument models, the speed of sound of a material can be determined on a sample part with a known thickness and then stored in the instrument for measurement.

Magnetic induction and eddy current for thickness measurements

The magnetic induction and eddy current methods only work in the case of metallic substrates. The wall thickness gauge for measuring the thickness of materials on metallic substrates usually has combination sensors with which both magnetic induction and eddy current-based measurements can be performed. For the measurement, the sensor must be placed on the measuring point. Between the distance from the sensor tip to the magnetic or electrically conductive material and the strength of the received signal, there is a direct relationship which is displayed as distance or thickness.

In the magneto-inductive method, low-frequency current is used to generate a magnetic flux to the ferromagnetic base material. The probe then detects the higher magnetic resistance due to the intervening non-ferromagnetic material. The thickness of the applied material can be determined from this measured value. The magnetic inductive wall thickness gauge can determine the thickness of the non-magnetic materials if there is sufficient magnetic material on the side facing away from the sensor. This makes testing of the thickness of non-magnetic materials simple and non-destructive. Wall thicknesses of hollow bodies, pipes or housings can also be measured if a suitable piece of iron can be placed on the inside as a counterpart for the measurement.

The wall thickness gauge based on eddy current causes eddy currents in conductive materials because of high-frequency current. If there is non-conductive material between the probe and the electrically conductive base material, the resulting magnetic field overlaps the magnetic field of the sensor to a lesser extent. From this, the thickness of the non-metallic material can be determined. This method can also be used to determine the wall thicknesses of hollow bodies, tubes or housings if a suitable part made of non-magnetic metal can be applied on the opposite side.

Measurement with laser sensors

The laser wall thickness gauge functions as a range finder. It can be used when separate measurements of the material substrate and the material surface are possible. In manufacturing processes, for example, the thickness of the material on a work table or conveyor line can be determined. The laser wall thickness gauge records the measured values very quickly and without contact. For this purpose, the reflection of the emitted laser light is evaluated. For continuous production monitoring, several laser range finders can be used in series or in parallel. With adapted laser light, the method is also suitable for glowing, transparent or organic material.

X-ray fluorescence analysis

X-ray ﬂuorescence analysis allows qualitative and quantitative determination of very thin materials. It is applicable for thicknesses from less than 0.2 to well over 50 micrometres. In this process, the material under examination is excited by X-rays and emits a material-specific fluorescence radiation that can be evaluated by the wall thickness gauge. The material thickness can be determined based on the intensity of the fluorescence radiation. Advantages of the measurement method with X-ray ﬂuorescence are the fast and non-destructive measurement of single and multiple layers and the high accuracy. In addition, the method is independent of the electrical and magnetic properties of the material.
