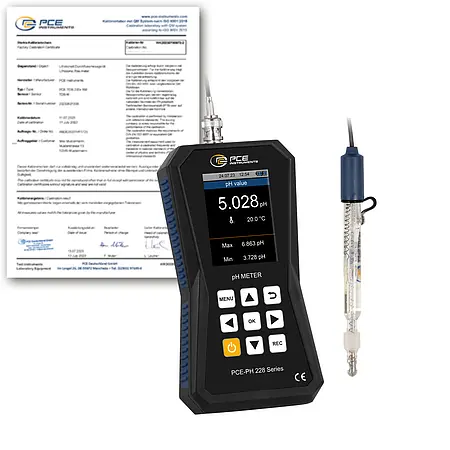

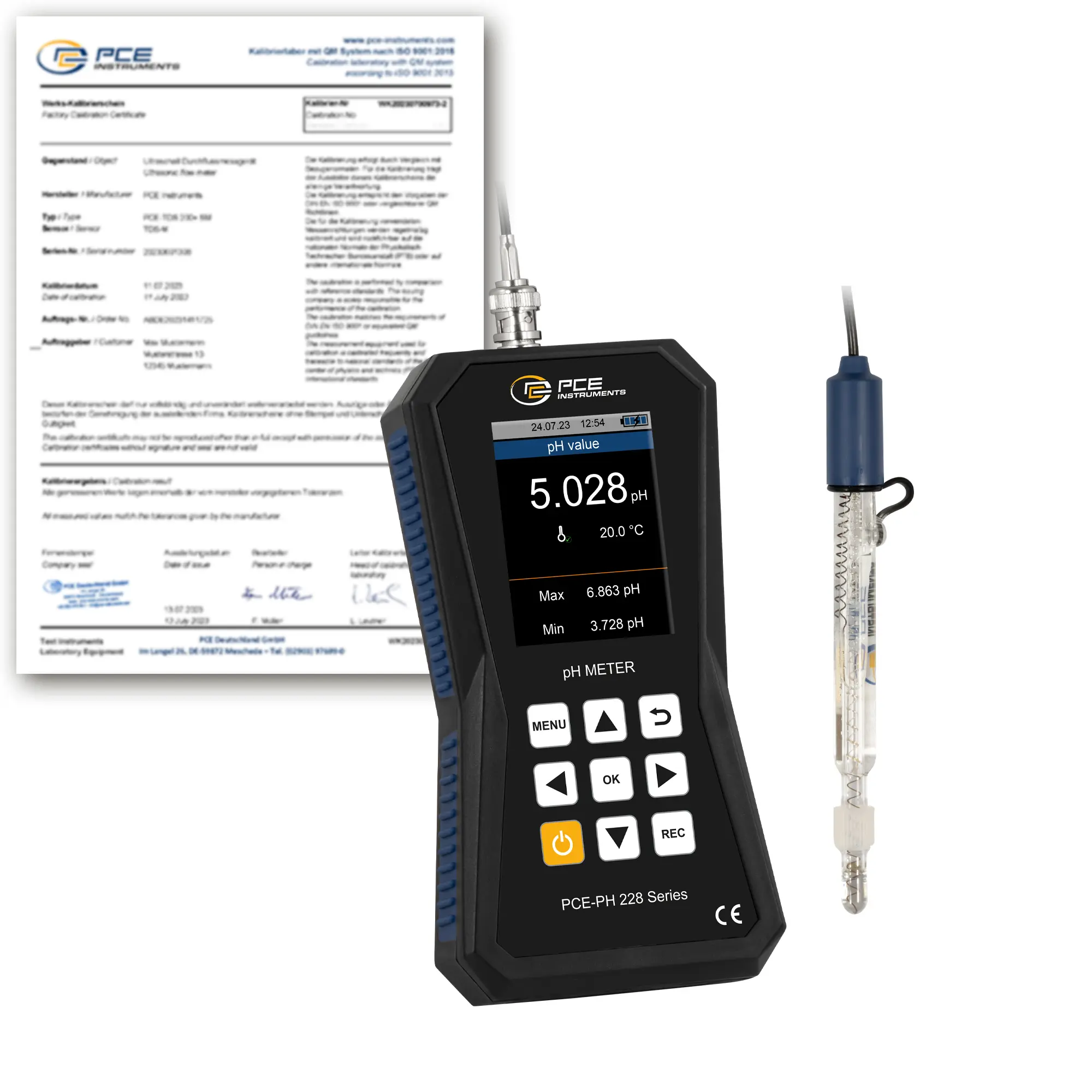

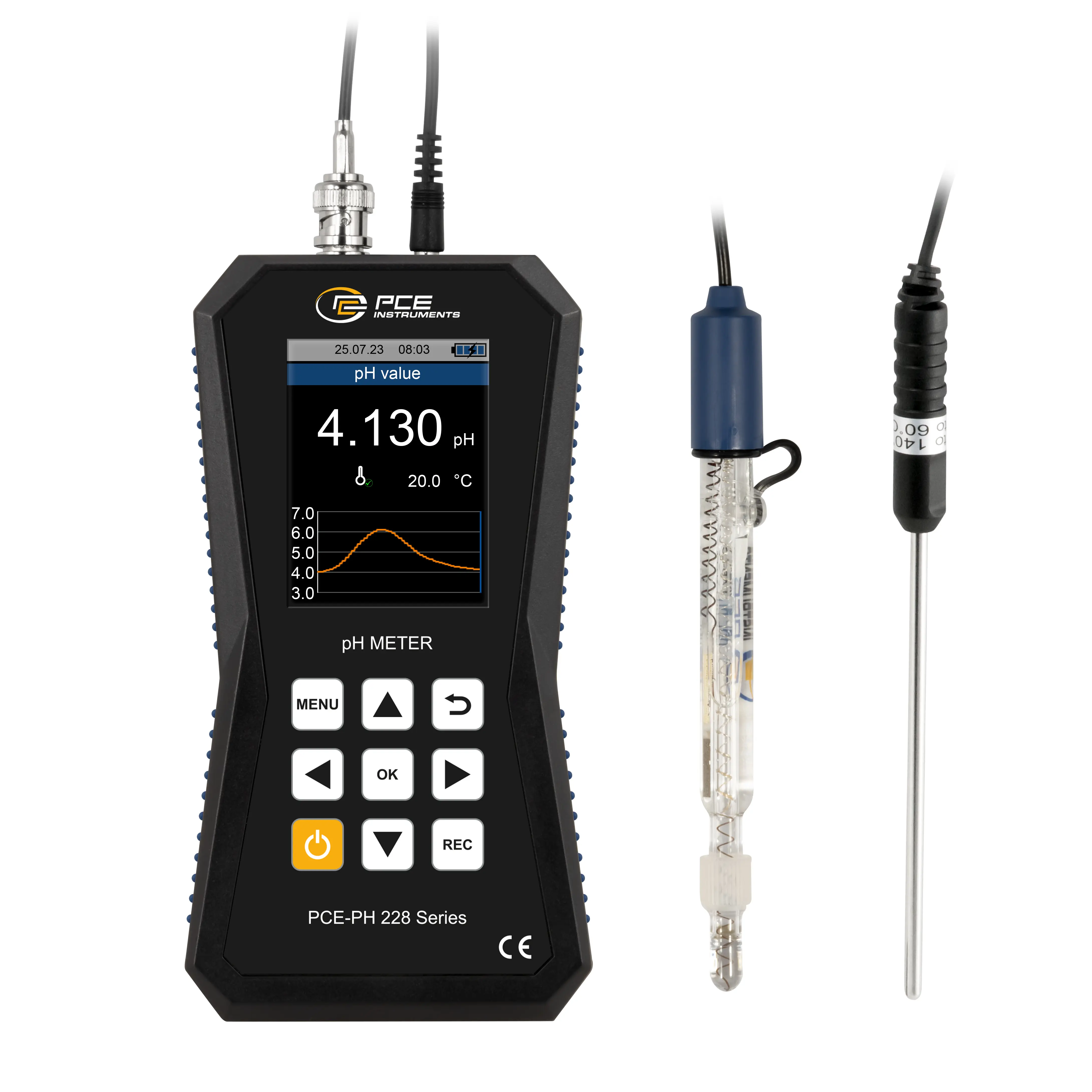

Water Analysis Meter PCE-PH 228LAB-LC-ICA incl. ISO-Calibration Certificate

Order no.: PCE-PH 228LAB-LC-ICA
GTIN (EAN): 4250348737687
£ 873.00
£ 1,047.60
ISO Calibration
price ex. (VAT / delivery)
:
4250348737687
PCE-PH 228LAB-LC-ICA
Delivery time: 5-7 working days

Description

Water Analysis Meter with GLP data management / high accuracy ±0.002 pH + 2 digits / data logger / user account with password protection / incl. electrode / rechargeble battery operation

The Water Analysis Meter stands for precision, user-friendliness and GLP (Good Laboratory Practice) conformity. With a high-resolution LC display, the Water Analysis Meter provides a clear and concise display of the measured values. GLP compliance is guaranteed by automatic data recording and traceable documentation. It is possible to measure pH or redox values and temperature with external sensors.

Permanent Measurement Verification (PMV) shows the user where the measured value is within the calibration range using a coloured bar in order to determine whether the measurement is made within the correct range.The electrode is refillable and the diaphragm can be cleaned, which is ideal for very low conductivity or heavy soiling (e. g. paint), which can clog a conventional diaphragm.

The graphically guided calibration makes the process simple and user-friendly. User and sample management allow easy navigation and setting of measurement parameters on the pH meter. Sample information can be saved to facilitate the management and identification of measurements. A generous internal data memory saves extensive records without the need for external storage. The USB-C port on the pH meter ensures fast data transfer and charging. A powerful rechargeable LiPo battery enables hours of measurements before it needs to be recharged.

Overall, this Water Analysis Meter represents a significant step in the development of hand-held and laboratory instruments. The high accuracy of ±0.002 pH + 2 digits, graphically guided calibration, GLP compliance, user and sample management and data storage make it an indispensable tool for scientists, researchers and laboratory technicians who rely on precise pH measurements. It not only improves the accuracy and efficiency of experiments but also facilitates everyday work in industry, quality assurance and the laboratory.


Highlights

- fast, precise pH and temperature measurement
- redox measurement (with optional electrode)
- GLP data management
- simple 2, 3, 4 and 5-point calibration
- calibration reminder
- Permanent Measurement Verification (PMV)
- graphic display of measurement progress
- data logger
- application: measurements in low-ion media
- incl. ISO-Calibration Certificate

Specification

pH
Measurement range up to  -2 ... +20 pH
Resolution  0,001 pH
Accuracy  ±0.002 pH +2 digits

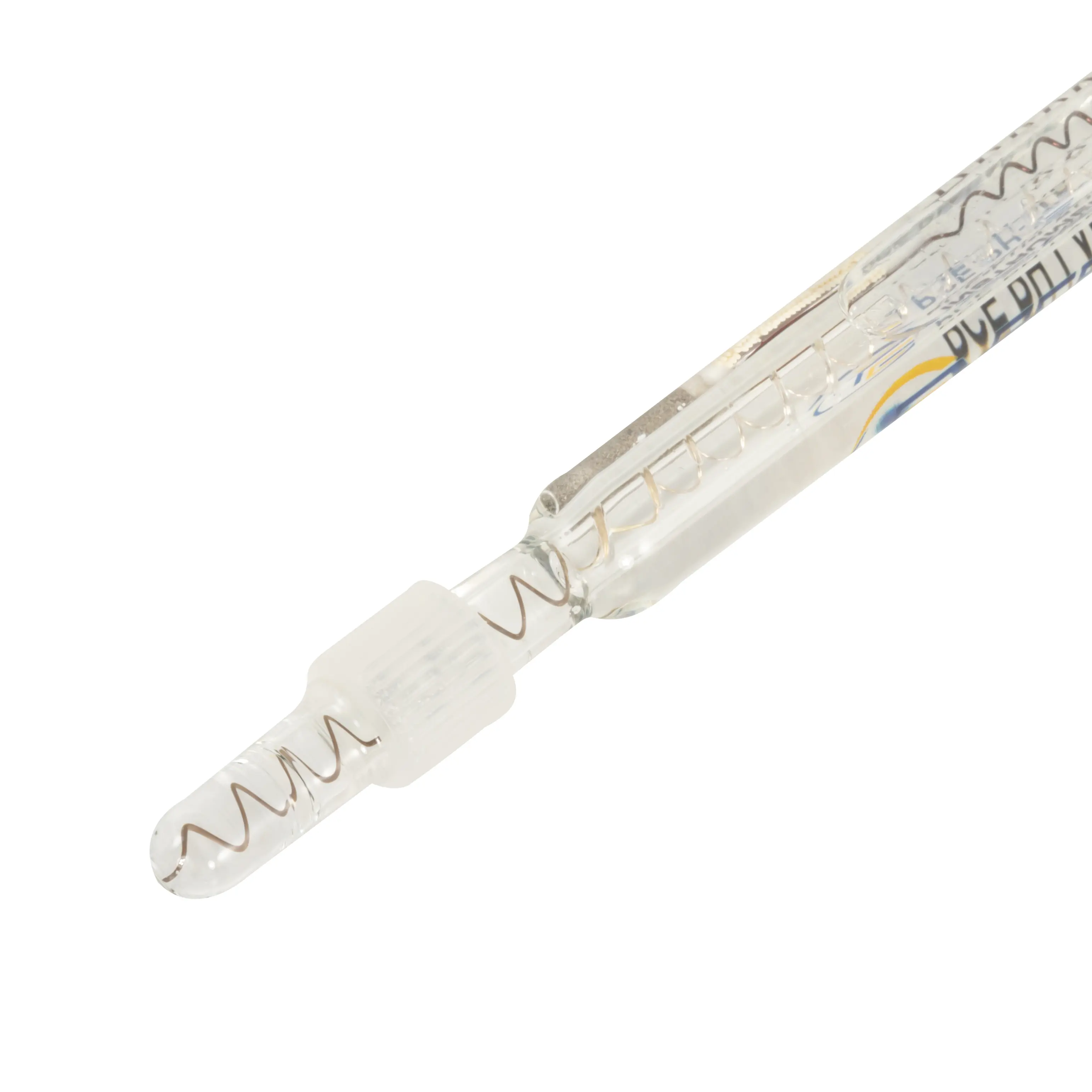

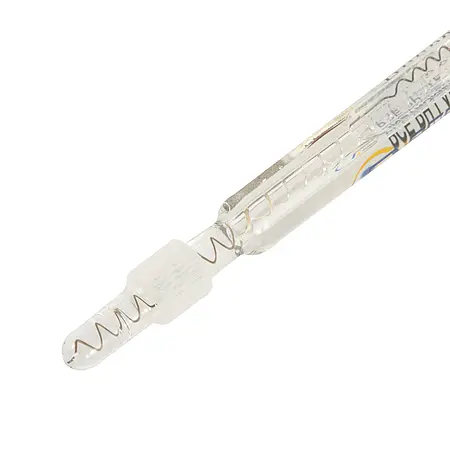

Electrode
Designation  PCE-PH-LAB-LC
Measurement range up to  0 ... 14 pH
Temperature range  0 ... 60 °C
Application  for measurements in ion-poor media
Reference electrolyte  Ag/AgCl with ion exchanger
Shank material  Glass
Shank length  120 mm
Shank diameter  12 mm
Min. immersion depth  35 mm
Cable length  1 m

Redox
Measurement range up to  -2000 ... +2000 mV
Resolution  1 mV
Accuracy  ±2 mV

Temperature sensor
Measurement range up to  -20 ... +100 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C (@ 20 °C)

General technical data
Measuring functions  MIN, MAX

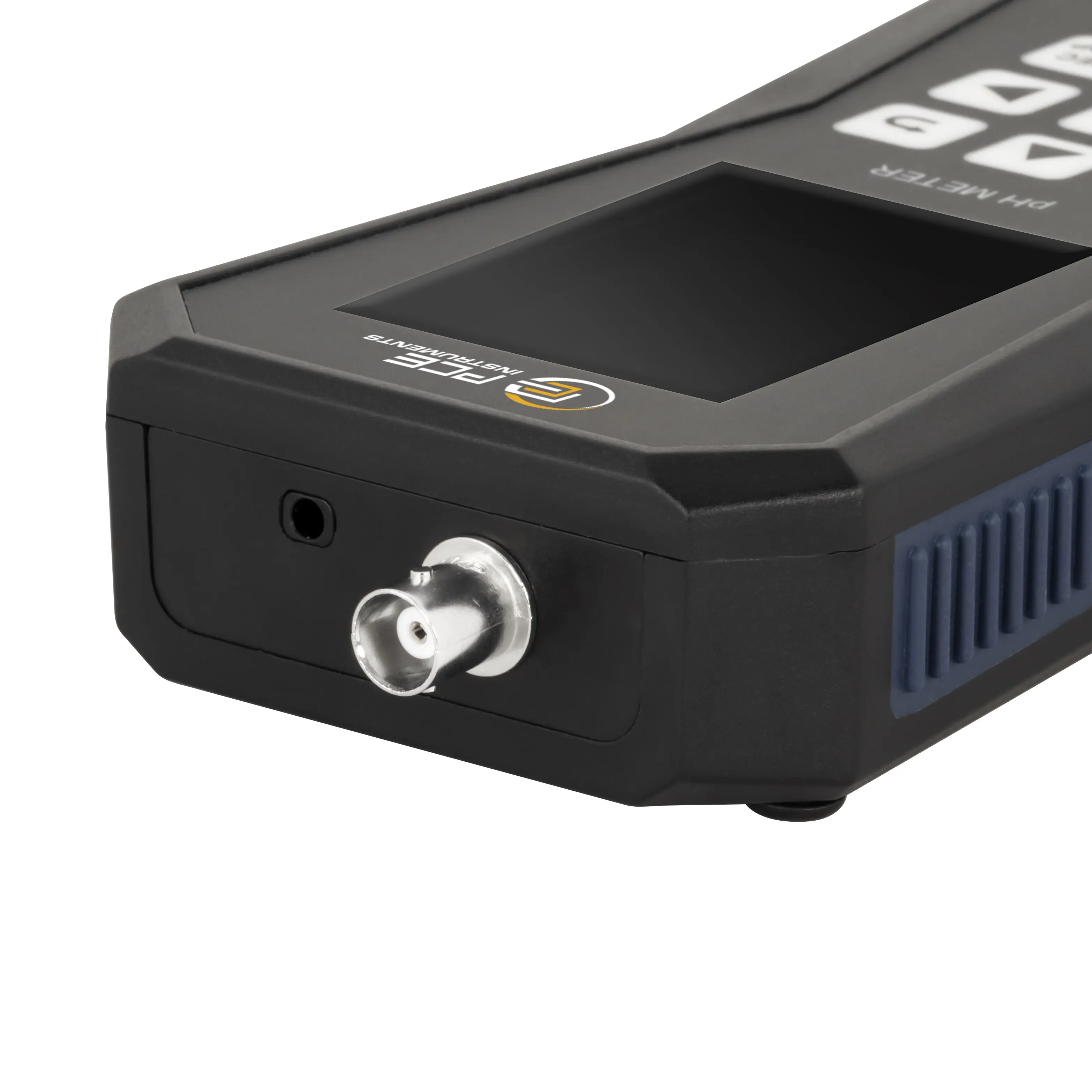

Connections  BNC
Display type  LCD with backlight
Storage medium  Internal memory
Storage capacity  32 GB
Memory capacity (additional information)  100 recordings with a maximum of 100,000 data points per recording
Storage interval from  1 s
Storage interval to  12 h

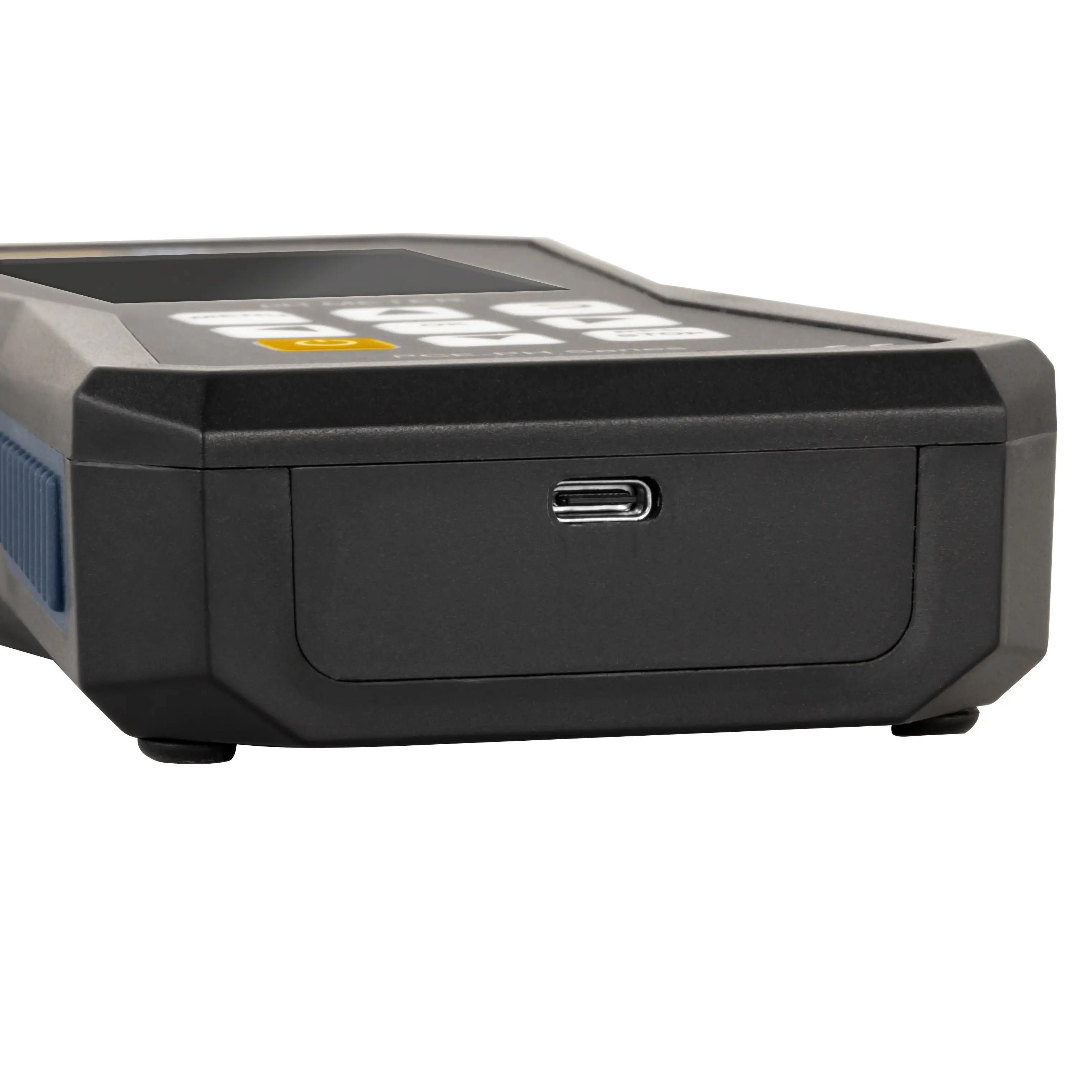

Interface  USB-C
Number of calibration points  5
Menu language  Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device)  IP52
Power supply  5 V DC, 500 mA
(Rechargeable) battery  1 x 3,7 V internal , Lithium polymer battery
Capacity  2500 mAh
Operating conditions  -20 ... 65 °C , 10 ... 95 % RH
Storage conditions  -20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  178 x 85 x 32 mm
Weight  252 g

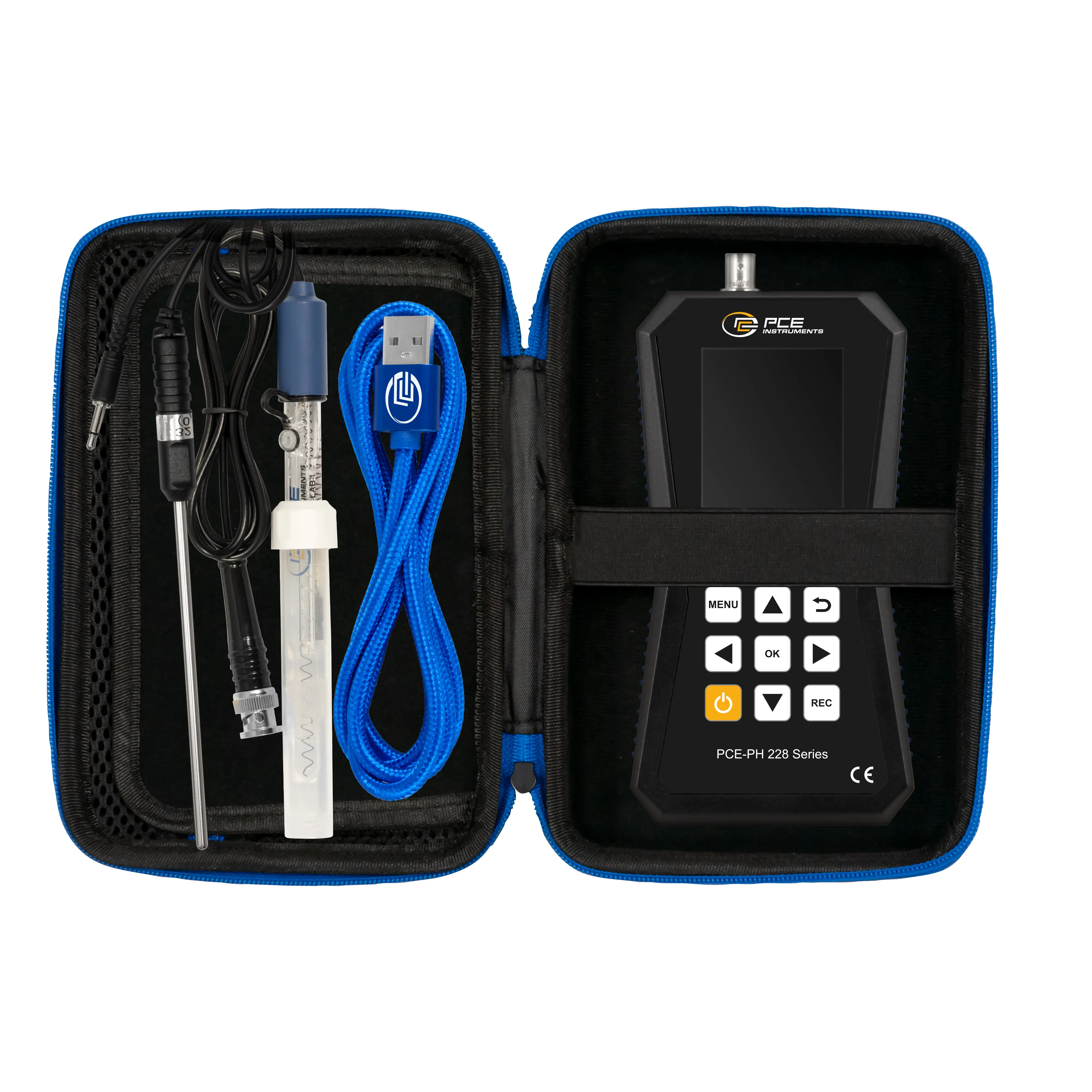

Delivery Scope

1 x Water Analysis Meter PCE-PH 228LAB-LC-ICA
1 x pH electrode PCE-PH-LAB-LC
1 x Pt1000 temperature sensor
1 x service bag
1 x USB-C cable
1 x PC software
1 x quick start guide
1 x ISO-Calibration Certificate
