Wood Moisture Meter PCE-WMT 200

Order no.: PCE-WMT 200
GTIN (EAN): 4250348728517
£ 496.00
£ 595.20
Wireless
price ex. (VAT / delivery)
:
4250348728517
PCE-WMT 200
Delivery time: Available soon!

Description

Bluetooth wood moisture meter with ram electrode / For 44 different types of wood / Battery and power adapter / Two different pairs of needles / Temperature compensation

When burning wood, it is important to know the wood moisture content. If the wood moisture content is too high during combustion, the water must first be heated and evaporated. This results in lower flame temperatures and smoldering gases. In addition, it can lead to incomplete combustion of the wood. In summary, too high a wood moisture content results in poor efficiency, pollutants and also odor emissions.

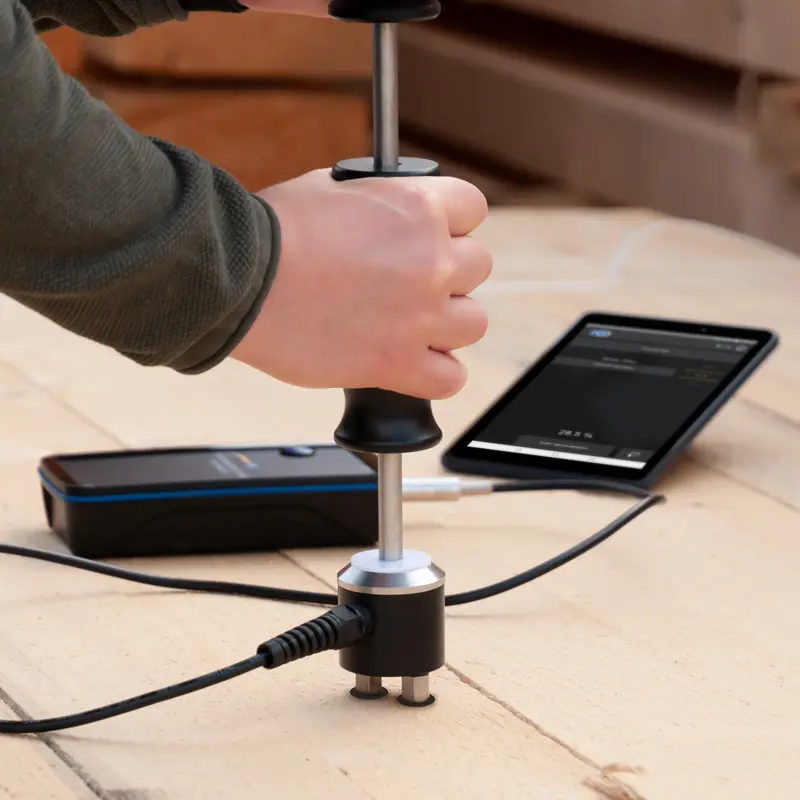

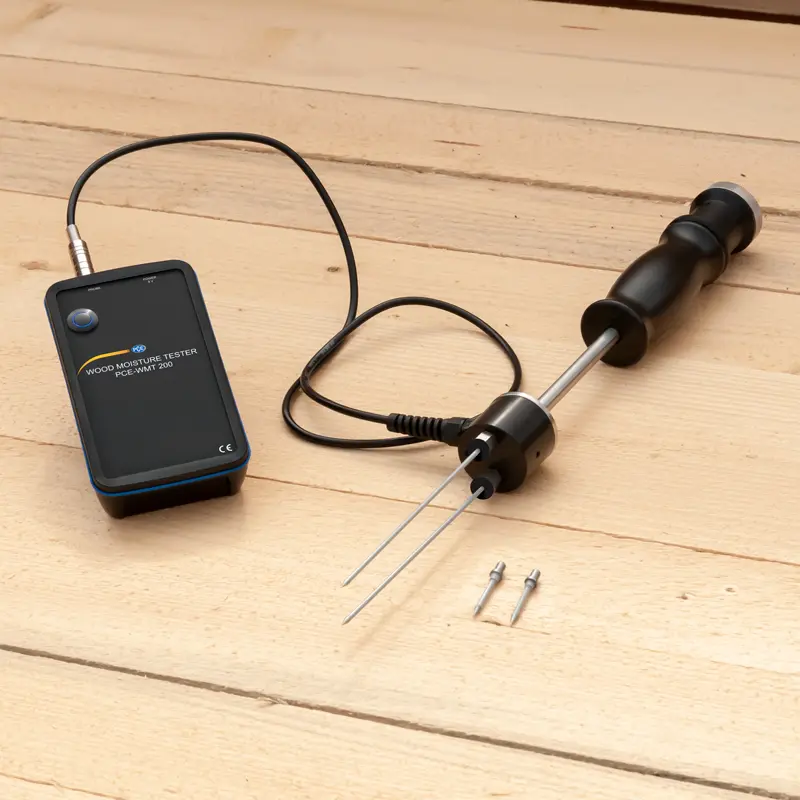

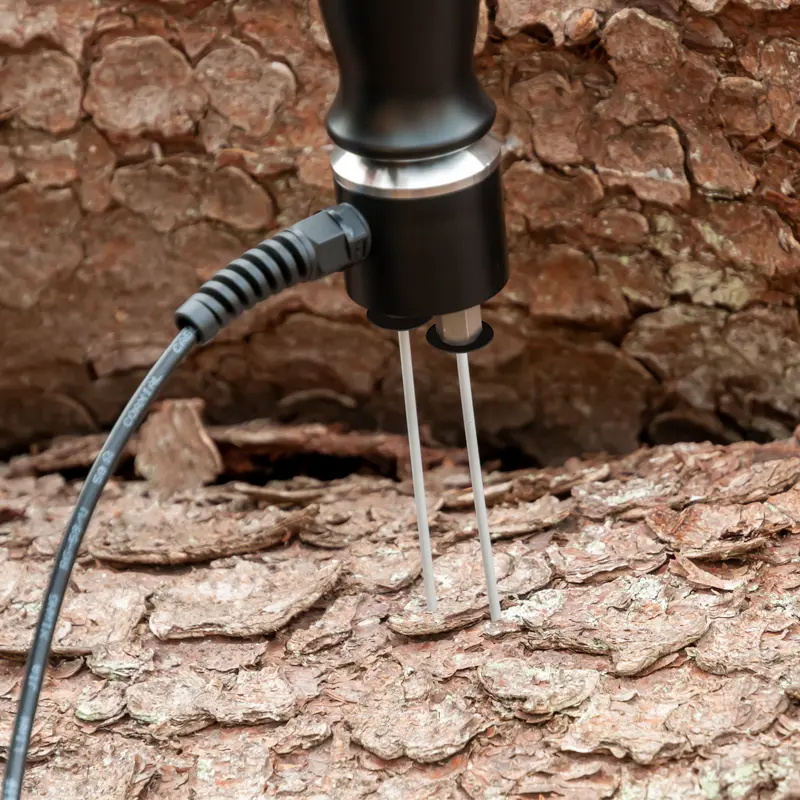

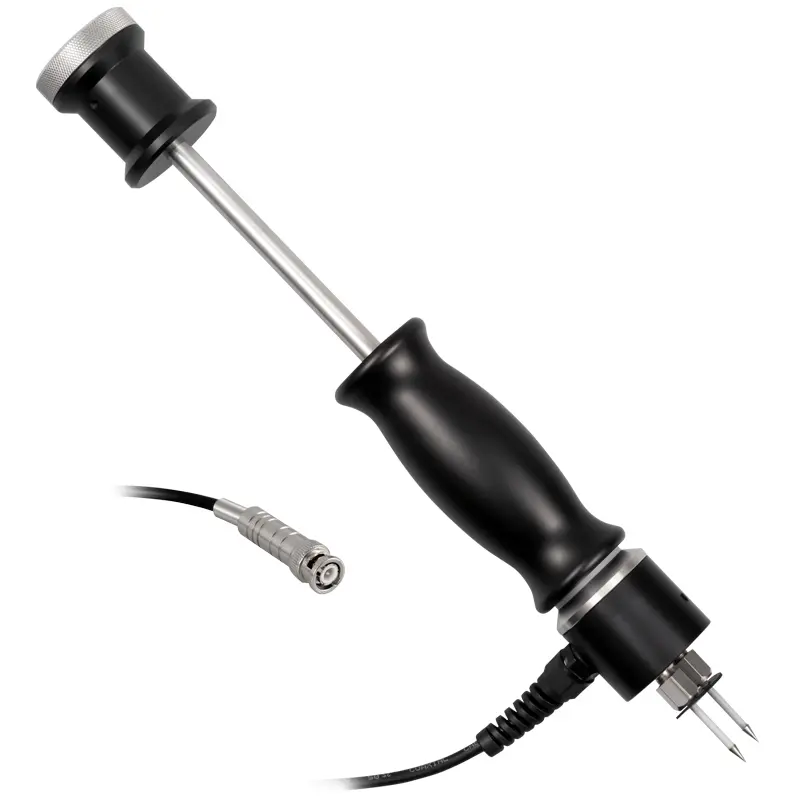

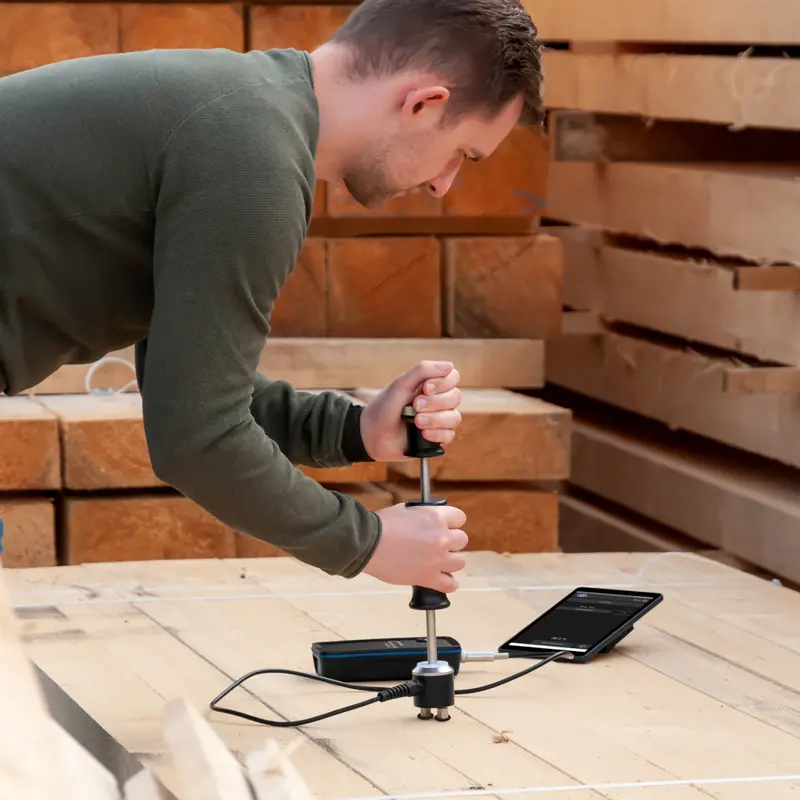

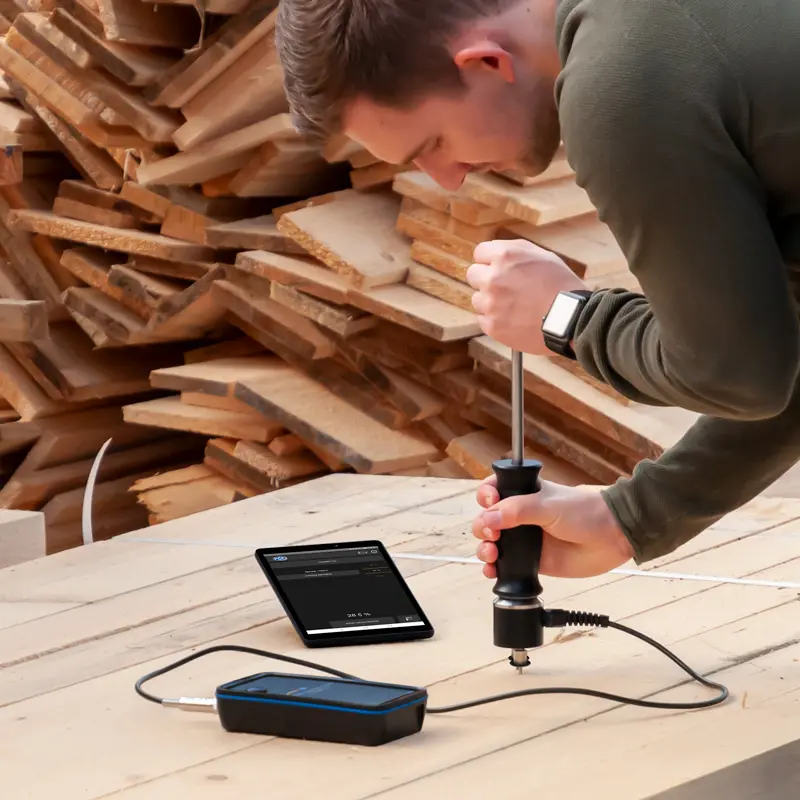

With the Bluetooth wood timber moisture meter, up to 44 different types of wood can be checked for their moisture content. These include 36 hardwoods and 8 conifers, such as beech, spruce, pine and maple. The measured value can be up to 150% moisture in relation to the dry matter. In order to obtain the most precise measurement possible, the Bluetooth timber moisture meter has both automatic and manual temperature compensation between -20 ... 50°C / -4 ... 122°F. In order to carry out a measurement, a pair of measuring tips is first knocked into the wood with the help of the ram electrode on the Bluetooth timber moisture meter. Two different pairs of measuring tips are available for the Bluetooth timber moisture meter. With the pair of needles 45 x Ø3.05 mm, you can drive into the wood up to a depth of 30 mm.

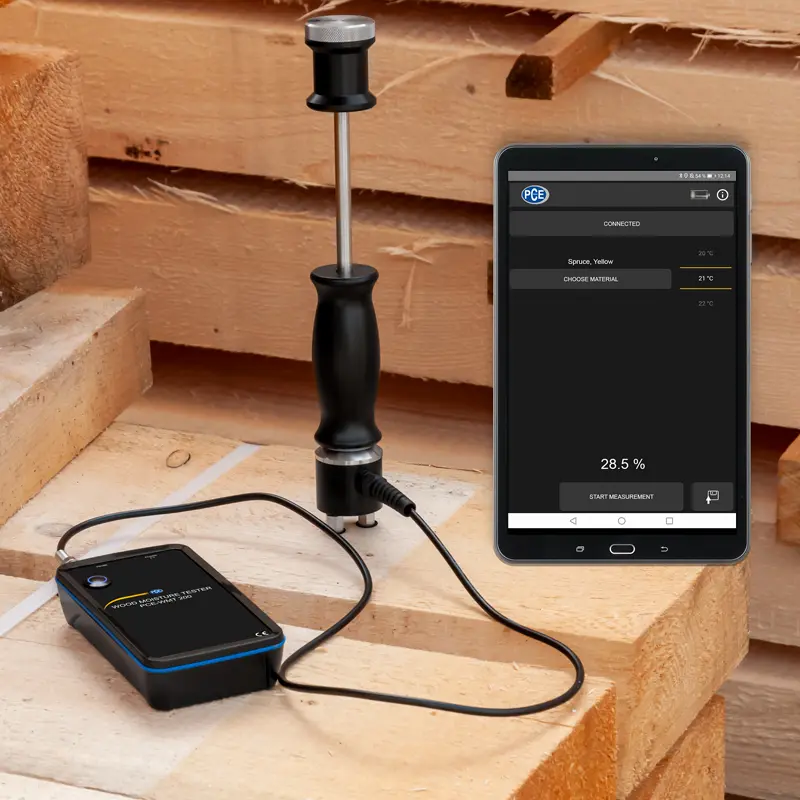

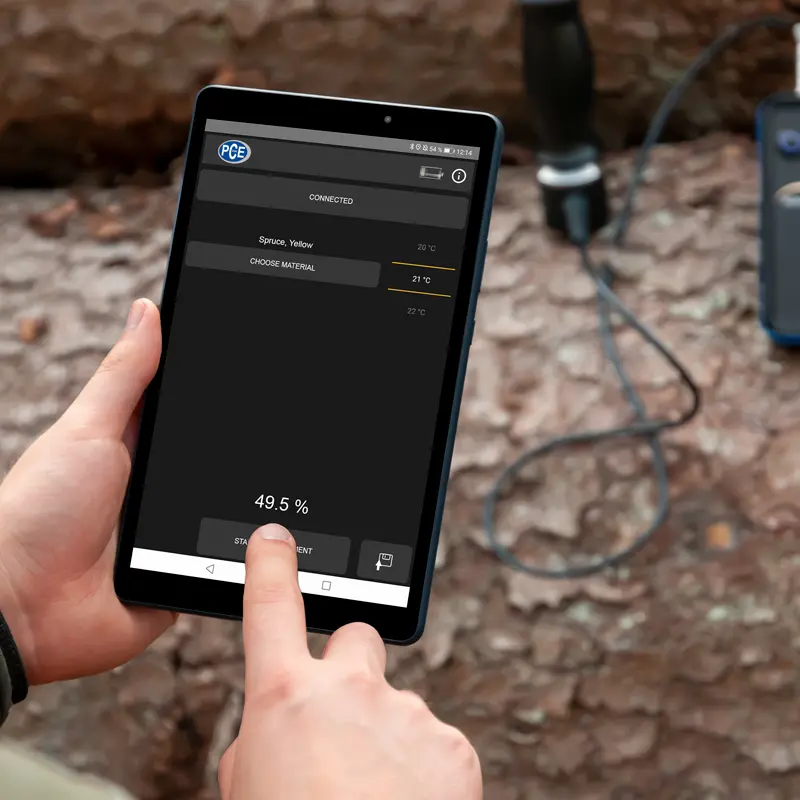

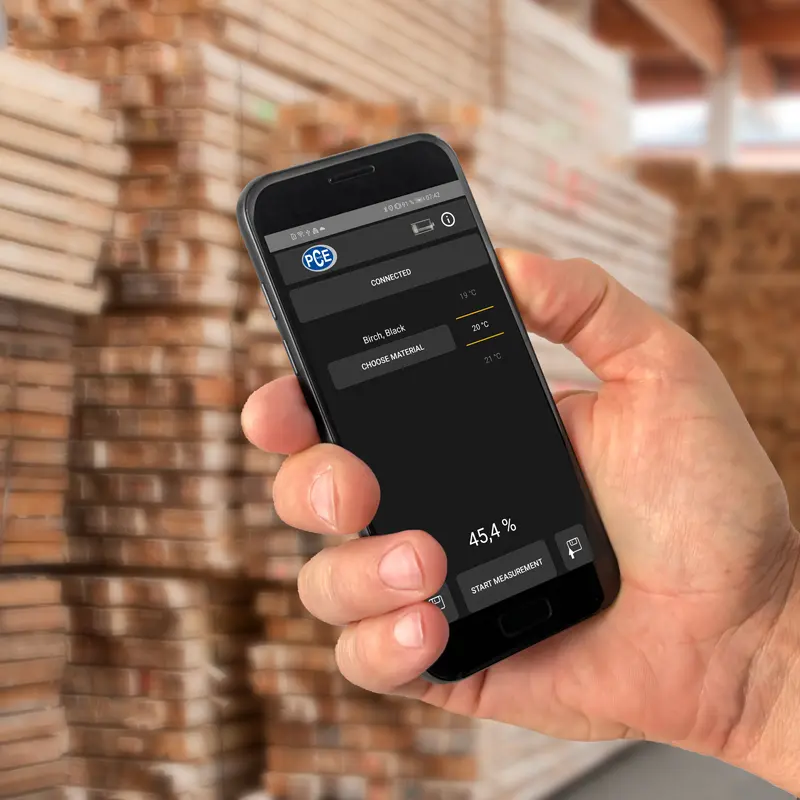

Then the type of wood to be measured is selected via an Android or iOS device and the measurement is started. The current measured value is displayed after a few seconds. The connection between the Bluetooth moisture measuring device and the mobile device is made via a Bluetooth 4.0 interface. After a measurement, the measured value from the Bluetooth wood timber moisture meter can be saved on the mobile device. The data can be exported in CSV and PDF format. A 9V DC power supply unit is used for the supply voltage of the Bluetooth humidity measuring device. For mobile use, the Bluetooth timber moisture meter can be operated with a 9V block battery.

Highlights


- Temperature compensation up to 50°C / 122°F
- 44 different types of wood
- Ramming electrode with pairs of needles
- Up to 150% moisture
- Bluetooth 4.0 interface

Specification


Material
HardwoodsMeasuring range
Maple7.9 ... 150%
American birch6.4 ... 150%
Basla7.3 ... 150%
Sycamore maple7.9 ... 150%
Birch8.1 ... 150%
Beech7.2 ... 150%
Real mahogany6.7 ... 150%
Sweet chestnut8.1 ... 150%
Alder8.1 ... 150%
Ash8.1 ... 150%
False acacia8.1 ... 150%
Yellow birch6.4 ... 150%
Hornbeam8.1 ... 150%
European hornbeam8.1 ... 150%
Canadian birch8.1 ... 150%
Cherry tree8.1 ... 150%
Walnut8.1 ... 150%
Poplar6.8 ... 150%
Plum tree8.1 ... 150%
Plane7.1 ... 150%
Black locust8.1 ... 150%
European beech7.2 ... 150%
Black alder8.1 ... 150%
Sipo9.7 ... 150%
Stone beech8.1 ... 150%
English oak7.0 ... 150%
Teak6.8 ... 150%
Sessile oak7.0 ... 150%
Elm8.0 ... 150%
Willow6.1 ... 150%
White maple7.9 ... 150%
White birch8.1 ... 150%
White beech
8.1 ... 150%
Sugar birch8.1 ... 150%
Damson plum8.1 ... 150%

Softwoods
Douglas fir6.6 ... 150%
Spruce, common8.1 ... 150%
Pine6.6 ... 150%
Larch7.5 ... 150%

Central European spruce8.1 ... 150%
Scandinavian spruce8.1 ... 150%
Fir8.5 ... 150%
Cypress6.7 ... 150%

The moisture content is based on the dry matter
at a temperature of 20°C / 68°F

More building materials
Building moisture (digit display)11 ... 200 digits
Wood fiber insulation board6.8 ... 150%
Chipboard3.5 ... 150%

Further specifications
Resolution0.1%
Resolution digit display1
Repeatability± 0.5%
Temperature compensation-20 ... 50°C / -4 ... 122°F, manual / automatic
Measuring principleElectrical resistance measurement

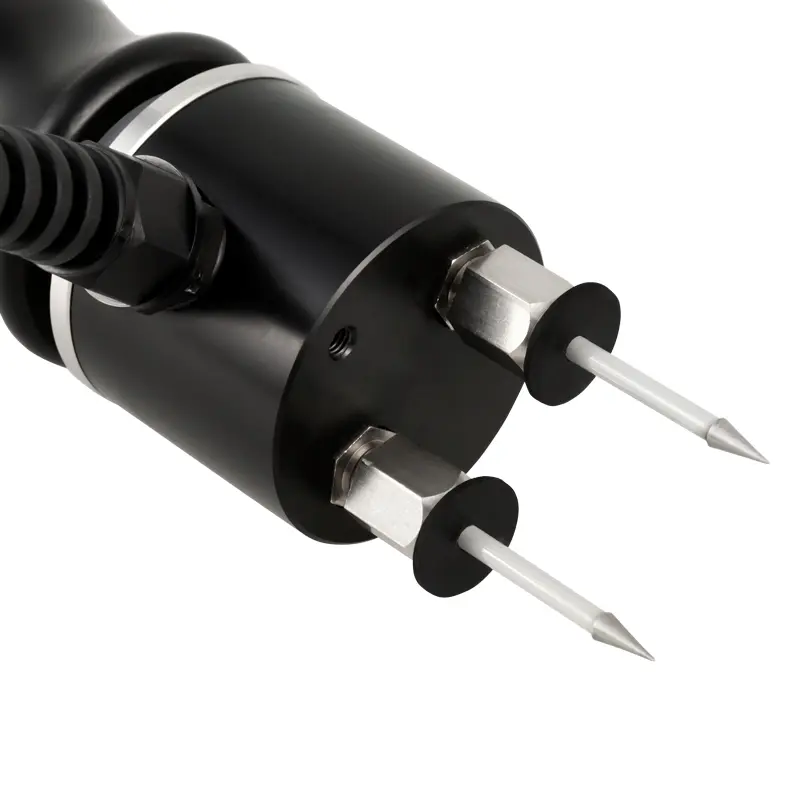

Sensor typeRam electrode

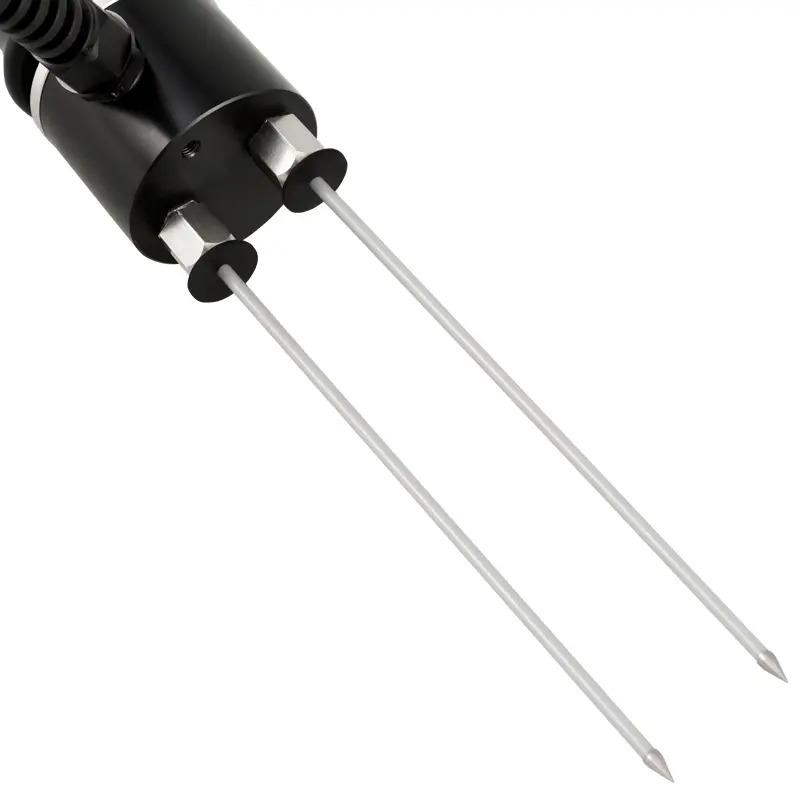

Pairs of needles maximum penetration depth   45 x Ø3.05 mm: 30 mm
 165 x Ø2.85 mm: 150 mm
Protection classIP 52
Power supply9V block battery /
 9V DC, 1 A mains connection
InterfaceBluetooth 4.0
Cable lengthApprox. 1 m / 39.4 in
Power consumptionMax. 1 A
Dimensions
Ram electrode:332 x Ø45 mm / 13.1 x Ø1.8 in

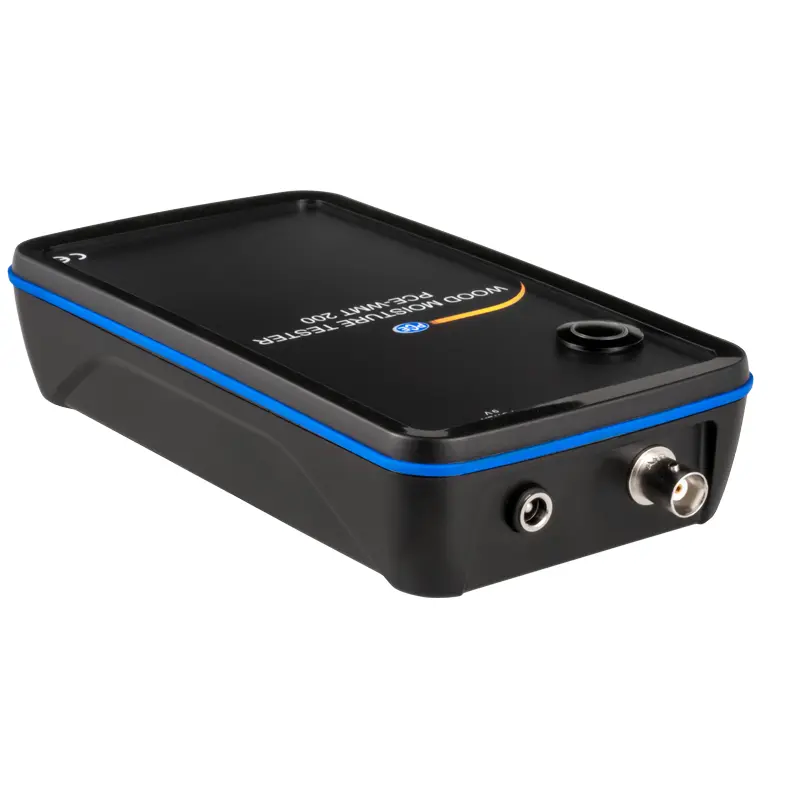

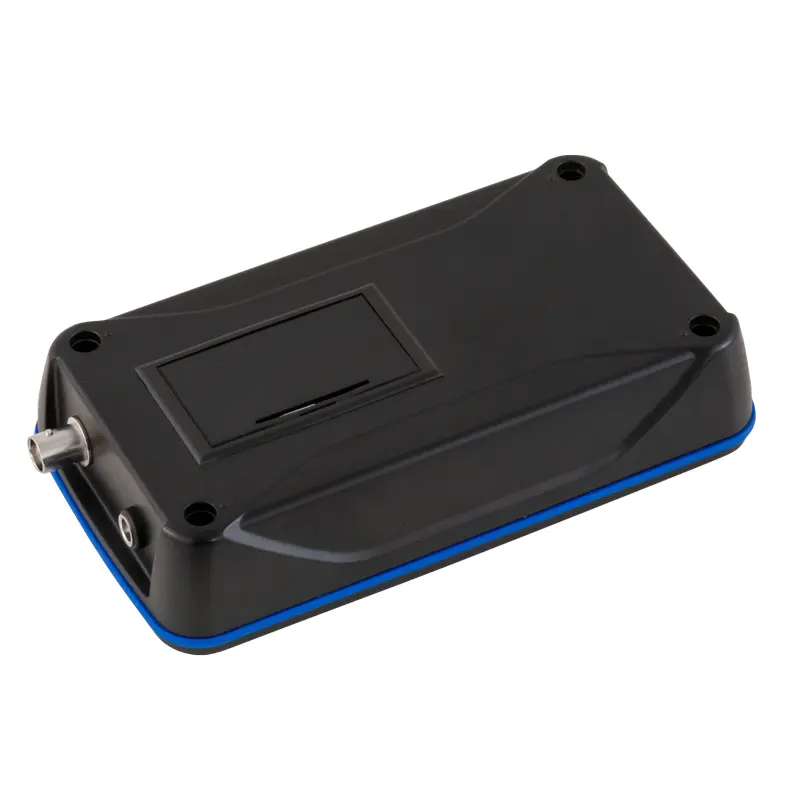

Measuring device:175 x 90 x 35 mm / 6.9 x 3.5 x 1.4 in
Pair of needles:45 x Ø3.05 mm / 1.8 x Ø0.1 in
 165 x Ø2.85 mm / 6.5 x Ø0.1 in
WeightRam electrode: 1677 g / 3.7 lbs
 Measuring device: 250 g / 0.6 lbs

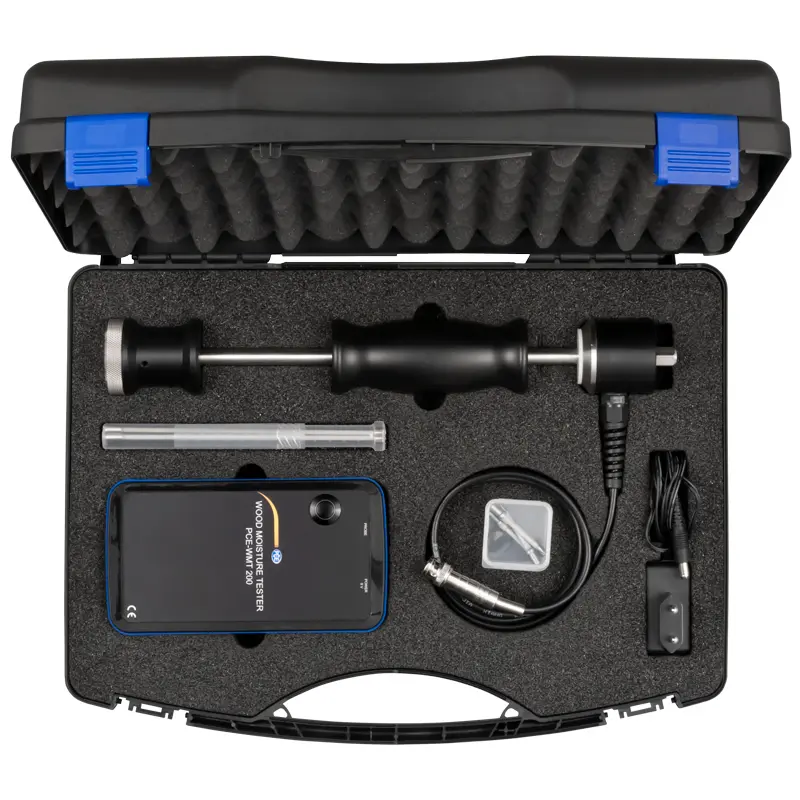

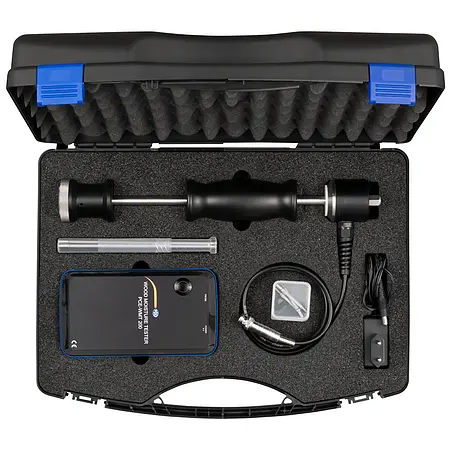

Delivery Scope

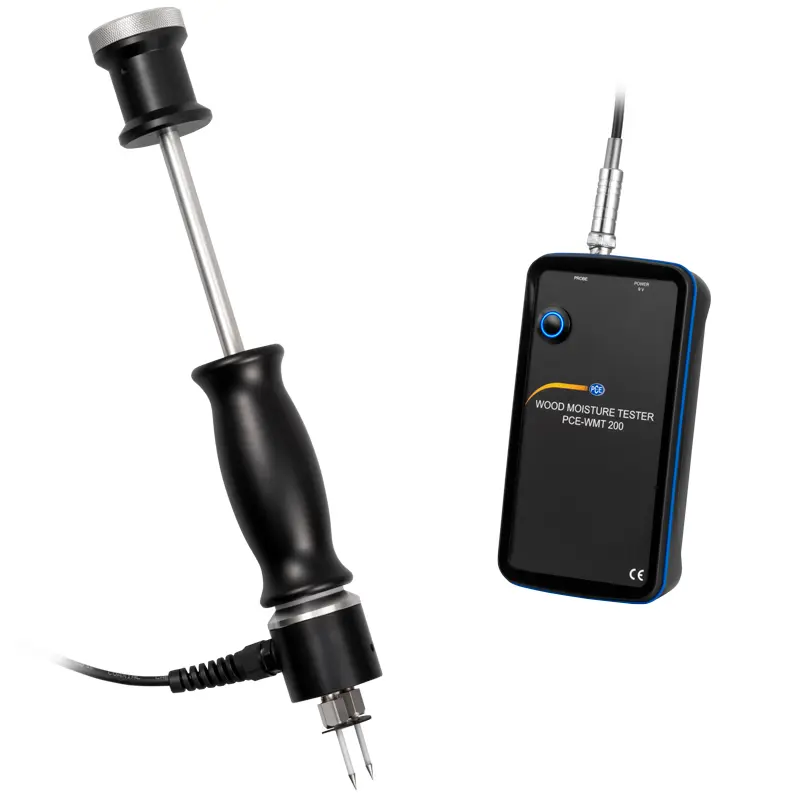

1 x Bluetooth wood moisture meter PCE-WMT 200

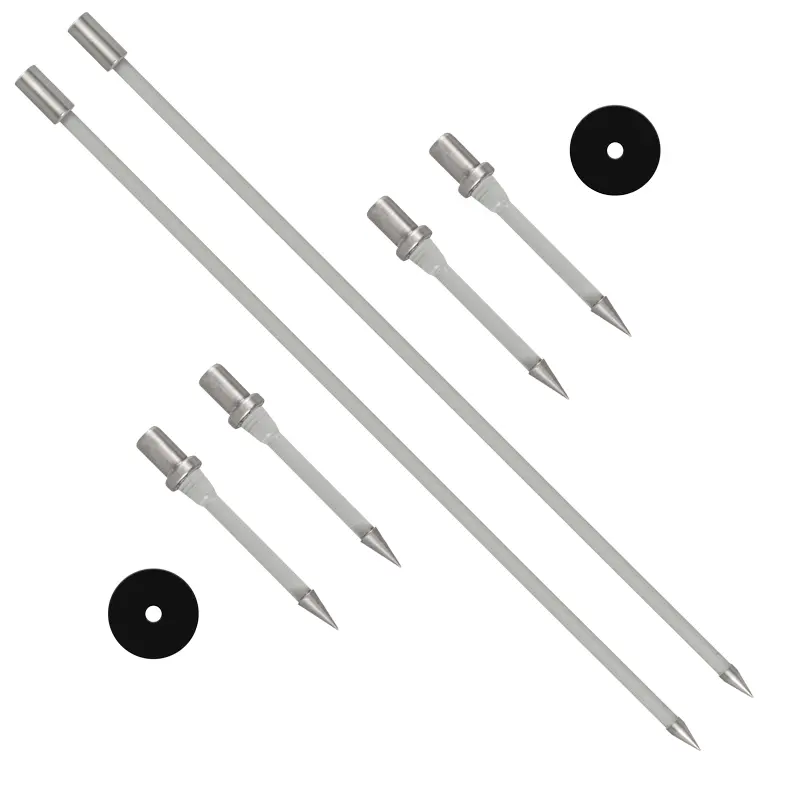

1 x Pair of needles 165 x Ø2.85 mm / 6.5 x Ø0.1 in
2 x Pair of needles 45 x Ø3.05 mm / 1.8 x Ø0.1 in
1 x Pair of isolators
1 x Power supply
1 x 9V block battery
1 x Transport case
1 x Quick start guide
