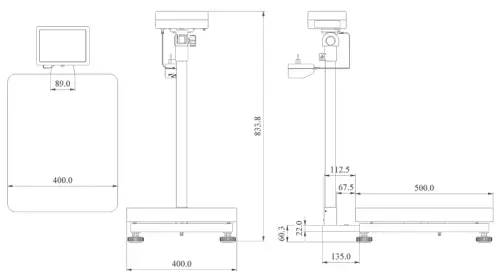

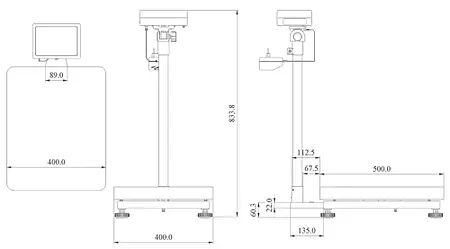

Calibratable weighing platform / platform 400 x 500 mm or 500 x 600 mm /
bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0
- 10 V optional

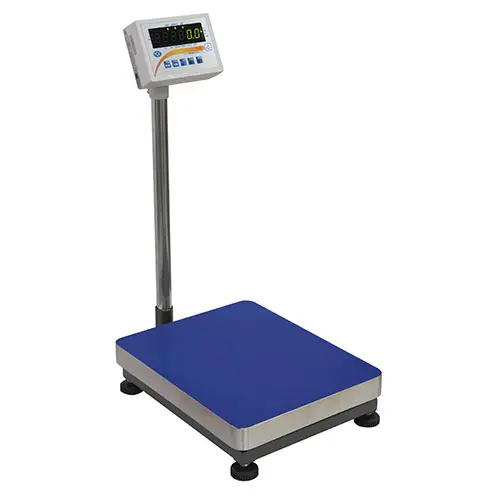

The
calibratable weighing platform is a solid calibratable platform scale that
is reasonably priced. The calibration of the weighing platform is performed
by calibrating authorities following the calibration directives of Class
M III. The solid base of the calibratable weighing platform is made of
lacquered steel and features a plastic-coated platform made of steel.
The calibratable weighing platform also has pedestals that can be
alternated in their height, assuring a firm stand. The navigation
display of the weighing platform is placed on a stand mounted within a
reachable height and fixed to the weighing platform. In order to assure an
ideal readability of the display at all time, the display can be
alternated in its angle. Functions that the calibratable weighing platform
features are: automatic tare, item counter, saving tare value, gross /
net weighing, percentage calculation, threshold weighing, etc. Further
characteristics of the calibratable weighing platform are: e.g. analogue
output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces,
potential-free contact, USB data storage, scanner input etc.
