Benchtop Scale PCE-BSW 3

Order no.: PCE-BSW 3

GTIN (EAN): 4250348721082

Description

Benchtop scale PCE-BSW 3
Industrial scale with built-in rechargeable battery / Numerical display / Fast measuring rate different weight ranges / Easy operation / Weighing surface of 235 x 190 mm (9.3 x 7.5 in)

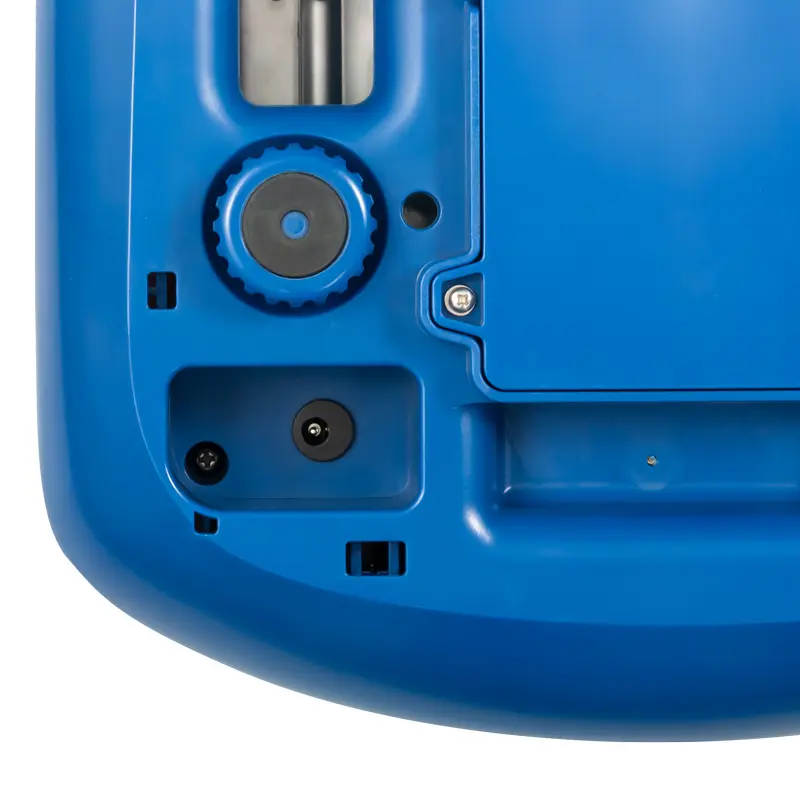

The industrial scale from the PCE-BSW series is an ideal companion for mobile use. The mobile use of the industrial scale is made possible by the exchangeable 5 Ah battery. This can be recharged via the included power supply. In order to align the industrial scale, a level is installed in the balance, which always shows the operator the current positioning. The alignment takes place via the adjustable feet on the underside of the industrial scale.

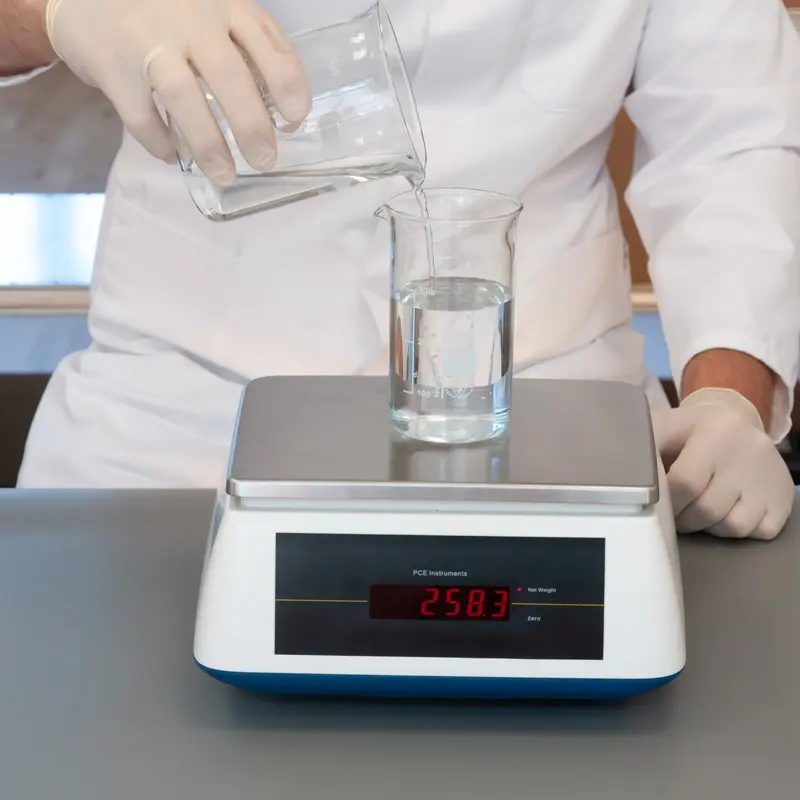

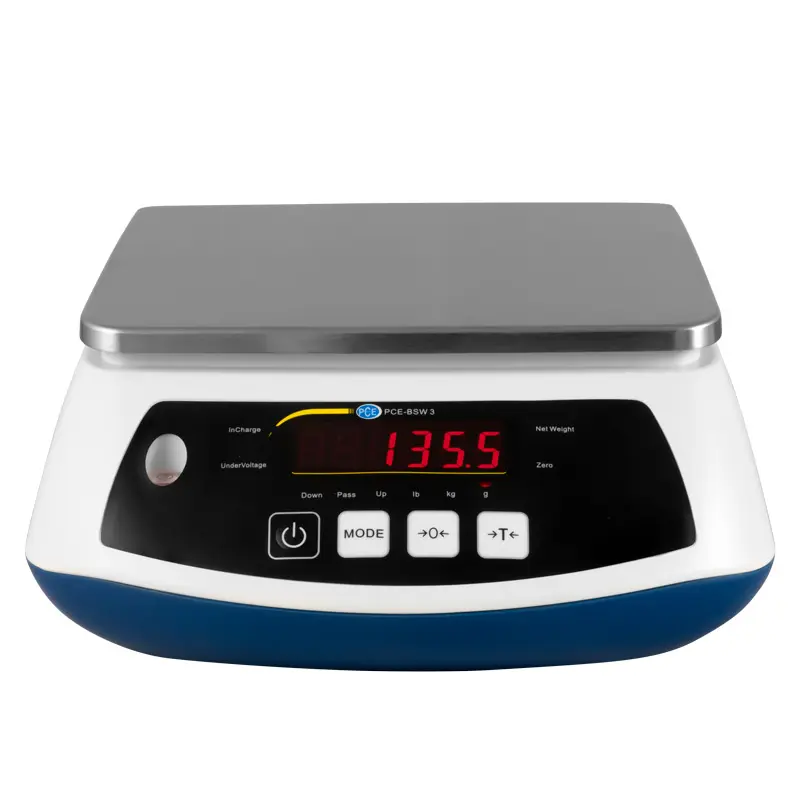

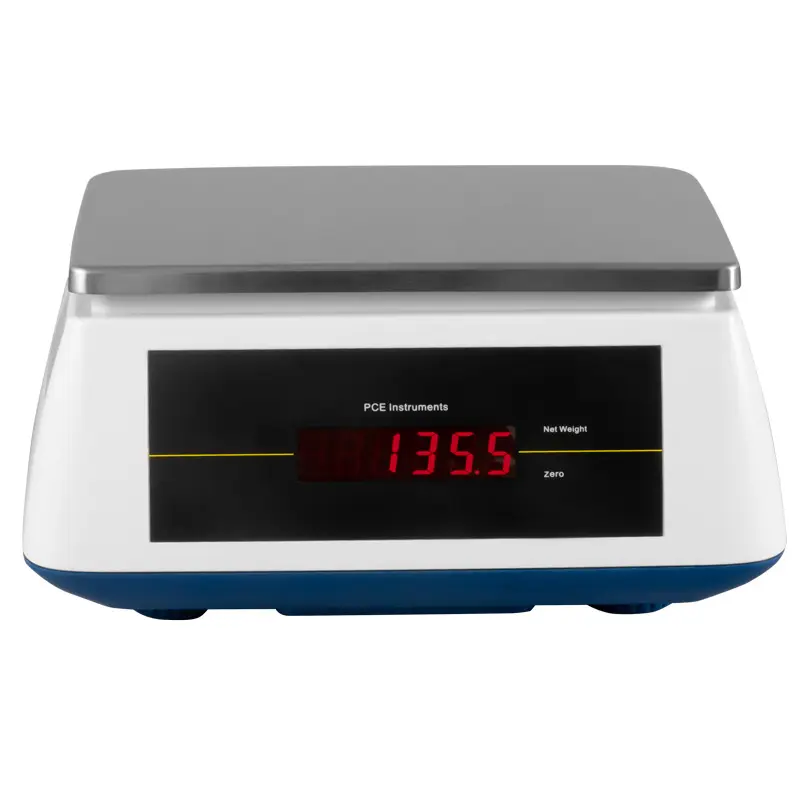

The industrial scale has two numeric LCD displays with a digit height of 15 mm. On the back of the industrial scale is another LCD display. Thanks to this second indicator on the industrial scale, several spectators can follow a weighing and analyze it. Thus, the industrial scale finds its application for example in universities, schools or training centers.

Highlights

- Battery operation for mobile use
- Front and back display
- Numeric display
- Alignment by means of dragonfly
- Large contact surface of 235 x 190 mm / 9.3 x 7.5 in
- Different measuring ranges

Specification

Measuring range	0 ... 3000 g / 0 ... 6.6 lbs
Resolution	0.1 g
Repeatability	± 0.3 g
Linearity	± 0.3 g
Display	LCD, digit height 15 mm
Operating conditions	5 ... 25°C / 41 ... 77°F, < 85 RH non-condensing
Power supply battery	6V, 5 Ah
Power supply mains	Primary: 100 ... 240 V, 50/60 Hz
	Secondary: 9 VDC, 2000-mA
Dimensions of support surface	235 x 190 mm / 9.3 x 7.5 in
Dimension	287 x 271 x 127 mm / 11.3 x 10.7 x 5 in
Weight	About 437 g / < 1 lb (with battery)

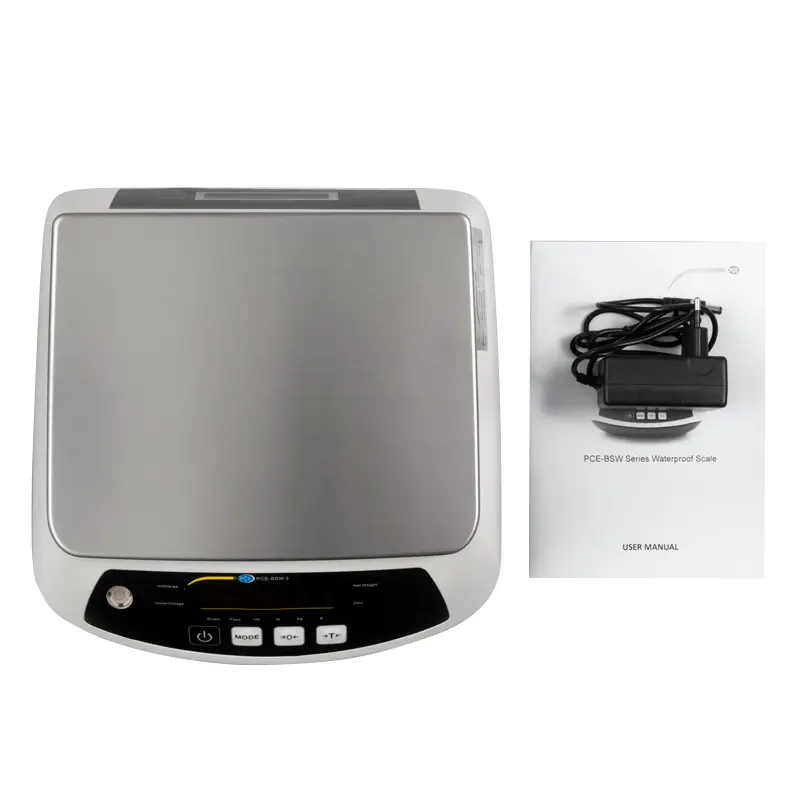

Delivery Scope

1 x Benchtop scale PCE-BSW 3
1 x Power supply
1 x User manual

Downloads

man-compact-balance-pce-bsw-series-en.pdf

Manual

Datasheet
