The benchtop scale stands out due to its multifunctional range of application. But not only the large range of functions of the benchtop scale is outstanding, the communication options of the benchtop scale are interesting as well. The benchtop scale features a bi-directional RS-232 interface and USB interface. Thus the benchtop scale provides a very good foundation for every programmer (description of interface in instruction manual). The benchtop scale sends the information via keypress automatically to a computer either every time the weighing value is stable, continuously (approx. 10 values per second) or on demand. Another option to integrate the benchtop scale into a system would be the optionally purchasable interfaces, e.g. LAN-, analogue output 4 ... 20 mA or 0 ... 10 V as well as the weightlimit function with three potential-free contacts.
Interesting
functions of the benchtop scale are item-counting, percentage -
calculation, formulation weighing, animal weighing, statistical
weighing, summation function, threshold function, various weighing
functions etc. The benchtop scale can operate by battery as well as via
adapter, and is also applicable for mobile weighing tasks. Via the
optional ProCell software you can import the weighing data of the benchtop scale into any system, where the data can be fed-in by
keypress, such as Excel, Word, DHL, SAP etc. since the software
simulates a manual data feed-in.
| |||||||||||||||||||
Tare Range | covering the whole weighing range | ||||||||||||||||||
Settling Time | approx. 3 sec. | ||||||||||||||||||
Display | LCD with background lights | ||||||||||||||||||
Digit height | Approx. 30 mm | ||||||||||||||||||
Weighing unit | ct / g / kg / lb / oz / ozt / gr / dwt | ||||||||||||||||||
Interface | bi-directional RS-232 and USB | ||||||||||||||||||
Calibration | external via any M1 weight standard | ||||||||||||||||||
Operation temperature | -10 °C ... +40 °C | ||||||||||||||||||
Power Supply | ~230
V 50 Hz 12 V 1.2 A adapter or CE 6 V / 4.5 Ah battery (not included in delivery) | ||||||||||||||||||
Battery life time | approx. 50 hrs. / 100 hrs. ( with / without background lights) | ||||||||||||||||||
IP Code | IP 54 | ||||||||||||||||||

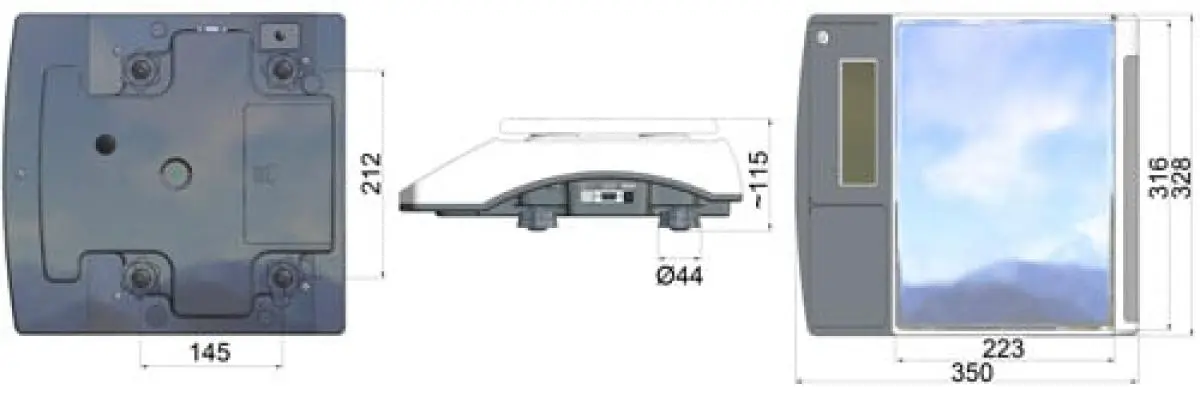

Diameter platform | 316 x 223 mm | ||||||||||||||||||
Diameter system scale | 350 x 328 x 115 mm | ||||||||||||||||||
Weight of system scale | approx. 3.5 kg |
