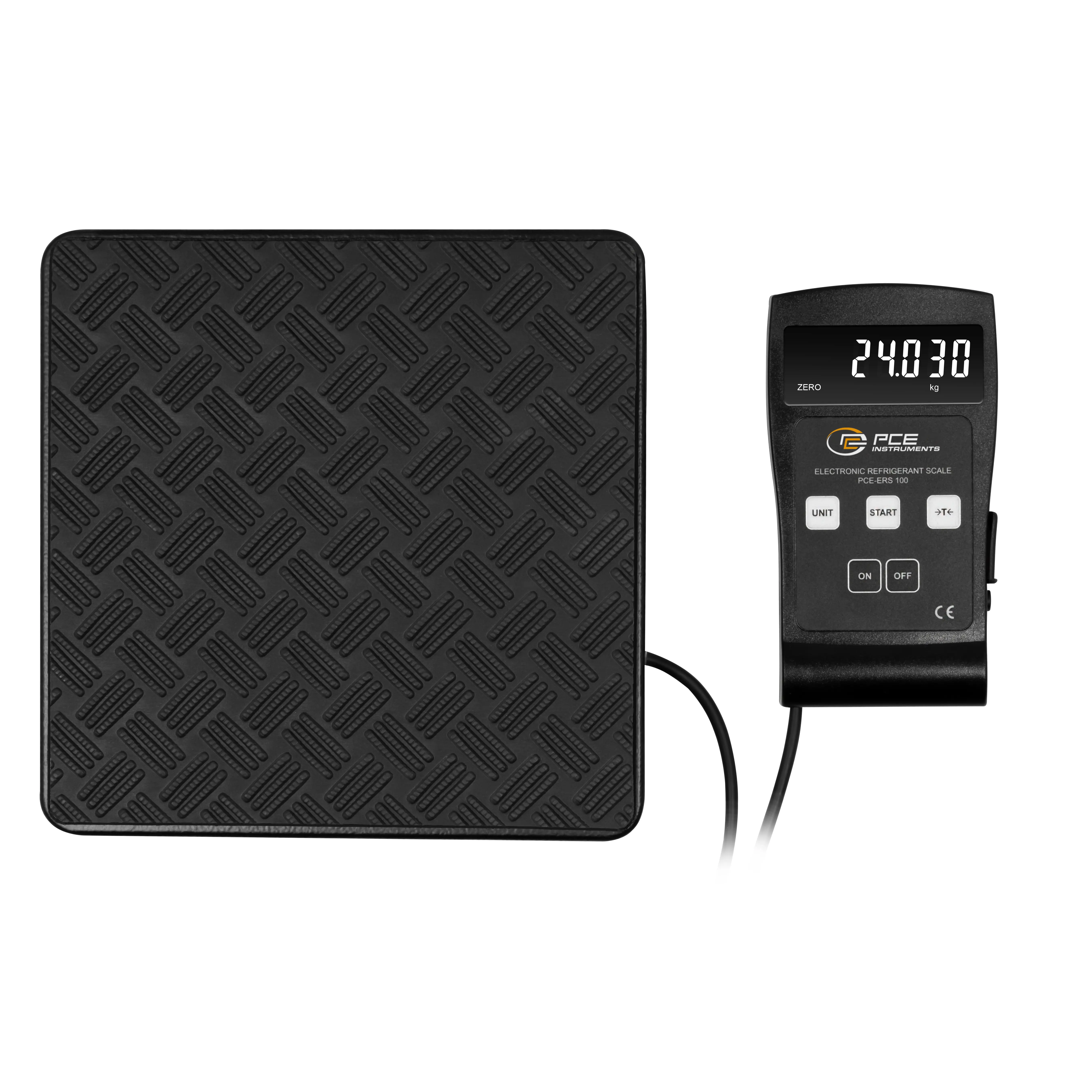

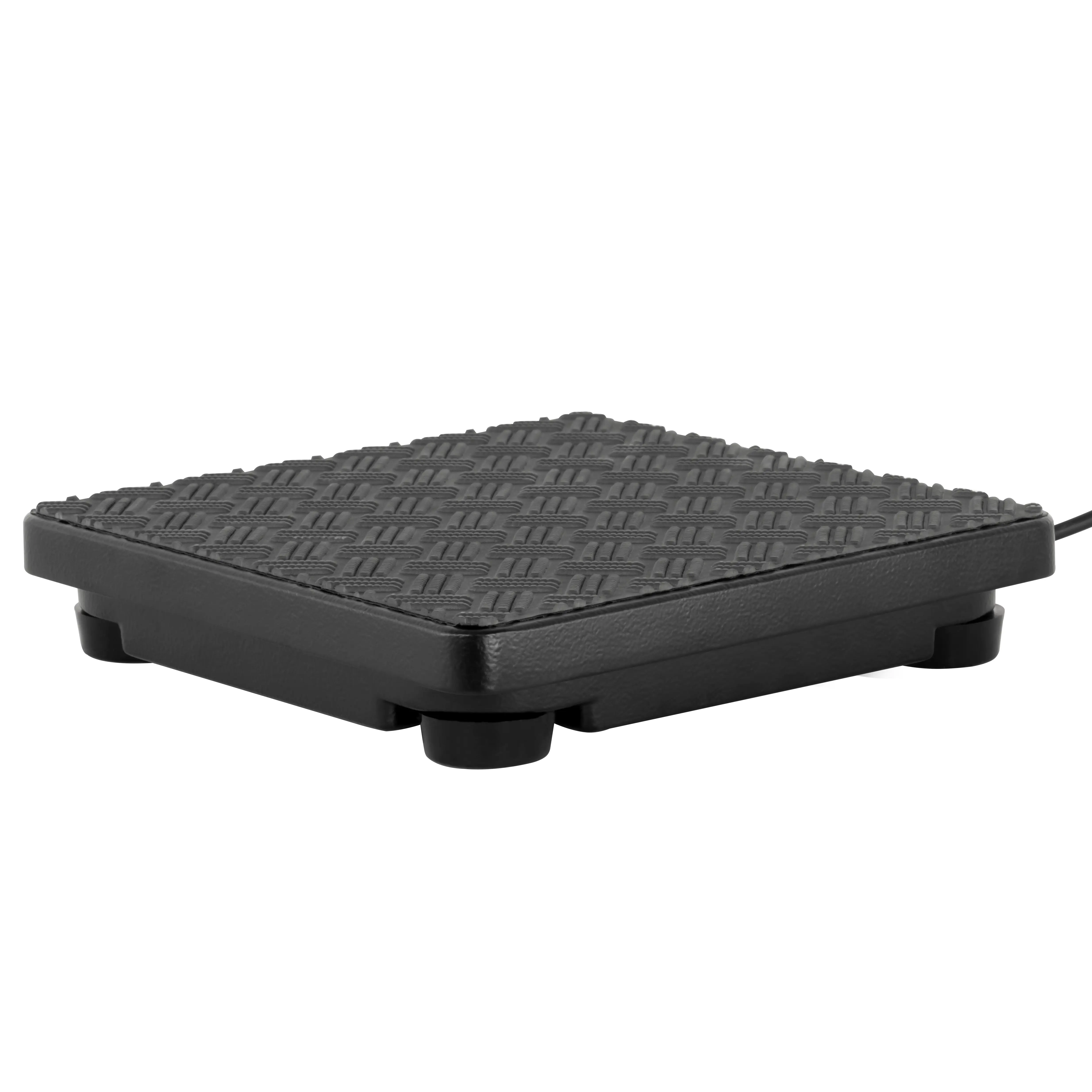

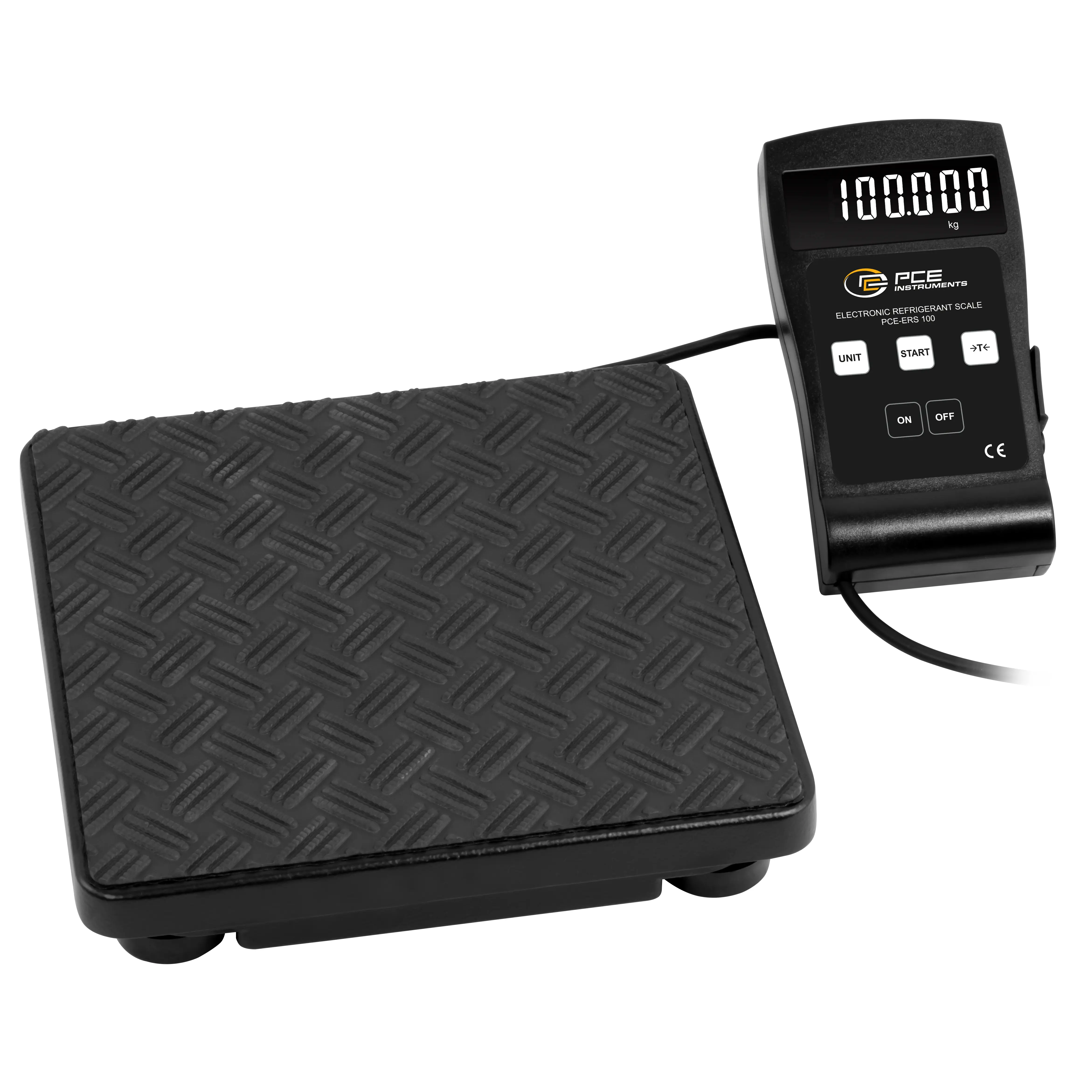

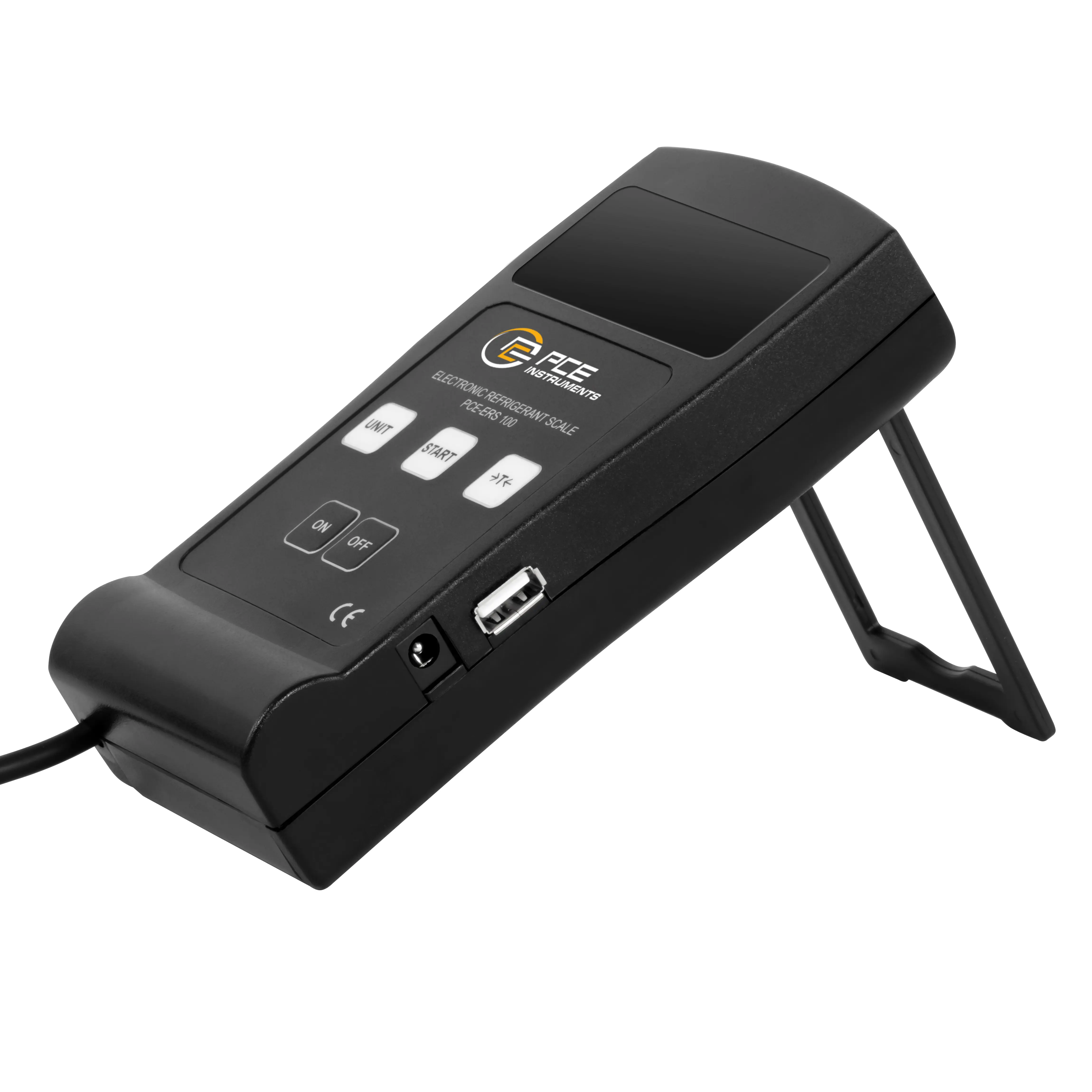

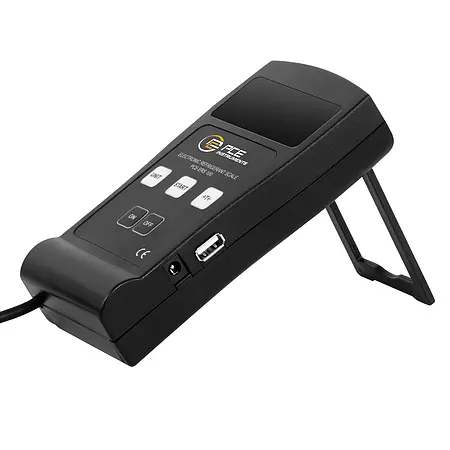

Our Compact Scales / Compact Balances are the ideal solution for precisely filling and emptying refrigerant cylinders. The Compact Scales / Compact Balances offer a measurement range of 0.01 ... 100 kg with a resolution of 0.01 kg, enabling precise measurements. The 230 x 230 mm platform of the Compact Scales / Compact Balances is equipped with a non-slip rubber coating, which ensures that the bottles can be placed safely. The external control unit makes the Compact Scales / Compact Balances ideal for flexible, mobile use. The control function makes it possible to set a weight at which the scales emit an audible alarm.

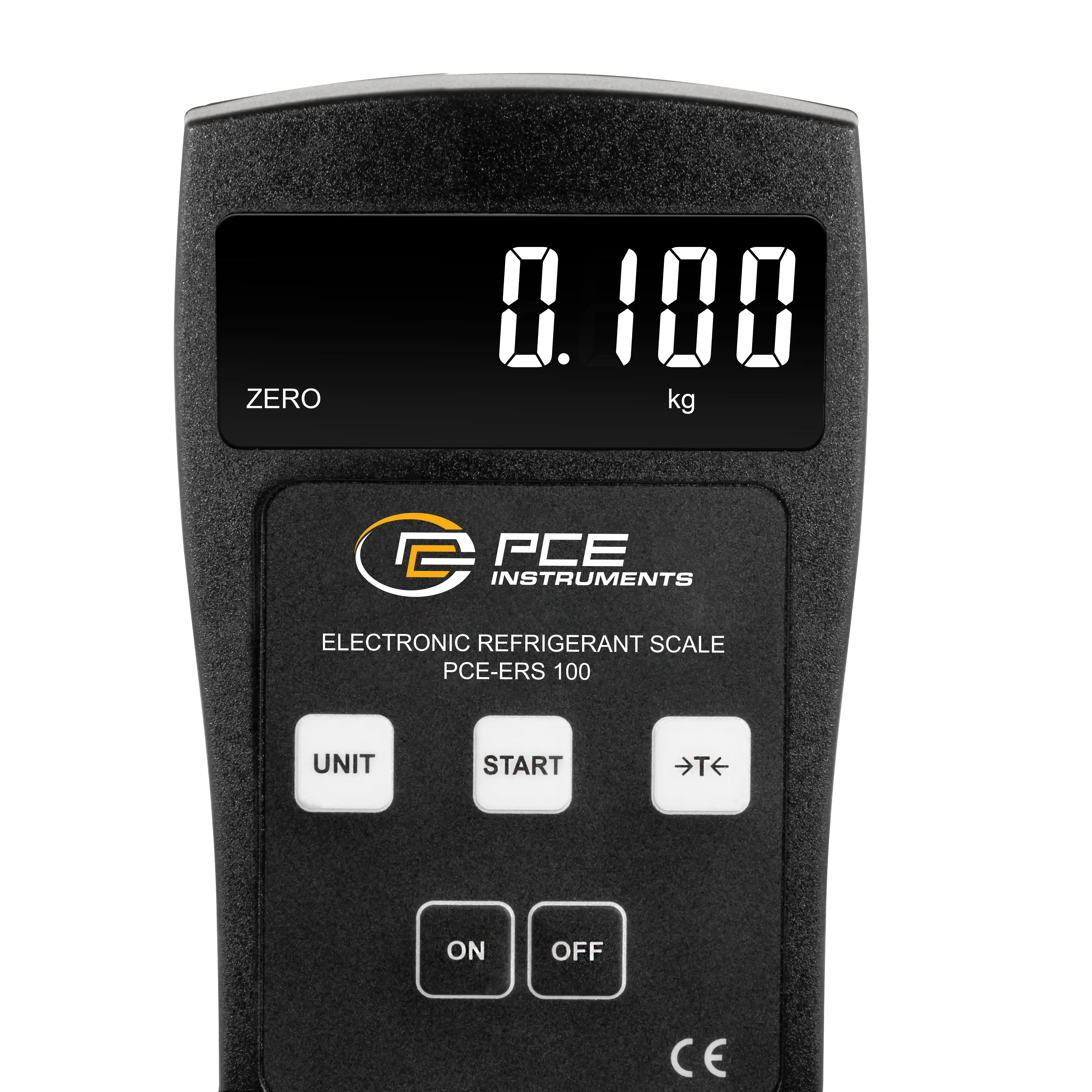

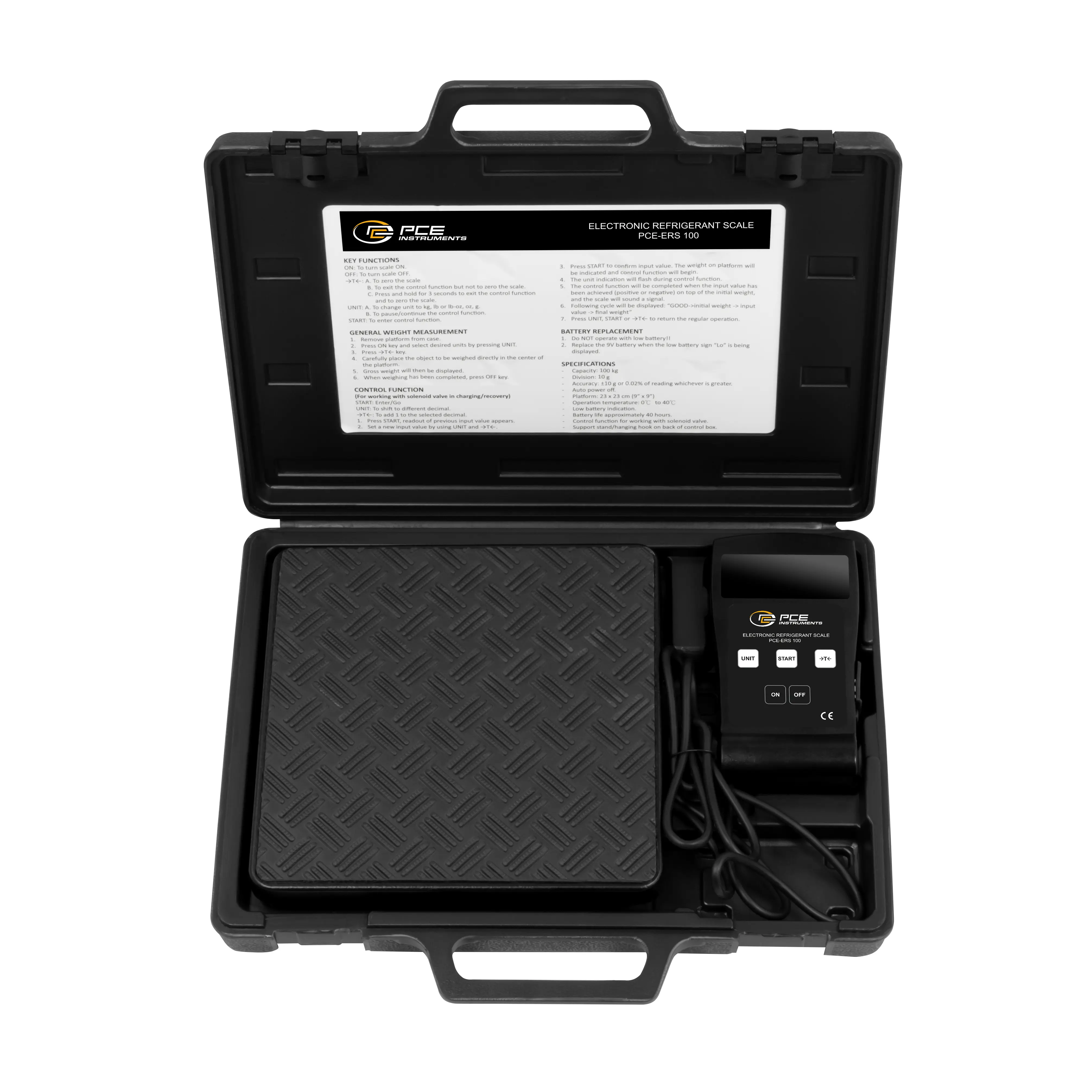

Measurements can be carried out in various units such as kg, g, lb, oz and lb/oz. The practical tare function allows the tare weight to be hidden so that only the actual change in weight is measured. A backlit display makes them easy to use even in poor lighting conditions. The scales can be operated either with a 9 V block battery or via the mains and have an automatic power off function to extend the battery life. The Compact Scales / Compact Balances are supplied in a practical carrying case.
Weighing range | |
Measurement range up to [Max] | 100 kg |
Resolution [d] | 0,01 kg |
Accuracy | ±0.01 kg |
General technical data | |
Units | Ib/oz, kg, g, lb, oz |
Display type | LCD |
Display size | 2,8 Inch |

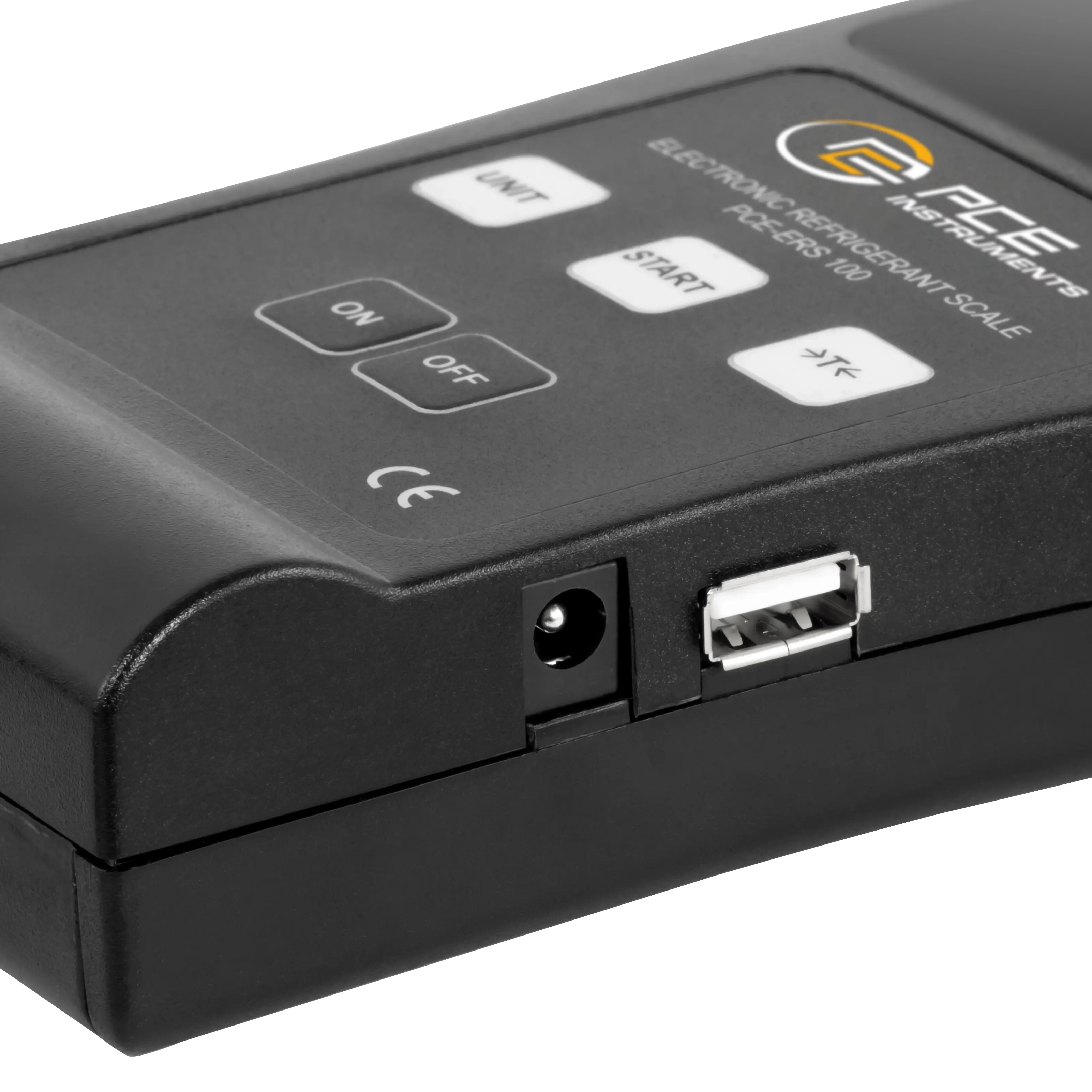

Interface | USB |
Operating time | 60 h |
Automatic power-off | 15 min |
Cable length | 1,3 m |
Alarm | Acoustic |
Scale type | Single-range scales |
Minimum load [min] | 0,01 kg |
Menu language | English, English (GB) |
Protection class (device) | IP40 |
Power supply | 6 V DC, 200 mA |
Weight | 2061 g |
Other dimensions | Display: 160 x 85 x 38 |
Operating conditions | 0 ... 40 °C , 0 ... 90 % RH |
Storage conditions | 0 ... 40 °C , 0 ... 90 % RH |

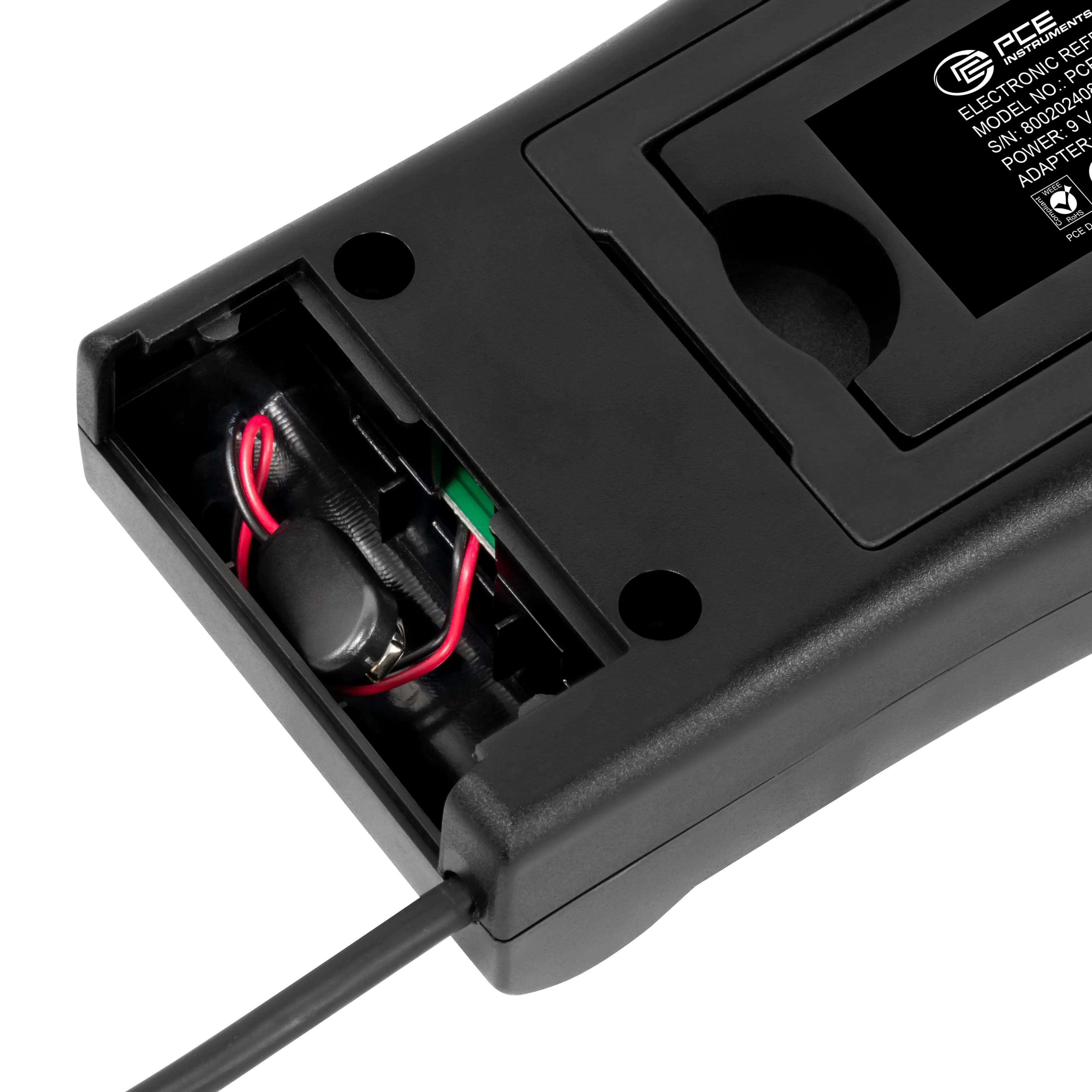

(Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
Capacity | 640 mAh |
Dimensions ( L x W x H ) | 230 x 230 x 45 mm |
