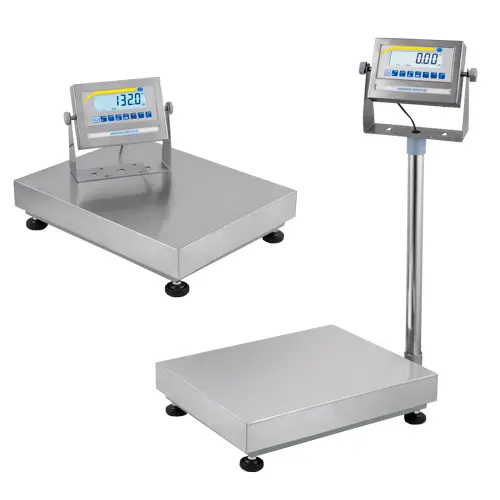

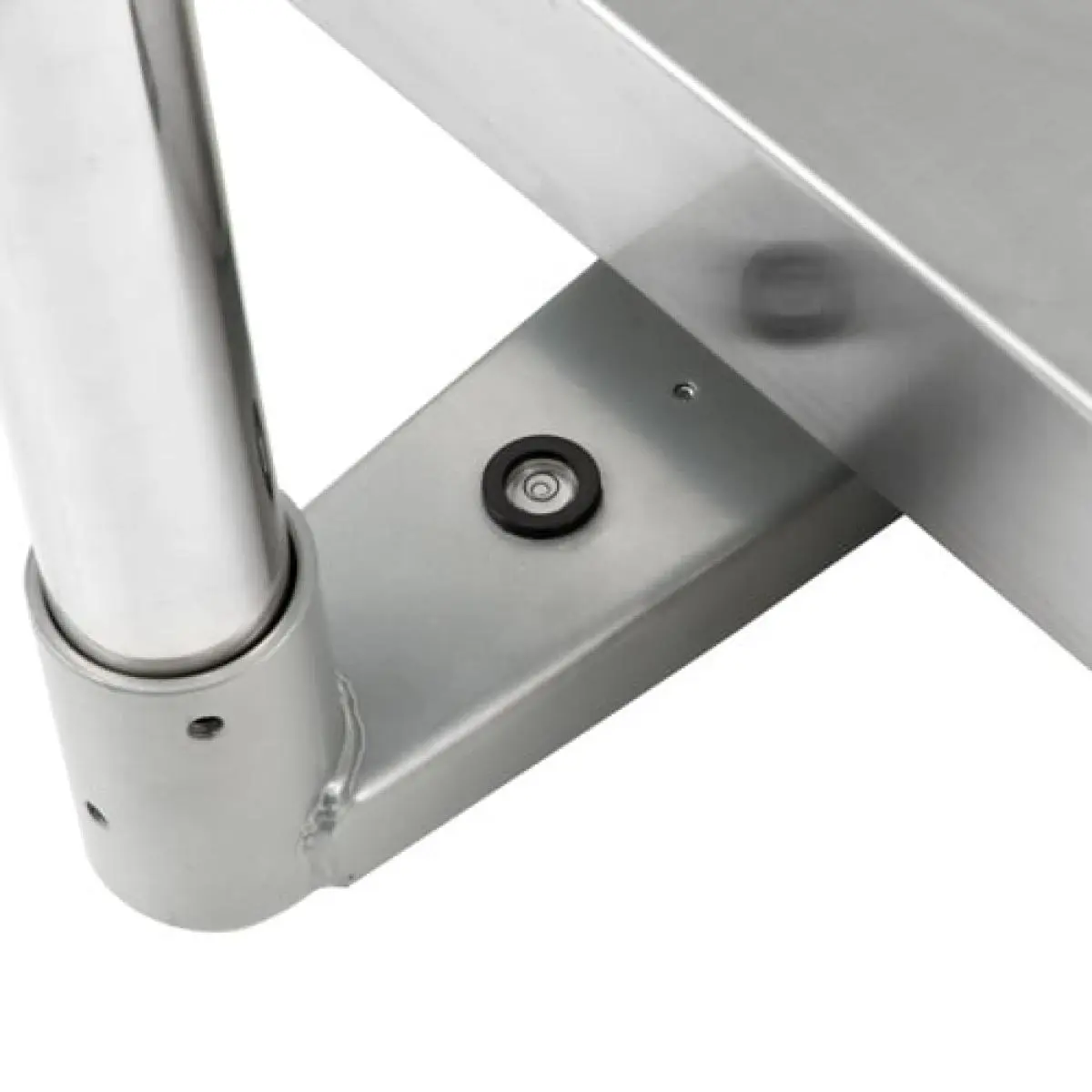

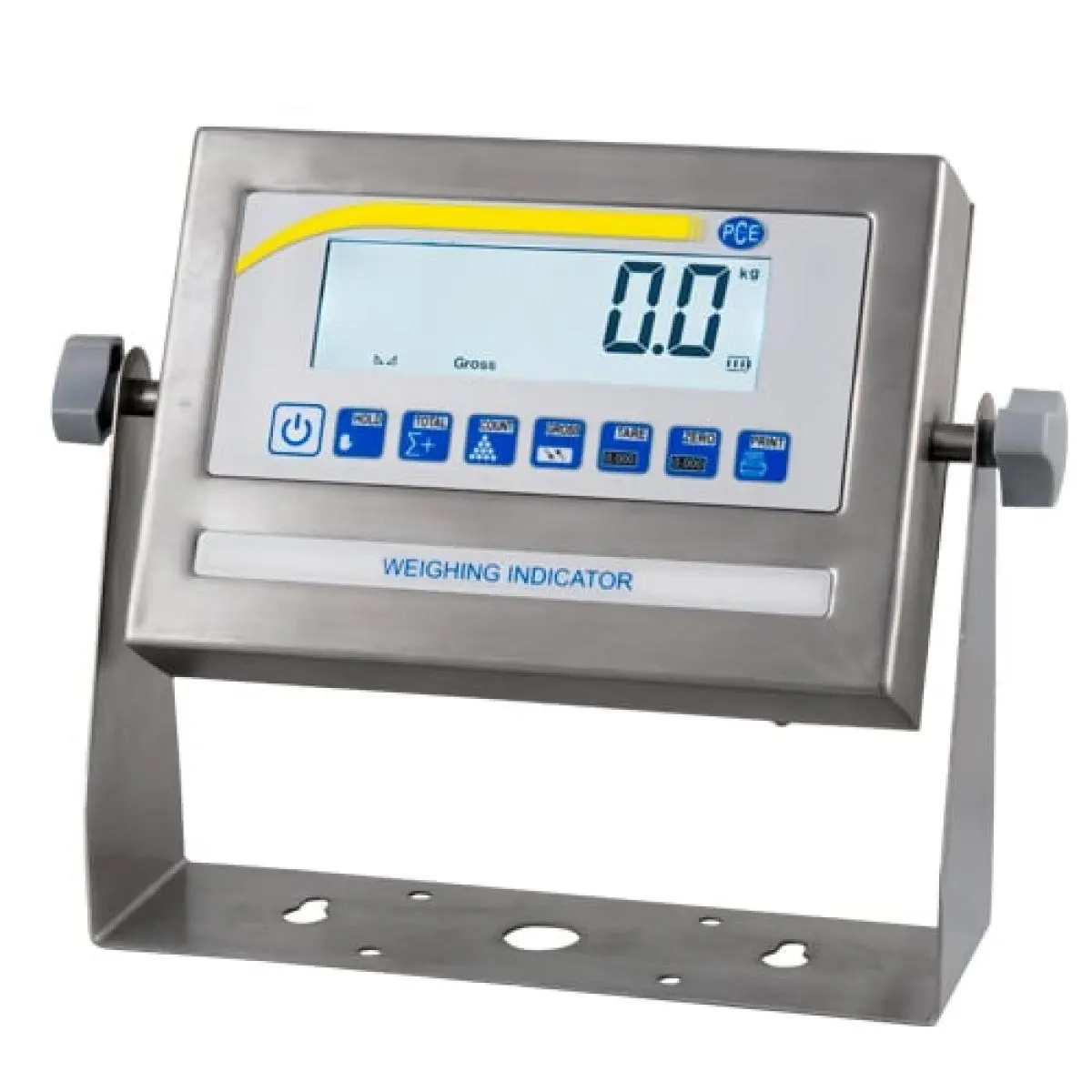

The robust counting scale is a real all-rounder. The stand of the counting scale can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of the counting scale is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the industrial scales. P1 - weighing surface: 400 x 500 mm.
In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, the counting scale has two special functions, i.e.the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of the counting scale can be queried from the PC. A similarindustrial scale, but in calibrated form, we can provide with the PCE-SD series.
Measuring range | Max. 1 = 60 kg / Max. 2 = 150 kg |
Resolution | up to 60 kg = 10 g from 60 kg ... 150 kg = 20 g |
Measurement uncertainty | ± 3 d (three times the resolution) |
Platform size [P1] | 400 x 500 mm |
Tare function | Over the entire weighing range |
Interface | RS-232 Bidirectional
/ D-SUB 9 Female Optional: - Analog output 4-20 mA 1/1000 + - 4 Potential-free outputs LO / OK / HI / Stable set as a pulse signal or continuous signal. |
Display | LCD with 25 mm digit height |
Units | kg / lb and freely adjustable weighing unit such as kg/m |
Cable length to display | ca. 160 cm / plug attached |
Power supply | 6V / 4.5Ah battery or 9 V / 1.2 A power
adapter (incl.) Power consumption 70 mA |
Protection class | IP54 |
Working temperature | 0 ... + 40 °C / 10 ... 80 % r.H. |
Dimensions | see Download file "Diagram" |
Weight | ca. 14 kg |
