Counting Scales PCE-EP 30P2-ICA Incl. ISO Calibration Certificate

Order no.: PCE-EP 30P2-ICA
GTIN (EAN):
£ 510.00
£ 612.00
ISO Calibration
price ex. (VAT / delivery)
PCE-EP 30P2-ICA
Delivery time: 10 - 14 days

Description

Two range - Counting Scales / higher resolution / counting function /
sum function/ detachable tripod / battery /
container weighing function/ bidirectional RS232 interface

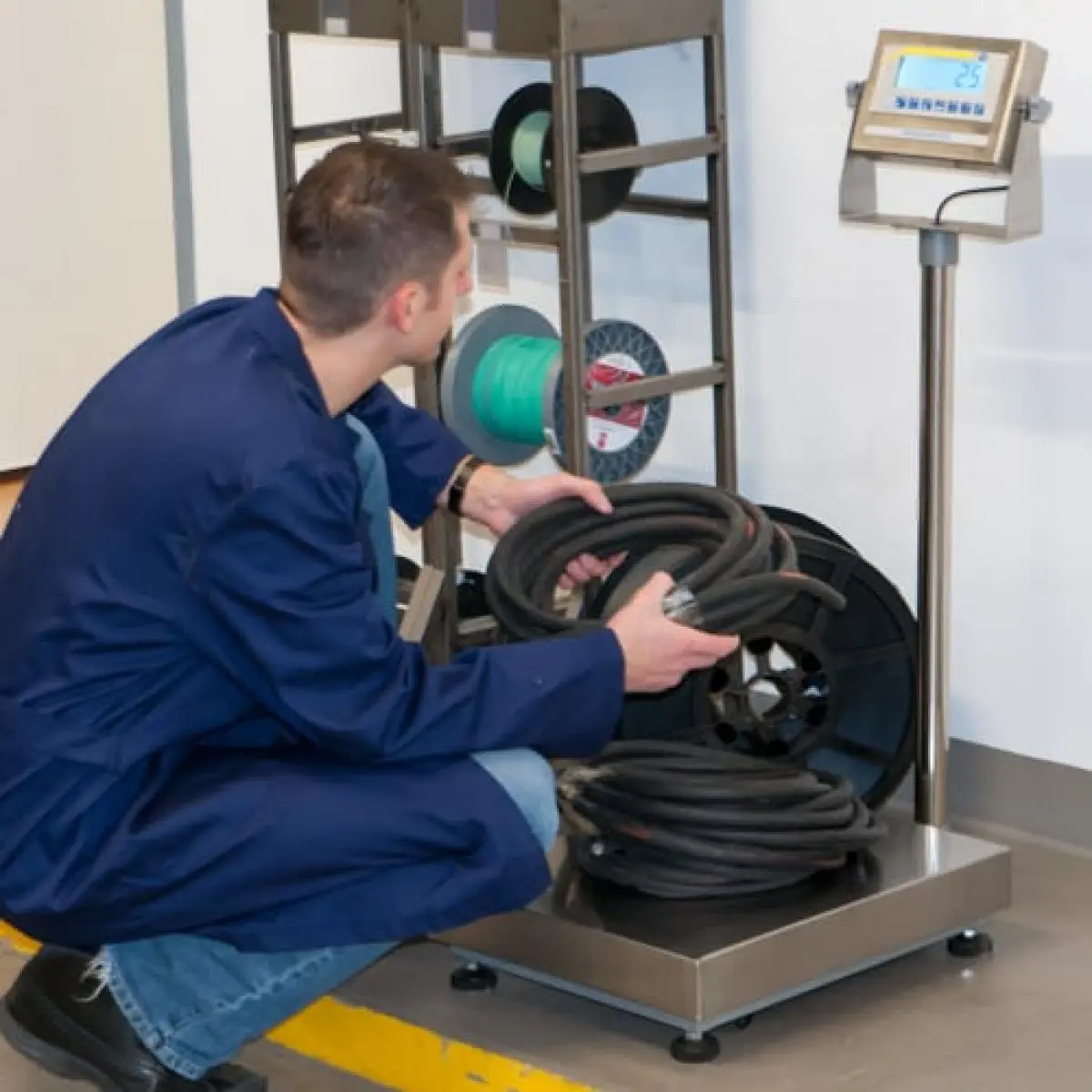

The robust industrial scale is a real all-rounder. The stand of the industrial scale can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of theindustrial scale is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the platform scales. P2 - weighing surface: 500 x 600 mm

In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, theindustrial scale has two special functions, i.e.the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of theindustrial scale can be queried from the PC. A similar industrial scale, but in calibrated form, we can provide with the PCE-SD series.


Highlights

- Single Point platform scale (1 load cell)
- Two-range scale 15/30 kg
- Freely adjustable measuring unit kg/...
- Bidirectional RS232 interface
- Battery or mains operation
- Display IP54 protection
- Tripod incl. removable tripod mount
- Off timer (deactivated)
- Hold function (freezing the weight display)
- PEAK / MAX weighing function
- Sum function
- Piece counting function
- Animal weighing function
- Weighing function limit MIN / OK / MAX
- Container weighing function
- Filter function
- Incl. ISO Calibration Certificate

Specification

Measuring rangeMax. 1 = 15 kg / Max. 2 = 30 kg
Resolutionup to 15 kg = 2 g
from 15 kg ... 30 kg = 5 g
Measurement uncertainty± 3 d (three times the resolution)
Platform size [P2]500 x 600 mm
Tare functionOver the entire weighing range
InterfaceRS-232 Bidirectional / D-SUB 9 Female
Optional:
- Analog output 4-20 mA 1/1000 +
- 4 Potential-free outputs LO / OK / HI / Stable
set as a pulse signal or continuous signal.
DisplayLCD with 25 mm digit height
Unitskg / lb
and freely adjustable weighing unit such as kg/m
Cable length to displayca. 160 cm / plug attached
Power supply6V / 4.5Ah battery or 9 V / 1.2 A power adapter (incl.)
Power consumption 70 mA
Protection classIP54
Working temperature0 ... + 40 °C / 10 ... 80 % r.H.
Dimensionssee Download file "Diagram"
Weightca. 25.5 kg

Delivery Scope

1x Counting Scales PCE-EP 30P2-ICA
1x Display
1x Tripod incl. Bracket
1x Power Adapter
1x Manual
1x ISO calibration certificate
