Moisture Analyzer for Building Materials PCE-PMI 2

Order no.: PCE-PMI 2

GTIN (EAN): 4250348714244

Description

PCE-PMI 2 Moisture Analyzer for Building Materials

For nondestructive measurement of the moisture content of concrete, cement, gypsum, wood, plaster, mortar and more

PCE-PMI 2 is a nondestructive moisture analyzer or dampness tester that measures the moisture content of concrete and other construction and building materials. Featuring a variety of preset characteristic curves based on different material densities, this electronic moisture analyzer enables fast, reliable, noninvasive moisture measurement without damaging the surface.

Highlights

Electrical resistance measuring principle
Non-destructive, non-invasive
Penetration depth up to 50 mm / 1.96 inches
For concrete, cement, cork, wood, plaster, rubber and more
Alarm function when exceeding threshold levels
Metallic sphere or ball sensor
Adjustable LCD backlight
Auto-off power-saving function
Zero / self-calibration function
Max hold function

Specification

Measuring range	0 ... 200
Resolution	0.1
Accuracy	±(0.5% of reading + 0.5)
Penetration depth	50 mm / 1.96 inches
Measuring principle	Capacitive (electrical resistance)
Sensor type	Metal spheroid
Display	LCD screen
Battery	4 x 1.5 V AAA batteries
Dimensions	165 x 62 x 26 mm 6.5 x 2.4 x 1.0 inches
Weight	119 g / 0.26 lb (without batteries)

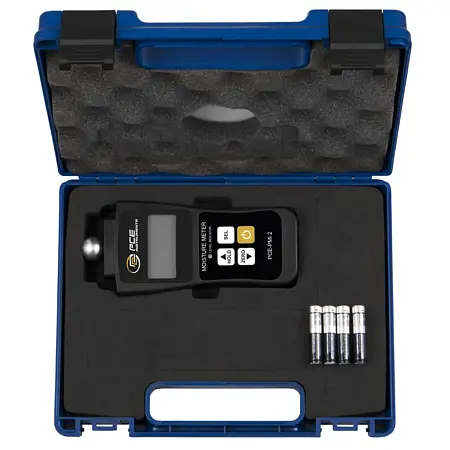

Delivery Scope

1 x PCE-PMI 2 concrete moisture meter
1 x Battery
1 x Carrying case
1 x User manual

Downloads

Manual

Datasheet
