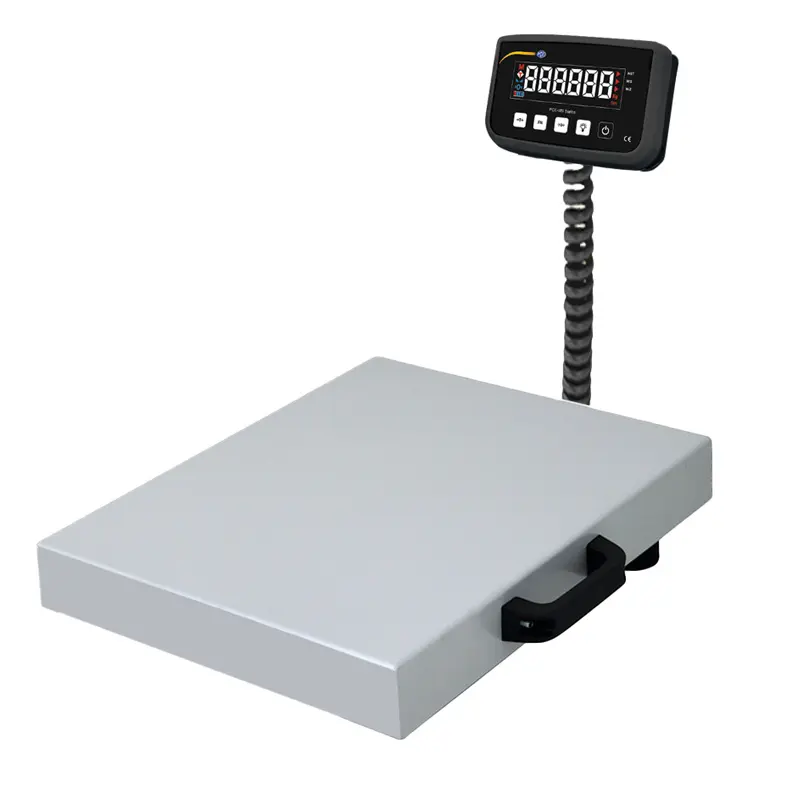

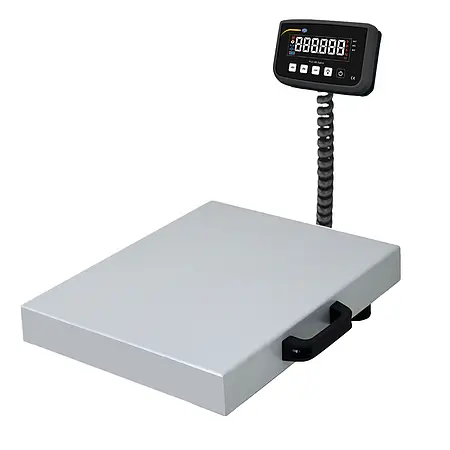

NTEP Certified Scale PCE-MS PC150-1-30x40-M

Order no.: PCE-MS PC150-1-30x40-M
GTIN (EAN): 4250348729101
£ 251.00
£ 301.20
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348729101
PCE-MS PC150-1-30x40-M
Delivery time: 1-2 working days
0.05 kg
Yes

Description

NTEP Certified Scale / Verifiable / Max. capacity 150 kg / Verification value: 50 g / Incl. verification (conformity assessment)

The NTEP certified scale is ideally suited as a mobile scale for applications that require official verification. It is conformance-assessed for the largest possible geographic area around where the NTEP certified scale is intended to be used. This conformity assessment replaces the first calibration and ensures compliance with the strict verification error limits within this zone.

The NTEP certified scale has a carrying handle for easy transport and there is a compartment below the weighing plate in which the spiral cable can be stowed. The 90 cm long spiral cable can be pulled up to 2.5 m. The powder-coated weighing surface measures 30 x 40 cm and is firmly attached to the base frame for safe transport.

The NTEP certified scale has an inverted display with a digit height of 28 mm, which means that the values ​​can also be read well from a distance. A rechargeable battery built into the display ensures a service life of up to 25 hours in continuous operation. The NTEP certified scale can be used with the included power supply unit while the battery is being charged at the same time.

Specification

Scale type single-range scale
Weighing range [Max] 150 kg / 330 lb
Resolution [d] 50 g / 1.76 oz
Weighing unit kg
Verification value [e] 50 g / 1.76 oz
Verification class [e] M III
Minimum load [Min] 1 kg / 2.2 lb
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing plate [WxD] 300 x 400 mm / 11.8 x 15.7"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 850 g / 30 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 300 kg / 661 lb / IP 65
Operating temperature   -10 ... +40 °C / 14 ... 104 °F
Weight 7.2kg / 15.8 lb

Delivery Scope

1 x NTEP Certified Scale PCE-MS PC150-1-30x40-M
1 x Mains power adapter
1 x Instruction Manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP), Town, Country must be specified
