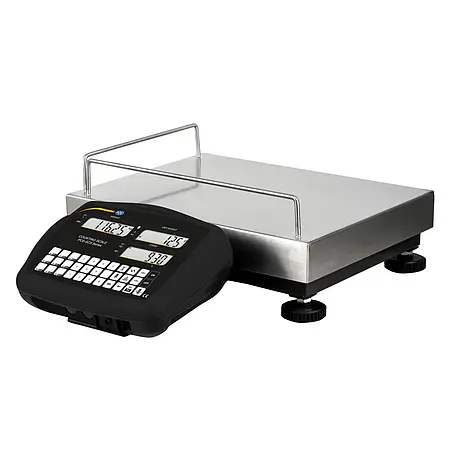

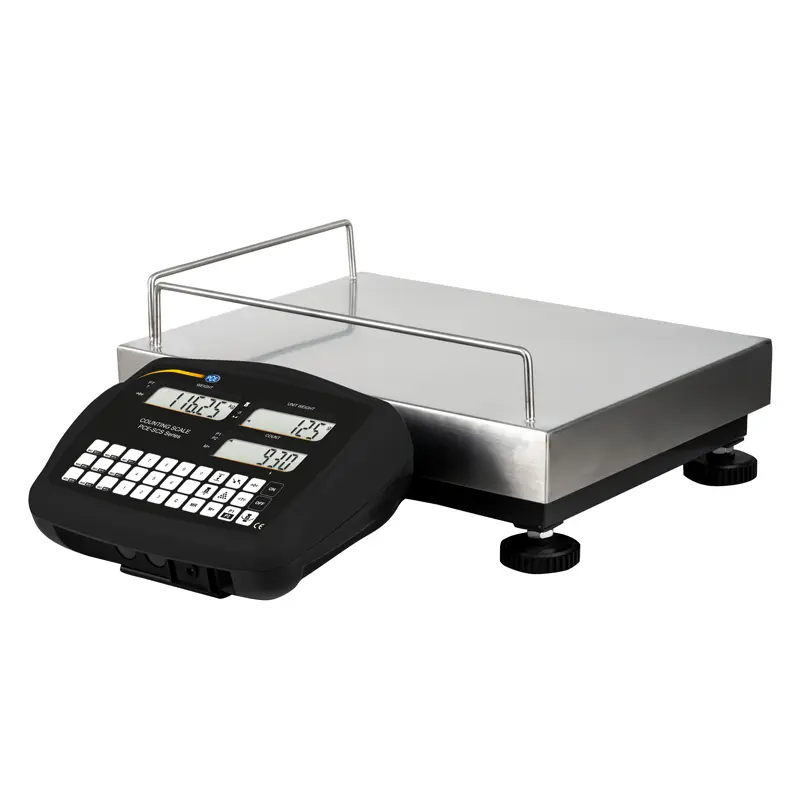

Platform Scale PCE-SCS 150

Order no.: PCE-SCS 150
GTIN (EAN): 4250348723444
£ 299.00
£ 358.80
price ex. (VAT / delivery)
:
4250348723444
PCE-SCS 150
Delivery time: 1-2 working days

Description

Low-cost platform scale up to 150 kg, Readability 10 g, Mains and battery operation,
Large 20 mm LC display, Removable stainless steel platform, Zero and tare function

The platform scale has a 400 x 500 mm stainless steel platform that can be removed for cleaning. Flexible use of the mobile platform scale is made possible not only by the light weight and compact dimensions, but also by the independent power supply, which is possible with the 6V4Ah rechargeable battery.

If the 4 load cells of the platform scale with a weighing capacity of 150 kg and a resolution of only 10 g require an adjustment, this can be done quickly and easily using external weights (optional) in the calibration function of the platform scale. Thanks to the key operation, the fast response time of the platform scale and the easy-to-read 20 mm LCD display, this platform scale is ideally suited for mobile and fast weighing applications.

Highlights

- Platform size 400 x 500 mm / 15.7 x 19.7"
- Shockproof plastic housing

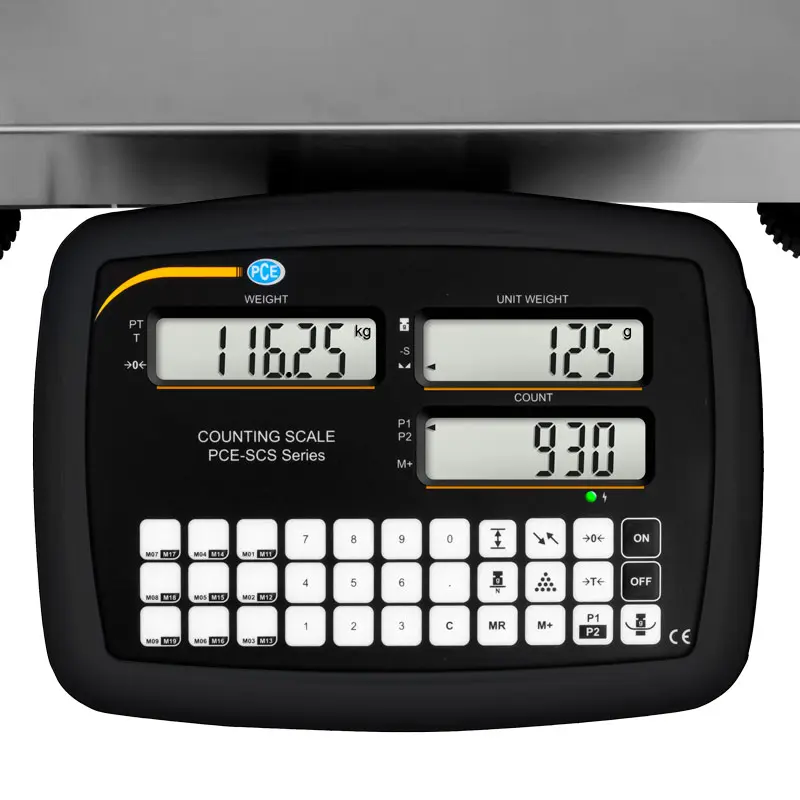

- 20 mm LCD display
- Battery operation
- Automatic energy saving mode
- Tare function
- Weighing units kg and lb.
- Flat and light construction

Specification

Weighing range 150 kg / 330 lb
Readability 10 g / 0.35 oz
Taring range over the full range
Settling time adjustable
Weighing units kg / lb
Display 20 mm  / 0.78" LCD backlit
Platform size 400 x 500 mm / 15.7 x 19.7" (stainless steel)
Calibration by external adjustment weight (optional)
Operating temperature   -10 °C ... 40 °C / 14 °F ... 104 °F
Interface RS232
Memory 18 values
Power supply 100-240V 50 / 60Hz - 12V adapter
  Rechargeable battery: 6V4Ah
Battery life 130 hours
Input signal analog 10.6 mV / V - 3 mV / V
Linearity ≤ 0.01% F.S.
Dimensions 680 x 660 x 150 mm / 26.7 x 26.0 x 5.9"
Weight 8 kg / 17.6 lb

Delivery Scope

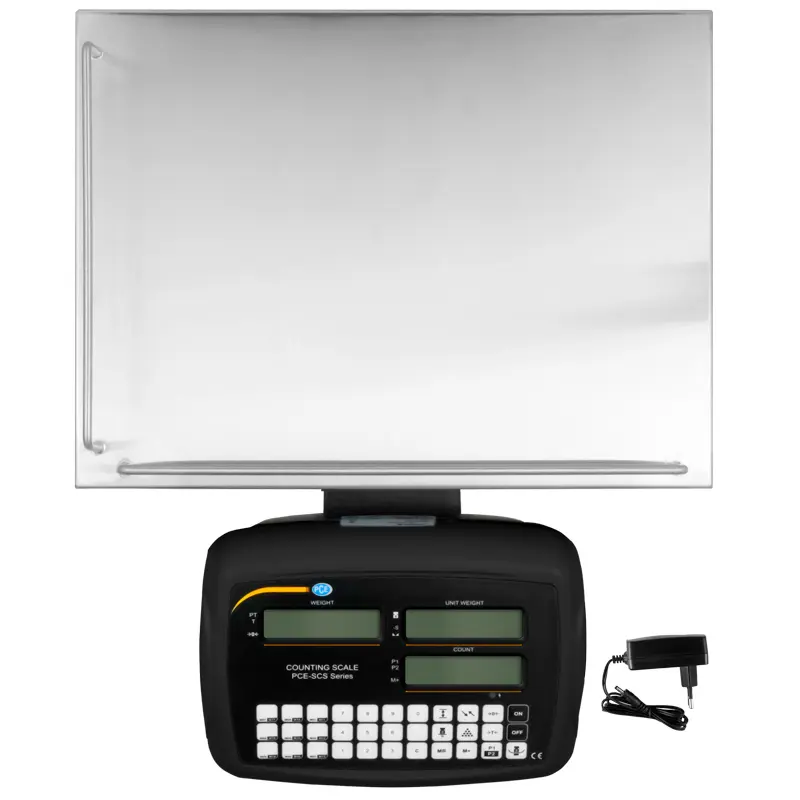

1 x Platform Scale PCE-SCS 150
1 x Mains power adapter
1 x Instruction manual
