Scale with Software (Optional) PCE-SD 60CR

Order no.: PCE-SD 60CR

GTIN (EAN): 4250348712578

£ 1,308.00

Price (exclude VAT)

£ 1,569.60

Price (include VAT)

Verification for Trade / conformity assessment

price ex. (VAT / delivery)

GTIN (EAN):

4250348712578

Order no.

PCE-SD 60CR

Delivery time: 1-2 working days

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (£ +23.00)

+AF-DW-PCE: Additional function dual range weighing (£ +49.00)

+AF-TD-PCE: Additional function time and date (£ +27.00)

Question / Callback

Accessory

Scale Software PCE-SOFT-SC-Pro

£ 183.00

Scale Software PCE-SOFT-SC-Basic

£ 160.00

Scale Software PCE-SOFT-SC-3XPro

£ 344.00

Signal lights for Balances

£ 445.00

RS485 interface AF-RS485-PCE

£ 62.00

WIFI interface AF-S WiFi

£ 168.00

Analog output / analog interface 4-20mA

£ 120.00

USB interface AF-USB-S

£ 80.00

Battery operation for PCE-SD Series Bench Scales

£ 71.00

Replacement power supply for PCE-SD; LS; AB; BT; TB

£ 25.00

RS232 Cable

£ 25.00

USB cable PCE-USB

£ 13.00

Limit weighing including control interface

£ 53.00

Analog output / analog interface 0-10V

£ 120.00

LAN interface

£ 133.00

Two additional function ranges for PCE-SD Series

£ 53.00

Additional date and time function

£ 29.00

Additional RS-232 interface

£ 31.00

Adaptor RS-232 to USB

£ 29.00

Description

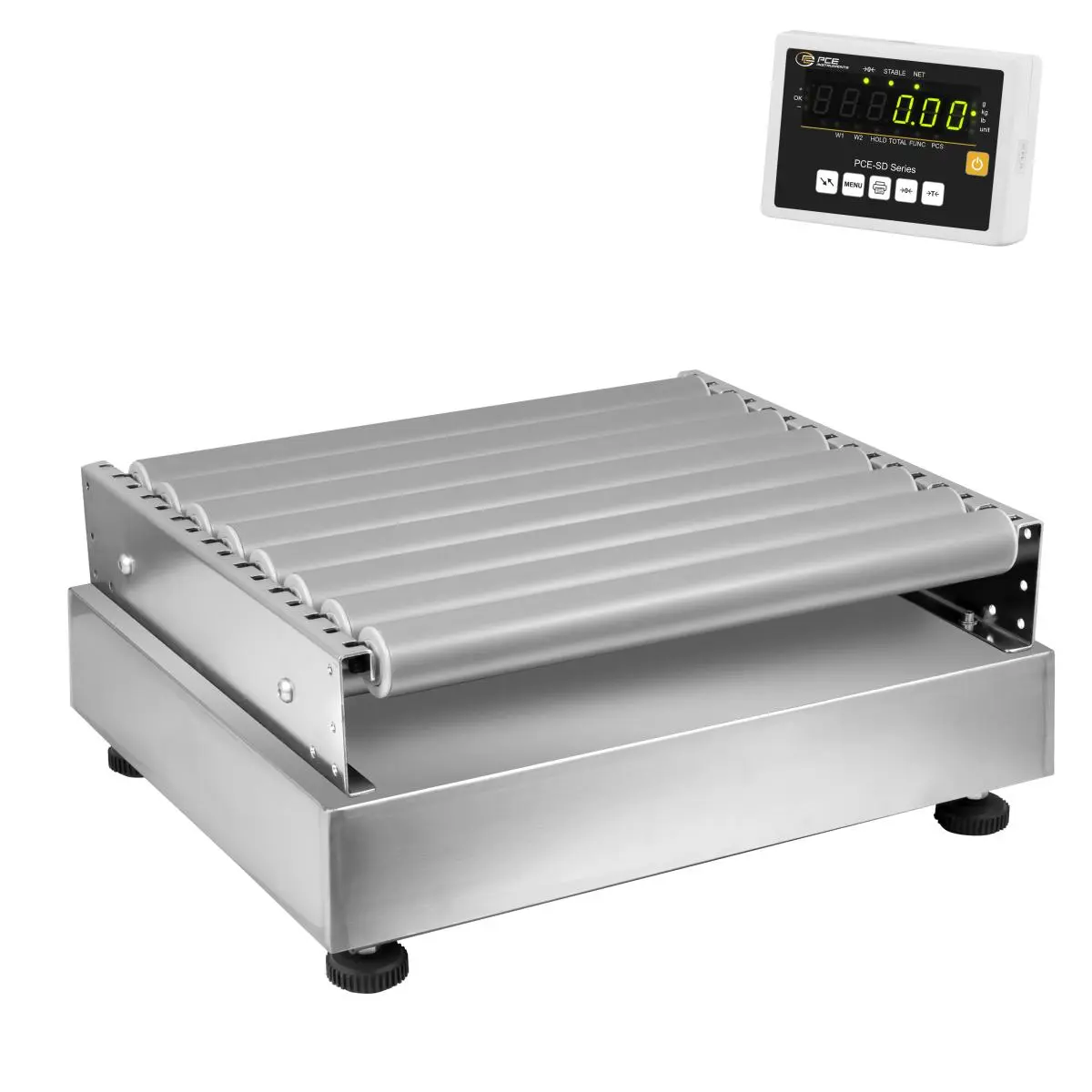

Scale with Software up to max. 30kg - 150 kg / bi-directional RS-232 interface /

width of guide rail approx. 580 mm /
optionally purchasable: RS-485, analogue outputs 4 ... 20 mA, 0 ... 10 V, USB interface

The scale with software PCE-SD ... CR series is designed for applications in many processes and delivery businesses, since the scale with software supports many interfaces. Furthermore the scale with software features a standard RS-232 interface. In addition the scale with software PCE-SD CR series can be equipped with further interfaces which enable control of the scale with software. For example, the scale with software can be extended with an analogue output 4-10 mA or 0-10 V, or even potential-free contacts. The scale with software is calibrated and thus can be used for tasks in areas of custody transfer. The scale with software can be also integrated into larger rollers, and hence can be used as an extension module.

Highlights

- Calibratable incl. initial calibration
- Display cable for platform 1.5 m
- Guide rail scale for max. 30 kg-150 kg
- Diameters of guide rail: 500 x 580 mm

- Smoothly running synthetic rails
- Bi-directional RS-232 interface
- Item counting function
- Tolerance range function: min / OK / max

Specification

Model	Weighing range	Resolution	Calibration Value	minimum load*
PCE-SD 30CR	30 kg	10 g	10 g	200 g
PCE-SD 60CR	60 kg	20 g	20 g	400 g
PCE-SD 150CR	150 kg	50 g	50 g	1 kg

*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.

Guide Rail diameters

500 x 580 x 110 mm

Guide Rail material

Synthetic

Guide Rail frame

galvanised

Diameters of scale

520 x 620 x 150 mm

Platform

Stainless steel in synthetic protection foil

Display

LCD display on a 1.5 m cable

Taring range

for the whole weighing range

Settling time

approx. 3 sec.

Calibration Class

M III

Interface

Serial RS-232 (bi-directional)

Operational temperature

-10 °C ... +40 °C

Power Supply

~230 V 50 Hz 6 VA / = 12 V 1,2 A adapter

Protection type

IP 54

Weight of scale

33 kg

Delivery Scope

1 x Scale with Software PCE-SD CR 60CR (incl. calibration)
1 x adapter
1 x instruction manual

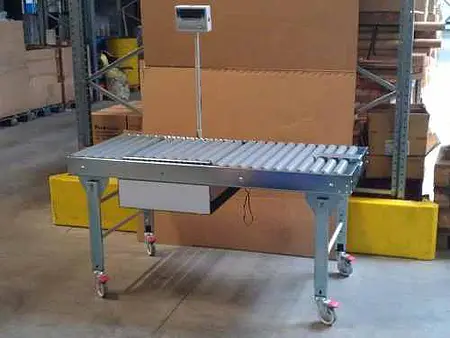

N.B. the roller table (in which the scale is mounted) that appears in some of the images is NOT included

Downloads

Datasheet
