Technical specifications of the Trade Approved Scale PCE-SD CR series | |||||||||||||||||||||
| |||||||||||||||||||||
*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer. | |||||||||||||||||||||
Guide Rail diameters | 500 x 580 x 110 mm | ||||||||||||||||||||
Guide Rail material | Synthetic | ||||||||||||||||||||
Guide Rail frame | galvanised | ||||||||||||||||||||
Diameters of scale | 520 x 620 x 150 mm | ||||||||||||||||||||
Platform | Stainless steel in synthetic protection foil | ||||||||||||||||||||
Display | LCD display on a 1.5 m cable | ||||||||||||||||||||
Taring range | for the whole weighing range | ||||||||||||||||||||
Settling time | approx. 3 sec. | ||||||||||||||||||||
Calibration Class | M III | ||||||||||||||||||||
Interface | Serial RS-232 (bi-directional) | ||||||||||||||||||||
Operational temperature | -10 °C ... +40 °C | ||||||||||||||||||||
Power Supply | ~230 V 50 Hz 6 VA / = 12 V 1,2 A adapter | ||||||||||||||||||||
Protection type | IP 54 | ||||||||||||||||||||
Weight of scale | 33 kg |
1 x Trade Approved Scale PCE-SD 150CR (incl. calibration), 1 x adapter, 1 x instruction manual

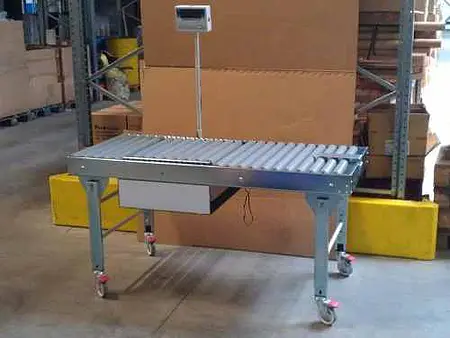

N.B. the roller table (in which the scale is mounted) that appears in some of the images is NOT included
