Trade Approved Scale PCE-SD 30CR

Order no.: PCE-SD 30CR
GTIN (EAN): 4250348712561

£ 1,308.00
£ 1,569.60
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712561
PCE-SD 30CR
Delivery time: up to 10 working days

Description

Trade Approved Scale up to max. 30kg - 150 kg / bi-directional RS-232 interface /
width of guide rail approx. 580 mm /
optionally purchasable: RS-485, analogue outputs 4 ... 20 mA, 0 ... 10 V,  USB interface
The trade approved scale PCE-SD ... CR series is designed for applications in many processes and delivery businesses, since the trade approved scale supports many interfaces. Furthermore the trade approved scale features a standard RS-232 interface. In addition the trade approved scale PCE-SD CR series can be equipped with further interfaces which enable control of the trade approved scale. For example, the trade approved scale can be extended with an analogue output 4-10 mA or 0-10 V, or even potential-free contacts. The roller scale is calibrated and thus can be used for tasks in areas of custody transfer. The trade approved scale can be also integrated into larger rollers, and hence can be used as an extension module.

Highlights

- Calibratable incl. initial calibration
- Display cable for platform 1.5 m
- Guide rail scale for max. 30 kg-150 kg
- Diameters of guide rail: 500 x 580 mm
- Smoothly running synthetic rails
- Bi-directional RS-232 interface
- Item counting function
- Tolerance range function: min / OK / max

Specification

Technical specifications of the Trade Approved Scale PCE-SD CR series

Model

Weighing range

Resolution

Calibration Value

minimum load*

PCE-SD 30CR

30 kg

10 g

10 g

200 g

PCE-SD 60CR

60 kg

20 g

20 g

400 g

PCE-SD 150CR

150 kg

50 g

50 g

1 kg

*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.
Guide Rail diameters500 x 580 x 110 mm
Guide Rail materialSynthetic
Guide Rail framegalvanised
Diameters of scale520 x 620 x 150 mm
Platform Stainless steel in synthetic protection foil
DisplayLCD display on a 1.5 m cable
Taring rangefor the whole weighing range
Settling timeapprox. 3 sec.
Calibration ClassM III
InterfaceSerial RS-232 (bi-directional)
Operational temperature-10 °C ... +40 °C
Power Supply~230 V 50 Hz 6 VA / = 12 V 1,2 A adapter
Protection typeIP 54
Weight of scale33 kg

Delivery Scope

Delivery content of the Trade Approved Scale PCE-SD 30CR

1 x Trade Approved Scale PCE-SD 30CR (incl. calibration), 1 x adapter, 1 x instruction manual

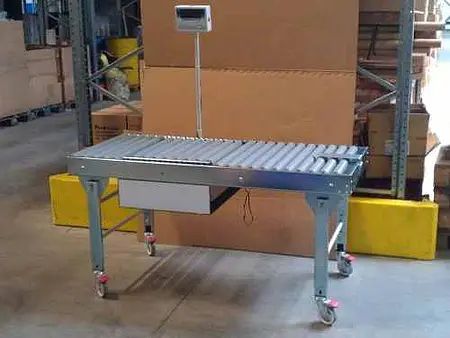

N.B. the roller table (in which the scale is mounted) that appears in some of the images is NOT included
