Weighing Hook PCE-CS 10000N-ICA incl. ISO Calibration Certificate

Order no.: PCE-CS 10000N-ICA
GTIN (EAN): 4250348728005
£ 1,277.00
£ 1,532.40
ISO Calibration
price ex. (VAT / delivery)
:
4250348728005
PCE-CS 10000N-ICA
Delivery time: 10 - 14 days

Description

PCE-CS 10000N-ICA Weighing Hook incl. ISO Calibration Certificate
10 Ton, 10000 kg, 22046 lb weighing capacity / Displays measurement values in kilograms (kg) or pounds (lbs) / Includes hook, shackle and remote control

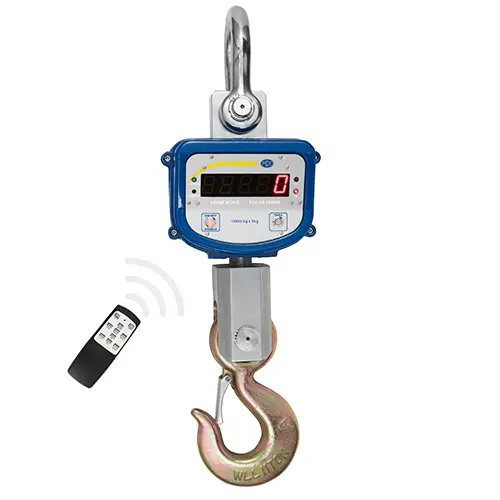

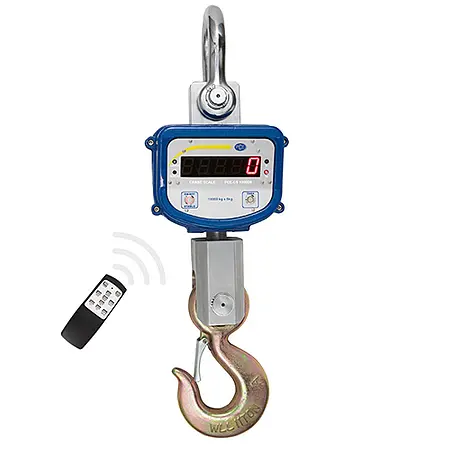

PCE-CS 10000N-ICA is a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scale, dynamometer, electronic balance or weighing hook scale that displays measurement values in kilograms (kg) or pounds (lbs). The scale includes a hook, shackle, remote control and ISO calibration certificate.

Designed for industrial use, this robust hanging crane scale is backed by a two-year warranty against manufacturer defects.


Highlights

- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Includes hook, shackle, remote control and ISO calibration certificate
- Features zero, tare, hold, sum / accumulation, battery voltage indication and adjustable brightness functions

Specification


Maximum capacity10000 kg / 22046 lbs ≈ 10 Tons
Minimum weight100 kg / 220.5 lbs
Resolution5 kg
StandardOIML class III
Zero range4 % full scale (FS)
Tare range100 % FS
Settling time≤ 10 seconds
Overload indication100 % FS + 9e
Max. safety load125 % FS
Ultimate load400 % FS

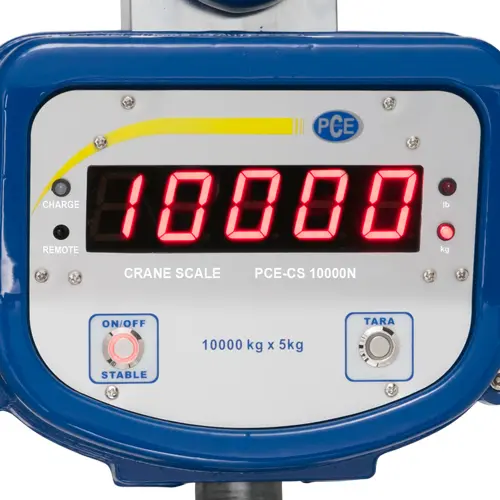

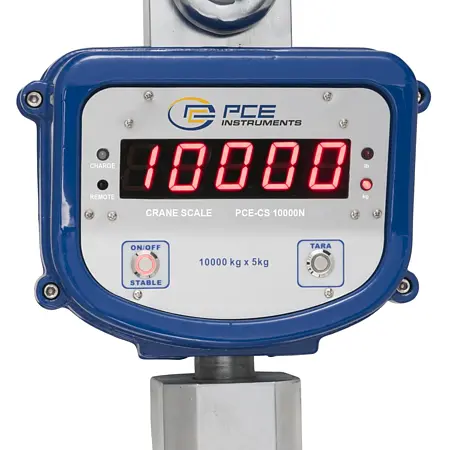

Display5-digit LCD/LED, 30 mm / 1.18" character height
Battery6 V / 7 Ah fully-sealed lead-acid battery
Battery life≥ 50 hours
Battery charger9 V DC / 1000 mA
Remote control range15 m / 49.2'
Remote control battery2 x 1.5 V AAA batteries
Operating temperature-10 ... +40 °C / +14 ... +104 °F
Operating humidity≤ 85 % RH under +20 °C / +68 °F
Dimensions264 x 206 x 745 mm / 10.4 x 8.1 x 29.4"
Weight30 kg / 66.2 lbs

Delivery Scope

1 x PCE-CS-10000N-ICA weighing hook scale with hook, shackle and battery
1 x battery charger
1 x remote control with batteries

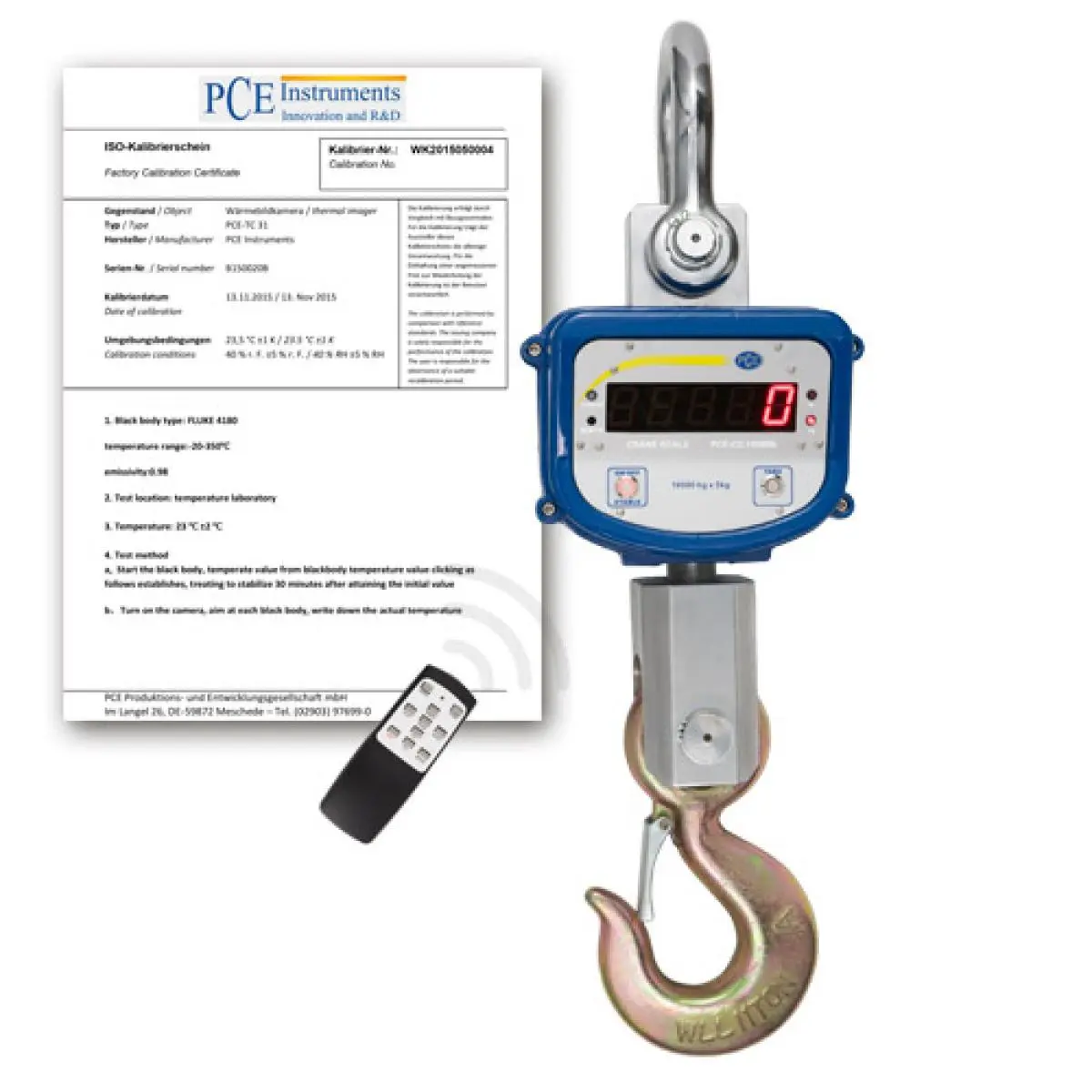

1 x ISO calibration certificate
1 x user manual

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
