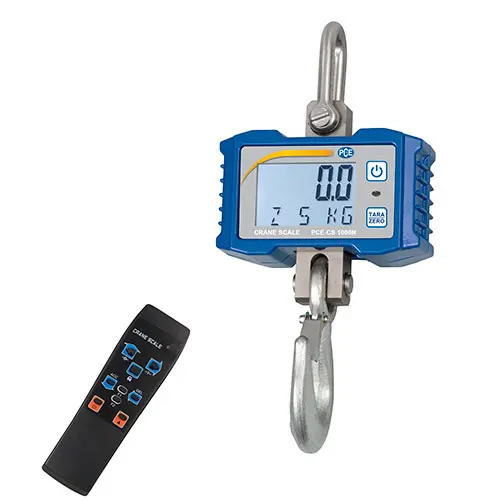

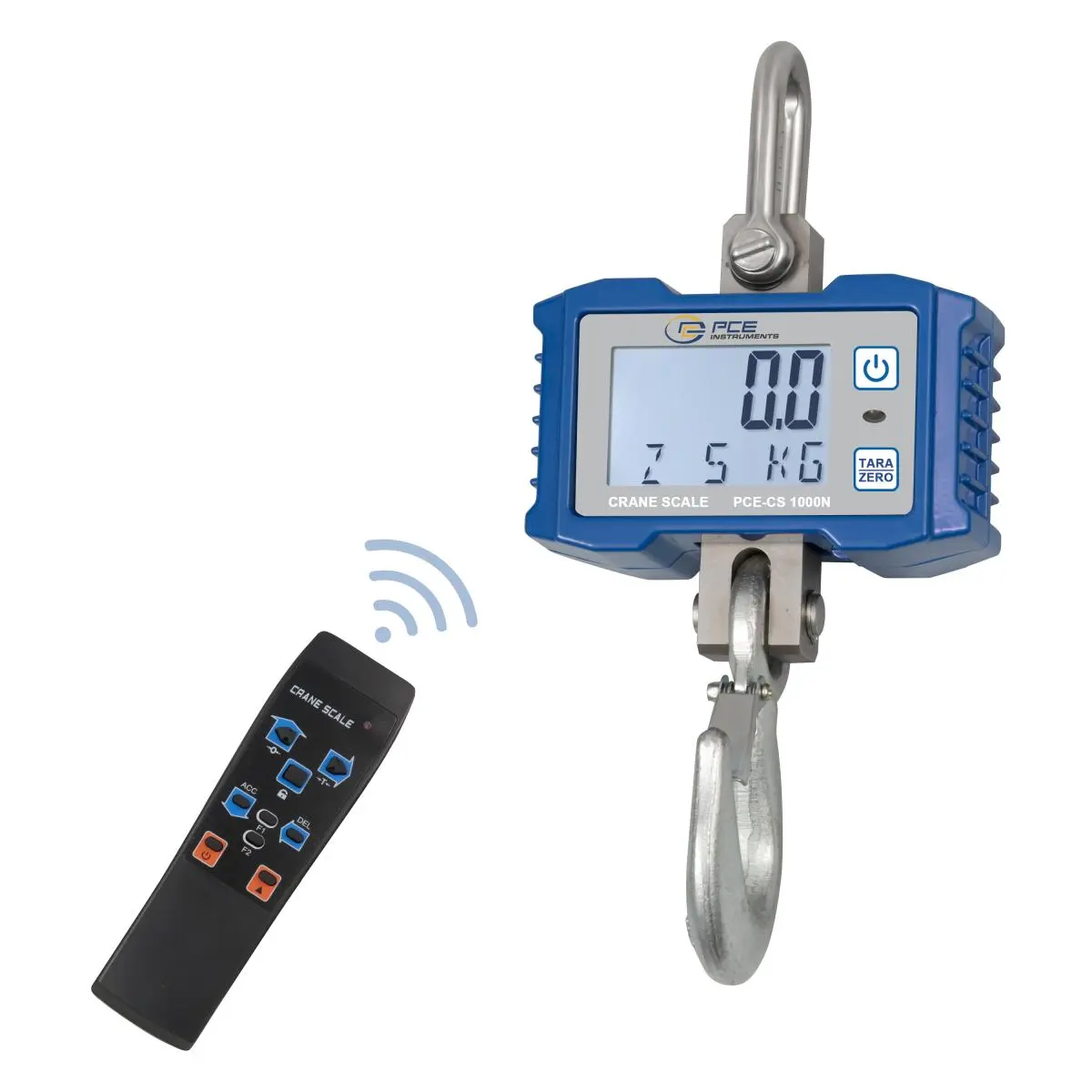

The weighing hook PCE-CS 1000N is a compact, mobile crane scale for in-house applications. The robust aluminum housing of this weighing hook allows weighing in even the harshest industrial environments. The weighing hook is operated with three commercially available 1.5 V AA batteries, which allow a continual operating time of approx. 65 hours. The display of the weighing hook is a backlit LCD display with a digit height of 20 mm.
The background lighting of the weighing hook can be regulated and thus help to extend the operating time. Other functions of the weighing hook are: gross / net weighing, summing function, hold function, autozero OFF function as well as the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the weighing hook , so that the weighed product is not in kg but e.g. in meters (1 kg = 1.25 m). The weighing hook has a linear calibration and thus ensures particularly high accuracy.
Maximum weighing capacity | 1000 kg / 2200 lbs ≈ 1 Ton |
Resolution | 0.2 kg / 0.4 lbs |
Tare range | 100% full scale |
Accuracy | ± 1% of the measuring range |
Minimum load | 10 kg / 23 lbs |
Measuring units | kg / lb |
Response time | Less than 1 second |
Safety load | 150% (do not exceed) |
Functions | Zero, tare, data hold, power-saving automatic shutdown and timed backlighting |
Display | LCD with backlight, 20 mm / 0.79 in. digit height |
Power supply | 3 x 1.5 V AA batteries (operating time up to 65 hours), 2 x AA batteries (remote) |
Operating conditions | -10° C ... +40° C / +14° F ... +104° F |

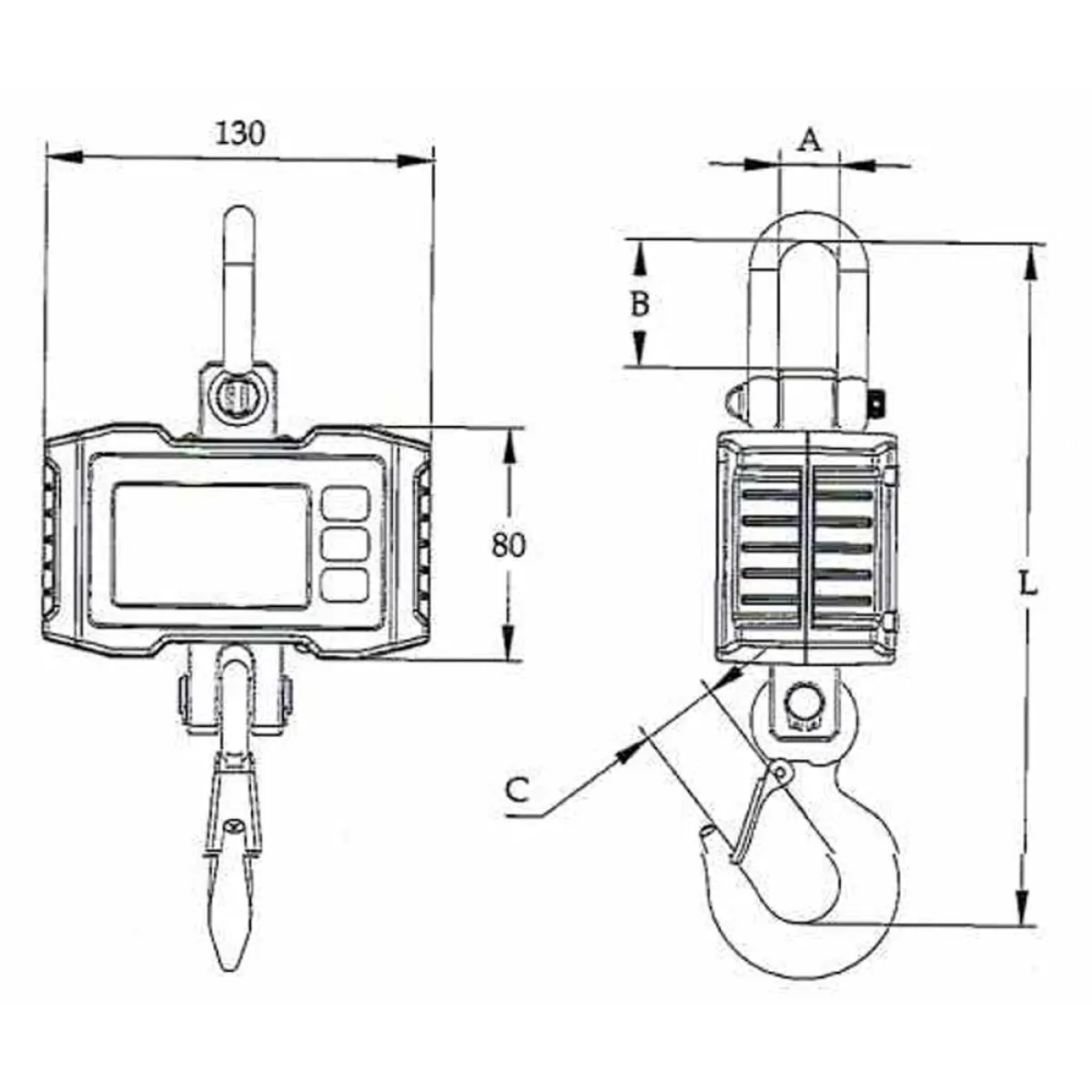

Overall dimensions: See table below |
|
L | 230 mm / 9.1 in |
A | 20 mm / 0.8 in |
B | 43 mm / 1.7 in |
C | 27 mm / 1.1 in |
Approx. weight | 1.4 kg / 3.1 lbs |
1 x PCE-CS 1000N Weighing Hook
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries
1 x user manual
