Power Display Panel for System Integration PCE-N25Z

Order no.: PCE-N25Z
GTIN (EAN):
US$ 117.00
ex. VAT, ex. delivery costs
PCE-N25Z
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

5-digit LED display / IP65 protected front / optional sensor power supply system /
6 different inputs available / setup via software

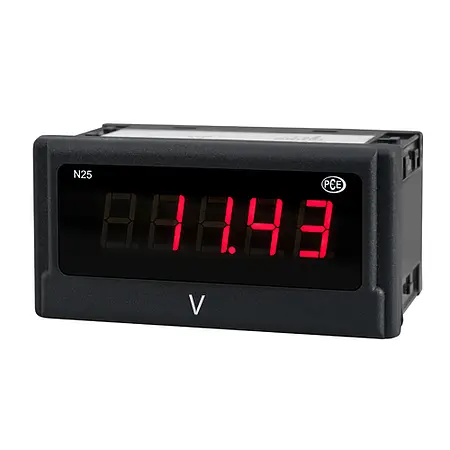

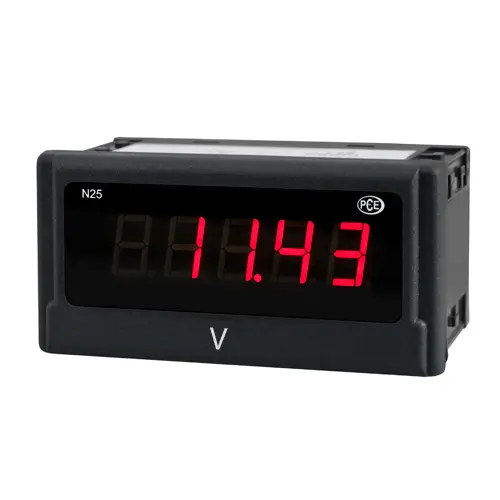

The digital indicator PCE-N25Z can be used for processing different AC input signals. Depending on your specific needs, the digital indicator can be ordered with different inputs, like 100 V AC, 250 V AC, 400 V AC, 1 A AC, 5 A AC and 20...50 Hz.. The input signal of the digital indicator is freely scalable, which increases its application possibilities. The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the digital indicator itself can also be selected, depending on your needs. To set up the digital indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.

Highlights

- IP65 protected front
- 6 different inputs available
- configuration via software
- 5-digit LED display
- freely scalable

Specification

Technical specifications

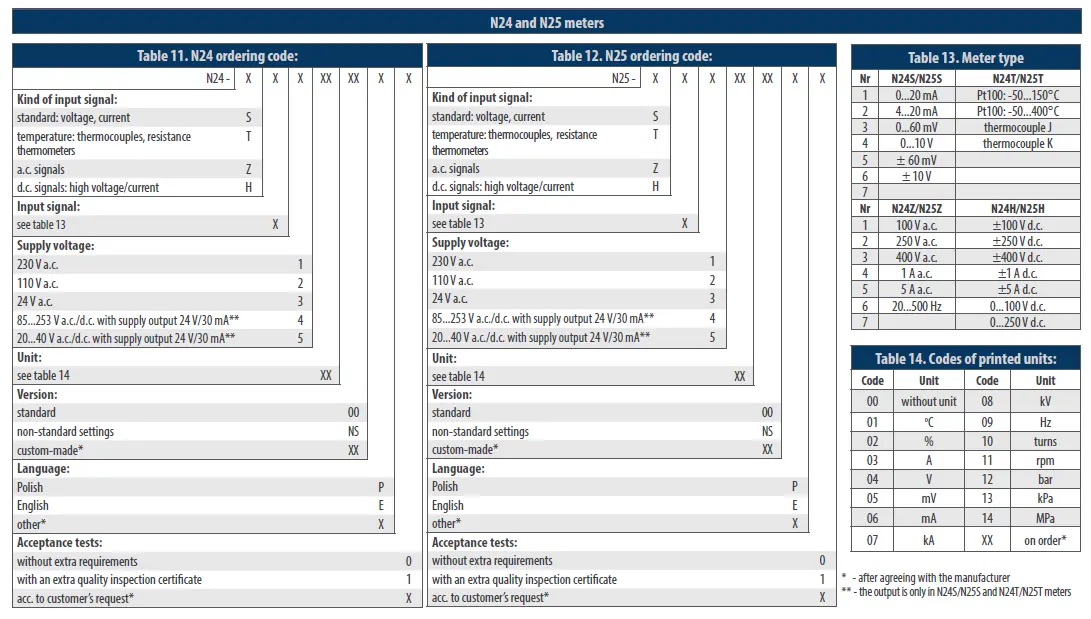

Input (selectable) 100 V AC
250 V AC
400 V AC
1 A AC
5 A AC
20 ... 500 Hz
Accuracy ± (0,2 % FS + 1 digit)
Internal resistance 10 Ohm ± 1 %
Scaling2 points
Display5-digits, 7 segments, LED, height: 14 mm
Display range-19999 ... 99999
Environmental conditionsDuring operation: -10 ... +55 °C
During storage: -25 ... +85 °C
Power supply230 V AC
110 V AC
24 V AC
85...235 V AC/DC
20...40 V AC/DC
Dimensions96 x 48 x 64 mm
Panel cutout 92 x 45 mm (according to DIN standard)
Protection class Front: IP 65
Weight < 200 g
Mounting Mounting clips with screws,
Connection via screw terminals
Housing robust plastic housing

Delivery Scope

Delivery contents
1x digital indicator PCE-N25Z, 1x mounting-clips, 1x gasket seal, 1x instruction manual
