Transistor module for plugging into the PCE-DPD series installation display. The transistor module has a switching transistor.
- 1 switching transistor
- 35V / 50-mA contact load
- Potential free

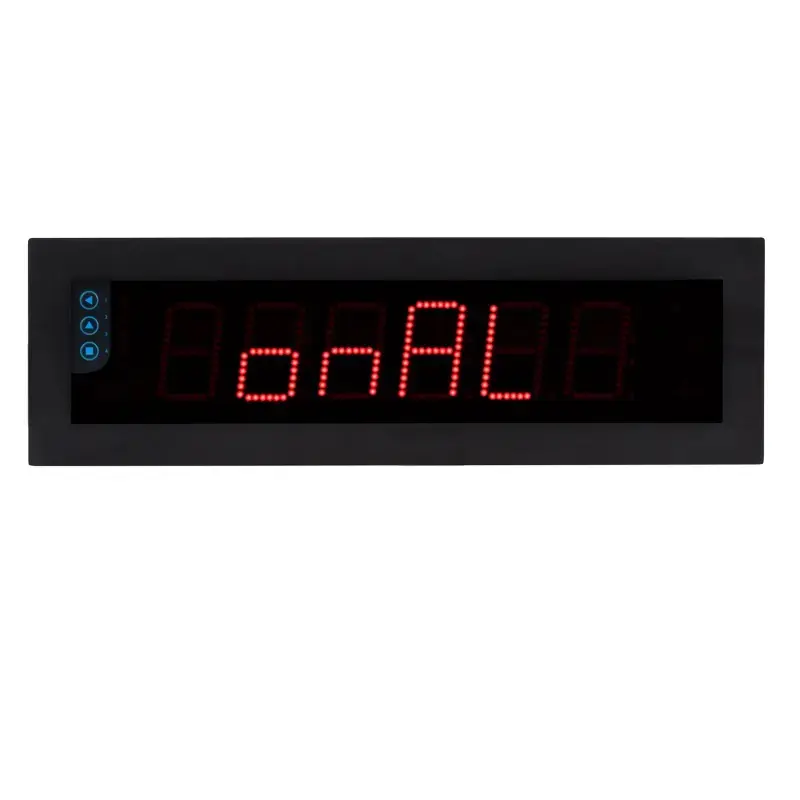

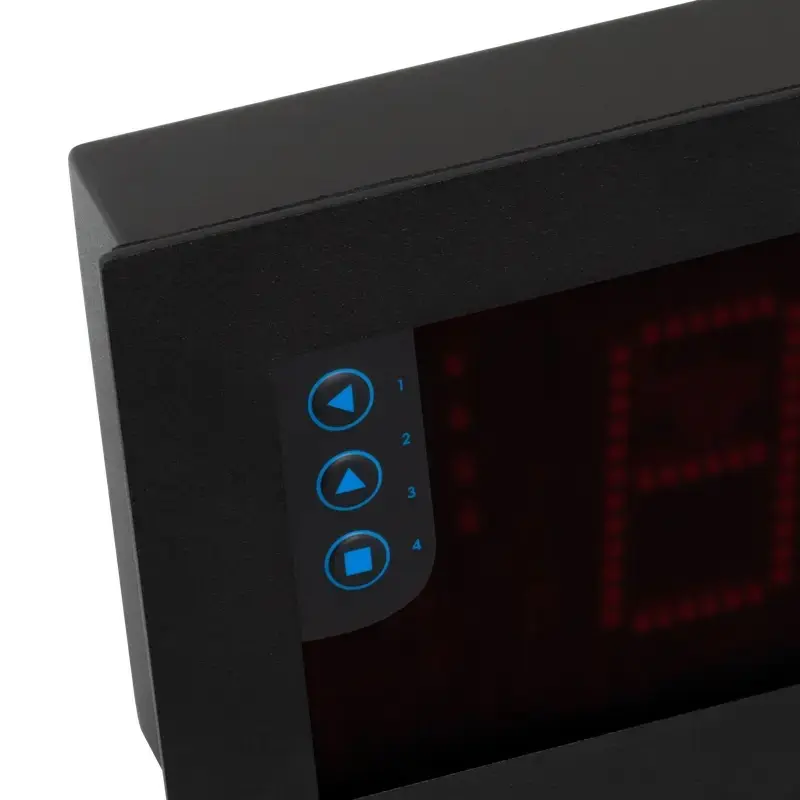

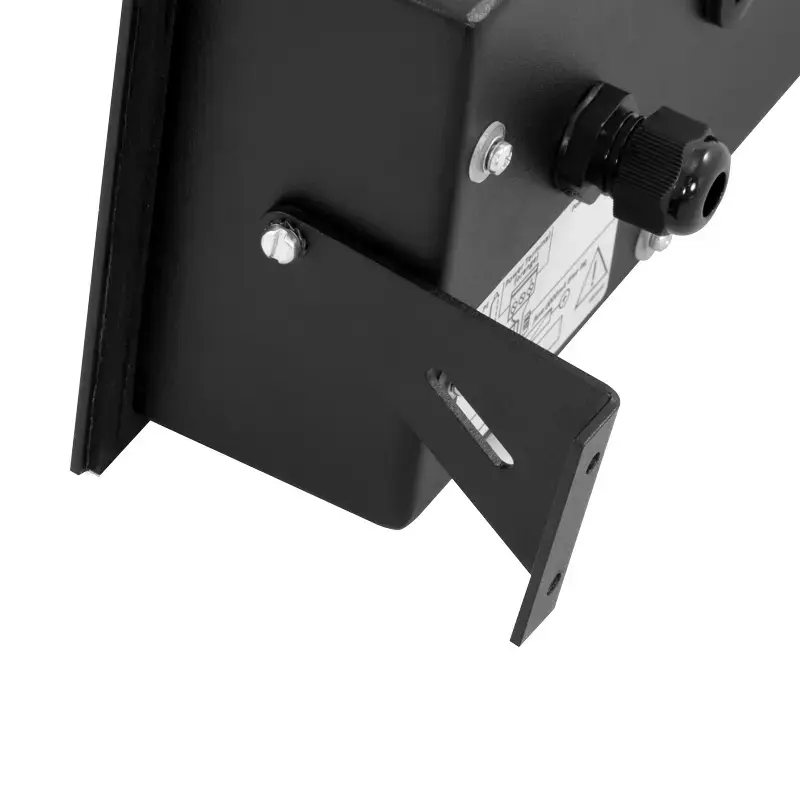

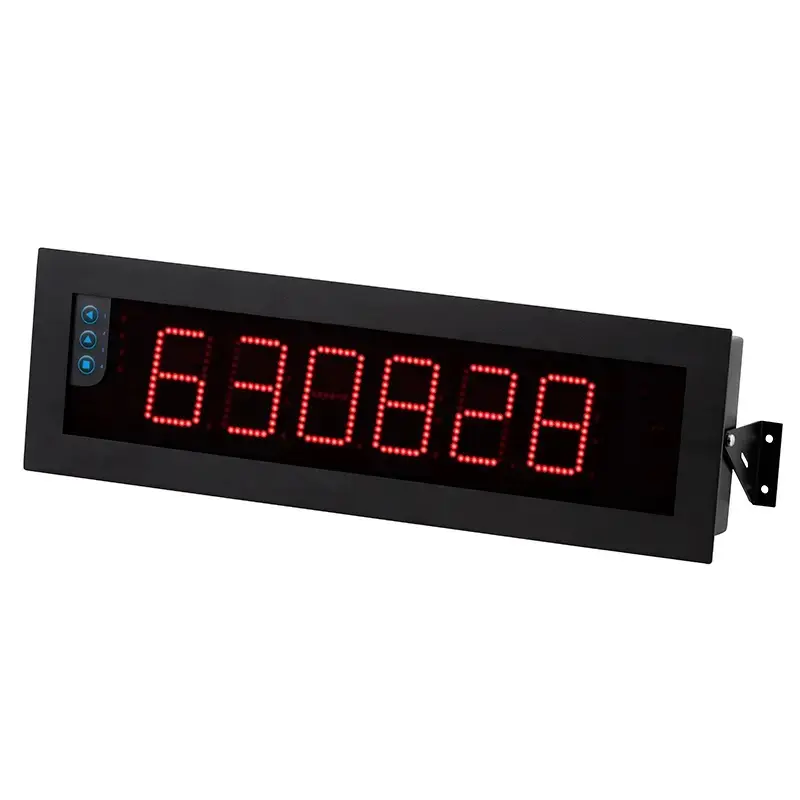

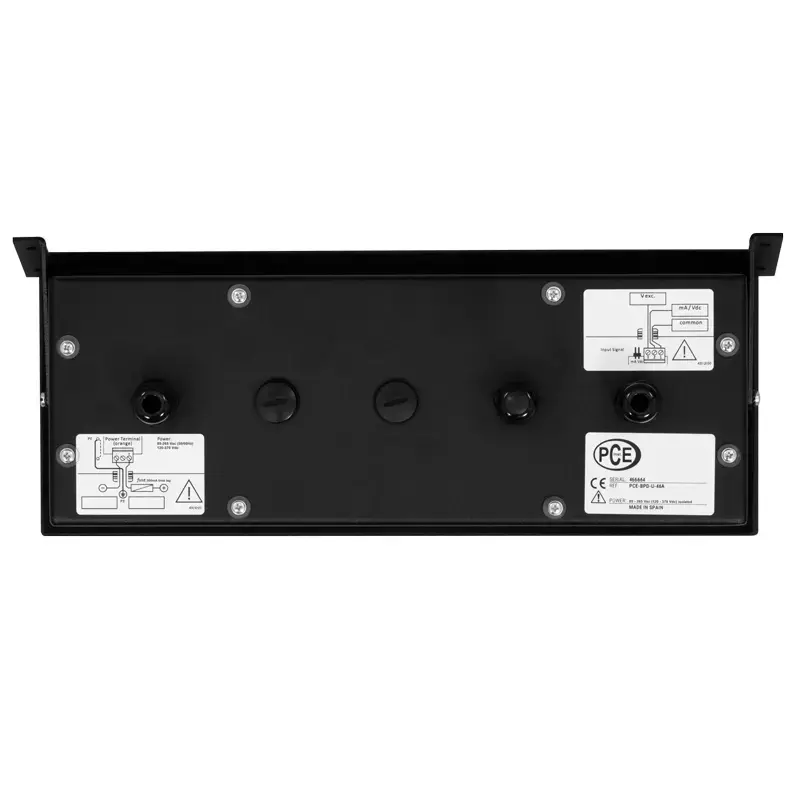

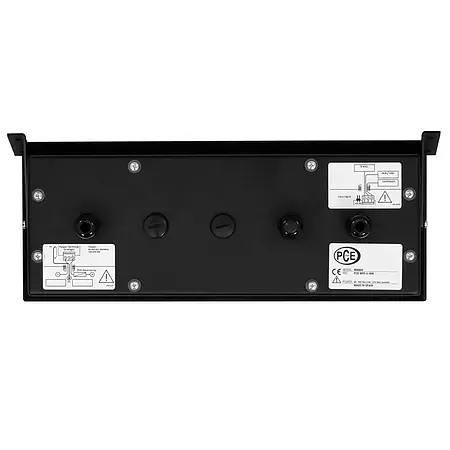

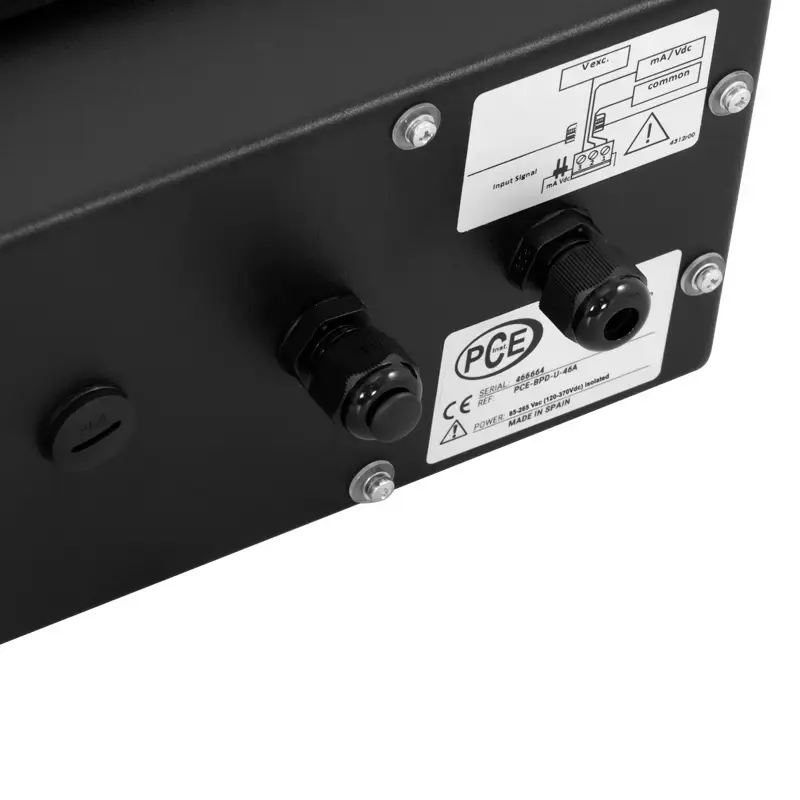

Function | convert frequency to a usable value |
Input signal | NPN, PNP |
Input voltage | ±30 V DC |
Input impedance | 2.4 kΩ with pull-up or pull-down resistor |
470 kΩ without pull-up or pull-down resistor | |
Quartz accuracy | ±0.01 % |
Number of digits | 6 |
Digit height | 60 mm / 2.3" |
Maximum reading distance | 25 m / 82 ft |
Accuracy | 0.03% of measuring range |
Measuring rate | 3.5 Hz |
Response time for value changes | 300 ms |
from 0 to 99% of the signal | |
Display range | -199,999 ... 999,999 |
Number of outputs | 3 |
Power consumption | 3.5 W |
(without optional accessories) | |
Power consumption | 5.5 W |
(with optional accessories) | |
Sensor voltage supply | 18, 15, 9, 5 V DC |
Maximum current for the sensor supply | 70 mA (with short-circuit protection) |
Power supply | 85 ... 265 V AC / 120 ... 370 V DC |
Weight | 3500 g / 123.4 oz |
Further specifications | |
Cable cross-section for input | <0.5 mm² |
and output signal | |
Cable cross-section for | <2.5 mm² |
supply voltage | |
Display | 7 segment display |
Viewing angle | 120 ° |
Warm-up time | 15 minutes |
Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing |
Storage conditions | -20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing |

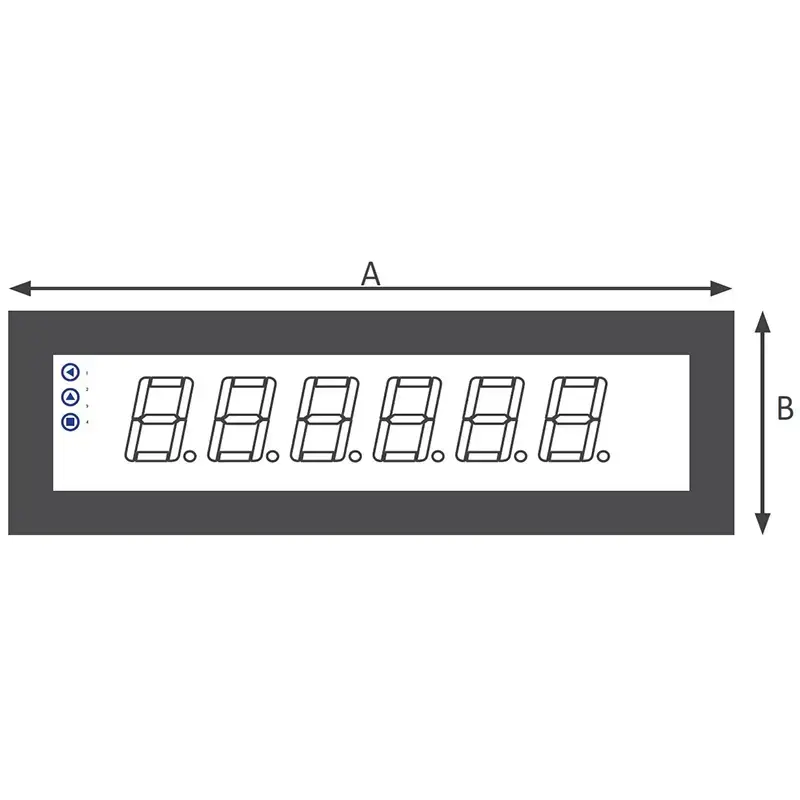

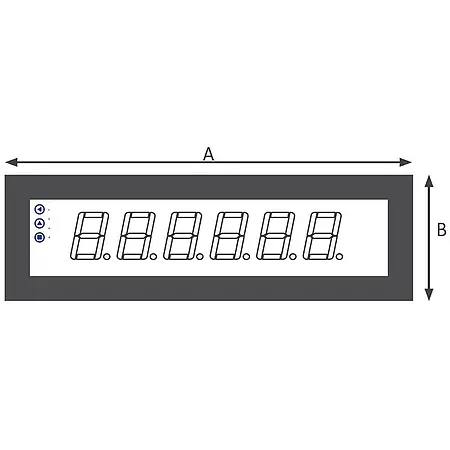

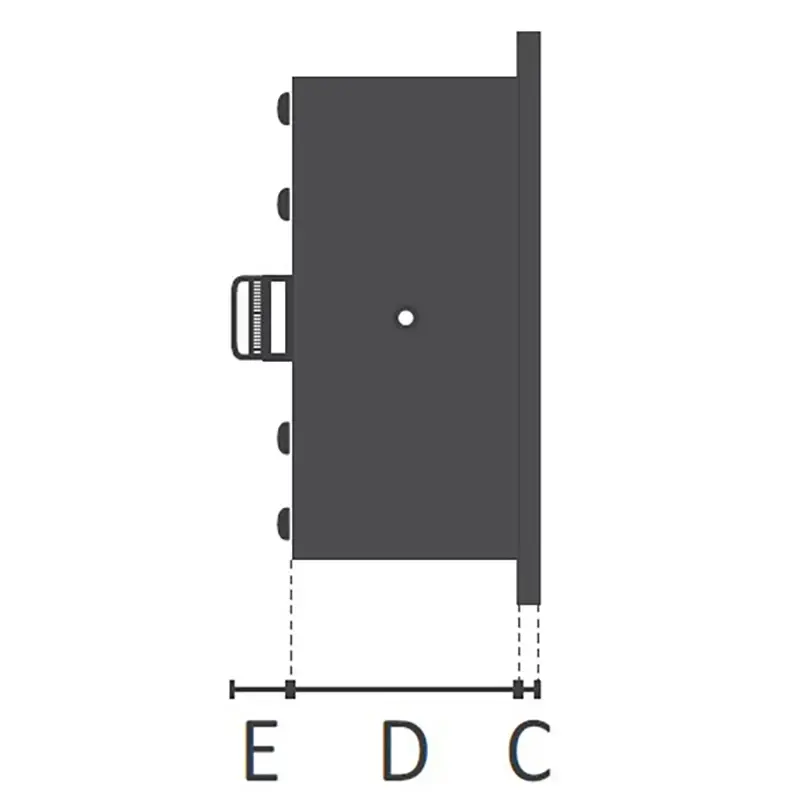

Dimensions | A 436 mm / 17.1" |
(diagram above with the images) | B 135 mm / 5.3" |
C 3 mm / 0.1" | |
D 55 mm / 2.1" | |
E 25 mm / 0.9" |
