Using the RS485 module for the PCE-DPD digital displays, the measured values can be transmitted to a PC in ASCII format.
- RS485 module with ASCII protocol

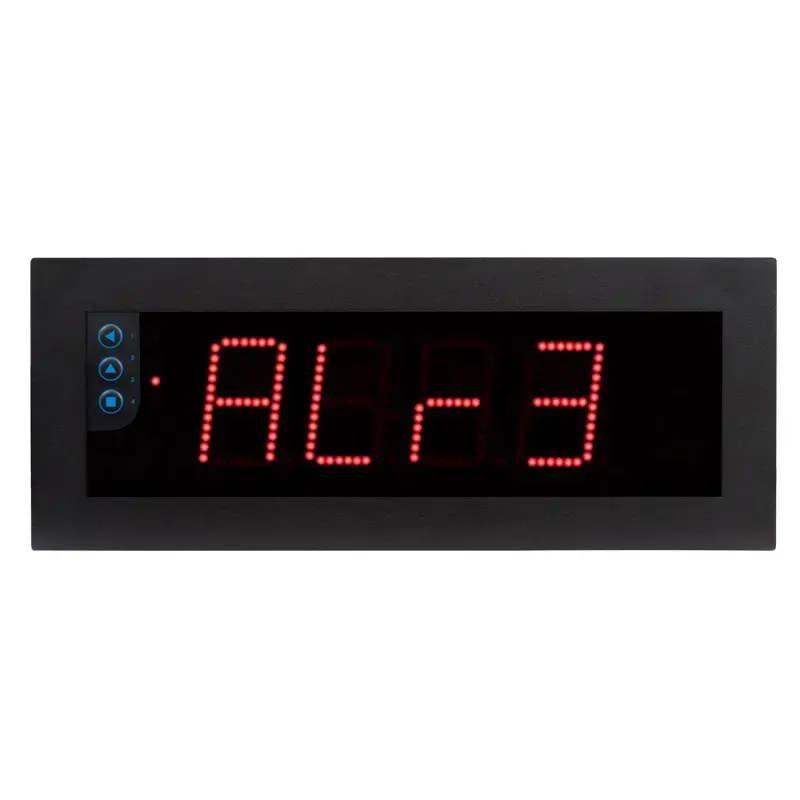

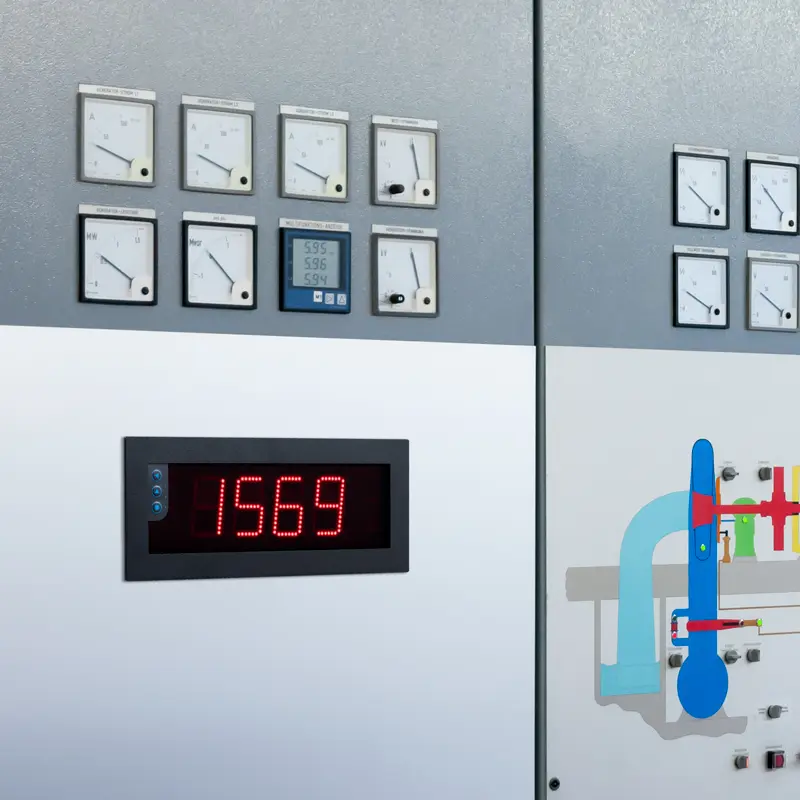

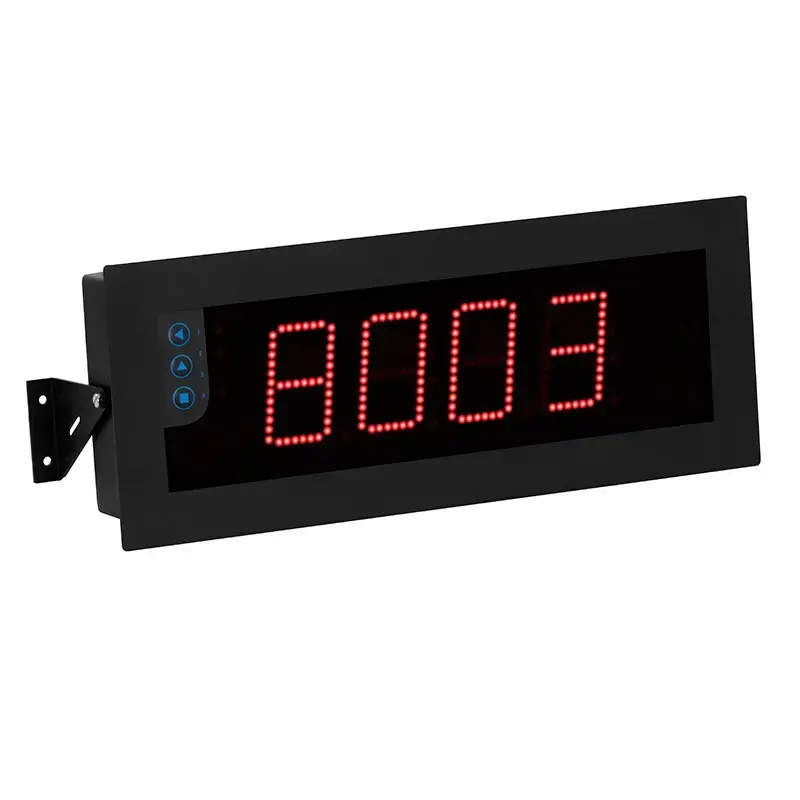

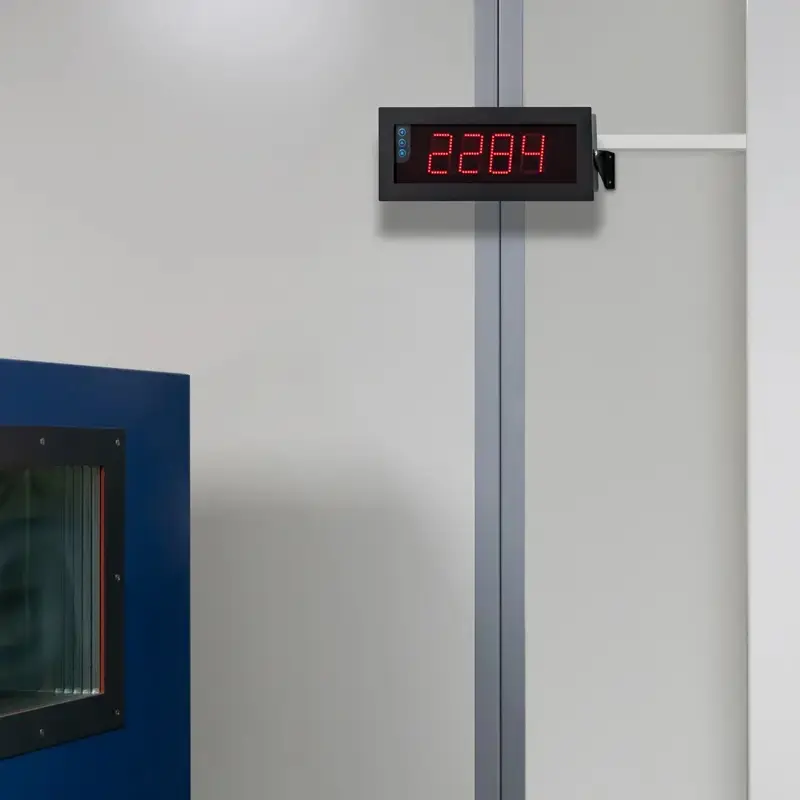

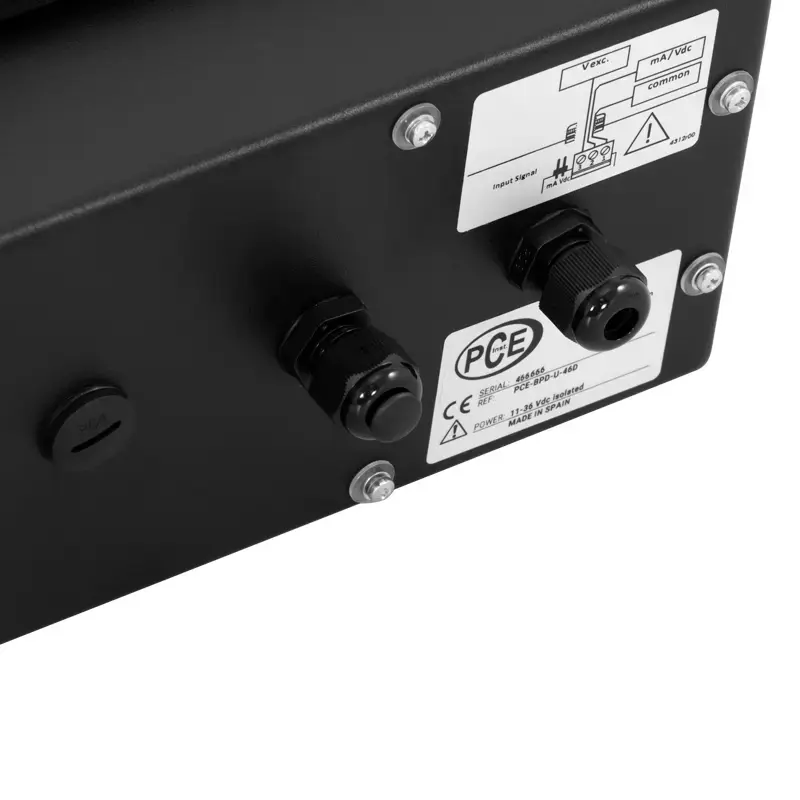

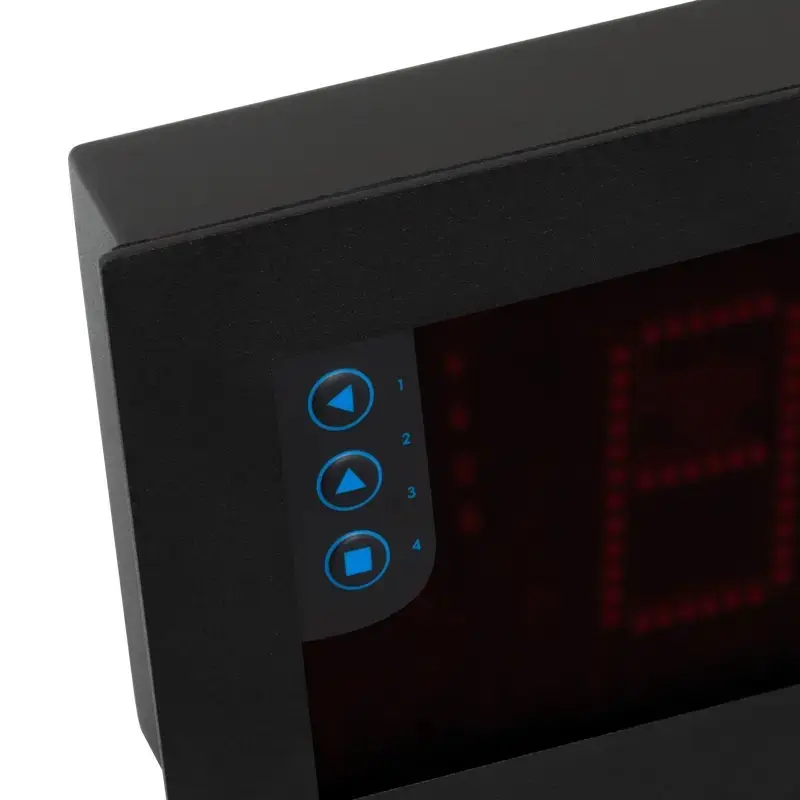

Function | to convert analog signal into a usable value |
Input signal | 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC |
Maximum input signal | 100 mA or 100 V DC |
Input impedance (current measurement) | 11 Ω |
Input impedance (voltage measurement) | 932 kΩ |
Number of digits | 4 |
Digit height | 60 mm / 2.3" |
Maximum reading distance | 25 m / 82 ft |
Accuracy | 0.05 % of measuring range |
Measuring rate | 15 Hz |
Response time for value changes | 120 ms |
from 0 to 99% of the signal | |
Display range | -1999 ... 9999 |
Number of outputs | 2 |
Power consumption | 3 W |
(without optional accessories) | |
Power consumption | 5 W |
(with optional accessories) | |
Sensor voltage supply | 20, 15, 10, 5 V DC |
Sensor power supply accuracy | ±5 % |
Maximum sensor supply current | 35 mA (with short-circuit protection) |
Power supply | 11 ... 36 V DC |
Weight | 2200 g / 77.6 oz |
Further specifications | |
Cable cross-section for input | <0.5 mm² |
and output signal | |
Cable cross-section for | <2.5 mm² |
supply voltage | |
Display | 7 segment display |
Viewing angle | 120 ° |
Warm-up time | 15 minutes |
Dimensions | further information can be found in the instructions |
Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing |
Storage conditions | -20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing |

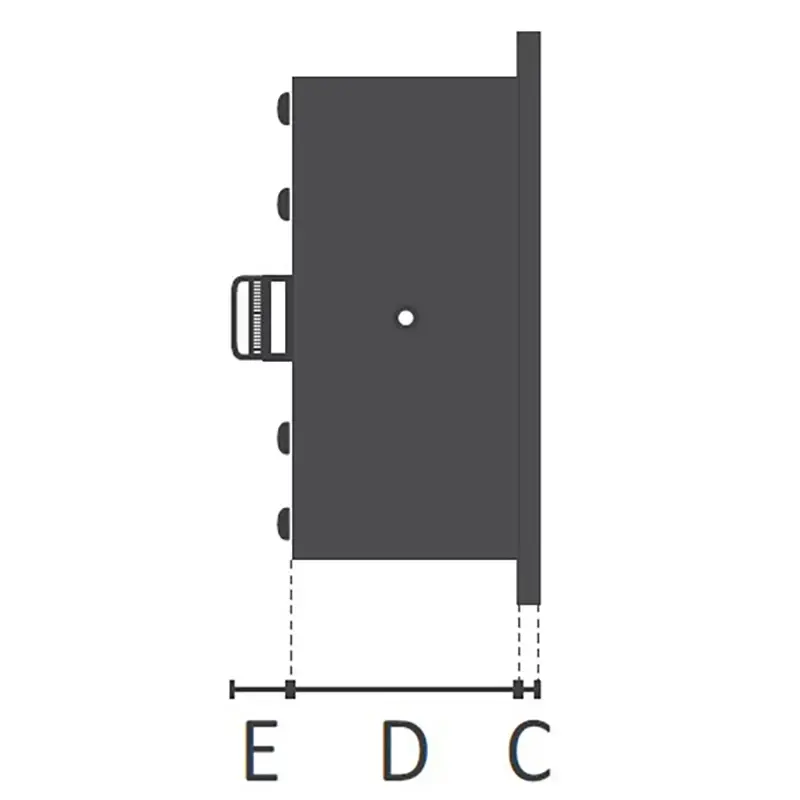

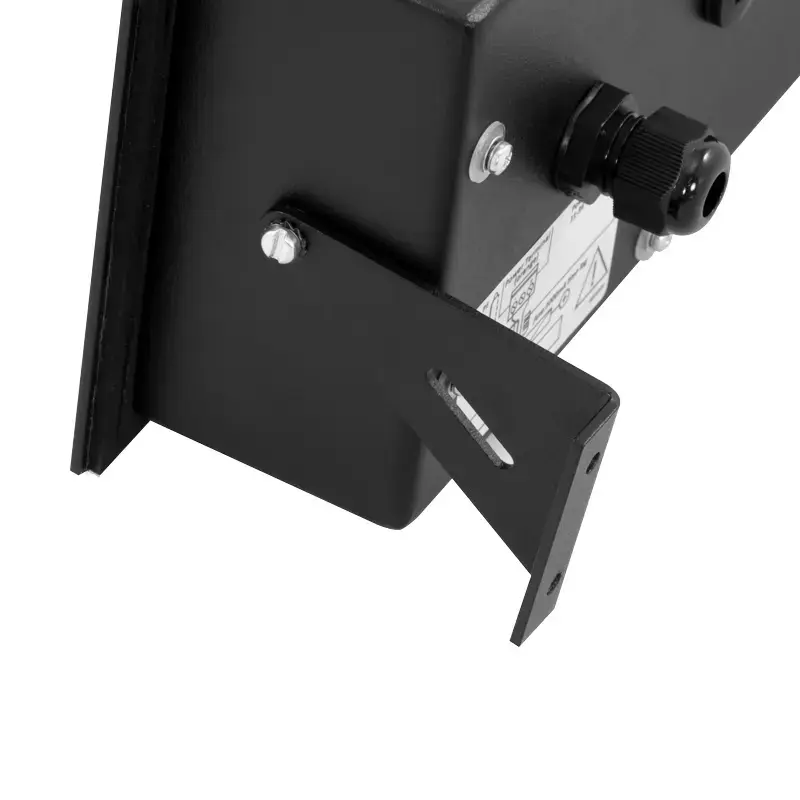

Dimensions | A 340 mm / 13.3" |

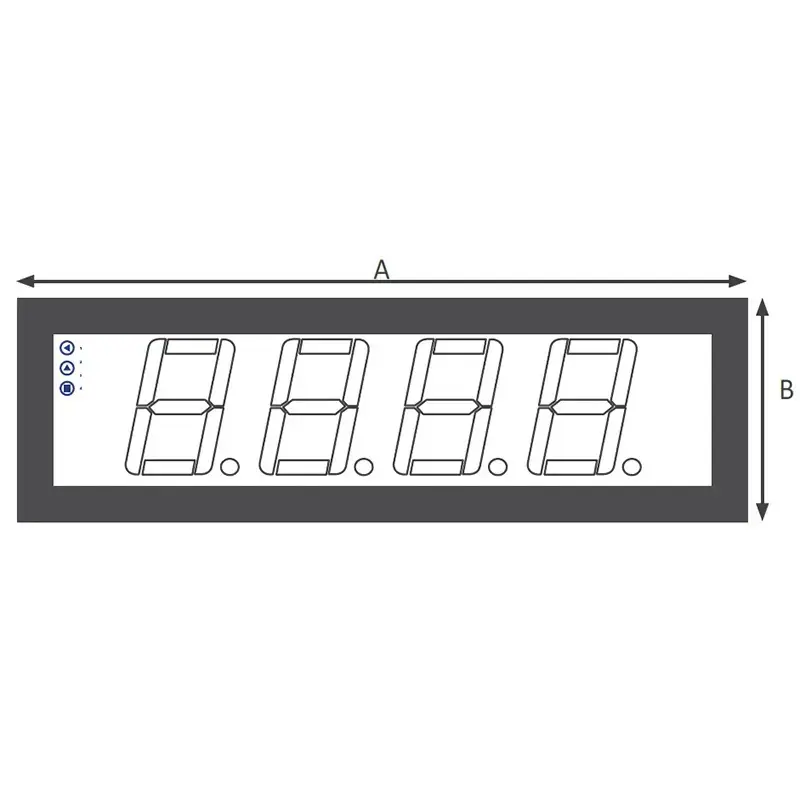

(diagram above in the images) | B 135 mm / 5.3" |
C 3 mm / 0.1" | |
D 55 mm / 2.1" | |
E 25 mm / 0.9" |
