Digital Universal Indicator PCE-N25S
5-digit LED display / IP65 protected front / optional sensor power supply system /
different inputs available / setup via software

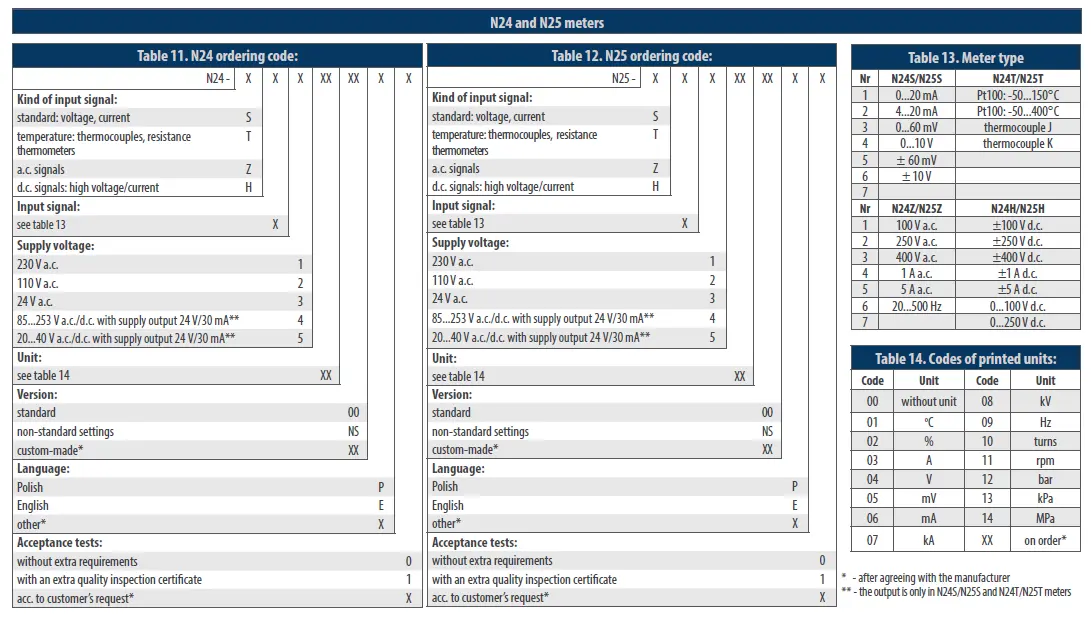

The digital universal indicator is used for processing standardised signals. Depending on your specific needs, the digital universal indicator can be ordered with different inputs, such as 0...20 mA, 4...20 mA, 0...60 mV, 0...10 V, ±60 mV or ±10 V. The input signal of the digital universal indicator is freely scalable, which increases its application possibilities.
The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the digital universal indicator itself can also be selected, depending on your needs. To set up the digital universal indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.
