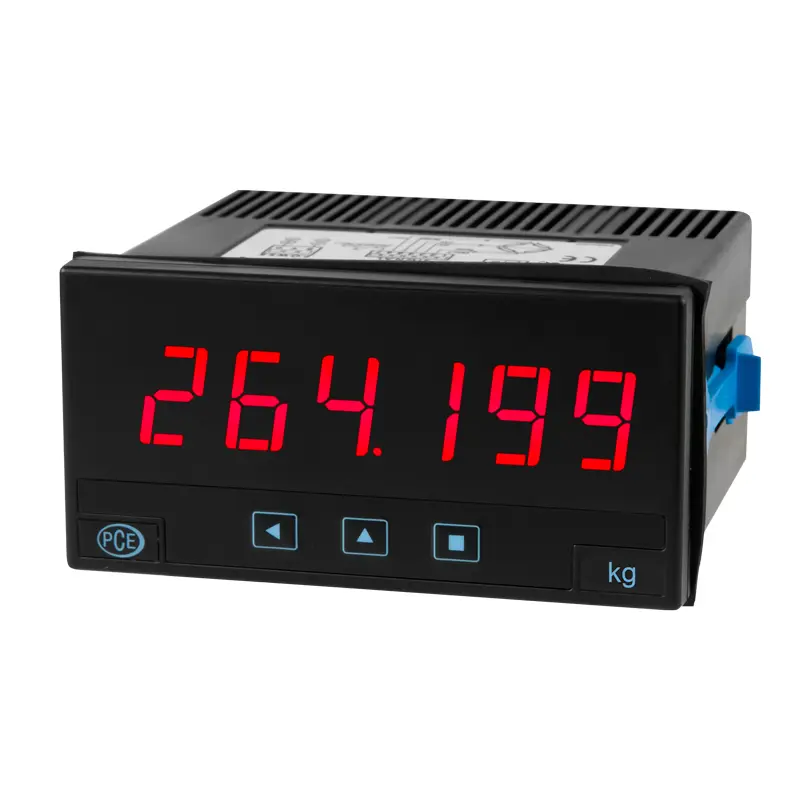

Technical specification for DMS display of the PCE-DPD-F series

Signal Input Range

Accuracy at 25°C

Sensitivity in
mV / V at 5V

Sensitivity in
mV / V at 10V

0 ... 100 mV DC

± 0.05% of reading

20 mV / V

10 mV / V

0 ... 30 mV DC

± 0.05% of reading

6 mV / V

3 mV / V

0 ... 20 mV DC

± 0.05% of reading

4 mV / V

2 mV / V

0 ... 15 mV DC

± 0.05% of reading

3 mV / V

1.5 mV / V

0 ... 10 mV DC

± 0.05% of reading

2 mV / V

1 mV / V

0 ... 5 mV DC

± 0.05% of reading

1 mV / V

0.5 mV / V

Maximum input voltage

30V in all measuring ranges

Supply voltage measuring cells

5V or 10V

Maximum current

140-mA

Maximum number of measuring cells
(with 350 Ohm measuring cells otherwise max. 140-mA)

5V supply: 1 ... 8 measuring cells
10V supply: 1 ... 4 measuring cells

Display

6-digit 7-segment LED display

Units (available to user)

g, kg, t, pcs, mg, lb, N, kN

Colour

Red

Character height

14 mm

Display area

-199999 ... 999999

Decimal

Adjustable after each displayed digit

Under and Over range display

The display flashes

Measuring rate (adjustable) / response time

16 Hz / 63 ms
50 Hz / 20 ms
60 Hz / 17 ms

Refresh rate display

16 Hz

Electrical connections

Screw connections
1 ... 2.5 mm²

Power supply

85 ... 265V AC / DC

Input

Max. 1 W without output cards
Max. 4 W with output cards

Degree of protection

Front: IP65

Assembly

Panel cut

Size panel cutout

92 x 44 mm / 3.6 x 1.7 in

Dimensions

96 x 48 x 91 mm / 3.7 x 1.9 x 3.6 in

Weight

About 150 g / < 1 lb

Operating temperature

0 ... 50°C / 32 ... 122°F

Storage temperature

-20 ... 70°C / -4 ... 158°F

Heating time

About 15 minutes
