Frequency Indicator PCE-N20U

Order no.: PCE-N20U
GTIN (EAN):
US$ 135.00
ex. VAT, ex. delivery costs
PCE-N20U
Available in: 5-7 working days
built-in
No
5-Digit LED
Yes (OC 24 V / 20 mA)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Frequency Indicator PCE-N20U for System Integration
0 ...10 V, 0 ... 60 mV or ±10 V input / 2 open collector outputs / 24 V power supply system for sensors and transducers

PCE-N20U is a frequency indicator used for signal processing. Designed for quick and easy system integration, the digital panel meter features a large 5-digit LED display with tricolor coding dependent on the measured values. The PCE-N20U also can output signals via two open collector outputs when a threshold value is exceeded.



The two open collector outputs allow for the usage of external alarm systems in combination with the PCE-N20U. The threshold values and other settings can be adjusted using the free software LPCon and the PCE-PD 14 programming adaptor (sold separately - see accessories for details). An integrated power supply system of 24 V allows for the direct connection of sensors and transducers to the PCE-N20U. In addition, the face of the PCE-N20U has an IP65 ingress protection rating against dust and water.


Note: Before ordering, please configure the PCE-N20U using the drop-down menus above. Choose desired input, power supply and measuring unit.

Highlights

- 0 ...10 V, 0 ... 60 mV or ±10 V input
- Accuracy: ± (0.2 % FS + 1 digit)
- Two open connector outputs
- Integrated 24 V power supply system for direct connection of sensors and transducers
- IP65 ingress protection rating (on face) against dust and water
- 5-digit LED display with tricolor coding dependent on measured values

Specification

Input (selectable)0 ... 10 V
0 ... 60 mV
± 10 V
Input impedance1 MΩ
Accuracy± (0.2 % FS + 1 digit)
Scale2 points
Averaging time0.5 ... 20 s
Outputs2 x open collector outputs, 30 V, 20 mA
Sensor power supply24 V, 30 mA
Display 5-digit, 7-segment, three-color LED display, 14 mm (0.55") high
Display range-19999 ... 99999
Ambient temp. rangeDuring operation: -10 °C ... +55 °C (+14 °F ... +131 °F)
During storage: -25 °C ... +85 °C (-13 °F ... +185 °F)
Max. humidity95 % RH non-condensing
Dimensions96 x 48 x 64 mm (Approx. 3.78 x 1.89 x 2.52")
Panel installationAccording to DIN standard: 92 x 45 mm (Approx. 3.62 x 1.77")
Power supply (selectable)85 ... 253 V AC/DC
20 ... 40 V AC/DC
Power consumption< 6 VA
Ingress protection ratingFace: IP65
Weight< 250 g (0.56 lb)

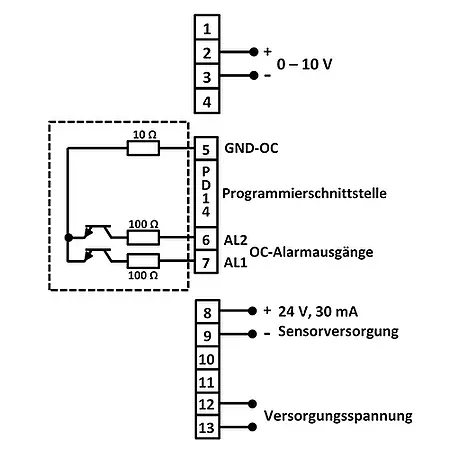

MountingMounting clips with screws, connection via screw terminals (connection plan on the housing)
HousingSolid plastic

Delivery Scope

1 x Frequency Indicator PCE-N20U
1 x package of mounting clips
1 x gasket seal
1 x user manual
