Frequency Indicator PCE-N24Z

Order no.: PCE-N24Z
GTIN (EAN):
US$ 99.90
ex. VAT, ex. delivery costs
PCE-N24Z
Available in: 10 - 14 days
Built-in

Accessory

Programming adaptor PCE-PD 14
Programming adaptor PCE-PD14
US$ 92.00

Description

Frequency Indicator PCE-N24Z
4-digit LED display with a height of 20 mm (0.78") / IP 65 on the front / sensor supply /
for 1 ... 100 V, 2.5 ... 250 V, 4 ... 400 V, 20 ... 500 Hz, 1 A, 5 A / configuration via software
The frequency indicator PCE-N24Z is used to display AC parameters. The built-in display can measure and display AC current, AC voltage or frequencies. The possibility of freely scaling the input signal allows a very versatile use of this built-in display. The current measurement result is very easy to read thanks to the large 4-digit LED display. The optional 24 V sensor supply allows direct connection of 2-wire sensors or transmitters, which simplifies the use of this process display. The configuration is carried out using the freely available software LPCon. With the help of the programming adapter PCE-PD14, settings can be made or read out from the built-in display. The configurations created with the software can be saved and called up again.

Highlights

- IP 65 on the front
- For 1 ... 100 V, 2.5 ... 250 V, 4 ... 400 V, 20 ... 500 Hz, 1 A, 5 A (selectable)

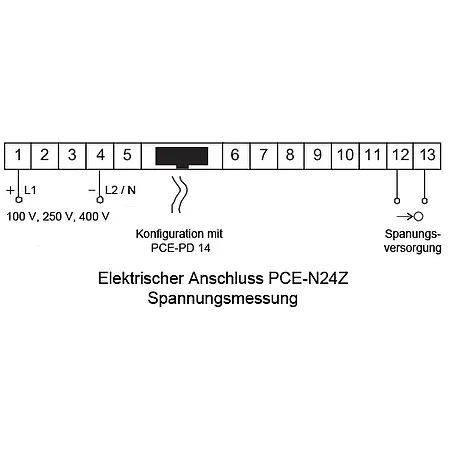

- Connection via screw terminal
- Configuration via software
- 4-digit LED display

Specification

Technical Specifications
Input (selectable)1 ... 100 V AC
2.5 ... 250 V AC
4 ... 400 V AC
20 ... 500 Hz (at 24 ... 480 V)
0.01 ... 1 A AC
0.05 ... 5 A AC
Accuracy ± (0.2 % of full scale + 1 dgt.) (at 20 ... 500 Hz)
Internal resistance10 Ω ± 1 %
Scaling2-point
Display4-digit, 7-segments, LED, digit height: 20 mm / 0.78"
Display range-1999 ... 9999
Power source for sensor (selectable)  24 V DC, max. 30 mA
Ambient temperatureduring operation: -10 °C ... +55 °C / 14 °F ... 131 °F
storage: : -25 °C ... +85 °C / -13 °F ... 185 °F
Diameters96 mm x 48 mm x 64 mm / 3.7 x 1.8 x 2.5"
Size of switch board92 mm x 45 mm / 3.6 x 1.7" (according to DIN)
Power source (selectable)24 V AC
110 V AC
230 V AC
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Protection classfront: IP 65
Weight< 200 g / 7oz
Mountingmounting clips with clamp screws,
connection via plug board
Enclosurerobust plastic housing

Delivery Scope

Delivery content
1 x Frequency Indicator PCE-N24Z, fastening material, seal, operating instructions
