Power Display Panel for System Integration PCE-N24Z

Order no.: PCE-N24Z
GTIN (EAN):
US$ 123.00
ex. VAT, ex. delivery costs
PCE-N24Z
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Programming adaptor PCE-PD 14
Programming adaptor PCE-PD14
US$ 92.00

Description

Digital Indicator PCE-N24Z
Digital Indicator for AC voltage, alternating current or frequency measurement /
measurement range 20 ... 500 Hz / 1 ... 400 V AC / 0.01 ... 5 A AC / 20 mm digit height
The digital indicator PCE-N24Z is ideal for frequency measurements and to measure alternating current. Since the input can be scaled deliberately, the digital indicator proves to be an all-rounder. The digital indicator PCE-N24Z is supported by the PCE-PD14 programming adapter, which facilitates transferring the measuring data in real-time speed to a computer. The measurement accuracy is ± (0.2 % FS + 1 Digit). Since the digital indicator supports a large 4-digit LED display, the measured values are shown very clearly and can be easily read. The solid synthetic enclosure of this digital indicator assures a reliable protection of its interior from rough surrounding conditions, especially in industrial facilities.

Highlights

- IP 65 front
- Configuration via PCE-PD14
- Measuring speed: > 0.5 sec.
- 4-digit LED screen (20 mm height)
- Installment via screw clamps
- Size: 96 x 48 x 64 mm
- Display: red on black
- Accuracy ± (0,2 % FS + 1 Digit)

Specification

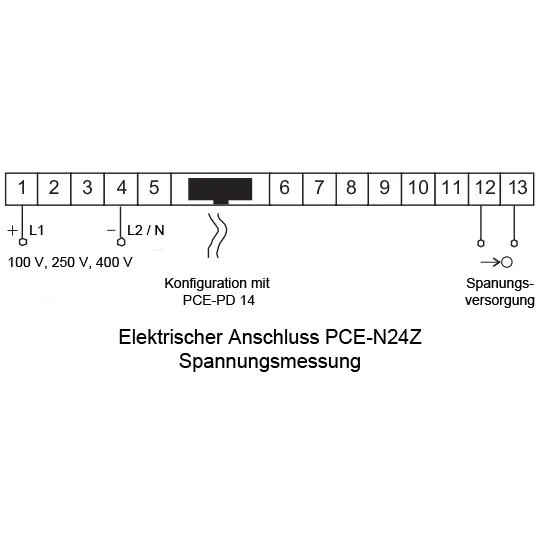

General Technical Specifications of the digital indicator PCE-N24Z
Input (arbitrary)1 ... 100 ... 120 V AC
2.5 ... 250 ... 300 V AC
4 ... 400 ... 600 V AC
20 ... 500 Hz
0.01 ... 1 ... 1.2 A AC
0.05 ... 5 ... 6 A AC
Accuracy ± (0.2 % FS + 1 dgt.)
Internal resistance10 Ω ± 1 %
Scaling2-point-scaling
Display4-digit, 7-segments, LED, digit height: 20 mm
Display range-1999 ... 9999
Power Source for Sensor (arbitrary)24 V DC, max. 30 mA
Surrounding temperatureDuring Operation: -10 °C ... +55 °C
Storage: : -25 °C ... +85 °C
Diameters96 mm x 48 mm x 64 mm
Size of switch board92 mm x 45 mm (according to DIN)
Power Source (arbitrary)24 V AC
110 V AC
230 V AC
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Protection ClassFront: IP 65
Weight< 200 g
MontageMounting clips with clamp screws,
Connection via plug board
EnclosureSolid synthetic enclosure

Delivery Scope

Delivery content of the digital indicator PCE-N24Z

1 x digital indicator PCE-N24Z, 1 x instruction manual

Additional components

- PCE-PD14 programming adapter (please order separately)
To set the different parameters of the PCE-N24 series digital indicators the PCE-PD14 adapter is required. By means of the included software the PCE-N24Z digital display can be set through the USB port.
