Description

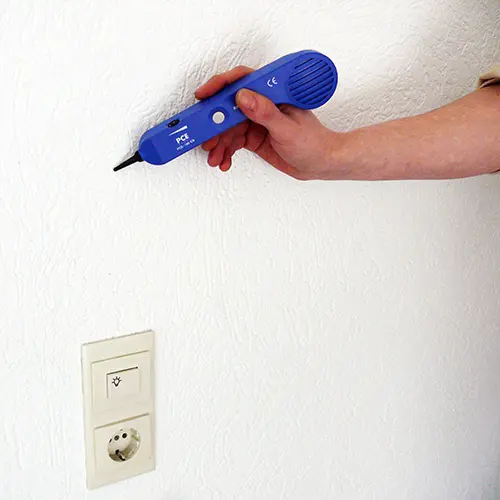

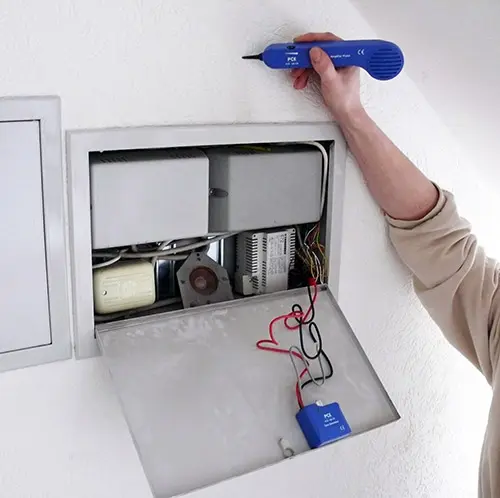

PCE-180 CBN is a handheld, portable, battery-powered wire tracer or cable locator that consists of an amplifier probe and acoustic signal or tone generator. This locating device is designed to detect wires or cables hidden behind walls or insulation.
Highlights

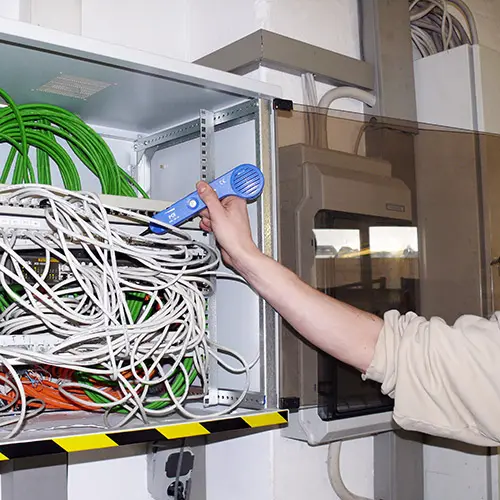

- Uses an acoustic signal to detect wires and cables, including network and coaxial cables
- Features a 3-position toggle switch (and 3-color LED) for line polarity, continuity and voltage testing
- Comes with red and black test leads with alligator clips
- Has a standard 4-conductor modular cord and plug
- Battery powered
- Recessed on / off button prevents accidental activation and battery drain
- Adjustable volume and selection of either single solid tone or dual alternating tone
- Compatible with other signal or tone generators used to detect wires or cables
- Contains built-in headphone jack
Specification
Technical specifications
Detection method: Acoustic signal
Tones: Pulsing or continuous
Connections: RJ-11, alligator clips and headphone jack
Power supply: 2 x 9 V batteries
Certifications: CE, IEC / EN 61010-1:01
Operating conditions: 0 ... +50 °C / +32 ... +122 °F and 5 ... 95% rh
Dimensions: 60 x 65 x 30 mm / 2.36 x 2.56 x 1.18" signal generator and 245 x 60 x 30 mm / 9.65 x 2.36 x 1.18" amplifier probe
Weight: 120 g / 0.26 lb signal generator and 140 g / 0.31 lb amplifier probe
Delivery Scope
Delivery contents

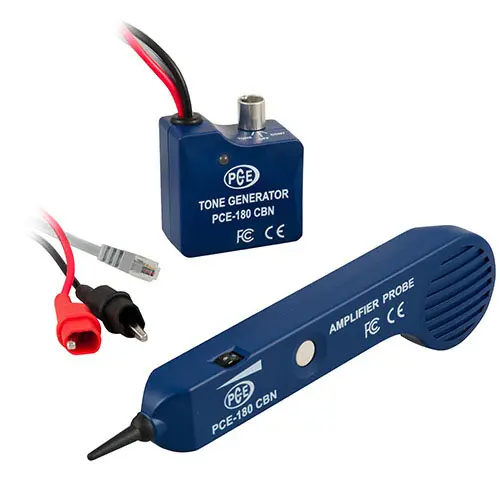

1 x PCE-180 CBN cable detector (includes amplifier probe, tone generator and 2 x test leads with alligator clips)
2 x 9 V batteries
1 x carrying case
1 x user manual
