Cable Detector PCE-CL 10

Order no.: PCE-CL 10

GTIN (EAN):

Description

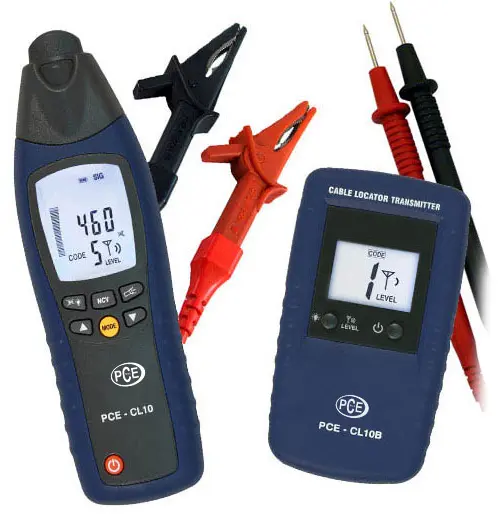

PCE-CL 10 is a cable detector that uses the conductive method to detect metal pipes or pipe tracer wires. With PCE-CL 10, you also can locate power cables, lines, circuits, short circuits and ground points, as well as test protective tubing and coaxial cables. To perform these functions, it is not necessary to disconnect the power. Location can be identified in floors, ceilings, walls and the ground, even behind concrete and brick.

PCE-CL 10 features a detection system that is composed of a signal generator for active lines and a transmitter or receiver for cables without current. The signal generator feeds high-frequency electromagnetic signals through the lines being tested. At the end of the cable, these signals are converted into acoustic or optical signals by the receiver.

Highlights

- Finds hidden, concealed, buried or underground metal pipes or pipe tracer wires found in floors, ceilings, walls, concrete and brick
- Locates power cables, lines, circuits, short circuits and ground points
- Tests protective tubing and coaxial cables
- Uses the conductive method

Specification

Technical specifications
Operating temperature / humidity	0 ... +40 ºC or +32 ... +104 ºF / max. 80% rh
Storing temperature / humidity	-20 ... + 60 ºC or -4 ... +140 ºF / max. 80% rh
Receiver
Auto shut-off	Approx. 5 min.
Absorbed power	Max. 40 mA
Display	LCD with bar graph
Battery	9 V
Dimensions	192 x 61 x 37 mm / 7.56 x 2.40 x 1.46 in
Weight	Approx. 180 g / 0.40 lb
Signal generator
Maximum voltage	400 V AC (0-60 Hz 400 V DC)
Transmitting frequency	125 kHz
Display	LCD
Auto shut-off	Approx. 1 hour
Absorbed power	Max. 18 mA
Battery	9 V
Fuses	Flink, 0.5 A / 500 V, 6.3 x 32 mm
Overvoltage category	CAT III / 300 V
Dimensions	130 x 69 x 32 mm / 5.12 x 2.72 x 1.26 in
Weight	Approx. 130 g / 0.30 lb

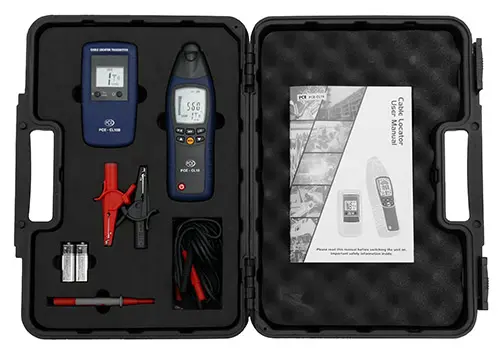

Delivery Scope

Delivery contents
1 x PCE-CL 10 cable detector
1 x receiver
2 x batteries
2 x testing cables
2 x alligator clips
2 x test probes
1 x carrying case
1 x user manual
