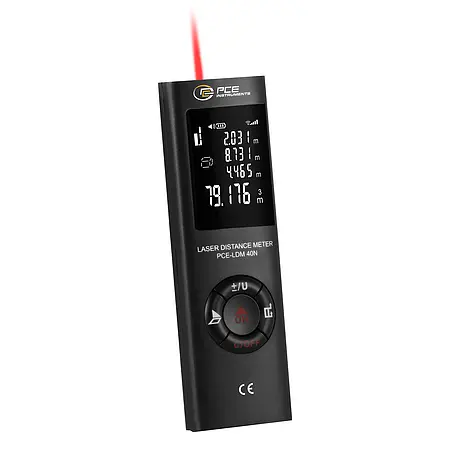

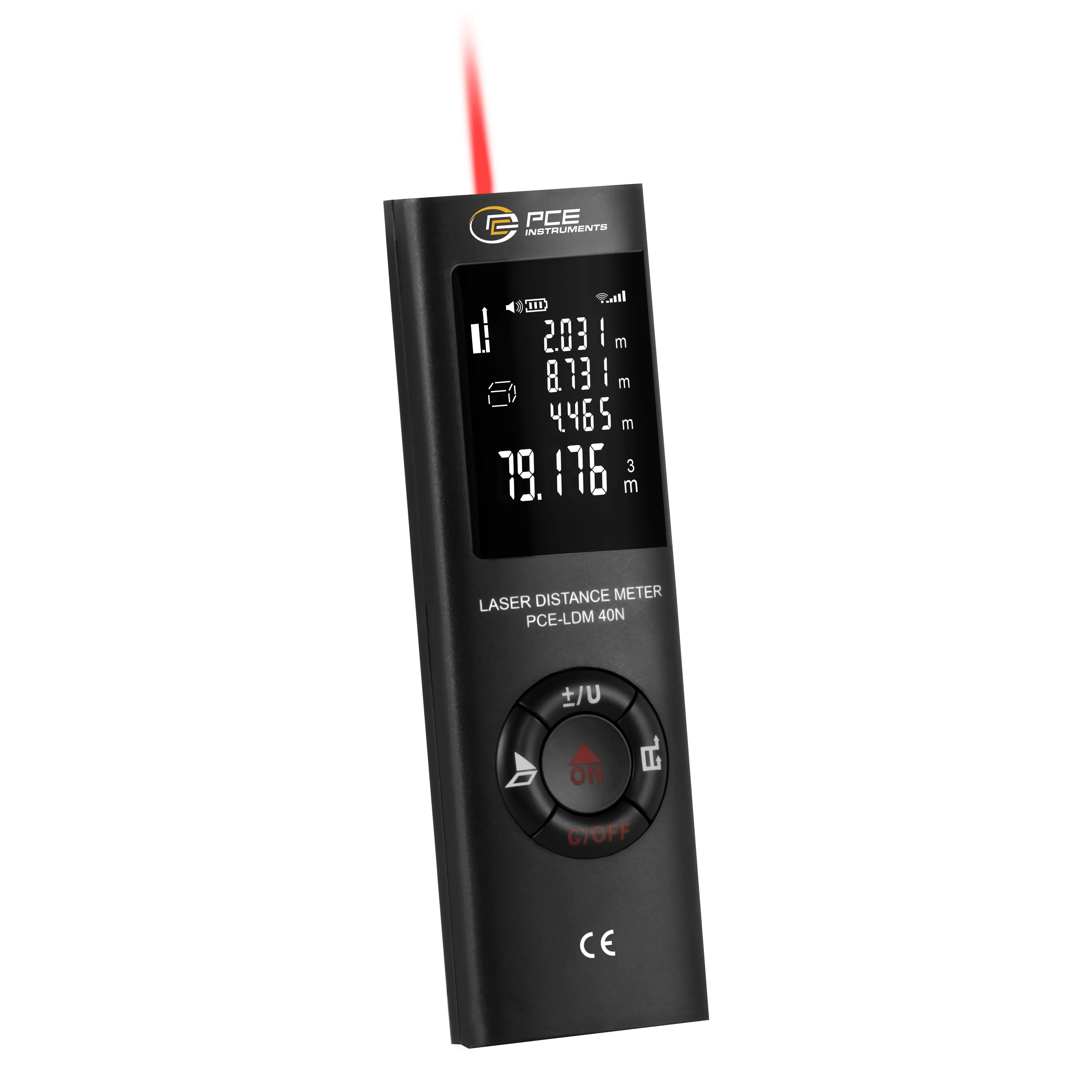

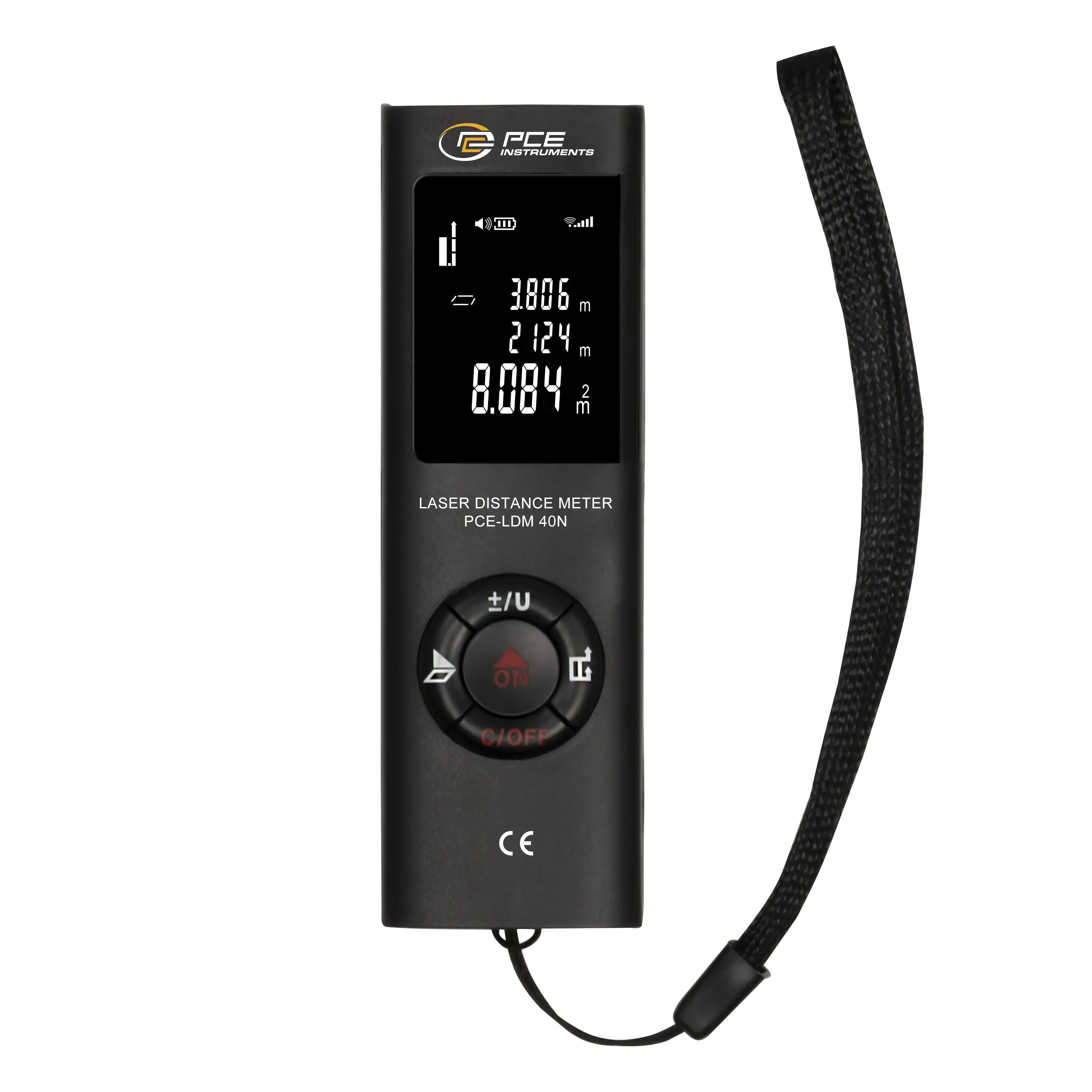

Distance Meter PCE-LDM 40N

Order no.: PCE-LDM 40N
GTIN (EAN): 4250348735980
US$ 33.00
ex. VAT, ex. delivery costs
:
4250348735980
PCE-LDM 40N
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Distance Meter up to 40 m / Pythagoras function / addition of measured values / continuous distance measurements / area and volume determination / protection class IP54

The Distance Meter is the ideal tool for precise and simple measurements. With a measurement range of 0.05 ... 40 m and a resolution of 0.001 m, the device provides reliable results for a wide range of applications. Whether in construction planning, interior design or simple DIY work - the Distance Meter impresses with its versatility and ease of use.

In addition to simple distance measurement, the Distance Meter can also determine the area and volume of a room. Thanks to the function for indirect distance measurement using the Pythagorean theorem, even hard-to-reach areas can be measured precisely. The device also enables continuous distance measurement as well as the addition and subtraction of distances. Equipped with an LCD, the distance meter is easy to read and operate. The user can choose between different units of measurement (metres, inches, feet) and thus optimally adapt the device to their needs. The automatic power-off function and automatic laser switch-off contribute to energy saving and safety.

Thanks to its compact dimensions of 100 x 30 x 17 mm and low weight, the Distance Meter is particularly handy and easy to transport. The integrated lithium polymer battery with a capacity of 200 mAh can be easily recharged. Our Distance Meter has a class II laser with a wavelength of 635 nm and an output of less than 1 mW. This makes it the ideal companion for professional users and DIY enthusiasts when carrying out renovation work, taking quantity surveys or other measurements.


Highlights

- measuring functions: volume, area
- indirect distance measurement via Pythagoras
- units of measurement: m, inch, ft
- continuous distance measurement
- max / min measurement
- addition / subtraction of distances
- automatic power-off
- automatic laser switch-off
- laser type: class || / 635 nm <1mW

Specification

Length
Measurement range up to  0,05 ... 40 m
Resolution  0,001 m
Accuracy  ± 2 mm

General technical data
Measuring functions  Pythagoras, Volume, Surfaces
Units  m, ft, inch
Display type  LCD
Display size  1,6 Inch

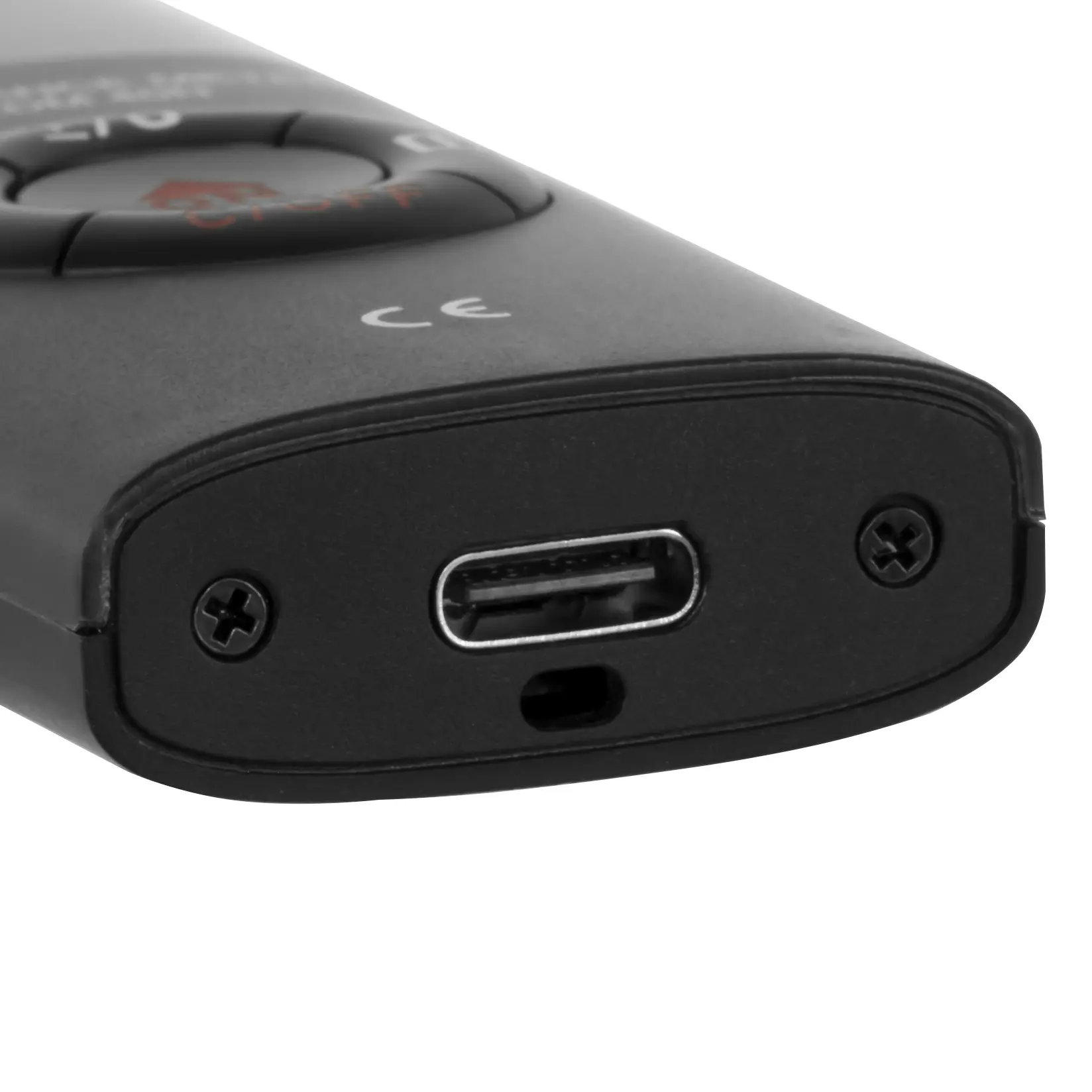

Interface  USB-C
Automatic power-off  45 s

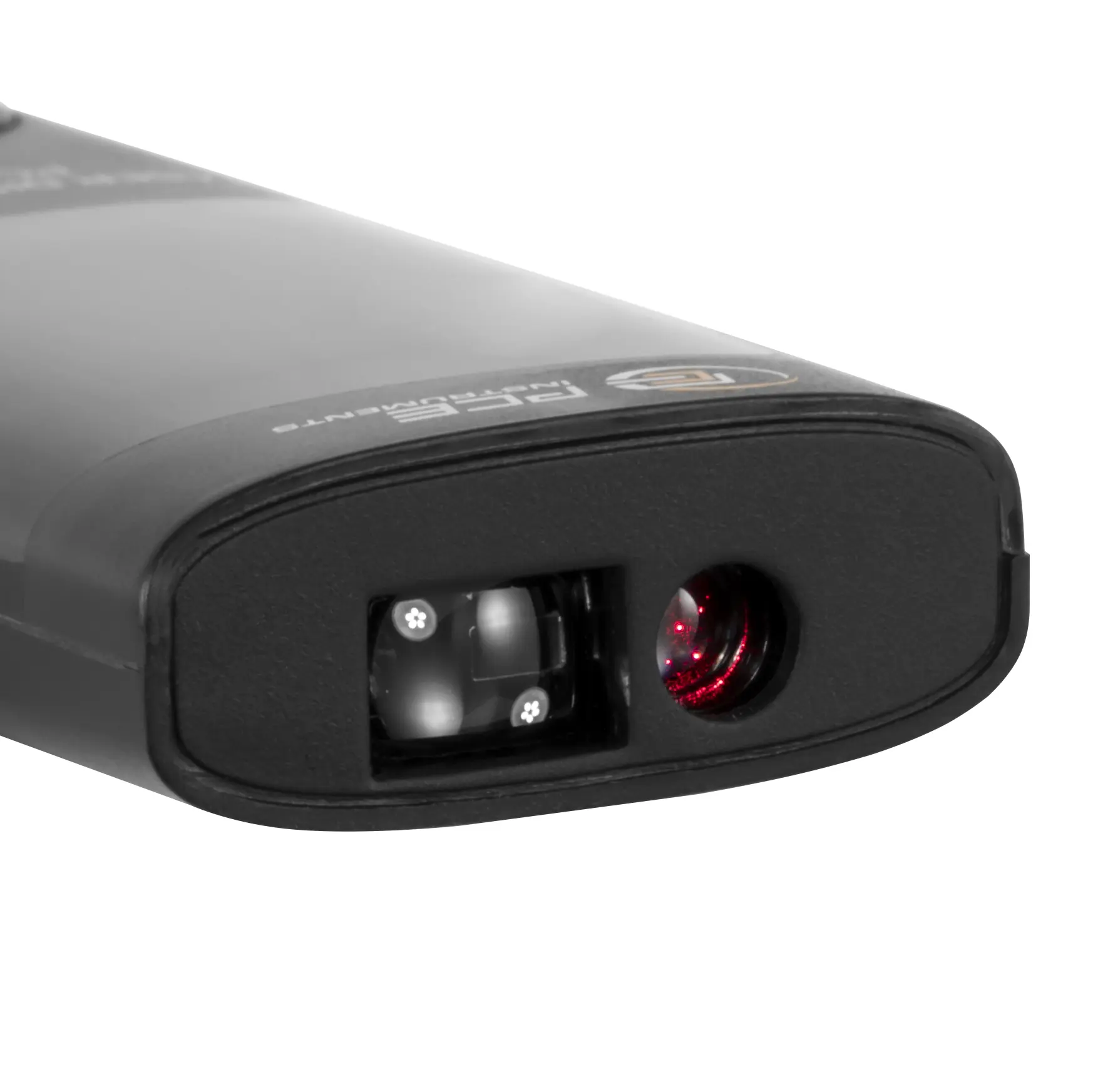

Laser  Class 2 / 635 nm <1mW
Protection class (device)  IP54
Power supply  5 V
Weight  30 g
Operating conditions  0 ... 40 °C , 10 ... 90 % RH
Storage conditions  -25 ... 60 °C , 10 ... 90 % RH
(Rechargeable) battery  1 x 3,7 V LP402030 , Lithium polymer battery
Capacity  200 mAh
Dimensions ( L x W x H )  100 x 30 x 17 mm

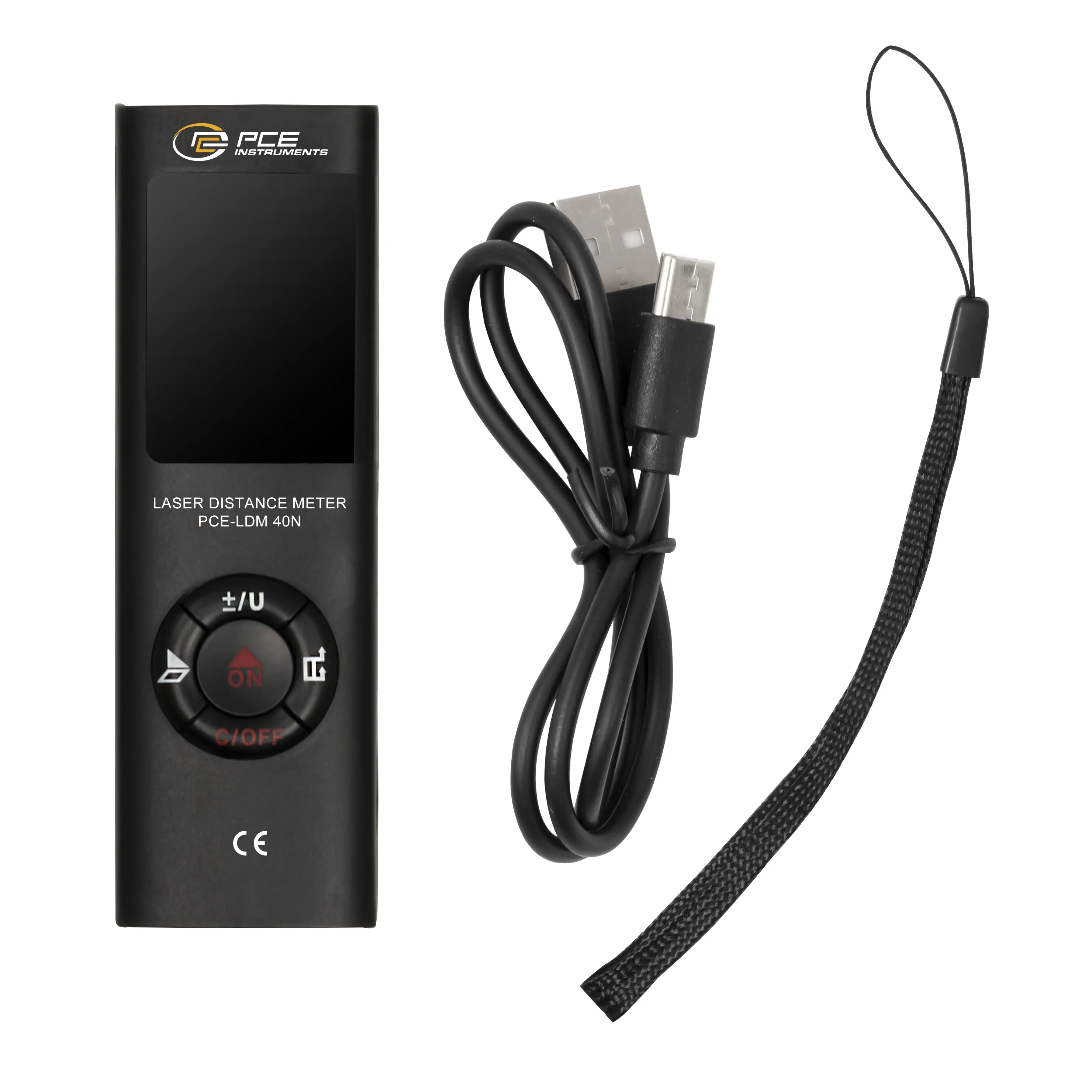

Delivery Scope

1 x PCE-LDM 40N Distance Meter
1 x user manual
1 x USB-C cable (for charging)
1 x wrist strap
