Magnetometer PCE-EMF 20

Order no.: PCE-EMF 20
GTIN (EAN): 4250348735195
US$ 47.00
ex. VAT, ex. delivery costs
:
4250348735195
PCE-EMF 20
Available in: 1-2 days

Description

Magnetometer / measures electric and magnetic fields simultaneously / audible and visual alarm / automatic power off

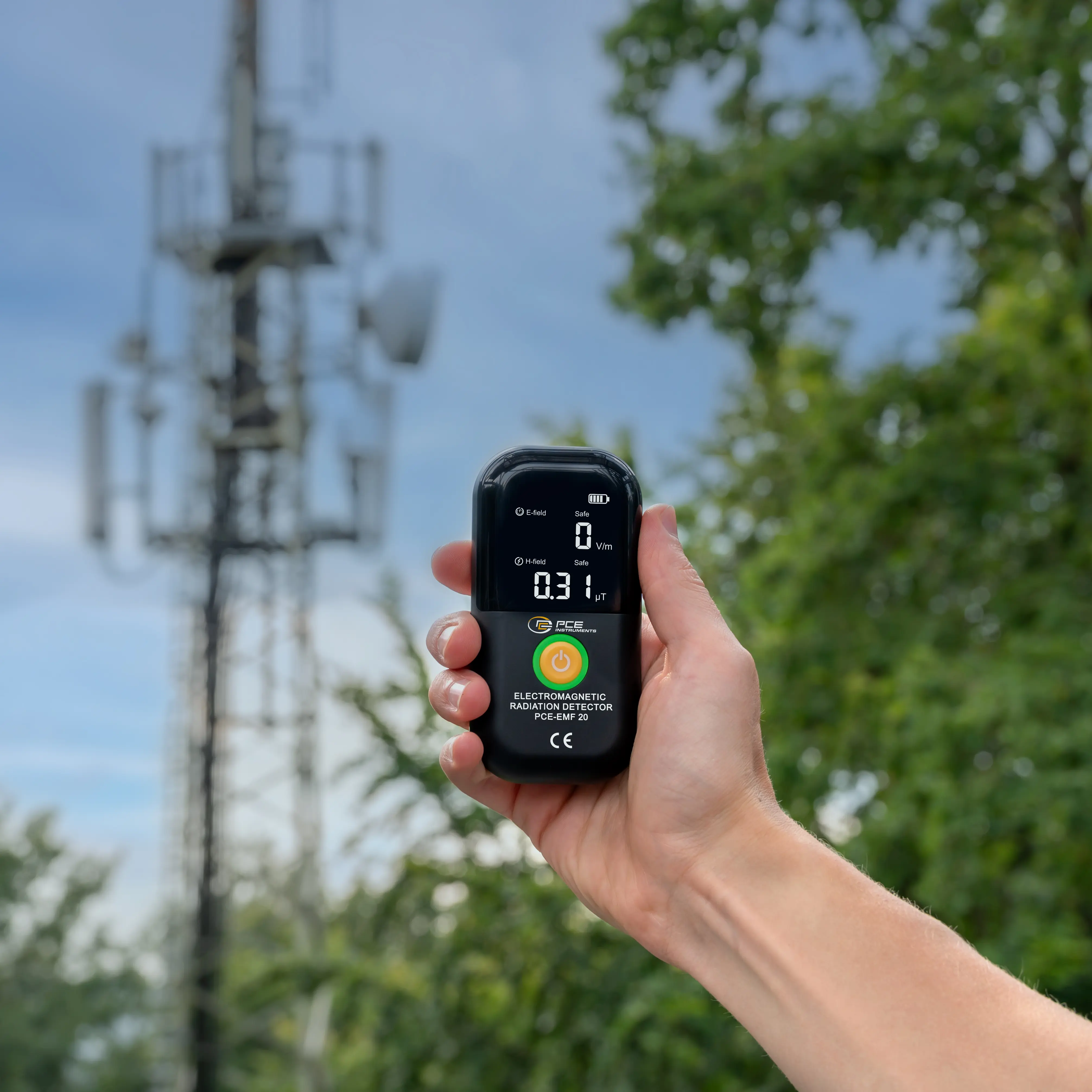

The Magnetometer is a device for the simultaneous measurement of electric and magnetic fields. It is ideal for domestic use for testing routers, Bluetooth devices, radios, televisions, computers, printers, microwave ovens, refrigerators and mobile phone masts. It offers a measurement range from 1 to 1999 V/m for electric fields and from 0.01 to 99.99 µT for magnetic fields. The Magnetometer has an alarm threshold of 40 V/m or 4 µT, above which an audible alarm is automatically triggered.

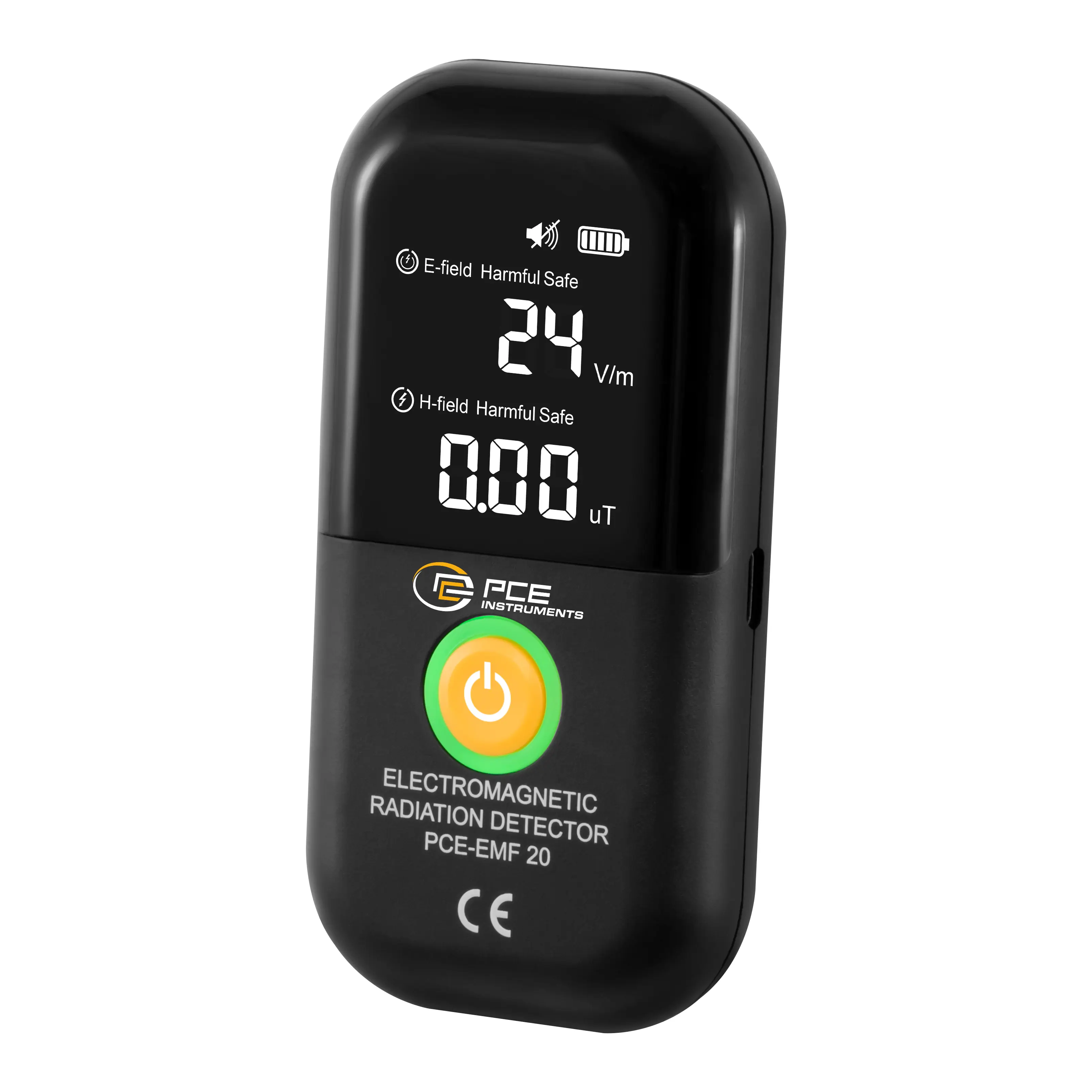

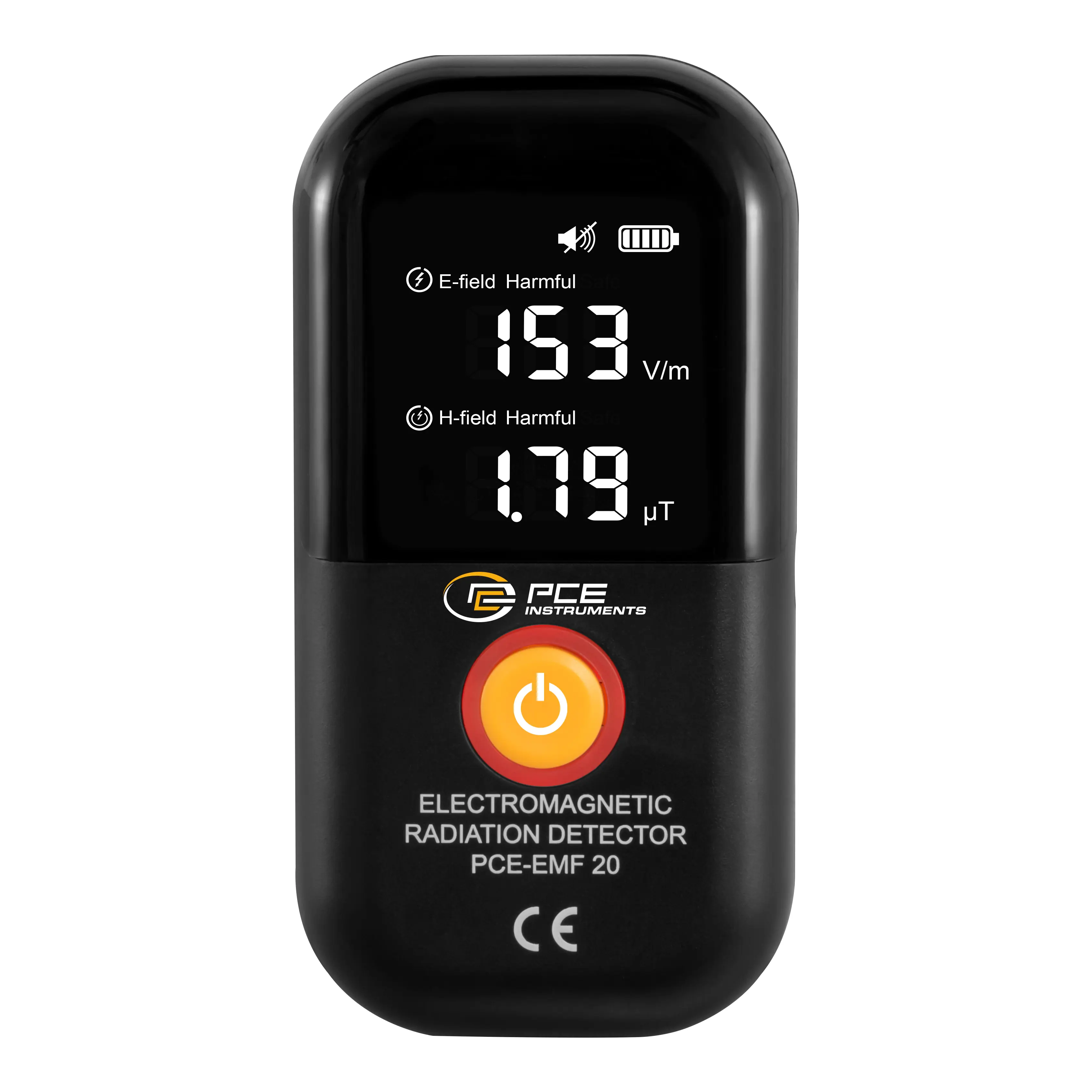

The Magnetometer operates within a bandwidth of 5 Hz to 3500 MHz and takes less than a second to deliver a measurement result. A built-in rechargeble 700 mAh lithium battery with USB-C interface makes the device convenient and durable. An LED display provides a clear indication of the measured values and the compact design with only one key ensures easy use. In addition, the Magnetometer switches off automatically when inactive to save energy.


Highlights

- measurement range: 1 ...1999 V/m / 0.01 ... 99.99 µT
- alarm threshold: 40 V/m, 4 µT
- bandwidth 5 Hz ... 3500 MHz
- alarm: audible and visual
- automatic power off
- battery status display

Specification

Radiation
Measurement range up to  1 ... 1999 V/m
Resolution  1 V/m
Accuracy  1 V/m

Radiation
Measurement range up to  0,01 ... 99,99 µT
Resolution  0,01 µT
Accuracy  0.01 µT

General technical data
Display type  LED
Display size  2,2 Inch
Interface  USB-C
Response time  0,5 s
Automatic power-off  5 min
Bandwidth MF from  5 Hz
Bandwidth MF to  3500 MHz
Bandwidth EF from  5 Hz
Bandwidth EF to  3500 MHz
Alarm  Acoustic, optical
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V
Weight  75 g
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
(Rechargeable) battery  1 x 3,7 V SL 603040 , Lithium-ion battery
Capacity  700 mAh
Dimensions ( L x W x H )  110 x 55 x 23 mm

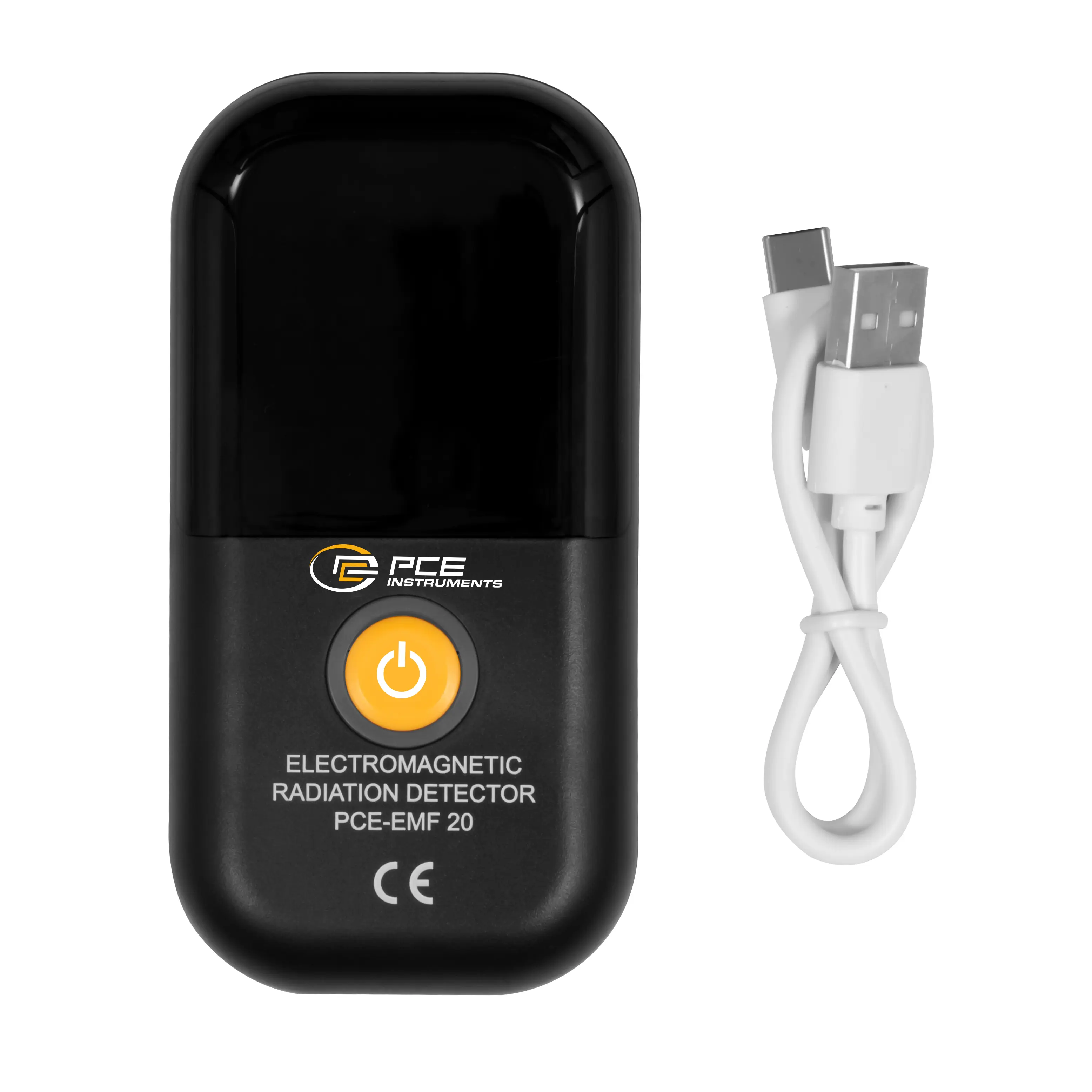

Delivery Scope

1 x Magnetometer PCE-EMF 20
1 x USB-C cable
1 x user manual
