Clamp Voltmeter PCE-OC 5

Order no.: PCE-OC 5
GTIN (EAN): 4250348721532
US$ 150.00
ex. VAT, ex. delivery costs
:
4250348721532
PCE-OC 5
Available in: 1-2 days

Description


Clamp Voltmeter  with oscilloscope function / 400 A AC / 600 V AC / DC / temperature measurement
TRMS multimeter with 2 kHz bandwidth / 200 kHz oscilloscope bandwidth

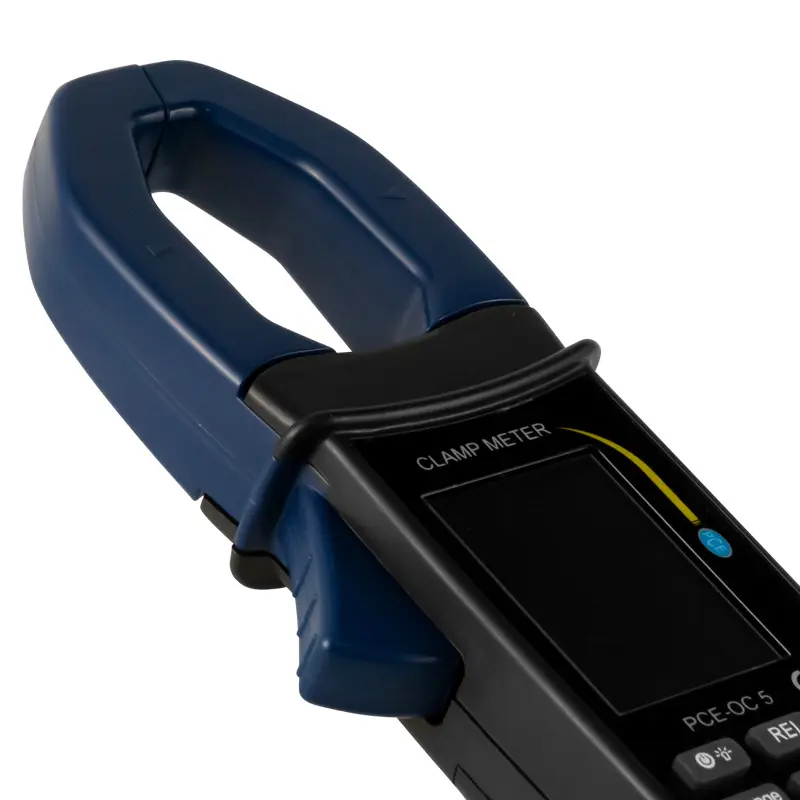

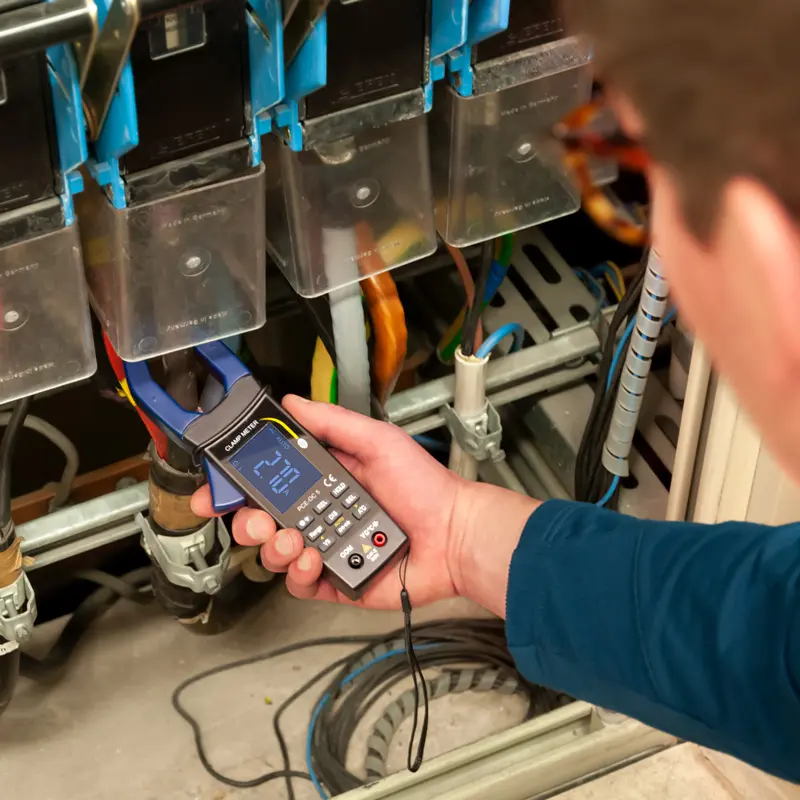

The Clamp Voltmeter is suitable for service technicians, stationary use in repair departments in specialist shops and in laboratories. The Clamp Voltmeter is designed for current measurements up to 400 A AC. In addition to the current clamp function, the measuring clamp offers many functions that only a multimeter otherwise has. The Clamp Voltmeter can also be used as an oscilloscope for simple maintenance applications.

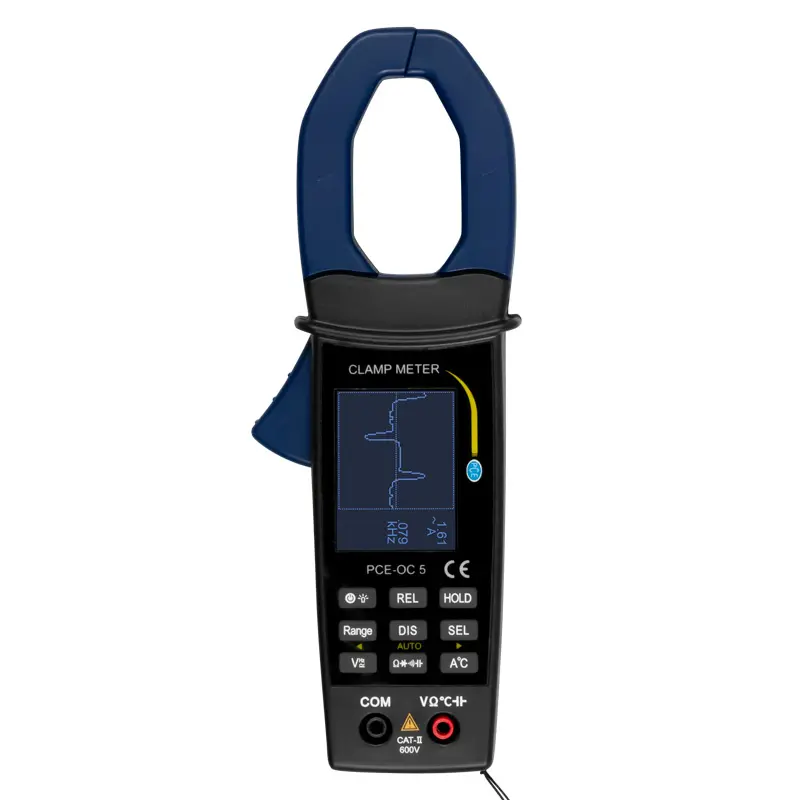

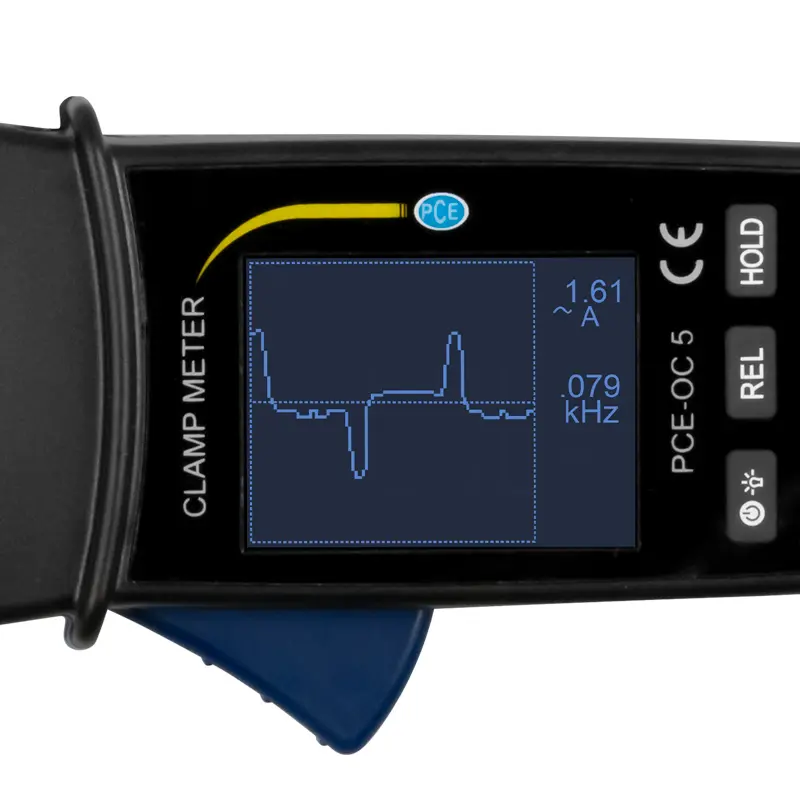

In the oscilloscope mode of the Clamp Voltmeter, in addition to the direct and alternating voltage, the current can also be visualized as a graph. This has the advantage that the waveform of the current can also be displayed on the multimeter. Due to the bandwidth of 200 kHz in oscilloscope mode, the Clamp Voltmeter, this measuring instrument can also be used to measure the current on frequency converters. All functions and areas of the Clamp Voltmeter are protected against overload. The Clamp Voltmeter is suitable for conductor diameters up to 35 x 46 mm.

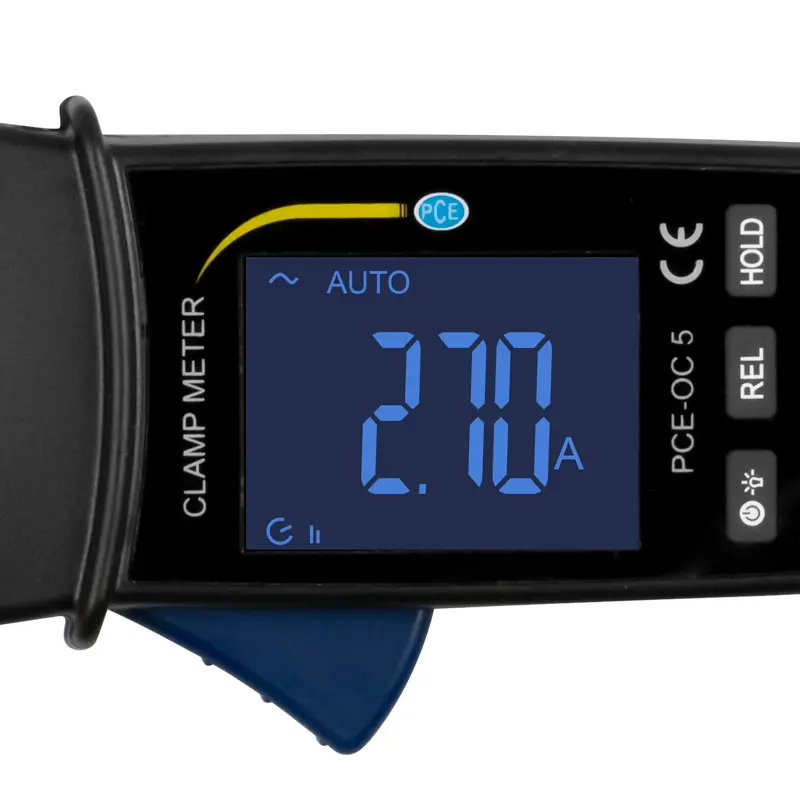

The Clamp Voltmeter is powered by 1.5 V AAA batteries. The measured values and graphs are shown on the graphic LCD. In multimeter mode, up to 100 measured values can be stored and called up again on the display. The Clamp Voltmeter can also save up to 10 graphs.

Highlights

- 3 in 1 clamp meter
- LC display
- Current measurement up to 400 A AC
- 35 x 49 mm pliers opening
- temperature measurement
- easy to use
- Graphic display of the measurement signal
- memory function

Specification

Measurement parameters
DC voltage
Measuring range Max. resolution     accuracy
400 mV 0.1 mV ± (1.5% of MW + 10 digits)
4 V 0.1 mV (600 V DC)
40 V 0.1 mV
400 V. 0.1 mV
600 V 0.1 mV

Measurement parameters
AC voltage
Measuring range Max. resolution accuracy
4 V 1 mV ± (2% of meas. + 10 digits)
40 V 1 mV 50 Hz ... 2 kHz)
400 V. 1 mV
600 V 1 mV

Measurement parameters
Alternating current
Measuring range Max. resolution accuracy
40 A 10 mA ± (2.5% of MW + 10 digits)
400 A. 0.1 A (400 A / 50 Hz)

Measurement parameters
frequency
Measuring range Max. resolution accuracy
10 Hz ... 30 kHz 0.1 Hz ± (1% of MW + 5 digits)
    (4 ... 600 V)

Measurement parameters
resistance
Measuring range Max. resolution accuracy
400 Ω 0.1 Ω ± (1% of meas. + 5 digits)
4 kΩ 0.1 Ω (400 Ω ... 4 MΩ)
40 kΩ 0.1 Ω
400 kΩ 0.1 Ω ± (3% of mw + 5 digits)
4 MΩ 0.1 Ω (40 MΩ)
40 MΩ 0.1 Ω

Measurement parameters
capacity
Measuring range Max. resolution accuracy
4 nF 1 pF ± (4% of meas. + 10 digits)
40 nF 1 pF (4 nF ... 400 µF)
400 nF 1 pF
4 µF 1 pF ± (10% of meas. + 15 digits)
400 µF 1 pF (4 mF)
4 mF 1 pF

Measurement parameters
temperature
Measuring range Max. resolution accuracy
-20 ... 250 ° C 1 ° C ± (2% + 3 ° C)

Oscilloscope mode
Usable measurement functions DC voltage
  AC voltage
  Alternating current

Bandwidth 2 kHz
Sample rate 2 kSa / s

General technical specifications
display LC display
Power supply 3 x 1.5 V AAA batteries
Power consumption approx. 80 mA
Battery life 180 min
Storage Multimeter mode: 100 data records
  Oscilloscope mode: 10 waveforms
Operating conditions 0 ... 40 ° C; Max. 75% RH:
Storage conditions -10 ... 60 ° C; Max. 90 RH
Forceps opening 35 x 49 mm
Dimensions 212 x 74 x 35 mm
Weight 264 g

Delivery Scope

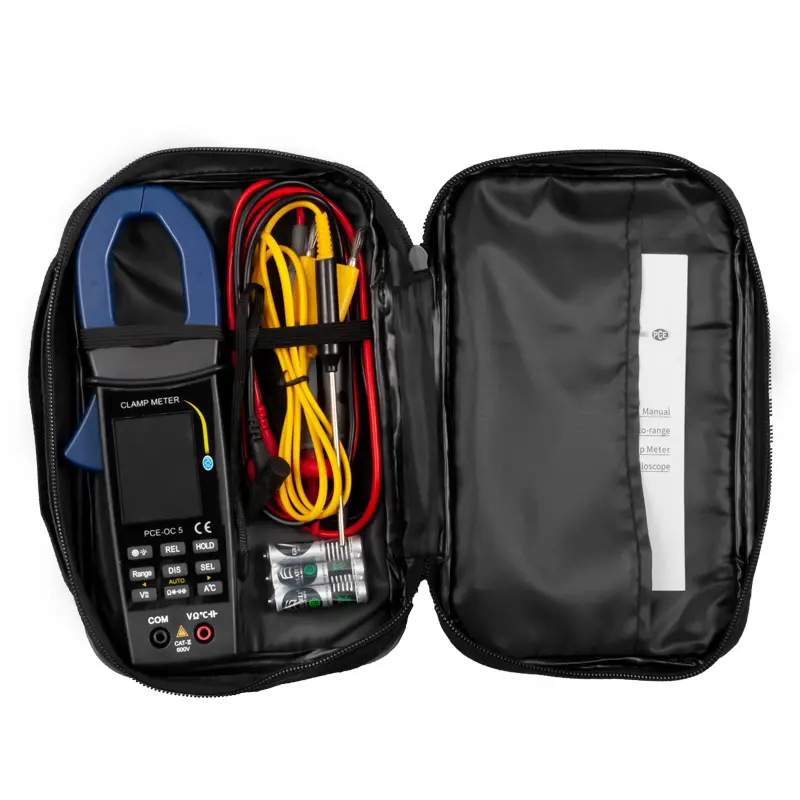

1 x  Clamp Meter PCE-OC 5
3 x 1.5 V AAA batteries

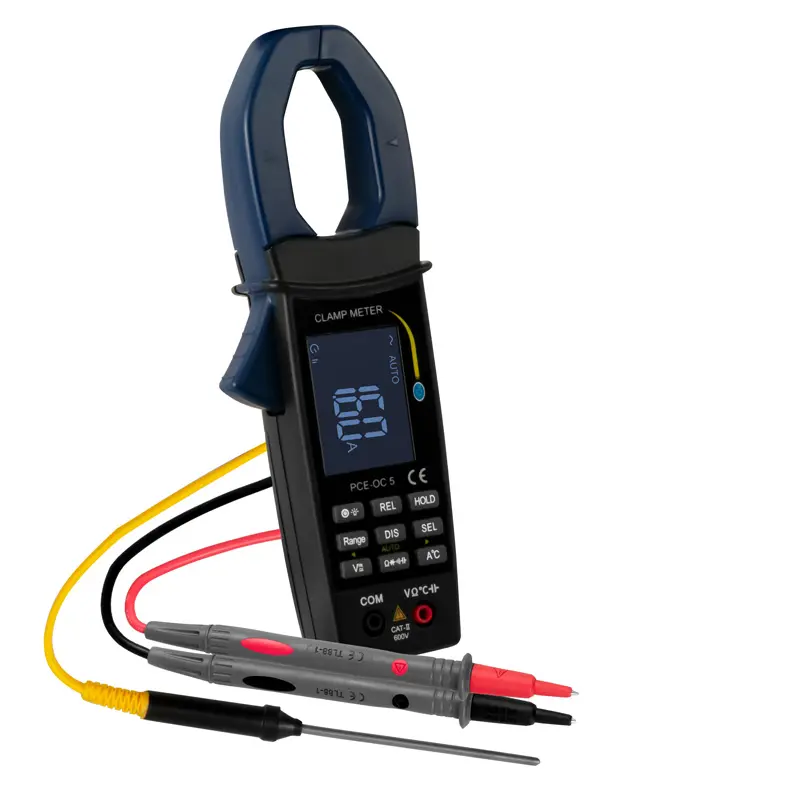

1 x test lead set
1 x carry bag
1 x wrist strap
1 x instruction manual
