Voltmeter PCE-DM 7

Order no.: PCE-DM 7

GTIN (EAN): 4250348736130

Description

Voltmeter / true RMS measurement / temperature measurement / automatic and manual measurement range selection / simple operation / bar graph display

The Voltmeter provides precise measurements for a variety of parameters, including AC and DC voltage, direct and alternating current, frequency, resistance, capacitance and temperature. Our Voltmeter has a hold function for saving measurement results as well as non-contact voltage detection (NCV).

The device enables both automatic and manual measurement range selection and is equipped with an easy-to-read 2.8-inch LCD with backlight. With a sampling rate of three measurements per second, it delivers quick results and switches off automatically after five minutes of inactivity to extend the battery life. In addition, the Voltmeter offers a dual display: a bar graph for quick visual assessments and a numerical display for precise readings.

The Voltmeter is powered by two 1.5 V batteries and is designed for easy one-handed operation. The compact dimensions of 140 x 70 x 35 mm make the Voltmeter a practical tool for everyday use by electricians and hardware developers as well as in other technical applications.

Highlights

- non-contact voltage detection

- temperature measurement

- automatic power off

- automatic and manual measurement range selection

- hold function

- 2.8-inch LC display with backlight

- small and compact design

Specification

Direct voltage DC
Measurement range up to	0 ... 9,999 mV
Resolution	0,001 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	10 ... 99,99 mV
Resolution	0,01 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	100 ... 999,9 mV
Resolution	0,1 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	1 ... 9,999 V
Resolution	0,001 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	10 ... 99,99 V
Resolution	0,01 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	100 ... 999,9 V
Resolution	0,1 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct current DC
Measurement range up to	0 ... 9999 µA
Resolution	1 µA
Accuracy	±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to	10 ... 99,99 mA
Resolution	0,01 mA
Accuracy	±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to	100 ... 999,9 mA
Resolution	0,1 mA
Accuracy	±(1 % of Rd +3 digits)

Direct current DC
Measurement range up to	1 ... 9,999 A
Resolution	0,001 A
Accuracy	±(1 % of Rd +3 digits)

Capacity
Measurement range up to	0 ... 9,999 nF
Resolution	0,001 nF
Accuracy	±(5.0 % of Rd +20 digits)

Capacity
Measurement range up to	10 ... 99,99 nF
Resolution	0,01 nF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to	100 ... 999,9 nF
Resolution	0,1 nF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to	1 ... 9,999 µF
Resolution	0,001 µF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to	10 ... 99,99 µF
Resolution	0,01 µF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to	100 ... 999,9 µF
Resolution	0,1 µF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to	1 ... 9,999 mF
Resolution	0,001 mF
Accuracy	±(5.0 % of Rd +5 digits)

AC voltage
Measurement range up to	0 ... 9,999 mV
Resolution	0,001 mV
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	10 ... 99,99 mV
Resolution	0,01 mV
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	100 ... 999,9 mV
Resolution	0,1 mV
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	1 ... 9,999 V
Resolution	0,001 V
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	10 ... 99,99 V
Resolution	0,01 V
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	100 ... 750 V
Resolution	0,1 V
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	0 ... 9999 µA
Resolution	1 µA
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	10 ... 99,99 mA
Resolution	0,01 mA
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	100 ... 999,9 mA
Resolution	0,1 mA
Accuracy	±(1.2 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	1 ... 9,999 A
Resolution	0,001 A
Accuracy	±(1.2 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Resistance
Measurement range up to	0 ... 99,99 Ω
Resolution	0,01 Ω
Accuracy	±(1 % of Rd +3 digits)

Resistance
Measurement range up to	100 ... 999,9 Ω
Resolution	0,1 Ω
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	1 ... 9,999 kΩ
Resolution	0,001 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	10 ... 99,99 kΩ
Resolution	0,01 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	100 ... 999,9 kΩ
Resolution	0,1 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	1 ... 9,999 M Ω
Resolution	0,001 M Ω
Accuracy	±(1.5 % of Rd +3 digits)

Resistance
Measurement range up to	10 ... 99,99 M Ω
Resolution	0,01 M Ω
Accuracy	±(3.0 % of Rd +5 digits)

Duty cycle
Measurement range up to	1 ... 99 %
Resolution	0,1 %
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	0 ... 99,99 Hz
Resolution	0,01 Hz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	100 ... 999,9 Hz
Resolution	0,1 Hz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	1 ... 9,999 kHz
Resolution	0,001 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	10 ... 99,99 kHz
Resolution	0,01 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	100 ... 999,9 kHz
Resolution	0,1 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	1 ... 5 MHz
Resolution	0,001 MHz
Accuracy	±(0.1 % of Rd +2 digits)

Temperature
Measurement range up to	-20 ... +1000 °C
Resolution	1 °C
Accuracy	±(2.5 % of Rd +5 digits)

Temperature
Measurement range up to	-4 ... +1832 °F
Resolution	1 °F
Accuracy	±(2.5 % of Rd +5 digits)

General technical data
Measuring functions	HOLD
Display type	LCD with backlight
Display size	2,8 Inch
Measuring rate	3 x per second
Automatic power-off	5 min
Safety standard	CAT II 1000 V, CAT III 600 V
Measurement range selection	Automatic, Manual
Menu language	English, English (GB)
Protection class (device)	IP20
Weight	175 g
Operating conditions	0 ... 40 °C , 0 ... 75 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
(Rechargeable) battery	2 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Dimensions ( L x W x H )	140 x 70 x 35 mm

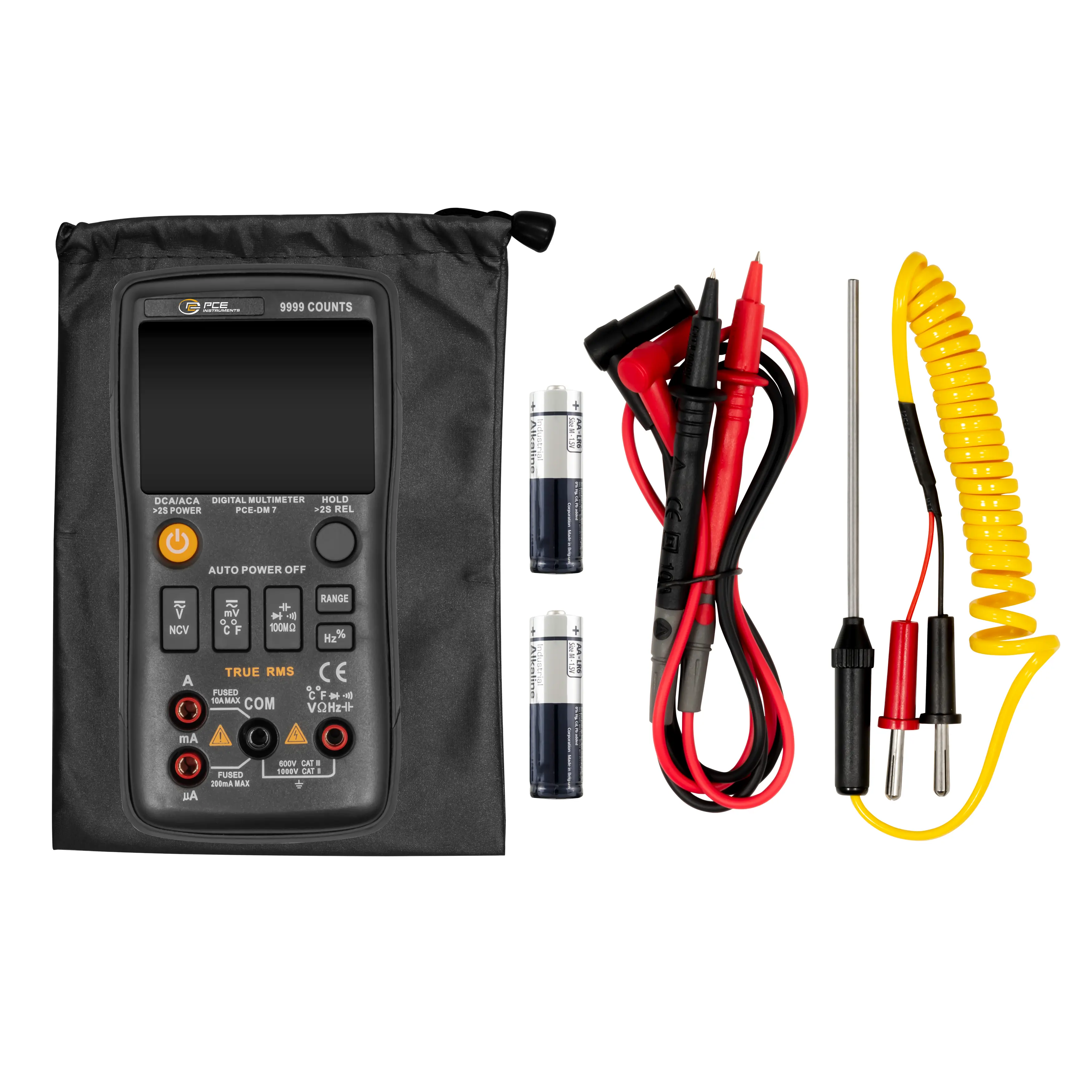

Delivery Scope

1 x Voltmeter PCE-DM 7

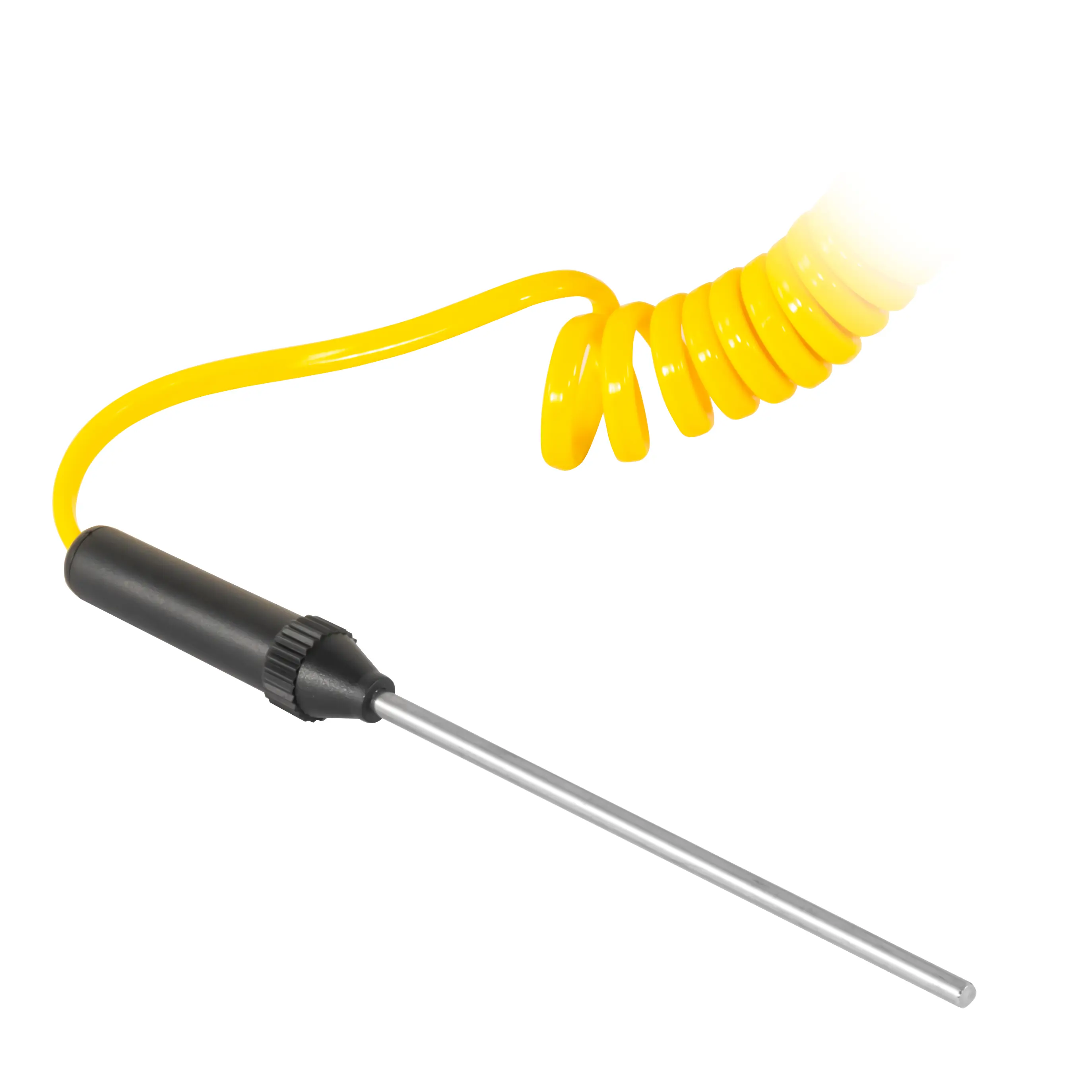

1 x temperature sensor

1 x test leads

2 x 1.5 V AA battery

1 x user manual

1 x storage bag

Downloads

Datasheet

CE Certificate

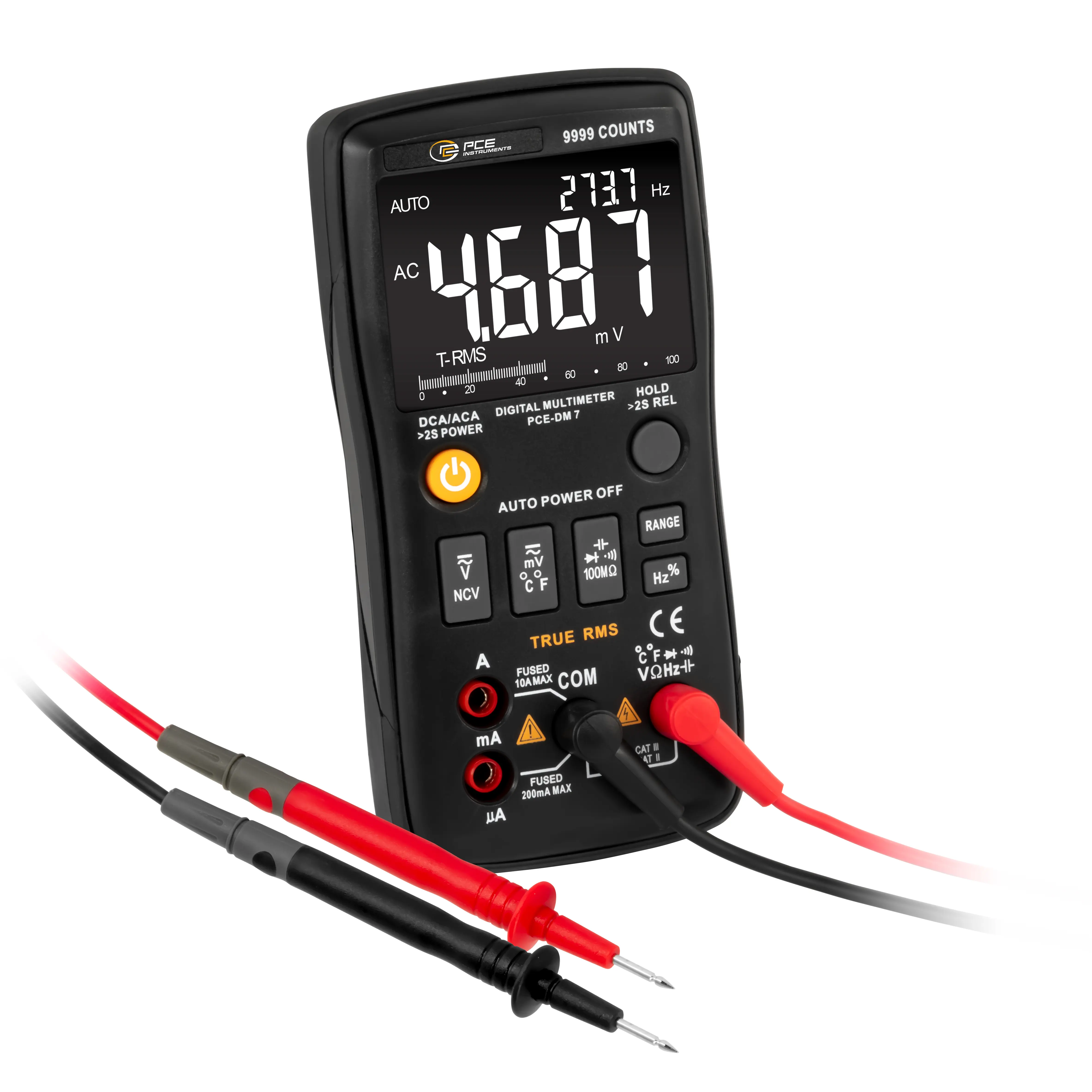

Voltmeter PCE-DM 7

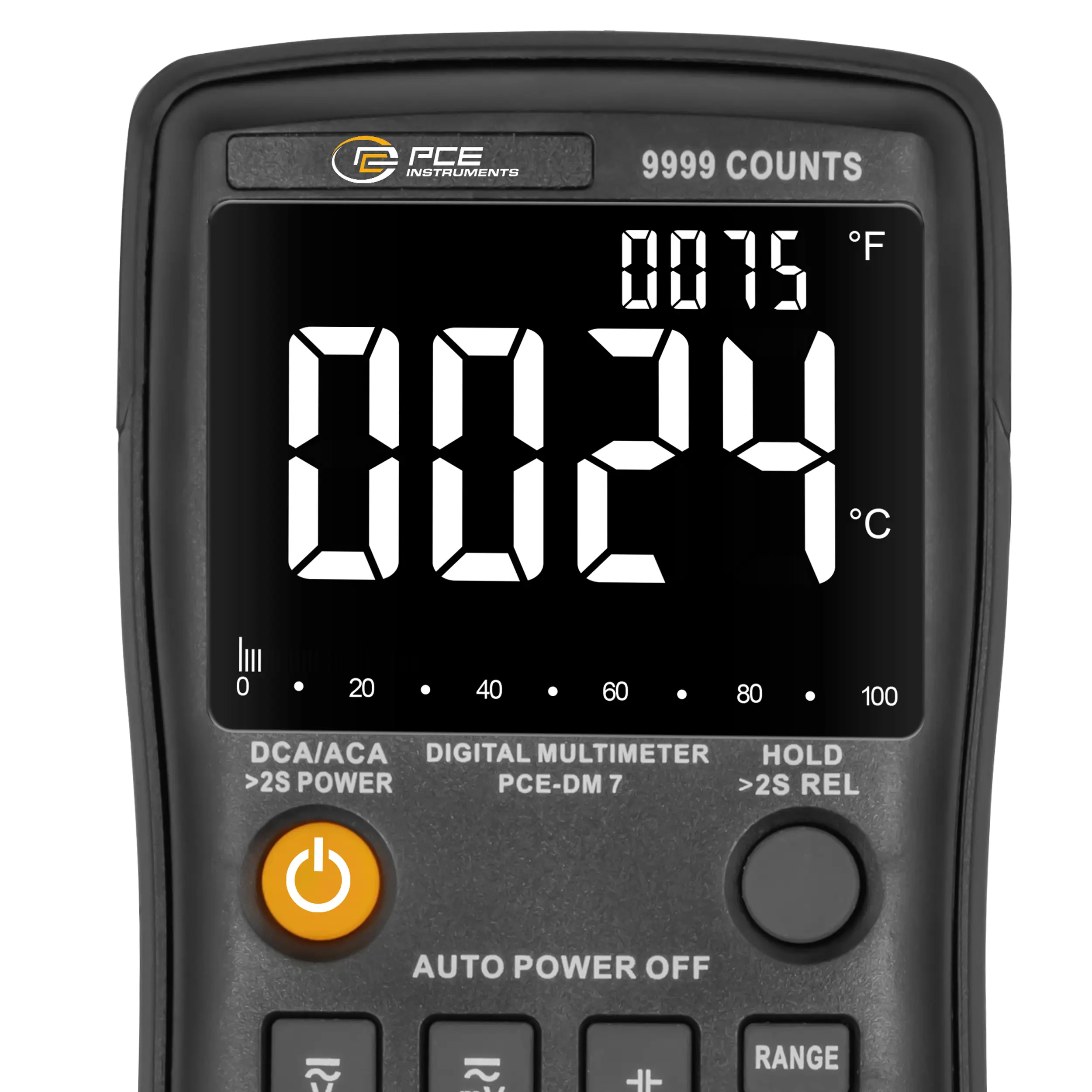

Voltmeter Frontal

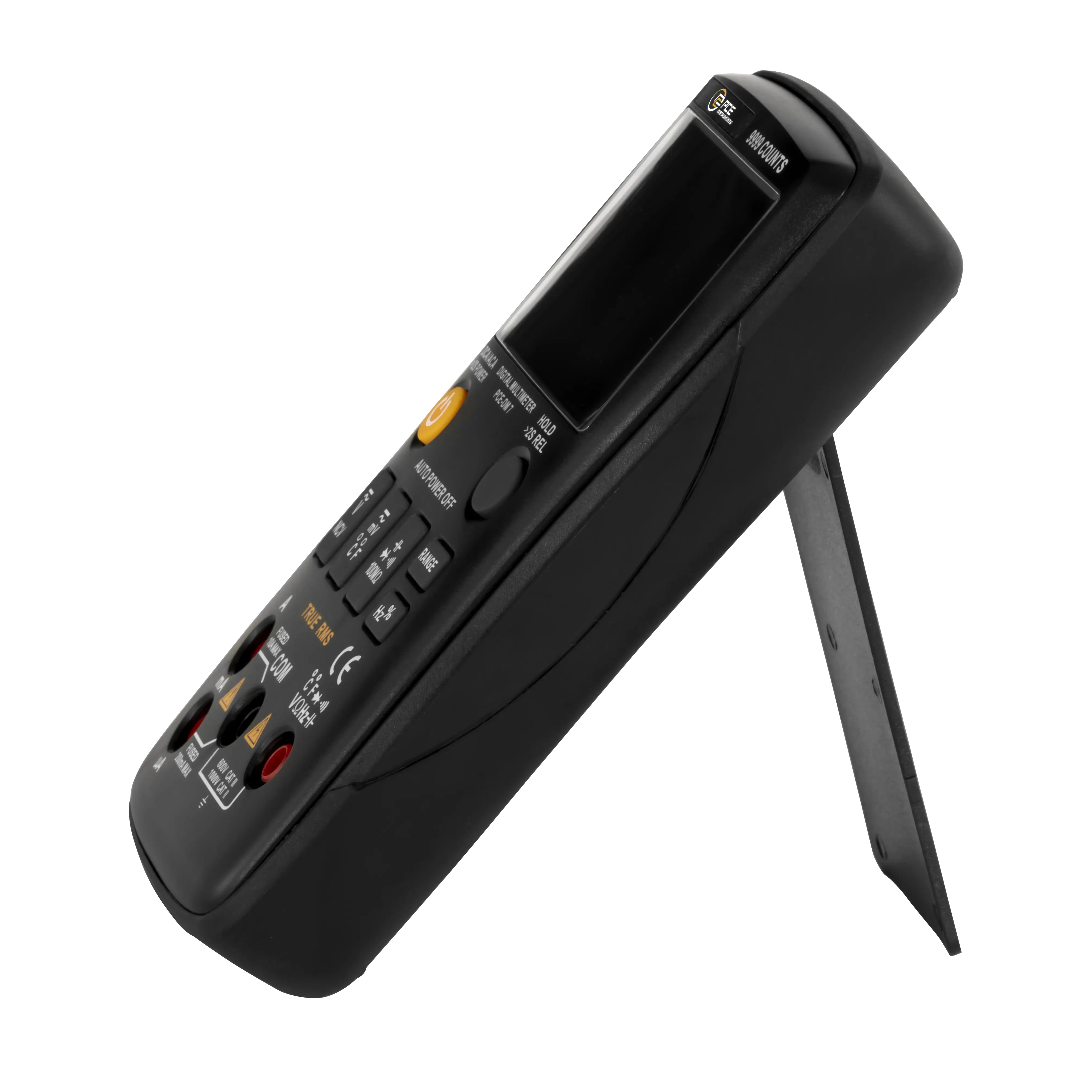

Voltmeter Side view

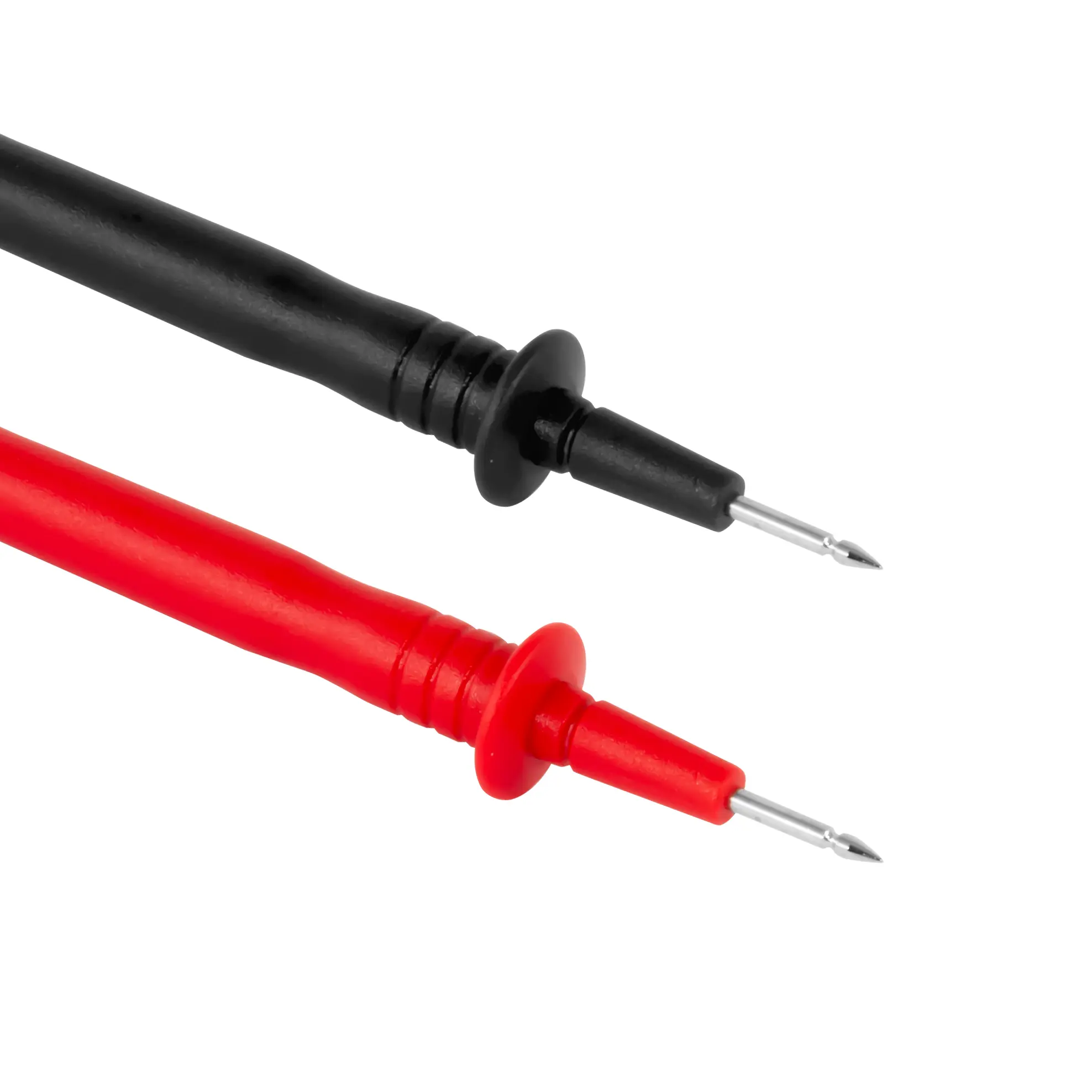

Voltmeter Measuring tip

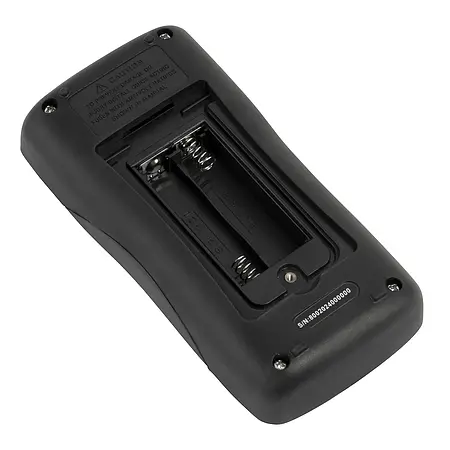

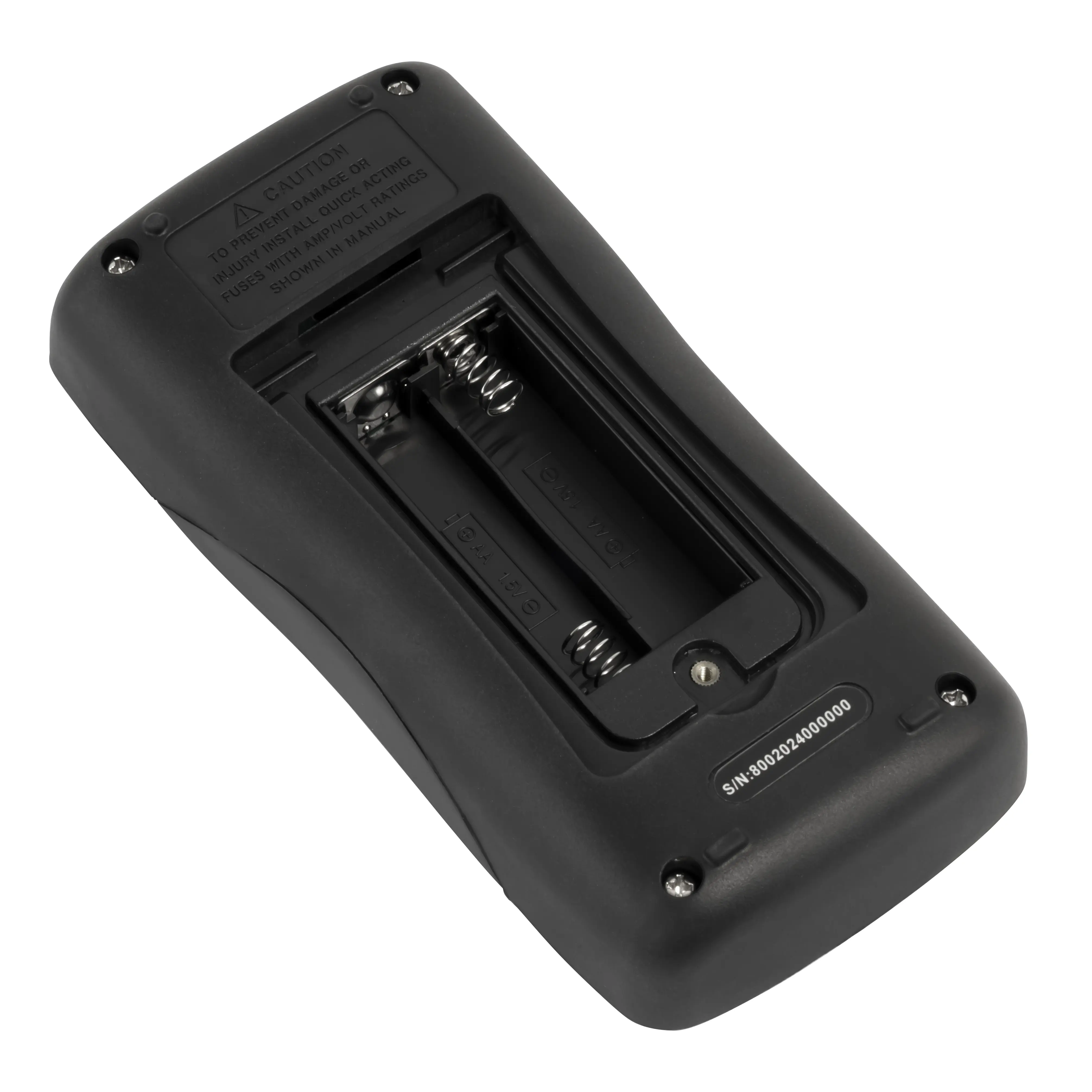

Voltmeter Rear side

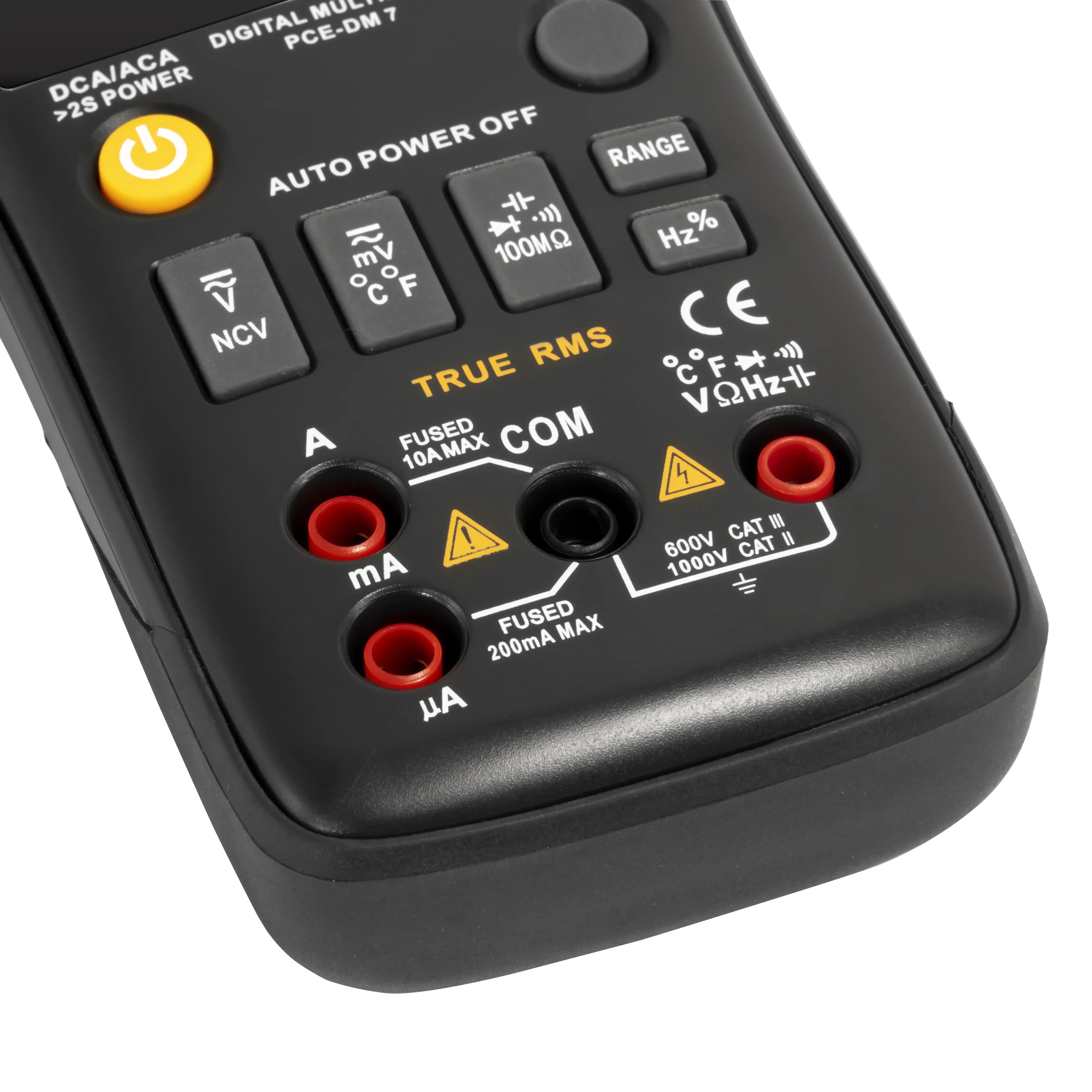

Voltmeter Control panel

Voltmeter Accessory

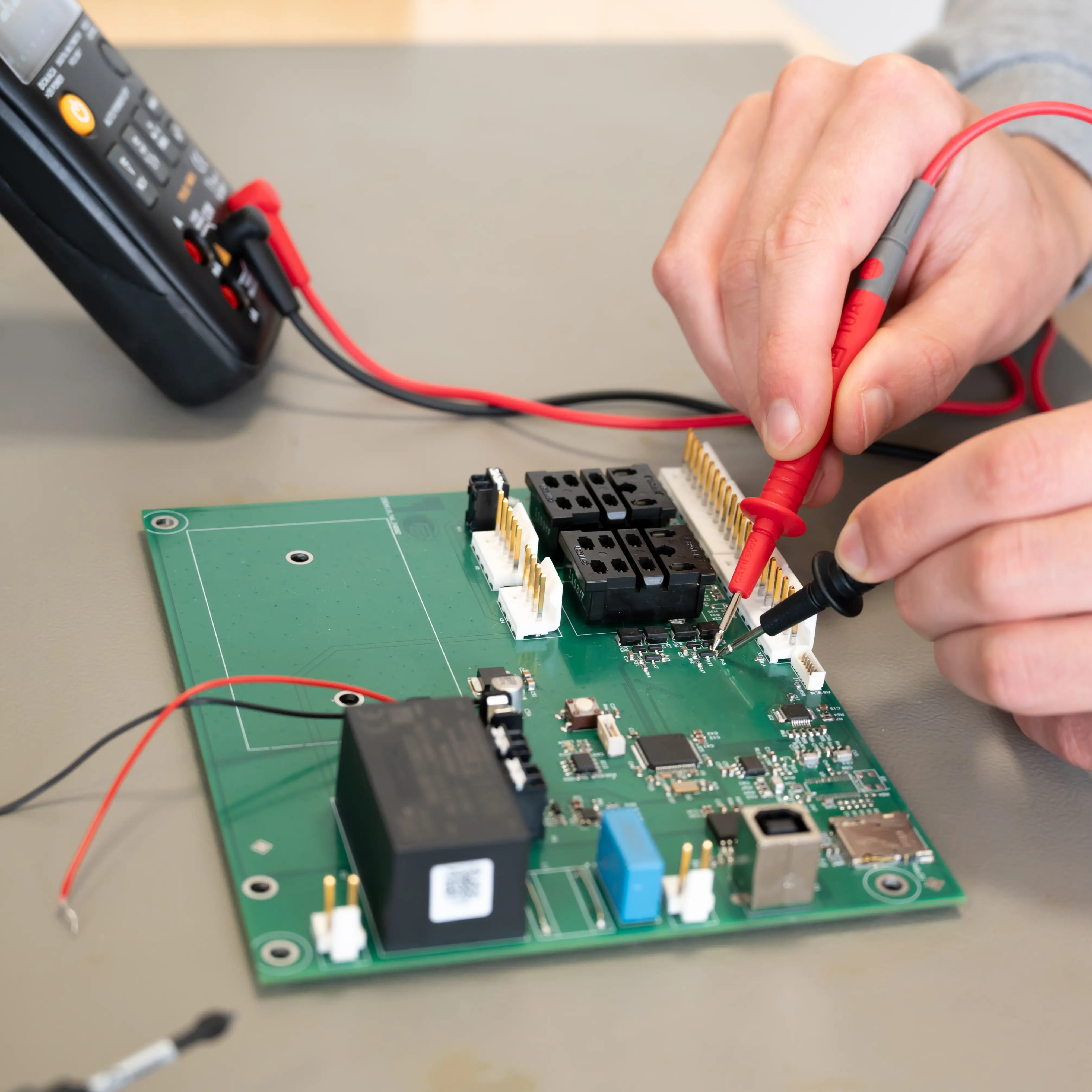

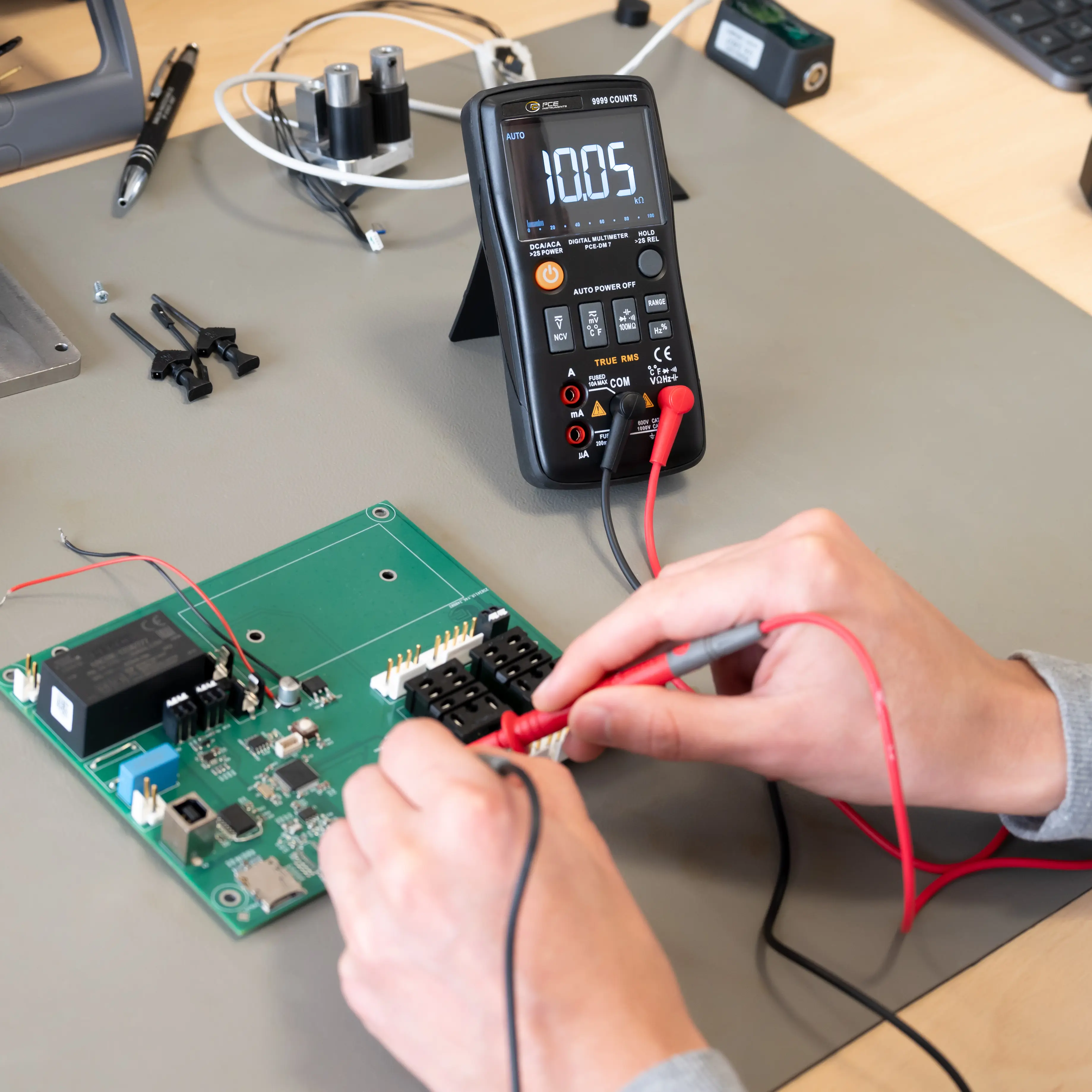

Voltmeter Application picture
