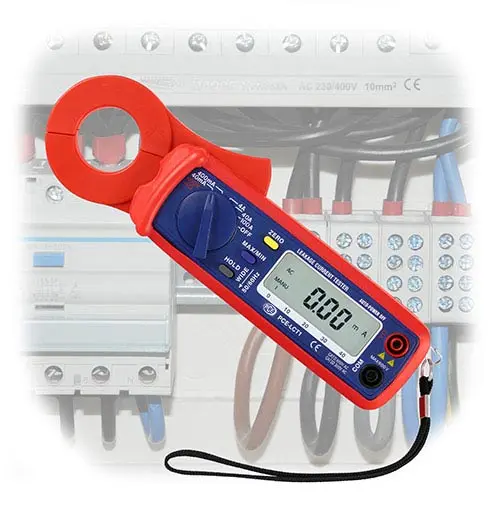

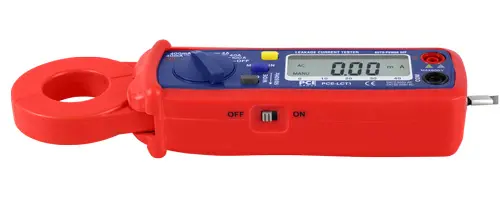

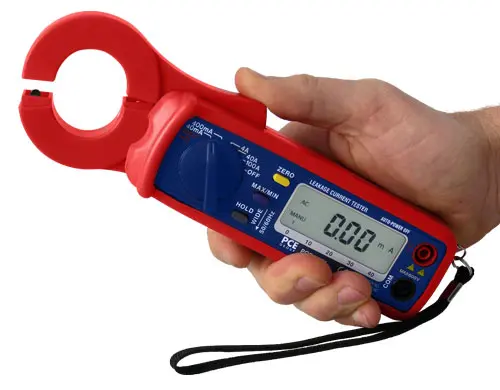

Voltmeter PCE-LCT 1

Name: Voltmeter PCE-LCT 1
Brand: PCE Instruments
SKU: 2131412
Price: 245 USD
Availability: InStock

Order no.: PCE-LCT 1

GTIN (EAN): 4250348707178

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Digital Voltmeter to test leakage current / RMS measurement /

continuity and resistance test / measures voltage up to 600 V

With the Voltmeter it is possible to measure leakage currents up to a range of 100 A. The Voltmeter can measure leakage currents which appear when current flows through electrical conductors which are not designed for conduction current. The Voltmeter can detect leakage currents and show them on the display. With the help of the Voltmeter you can detect insulation failures in places where machines cannot be disconnected, however insulation must be checked, as for instance according to the VDE 701/702 standard. The Voltmeter measures current flow, voltage up to 600 V, resistance and continuity. The Voltmeter is the ideal instrument for electricians according to the VDE standard. The Voltmeter has a compact design which allows to be placed in any pocket. The rubber protection protects the instrument against falls, so it is the ideal instrument to be used in electrical inspections and in workshops.

Highlights

- Measures leakage current
- Measures current up to 100 A
- Measures voltage up to 600 V
- Continuity test
- Measures resistance up to 400 Ω
- Digital bar graph
- High resolution
- Max./min. values are viewed on the display
- Rubber protector

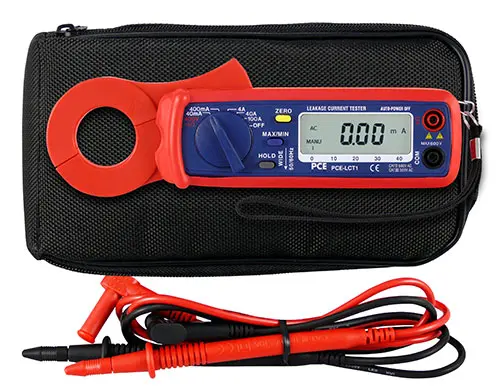

- Test cables are included

Specification

Technical Specifications
Leakage current and current (AC A)
Measurement ranges	Resolution	Accuracy
50 / 60 Hz	400 Hz ... 1 kHz
40 mA	10 µA	± (1 % + 0,5 mA)	± (4,5 % + 0,5 mA)
400 mA	100 µA	± (3 % + 5 mA)	± (3 % + 5 mA)
4 A	1 mA	± (4 % + 0,1 mA)	± (4 % + 0,1 A)
40 A	10 mA	± (4 % + 1 A)	± (4 % + 1 A)
80 A	10 mA	± (2,5 % + 1 A)	± (3 % + 1 A)
80 A - 100 A	100 mA	± (5 % + 1 A)	± (5 % + 1 A)
Voltage (AC V)
Measurement ranges	Resolution	Accuracy
50 / 60 Hz	400 Hz ... 1 kHz
400 V	1 V	± (1,5 % + 2 digits)	± (2 % + 4 digits)
Resistance
Measurement ranges	Resolution
Accuracy	Alarm
400 Ω	0,1 Ω	± (1 % + 2 digits)	Measurement value <38Ω
General Technical Specifications
Display		3 3/4
Measured electrical properties		AC V, AC A, resistance
Security standards		CAT III 300 V / CAT II 600 V
Diameter of the clip		30 mm
Input impedance		10 MΩ
Registration rate		2 Hz (numerical values), 20 Hz (bar graph)
Operating temperature		-10 ºC ... 50 ºC / 14 ºF ... 122 ºF
Operating humidity		<85 % H.r.
Storing temperature		-20 ºC ... 60 ºC / -4 ºF ... 140 ºF
Auto shut-off		after 30 minutes
Power		9 V battery
Input current		10 mA
Weight		200 g / 7 oz
Dimensions		210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in
