Voltmeter PCE-OC 15

Name: Voltmeter PCE-OC 15
Brand: PCE Instruments
SKU: 6311020
Price: 150 USD
Availability: InStock

Order no.: PCE-OC 15

GTIN (EAN): 4250348736116

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Voltmeter / integrated multimeter / voltage / current / frequency / resistance / temperature / capacitance / diode test / continuity test

The Voltmeter was developed for practical and mobile use and can be used universally thanks to its diverse measurement functions. Our Voltmeter reliably measures voltage, current, frequency, resistance, temperature, capacitance and offers a diode and continuity test. The MODE key makes it easy to switch between digital multimeter and Voltmeter mode. With a bandwidth of 10 MHz and a fast sampling rate of 48 MSa/s, it ensures precise and quick data acquisition.

The device supports the storage of waveform data which can be exported as images and transferred to a PC. An LED backlight with adjustable brightness and power-off time as well as multifunctional keys make operation easier for the user. With a rechargeable battery via the C-type interface and a long standby time, the Voltmeter multimeter is ideal for long working hours, while the measured values are updated three times per second to always provide up-to-date data. The hand-held Voltmeter multimeter is an ideal companion for service technicians on site or in any electrical workshop.

Highlights

- multimeter with oscilloscope functions

- bandwidth 10 MHz

- sampling rate up to 48 MSa/s

- LC display with 4 brightness levels

- auto measurement range selection

- USB-C interface

Specification

Direct voltage DC
Measurement range up to	0 ... 9,999 mV
Resolution	0,001 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	10 ... 99,99 mV
Resolution	0,01 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	100 ... 999,9 mV
Resolution	0,1 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	1 ... 9,999 V
Resolution	0,001 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	10 ... 99,99 V
Resolution	0,01 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to	100 ... 999,9 V
Resolution	0,1 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct current DC
Measurement range up to	0 ... 9999 µA
Resolution	1 µA
Accuracy	±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to	10 ... 99,99 mA
Resolution	0,01 mA
Accuracy	±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to	100 ... 999,9 mA
Resolution	0,1 mA
Accuracy	±(1 % of Rd +3 digits)

Direct current DC
Measurement range up to	1 ... 9,999 A
Resolution	0,001 A
Accuracy	±(1 % of Rd +3 digits)

Capacity
Measurement range up to	0 ... 9,999 nF
Resolution	0,001 nF
Accuracy	±(5 % of Rd +20 digits)

Capacity
Measurement range up to	10 ... 99,99 nF
Resolution	0,01 nF
Accuracy	±(2 % of Rd +5 digits)

Capacity
Measurement range up to	100 ... 999,9 nF
Resolution	0,1 nF
Accuracy	±(2 % of Rd +5 digits)

Capacity
Measurement range up to	1 ... 9,999 µF
Resolution	0,001 µF
Accuracy	±(2 % of Rd +5 digits)

Capacity
Measurement range up to	10 ... 99,99 µF
Resolution	0,01 µF
Accuracy	±(2 % of Rd +5 digits)

Capacity
Measurement range up to	100 ... 999,9 µF
Resolution	0,1 µF
Accuracy	±(5 % of Rd +5 digits)

Capacity
Measurement range up to	1 ... 9,999 mF
Resolution	0,001 mF
Accuracy	±(5 % of Rd +5 digits)

Capacity
Measurement range up to	10 ... 99,99 mF
Resolution	0,01 mF
Accuracy	±(5 % of Rd +5 digits)

AC voltage
Measurement range up to	0 ... 9,999 mV
Resolution	0,001 mV
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	10 ... 99,99 mV
Resolution	0,01 mV
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	100 ... 999,9 mV
Resolution	0,1 mV
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	1 ... 9,999 V
Resolution	0,001 V
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	10 ... 99,99 V
Resolution	0,01 V
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measurement range up to	100 ... 750 V
Resolution	0,1 V
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	0 ... 9999 µA
Resolution	1 µA
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	10 ... 99,99 mA
Resolution	0,01 mA
Accuracy	±(1 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	100 ... 999,9 mA
Resolution	0,1 mA
Accuracy	±(1.2 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measurement range up to	1 ... 9,999 A
Resolution	0,001 A
Accuracy	±(1.2 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Resistance
Measurement range up to	0 ... 99,99 Ω
Resolution	0,01 Ω
Accuracy	±(1 % of Rd +3 digits)

Resistance
Measurement range up to	100 ... 999,9 Ω
Resolution	0,1 Ω
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	1000 Ω ... 9,999 kΩ
Resolution	0,001 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	10 ... 99,99 kΩ
Resolution	0,01 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	100 ... 999,9 kΩ
Resolution	0,1 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to	1000 kΩ ... 9,999 M Ω
Resolution	0,001 mΩ
Accuracy	±(1.5 % of Rd +3 digits)

Resistance
Measurement range up to	10 ... 99,99 M Ω
Resolution	0,01 mΩ
Accuracy	±(3 % of Rd +5 digits)

Frequency
Measurement range up to	0 ... 99,99 Hz
Resolution	0,01 Hz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	100 ... 999,9 Hz
Resolution	0,1 Hz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	1000 Hz ... 9,999 kHz
Resolution	0,001 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	10 ... 99,99 kHz
Resolution	0,01 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to	100 ... 999,9 kHz
Resolution	0,1 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Temperature
Measurement range up to	-20 ... +1000 °C
Resolution	1 °C
Accuracy	±(2.5 % of Rd +5 digits)

Temperature
Measurement range up to	-4 ... +1832 °F
Resolution	1 °F
Accuracy	±(2.5 % of Rd +5 digits)

Oscilloscope specifications
Number of channels	1
Measuring functions	Period, Frequency, Peak-peak, MAX, MIN, RMS value
Sampling rate	48 MSa/s
Input impedance	1 M Ω
Probe factors	X1, X10
Max. input voltage	150 V
Adjustable sampling rate	1.5 Sa/s ... 48 MSa/s
Time base	100 ns/div ... 20 s/div
Accuracy	20 ppm
Vertical sensitivity	20 mV/div ... 10 V/div
Rise time	10 ns
DC gain accuracy	±3 %

General technical data
Display type	LCD
Display size	2,76 Inch
Measuring rate	3 Hz
Storage medium	Internal memory
Storage capacity	15 MB
Memory information	Screenshot on keystroke
Interface	USB-C, BNC
Automatic power-off from...to	15 ... 120 min.
Automatic power-off can be deactivated	Yes
Safety standard	CAT III 600 V, CAT II 1000 V
Fuse(s)	Microfuse 10 A
Trigger input	Mode: auto, normal, single Edge: rising, falling
Menu language	English, Chinese, English (GB)
Protection class (device)	IP20
Power supply	100 ... 240 V AC \| 50/60 Hz
Weight	352 g
Operating conditions	0 ... 40 °C , 0 ... 75 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
(Rechargeable) battery	1 x 3,7 V 18650 , lithium
Capacity	2000 mAh
Dimensions ( L x W x H )	175 x 90 x 40 mm

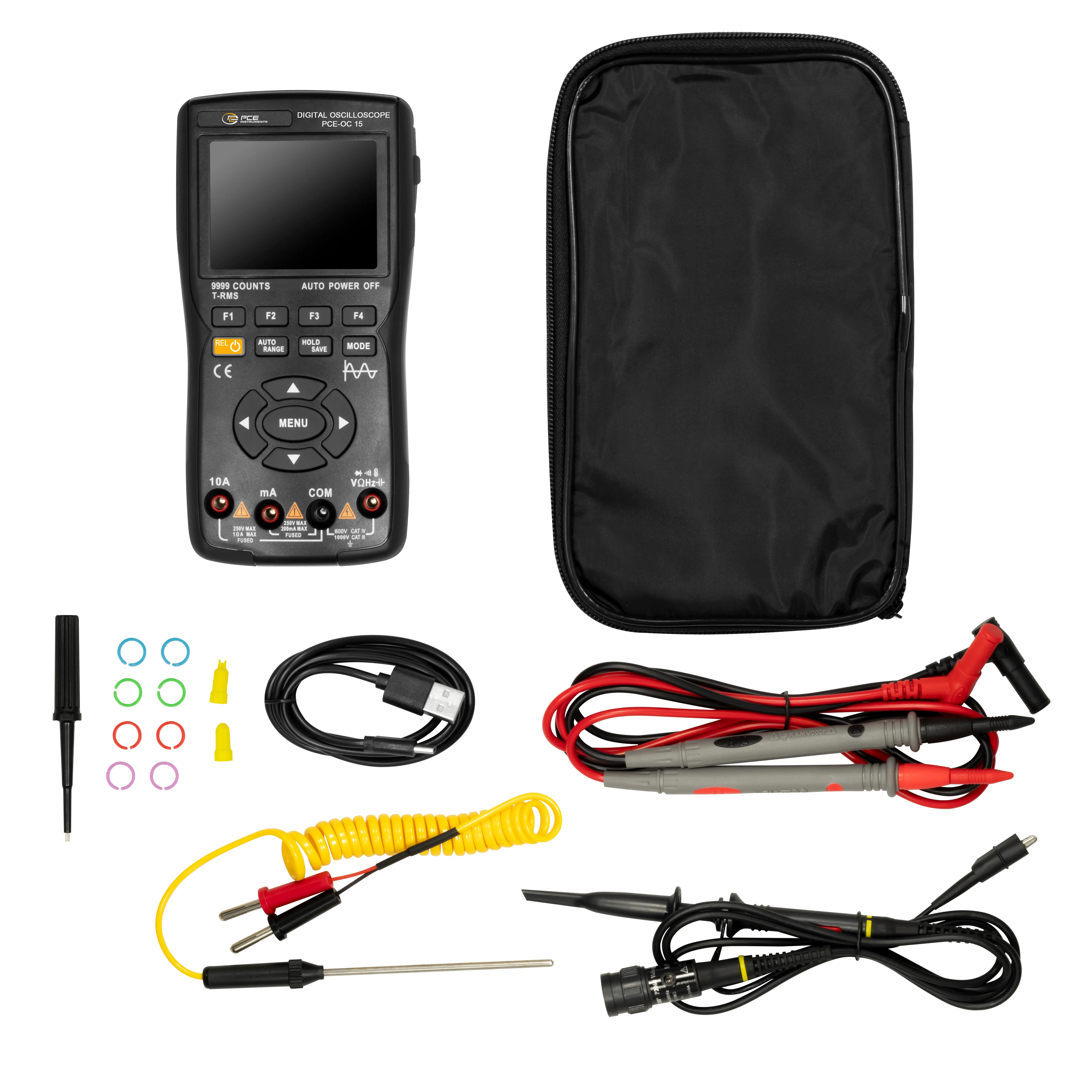

Delivery Scope

1 x Voltmeter PCE-OC 15

1 x set of test leads

1 x Voltmeter probe

1 x temperature sensor

1 x USB-C cable

1 x user manual

1 x probe accessories

Downloads

Datasheet

CE Certificate

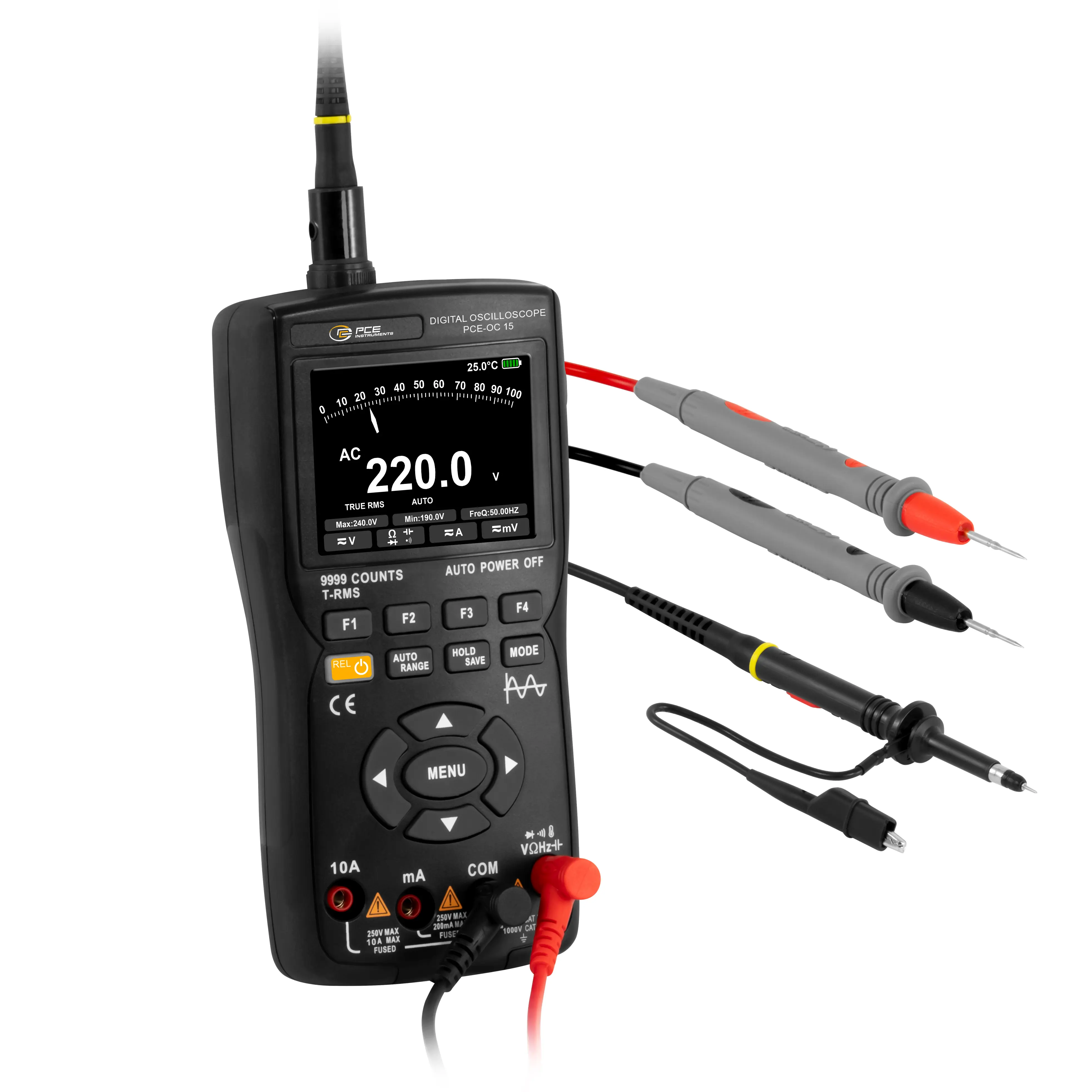

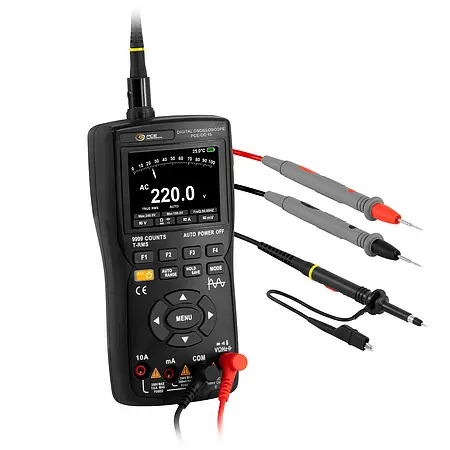

Voltmeter PCE-OC 15

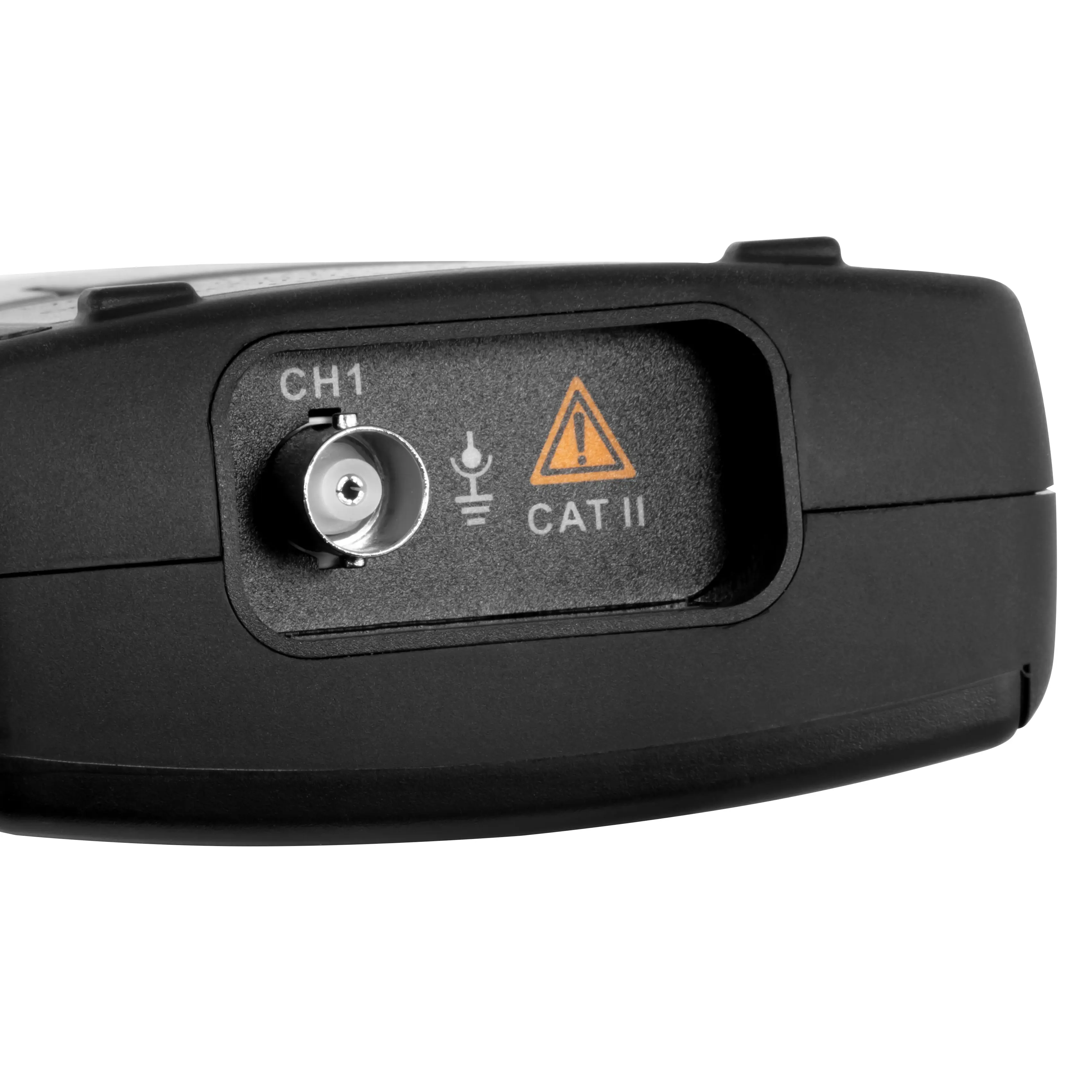

Voltmeter Connections

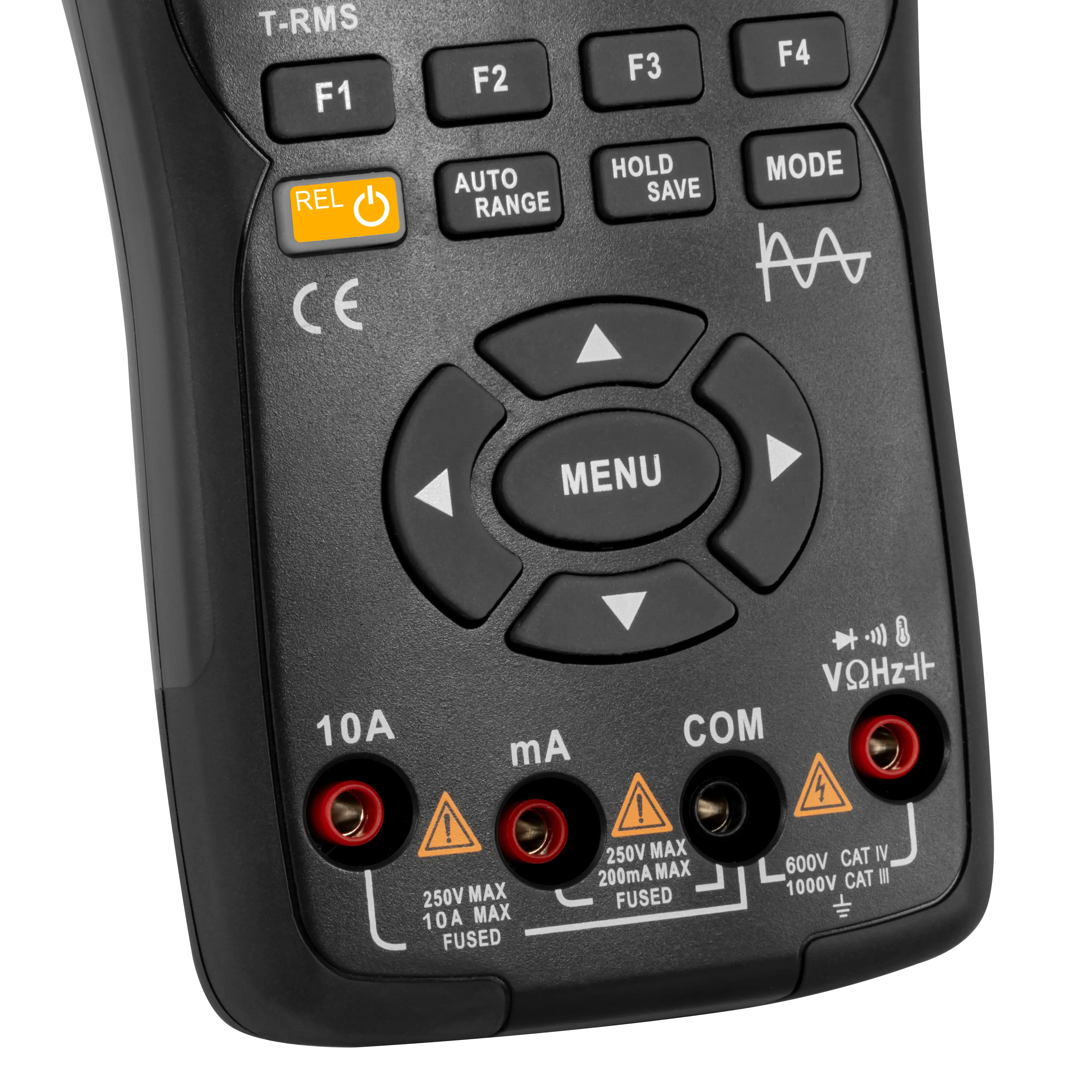

Voltmeter Connections

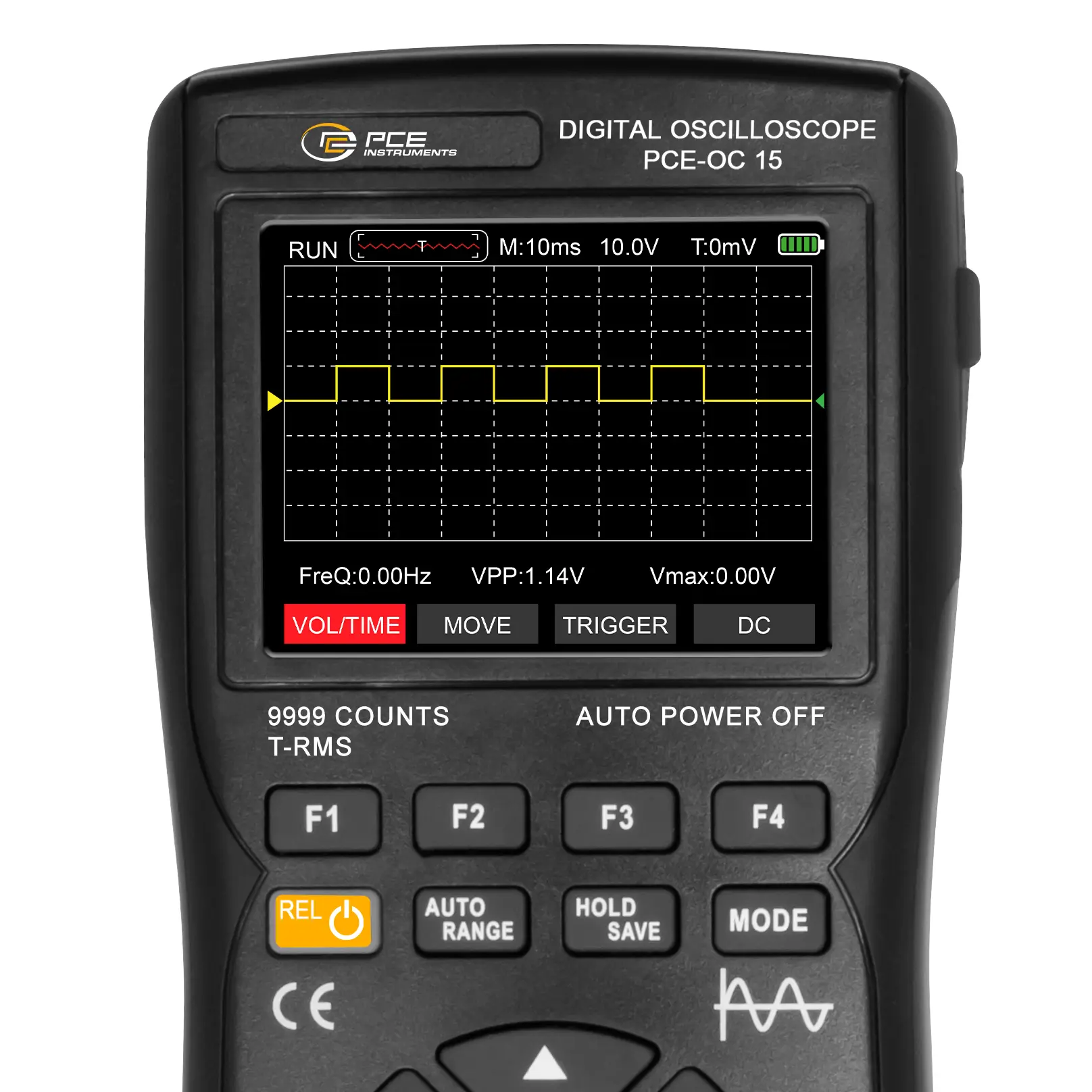

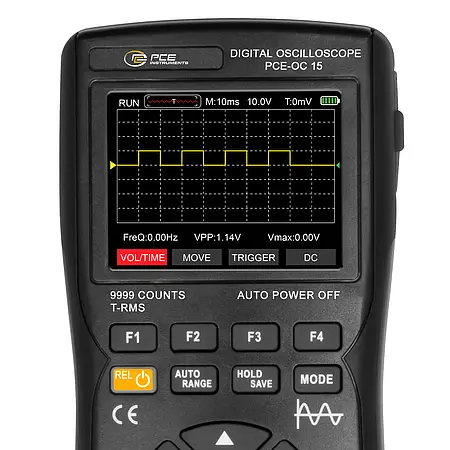

Voltmeter Display

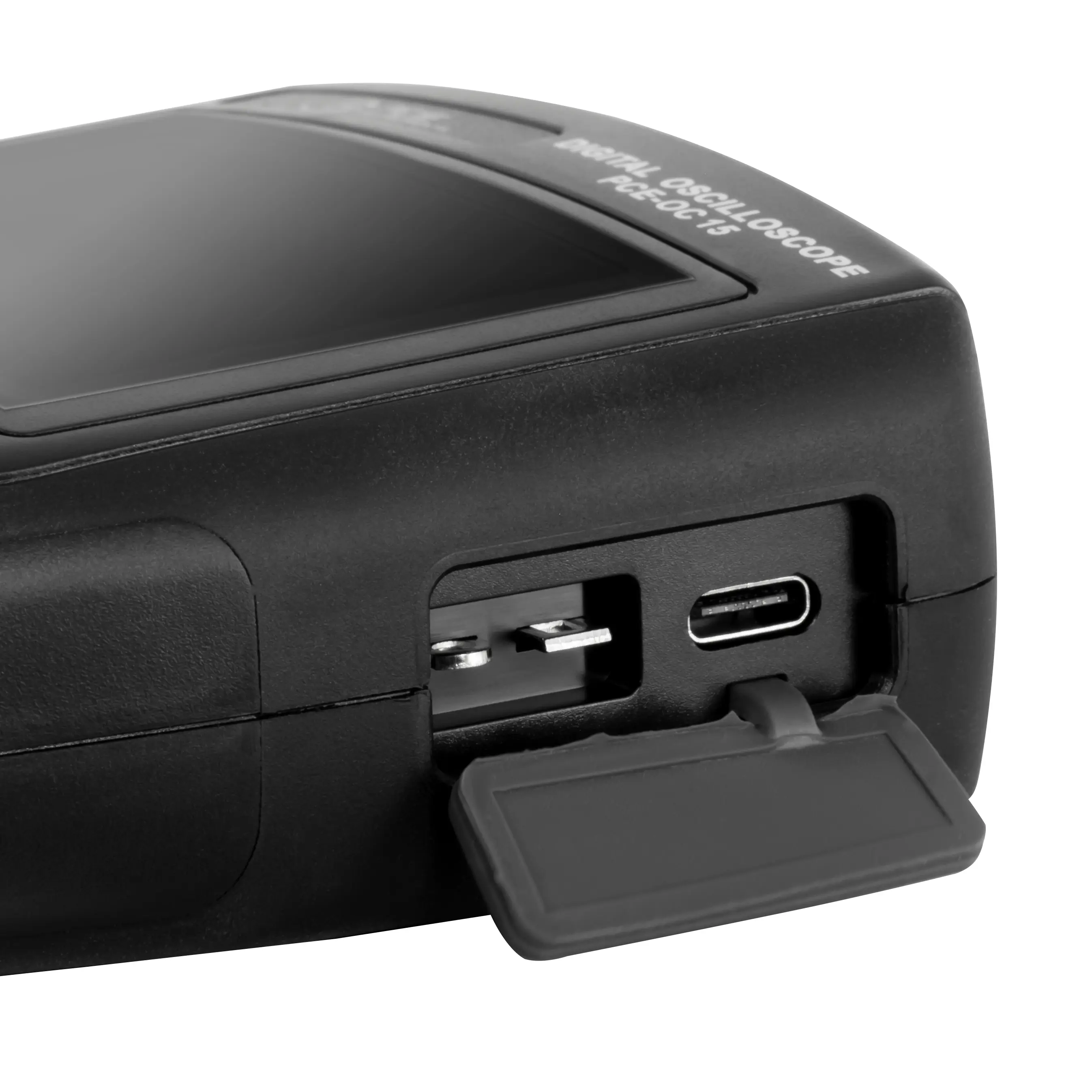

Voltmeter USB

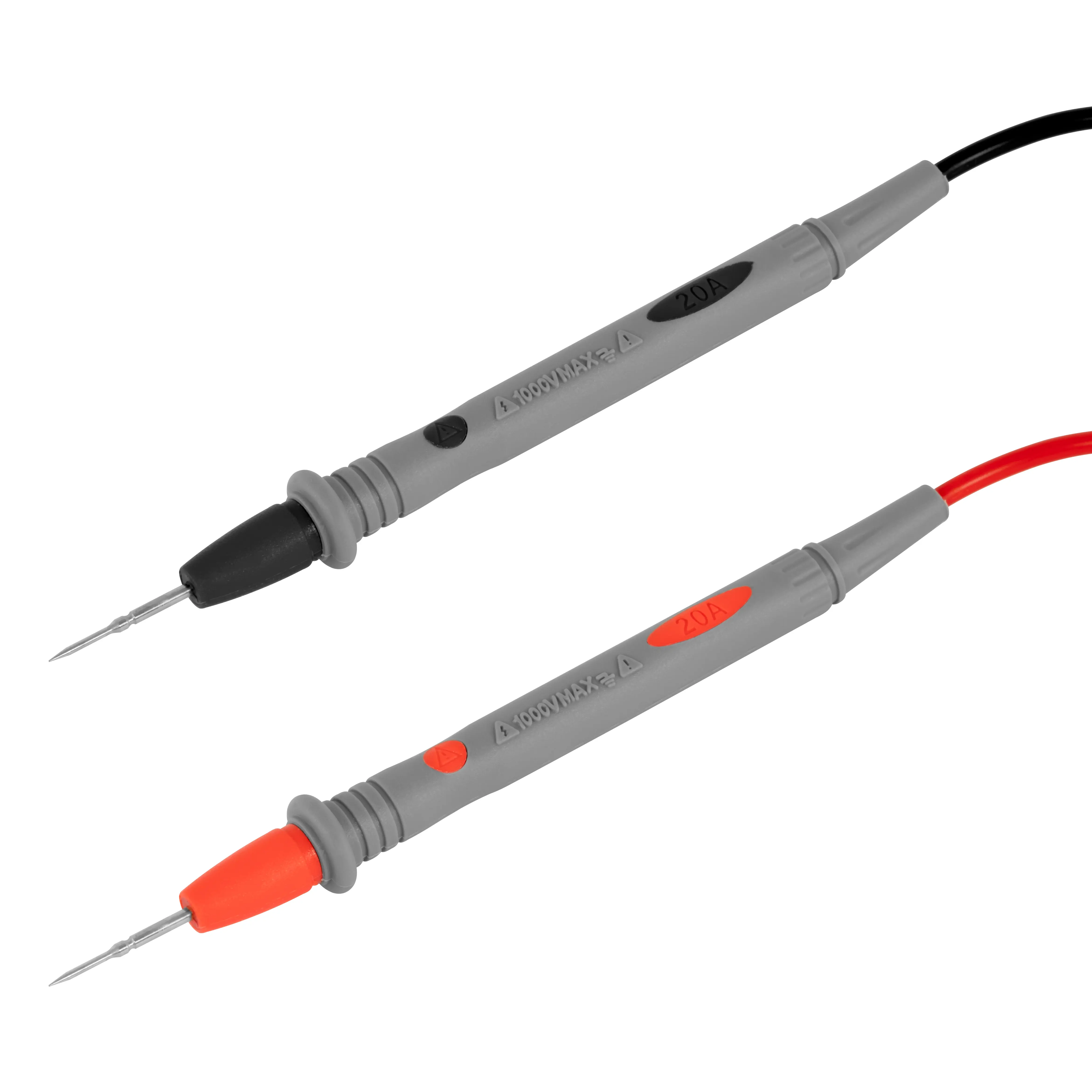

Voltmeter Measuring tip

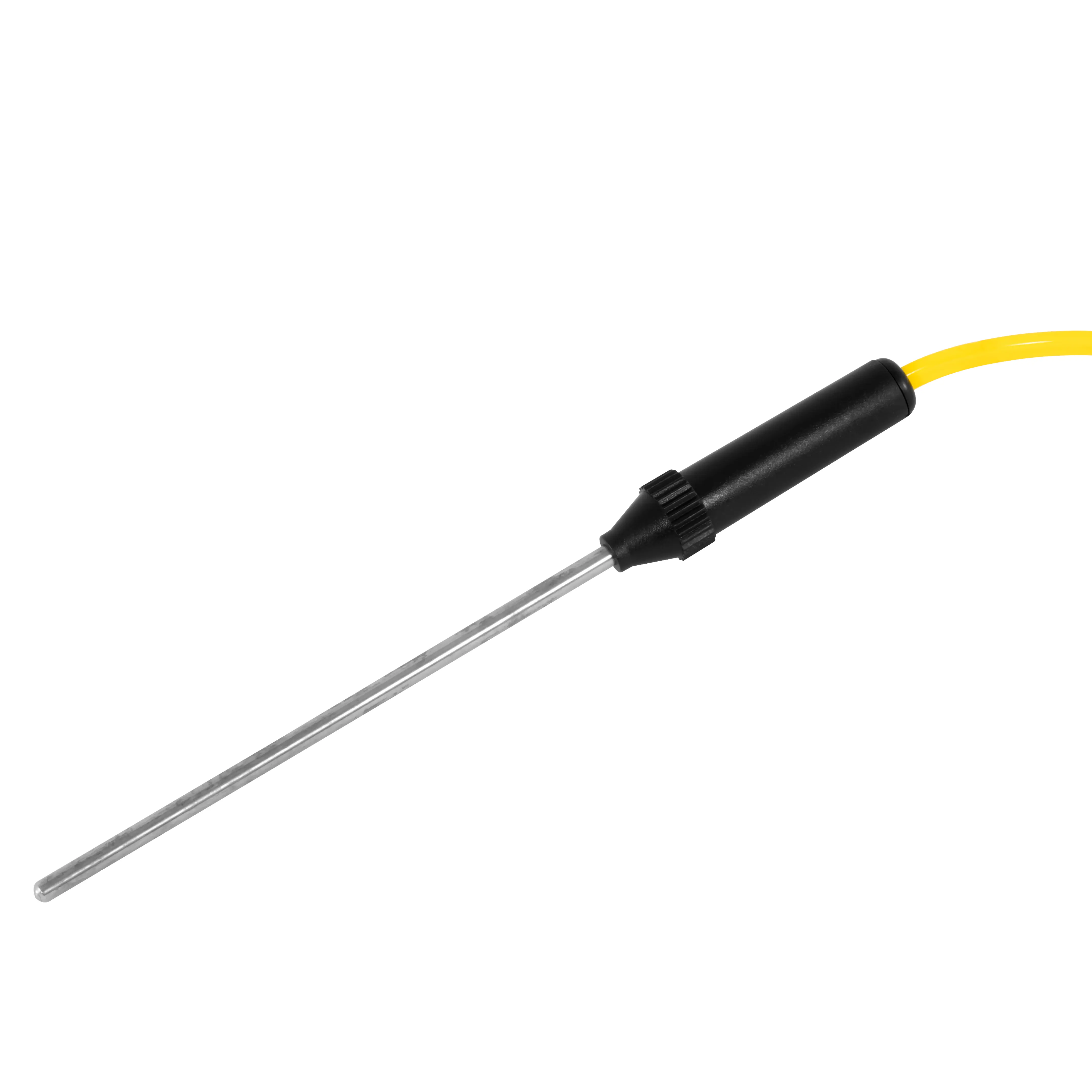

Voltmeter Temperaturfühler

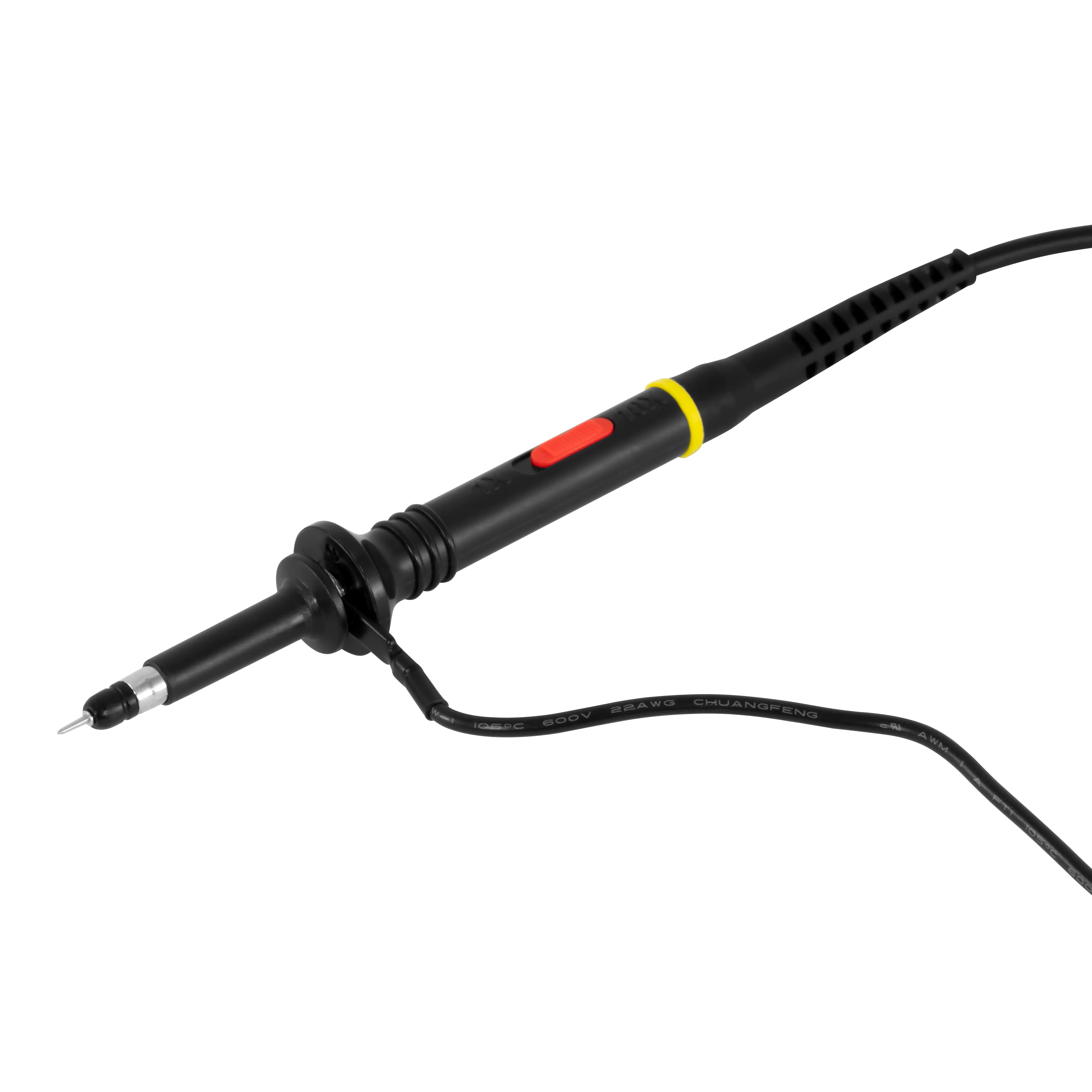

Voltmeter Measuring tip

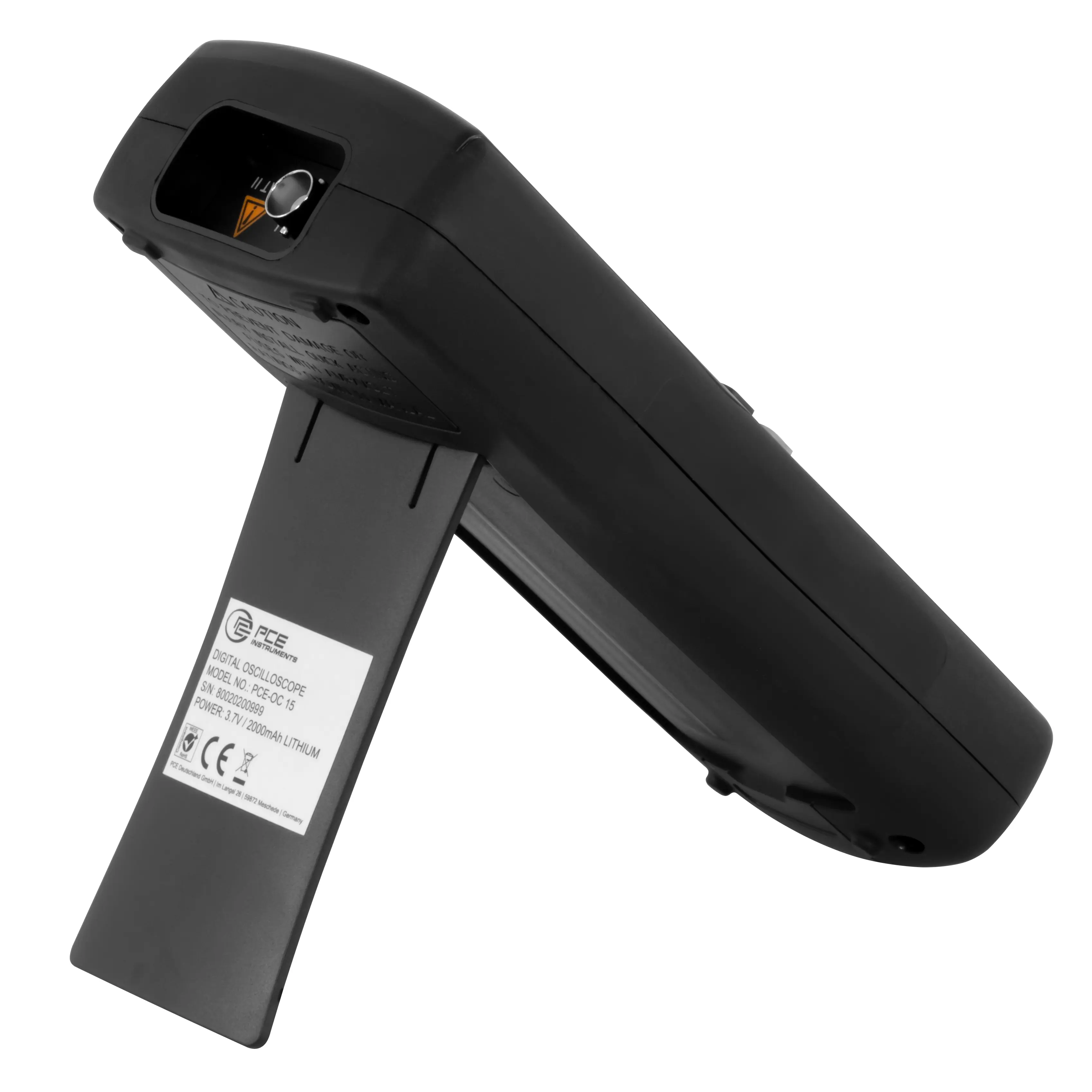

Voltmeter Foot
